EP91R-AGMNKQ (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

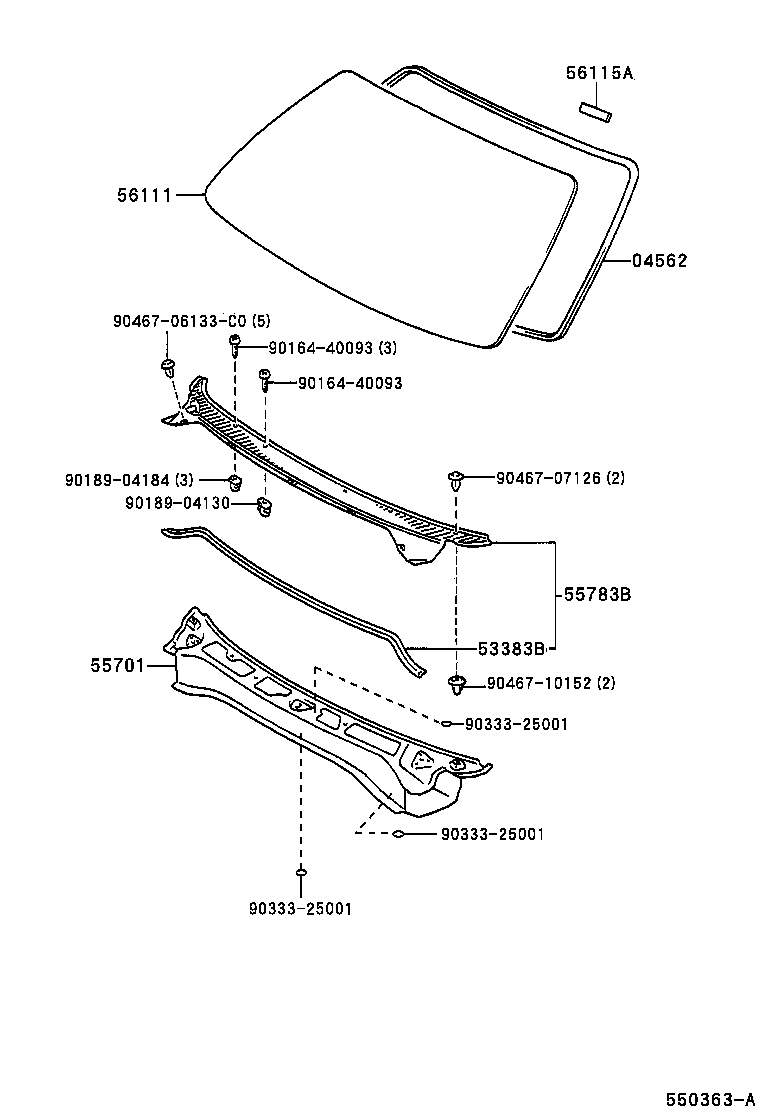

Click highlighted areas on diagram

diagram 04562 53383B 55701 55783B 56111 56115A 9016440093 9016440093 9018904130 9018904184 9033325001 9033325001 9033325001 9046706133C0 9046707126 9046710152
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-12010

EP9#

 1
53383B - SEAL, HOOD TO COWL TOP
53383-10040

EP9#

 1
55701 - PANEL SUB-ASSY, COWL
55700-10270

EP91

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55708-10050

EP9#..RHD

 1
56111 - GLASS, WINDSHIELD
56111-10370

EP9#

*LAM,T=4.7,GREEN

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-10010

EP9#

 2
Common parts
90164-40093
90189-04130
90189-04184
90333-25001
90467-06133C0
90467-07126
90467-10152
