EP91R-AGMNKQ (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

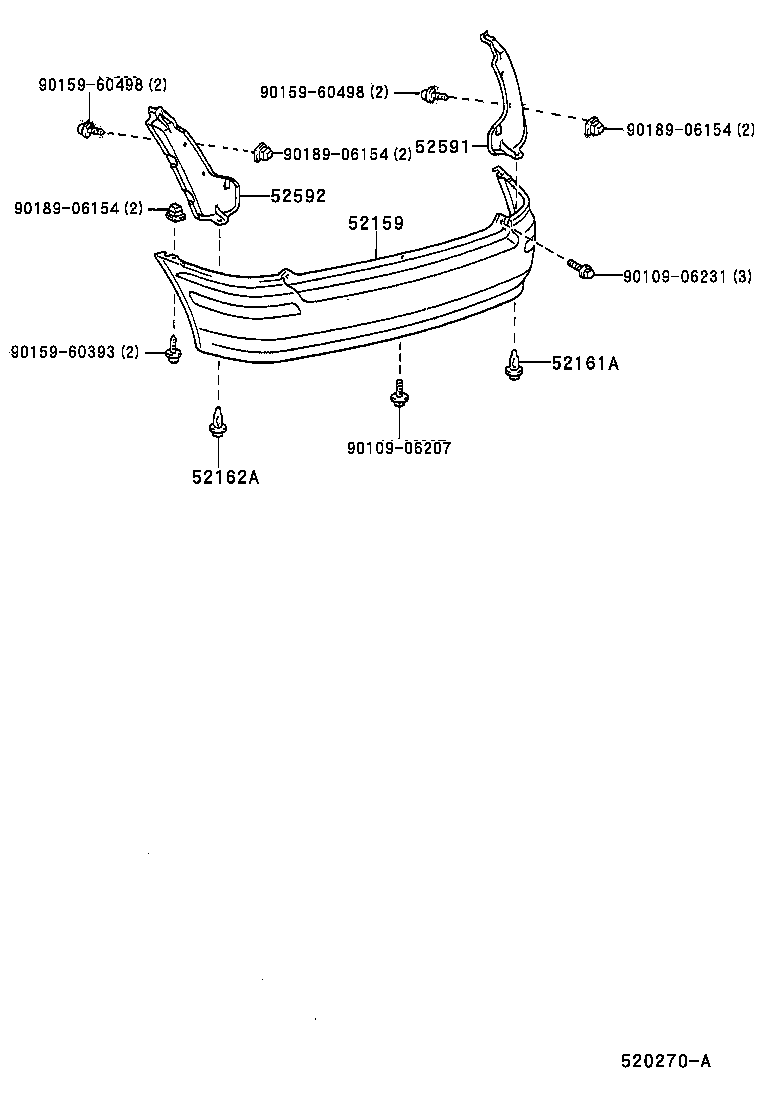

Click highlighted areas on diagram

diagram 52159 52161A 52162A 52591 52592 9010906207 9010906231 9015960393 9015960498 9015960498 9018906154 9018906154 9018906154
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-10220

EP9#

 1
52161A - PIECE, REAR BUMPER, RH
52161-16010

EP9#

 1
52162A - PIECE, REAR BUMPER, LH
52161-16010

EP9#

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-10050

EP9#

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-10020

EP9#

 1
Common parts
90109-06207
90109-06231
90159-60393
90159-60498
90189-06154
