EP91R-AGMNKQ (1996)
Toyota Starlet
Production
Jan 1996
-
Jul 1999
Engine
4EFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9601- )

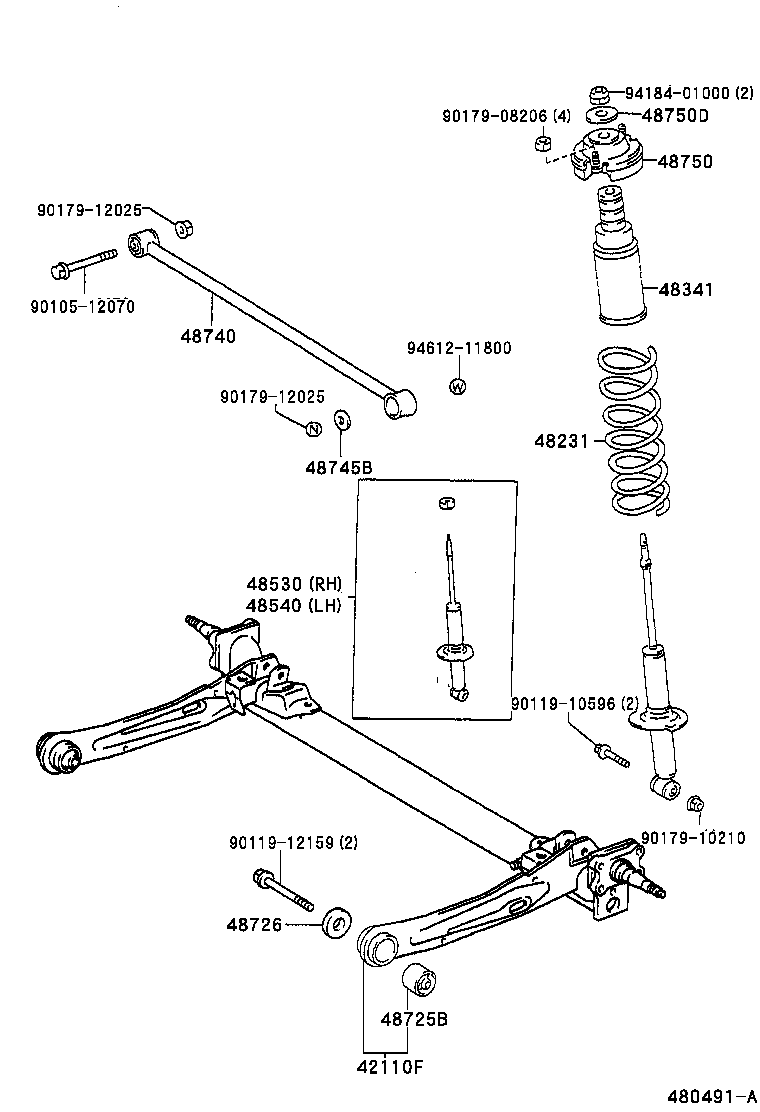

Click highlighted areas on diagram
W(REAR AXLE BEAM COVER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42110-10130 |
EP9# |
1 | ||
| 42110-10150 |
EP9# W(ABS) |
1 | ||
| 48231 - SPRING, COIL, REAR | ||||
| 48231-10360 |
EP91 |
2 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-16100 |
EP9# |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-19775 |
EP9# |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-19775 |
EP9# |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-16080 |
EP9# |
1 | ||
| 48745B - WASHER, LATERAL CONTROL ROD CUSHION | ||||
| 90201-12037 |
EP9# |
1 | ||
| 48750 - SUPPORT ASSY, REAR SUSPENSION | ||||
| 48750-16100 |
EP9# |
2 | ||
| 48750D - RETAINER(FOR REAR SUPPORT TO REAR SHOCK ABSORBER) | ||||
| 48597-10010 |
EP9# |
2 | ||
| 90948-02082 |
EP9# |
2 | ||
| Common parts | ||||
| 90105-12070 | ||||
| 90119-10596 | ||||
| 90119-12159 | ||||
| 90179-08206 | ||||
| 90179-10210 | ||||
| 90179-12136 | ||||
| 94184-01000 | ||||
| 94184-01001 | ||||
| 94612-11001 | ||||
| 94612-11800 | ||||
(9601- )

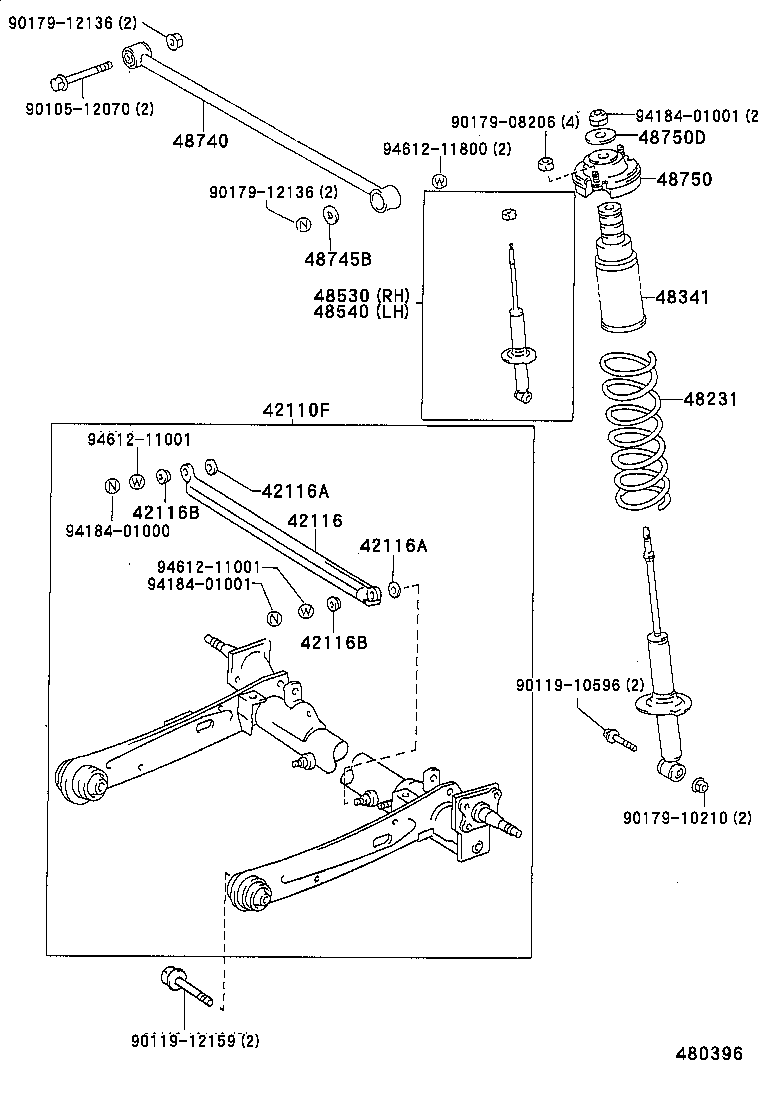

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42110F - BEAM ASSY, REAR AXLE | ||||
| 42110-10130 |
EP9# |
1 | ||
| 42110-10150 |
EP9# W(ABS) |
1 | ||
| 48231 - SPRING, COIL, REAR | ||||
| 48231-10360 |
EP91 |
2 | ||
| 48341 - BUMPER, REAR SPRING | ||||
| 48341-16100 |
EP9# |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-19775 |
EP9# |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-19775 |
EP9# |
1 | ||
| 48725B - BUSH, REAR SUSPENSION ARM, NO.1 | ||||
| 48725-10040 |
EP9# |
1 | ||
| 48726 - SEAT, REAR SUSPENSION ARM | ||||
| 48726-46010 |
EP9# |
2 | ||
| 48726-16010 |
EP9# |
2 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-16080 |
EP9# |
1 | ||
| 48745B - WASHER, LATERAL CONTROL ROD CUSHION | ||||
| 90201-12037 |
EP9# |
1 | ||
| 48750 - SUPPORT ASSY, REAR SUSPENSION | ||||
| 48750-16100 |
EP9# |
2 | ||
| 48750D - RETAINER(FOR REAR SUPPORT TO REAR SHOCK ABSORBER) | ||||
| 48597-10010 |
EP9# |
2 | ||
| 90948-02082 |
EP9# |
2 | ||
| Common parts | ||||
| 90105-12070 | ||||
| 90119-10596 | ||||
| 90119-12159 | ||||
| 90179-08206 | ||||
| 90179-10210 | ||||
| 90179-12025 | ||||
| 94184-01000 | ||||
| 94612-11800 | ||||
