EP91R-AGMNKQ (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9601- )

Click highlighted areas on diagram

diagram 43211K 43212D
Part # Description Qty Price
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-15004

EP9#

OD=13.9

 1
90105-15012

EP9#

OD=15.0

 2
90105-15006

EP9#

OD=12.4

 1
90105-15005

EP9#

OD=13.3

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-15012

EP9#

OD=15.0

 2
90105-15005

EP9#

OD=13.3

 1
90105-15006

EP9#

OD=12.4

 1
90105-15004

EP9#

OD=13.9

 1

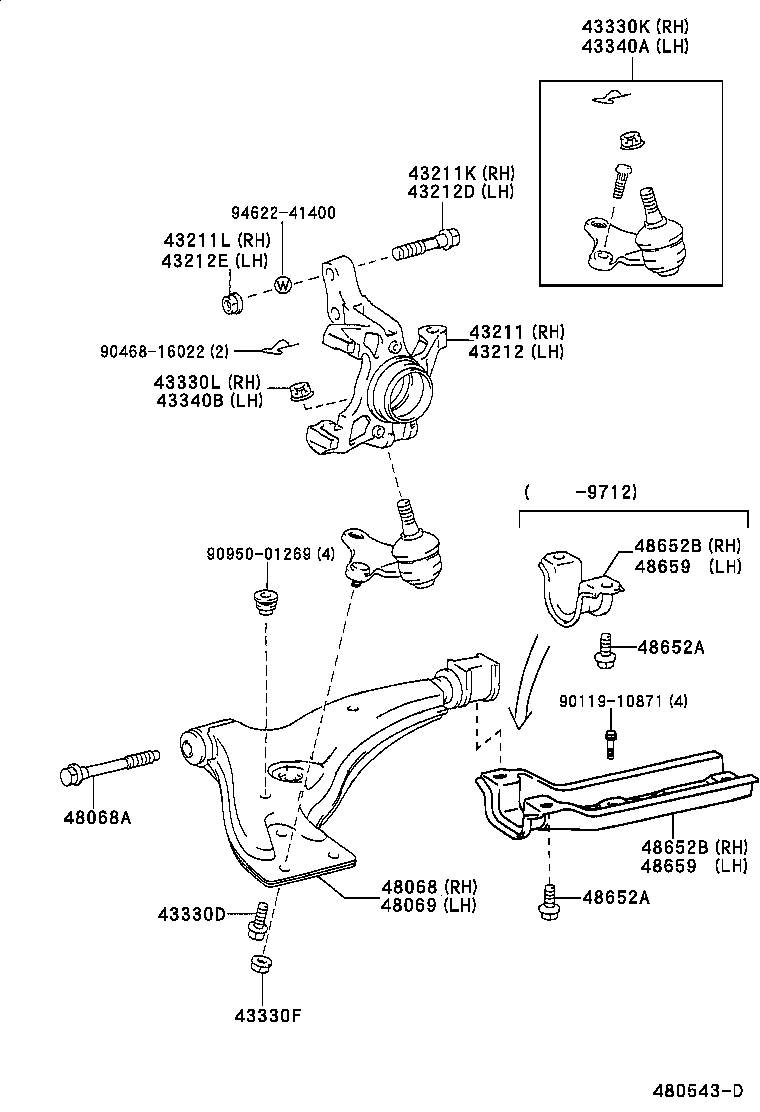

ILLUST NO. 1 OF 2(9601- )

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330D 43330F 43330K 43330L 43340A 43340B 48068 48068A 48069 48652A 48652A 48652B 48652B 48659 48659 9011910871 9046816022 9095001269 9462241400
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-10062

EP9#

W(ABS)

 1
43211-10071

EP9#

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-15004

EP9#

OD=13.9

 1
90105-15012

EP9#

OD=15.0

 2
90105-15006

EP9#

OD=12.4

 1
90105-15005

EP9#

OD=13.3

 1
43211L - NUT (FOR STEERING KNUCKLE RH)
90179-15006

EP9#

 2
43212 - KNUCKLE, STEERING, LH
43212-10051

EP9#

 1
43212-10042

EP9#

W(ABS)

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-15012

EP9#

OD=15.0

 2
90105-15005

EP9#

OD=13.3

 1
90105-15006

EP9#

OD=12.4

 1
90105-15004

EP9#

OD=13.9

 1
43212E - NUT (FOR STEERING KNUCKLE LH)
90179-15006

EP9#

 2
43330D - BOLT (FOR FRONT LOWER BALL JOINT)
90119-10407

EP9#

 2
43330F - NUT (FOR FRONT LOWER BALL JOINT SETTING)
90179-10088

EP9#

 4
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-19085

EP9#

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-12007

EP9#

 1
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43340-19025

EP9#

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-12007

EP9#

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-10100

EP9#

 1
48068-10120

EP9#

 1
48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM)
90119-12099

EP9#

 2
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-10100

EP9#

 1
48069-10080

EP9#

 1
48652A - BOLT(FOR FRONT LOWER ARM BRACKET)
90901-19018

EP9#

 4
48652A - BOLT(FOR FRONT LOWER ARM BRACKET)
90901-19018

EP9#

 4
48652B - BRACKET, FRONT LOWER ARM, RH
48652-10020

EP9#

 1
48652-46010

EP9#

 1
48652B - BRACKET, FRONT LOWER ARM, RH
48652-10020

EP9#

 1
48652-46010

EP9#

 1
48659 - BRACKET, FRONT LOWER ARM, LH
48652-10020

EP9#

 1
48659-46010

EP9#

 1
48659 - BRACKET, FRONT LOWER ARM, LH
48652-10020

EP9#

 1
48659-46010

EP9#

 1
Common parts
90119-10871
90468-16022
90950-01269
94622-41400
