EP91R-AGMNKQ (1996)
Toyota Starlet
Production
Jan 1996
-
Jul 1999
Engine
4EFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9601- )RHD

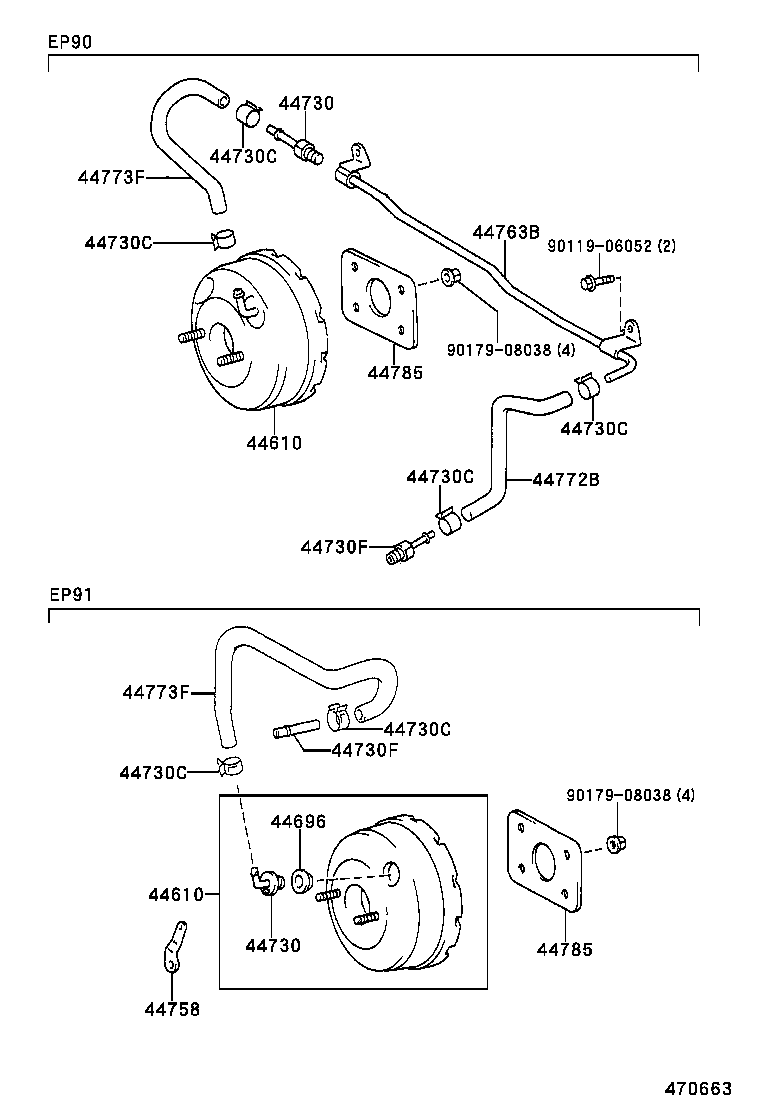

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-10370 |
EP91 |
1 | ||
| 44610-10320 |
EP91 W(ABS) |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-10370 |
EP91 |
1 | ||
| 44610-10320 |
EP91 W(ABS) |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
EP91 |
1 | ||
| 90480-24015 |
EP91 W(ABS) |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10020 |
EP91 W(ABS) |
1 | ||
| 44730-42010 |
EP91 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10020 |
EP91 W(ABS) |
1 | ||
| 44730-42010 |
EP91 |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
EP91 |
2 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
EP91 |
2 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
EP91 |
2 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
EP91 |
2 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
EP91 |
2 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
EP91 |
2 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90406-09006 |
EP91 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90406-09006 |
EP91 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-16090 |
EP91 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-16150 |
EP91 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-16150 |
EP91 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-16020 |
EP9# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-16020 |
EP9# |
1 | ||
| Common parts | ||||
| 90119-06052 | ||||
| 90179-08038 | ||||
