EP91R-AGMNKQ (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

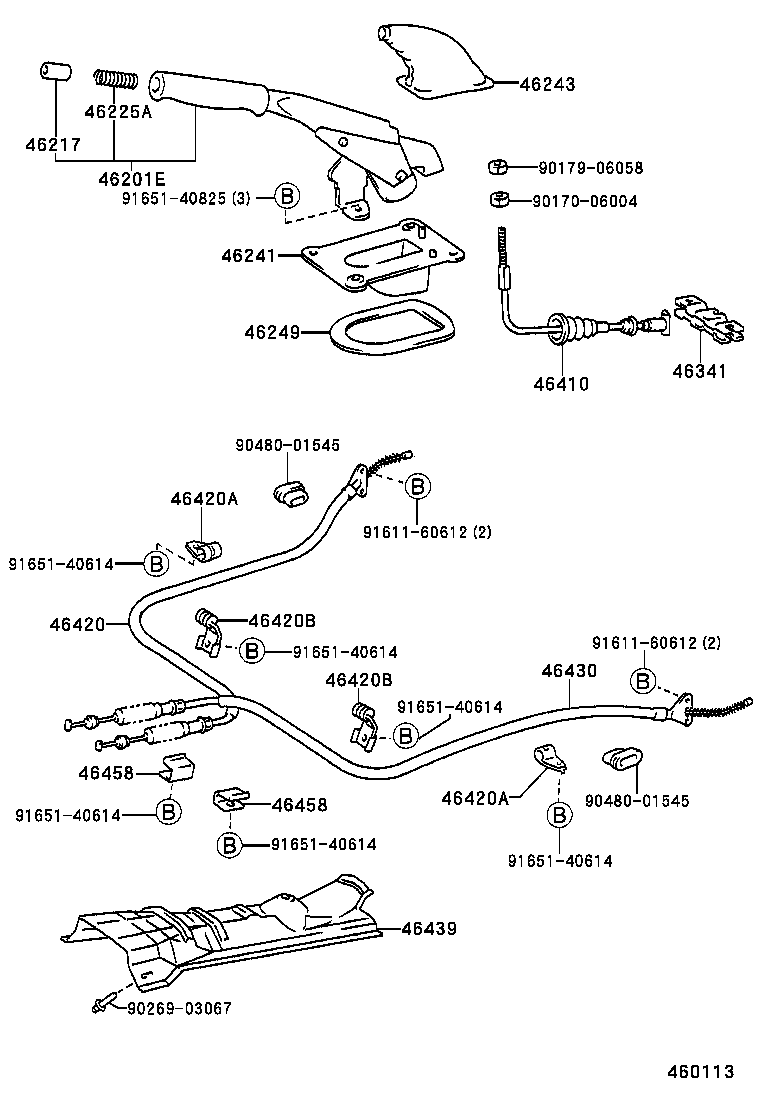

Click highlighted areas on diagram

diagram 46201E 46217 46225A 46241 46243 46249 46341 46410 46420 46420A 46420A 46420B 46420B 46430 46439 46458 46458 9017006004 9017906058 9026903067 9048001545 9048001545 9161160612 9161160612 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165140825
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-16090B1

EP9#

BLUISH GRAY,TRIM1#

 1
46201-16070B0

EP9#

BLUISH GRAY,TRIM1#

 1
46201-16090B0

EP9#..3FC,5F

SHADOW GRAY,TRIM10,12

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-16030B1

EP9#

BLUISH GRAY,TRIM1#

 1
46217-16030B1

EP9#..3FC,5F

BLUISH GRAY,TRIM10,12

 1
46217-16030B0

EP9#

SHADOW GRAY,TRIM1#

 1
46217-12020B3

EP9#

BLUISH GRAY,TRIM1#

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10069

EP9#

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-16040

EP9#

 1
46249 - SHIELD, PARKING BRAKE HOLE
46249-32010

EP9#

 1
46341 - EQUALIZER, PARKING BRAKE
46341-12020

EP9#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-42010

EP9#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-18030

EP9#

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90461-10641

EP9#

 2
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90461-10641

EP9#

 2
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01585

EP9#

 2
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
90949-01585

EP9#

 2
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-18030

EP9#

 1
46439 - INSULATOR, PARKING BRAKE CABLE HEAT
46439-10051

EP9#

 1
46458 - RETAINER, CABLE
46458-50010

EP9#

 2
46458 - RETAINER, CABLE
46458-50010

EP9#

 2
Common parts
90170-06004
90179-06058
90269-03067
90480-01545
91611-60612
91651-40614
91651-40825
