EP91R-AGMNKQ (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )MTM

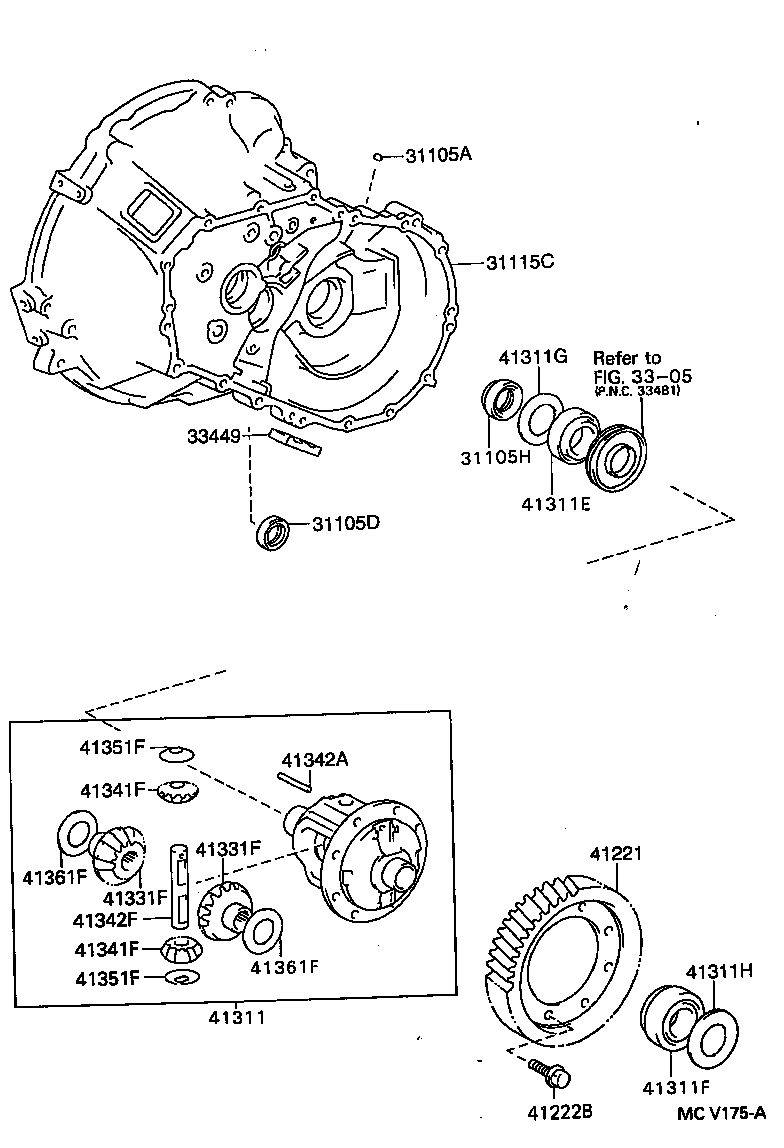

Click highlighted areas on diagram

diagram 31105A 31105D 31105H 31115C 3305 33449 41221 41222B 41311 41311E 41311F 41311G 41311H 41331F 41331F 41341F 41341F 41342A 41342F 41351F 41351F 41361F 41361F
Part # Description Qty Price
31105A - PLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
90331-08002

EP9#..MTM

 1
31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)
90311-25016

EP9#..MTM

 1
31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE)
90311-34016

EP9#..MTM

 1
31115C - CASE, FRONT TRANSAXLE(MTM)
31115-16051

EP9#..MTM

 1
31115-16050

EP9#..MTM

 1
33449 - MAGNET, TRANSMISSION
33449-12020

EP9#..MTM

 1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-10201

EP91..5F

 1
41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
90105-12100

EP9#..MTM

 6
41311 - CASE, FRONT DIFFERENTIAL
41301-10060

EP9#..MTM

 1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90080-36101

EP9#..MTM

TIMKEN

 1
90366-38004

EP9#..MTM

 1
90366-38004

EP9#..MTM

NACHI OR KOYO

 1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90368-38010

EP9#..MTM

 1
41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
90201-41012

EP9#

T=2.10

 1
90560-41002

EP9#..MTM

T=1.2

 1
90201-41012

EP9#..MTM

T=2.10

 2
41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
90201-41046

EP9#..MTM

T=2.10,MARK A

 1
90201-41047

EP9#..MTM

T=2.15,MARK B

 1
90201-41050

EP9#..MTM

T=2.30,MARK E

 1
90201-41053

EP9#..MTM

T=2.45,MARK H

 1
90201-41048

EP9#..MTM

T=2.20,MARK C

 1
90201-41049

EP9#..MTM

T=2.25,MARK D

 1
90201-41051

EP9#..MTM

T=2.35,MARK F

 1
90201-41056

EP9#..MTM

T=2.60,MARK L

 1
90201-41057

EP9#..MTM

T=2.65,MARK M

 1
90201-41060

EP9#..MTM

T=2.80,MARK Q

 1
90201-41061

EP9#..MTM

T=2.85,MARK R

 1
90201-41052

EP9#..MTM

T=2.40,MARK G

 1
90201-41058

EP9#..MTM

T=2.70,MARK N

 1
90201-41054

EP9#..MTM

T=2.50,MARK J

 1
90201-41063

EP9#..MTM

T=2.95,MARK T

 1
90201-41062

EP9#..MTM

T=2.90,MARK S

 1
90201-41064

EP9#..MTM

T=3.00,MARK U

 1
90201-41055

EP9#..MTM

T=2.55,MARK K

 1
90201-41059

EP9#..MTM

T=2.75,MARK P

 1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-10042

EP9#..MTM

 2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-10042

EP9#..MTM

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-10030

EP9#..MTM

 2
41341F - PINION, FRONT DIFFERENTIAL
41341-10030

EP9#..MTM

 2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-04053

EP9#..MTM

 1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-10041

EP9#..MTM

 1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-10030

EP9#..MTM

 2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-10030

EP9#..MTM

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-10070

EP9#..MTM

T=1.50

 2
41361-10080

EP9#..MTM

T=1.55

 2
41361-10090

EP9#..MTM

T=1.60

 2
41361-10100

EP9#..MTM

T=1.65

 2
41361-10110

EP9#..MTM

T=1.70

 2
41361-10120

EP9#..MTM

T=1.75

 2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-10070

EP9#..MTM

T=1.50

 2
41361-10080

EP9#..MTM

T=1.55

 2
41361-10090

EP9#..MTM

T=1.60

 2
41361-10100

EP9#..MTM

T=1.65

 2
41361-10110

EP9#..MTM

T=1.70

 2
41361-10120

EP9#..MTM

T=1.75

 2
Linked diagrams
3305
