EP91R-AGMNKQ (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )4EFE

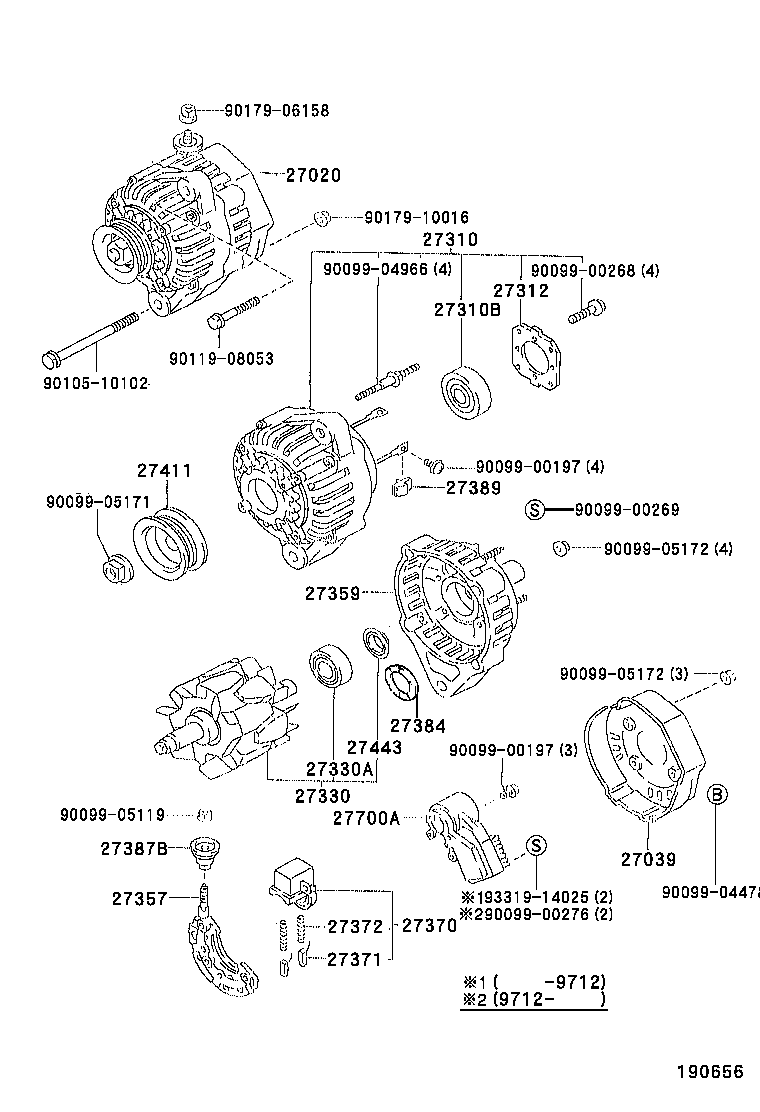

Click highlighted areas on diagram

12V 55A

diagram 27020 27039 27310 27310B 27312 27330 27330A 27357 27359 27370 27371 27372 27384 27387B 27389 27411 27443 27700A 9009900197 9009900197 9009900268 9009900269 9009900276 9009904478 9009904966 9009905119 9009905171 9009905172 9009905172 9010510102 9011908053 9017906158 9017910016 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-11320

4EFE..EP91

12V 55A

 1
27039 - COVER, ALTERNATOR REAR END
27039-73020

4EFE..EP91

 1
27039-16380

4EFE..EP91

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-16181

4EFE..EP91

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178

4EFE..EP91

 1
27312 - PLATE, RETAINER
27312-70200

4EFE..EP91

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-11250

4EFE..EP91

 1
27330-72101

4EFE..EP91

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

4EFE..EP91

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63060

4EFE..EP91

 1
27357-13360

4EFE..EP91

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16181

4EFE..EP91

 1
27359-16182

4EFE..EP91

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-58320

4EFE..EP91

 1
27370-58320

2E,4EFE..EP9#

 1
27371 - BRUSH, ALTERNATOR
27371-70300

2E,4EFE..EP9#

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

2E,4EFE..EP9#

 2
27384 - WASHER
27384-16380

4EFE..EP91

 1
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-70170

4EFE..EP91

 1
27387-70171

4EFE..EP91

 1
27389 - INSULATOR, TERMINAL
27389-63020

4EFE..EP91

 4
27411 - PULLEY, ALTERNATOR
27411-65010

4EFE..EP91

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

2E,4EFE..EP9#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-11070

4EFE..EP91

 1
Common parts
90099-00197
90099-00268
90099-00269
90099-00276
90099-04478
90099-04966
90099-05119
90099-05171
90099-05172
90105-10102
90119-08053
90179-06158
90179-10016
93319-14025
