EP91R-AGMNKQ (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )4EFE

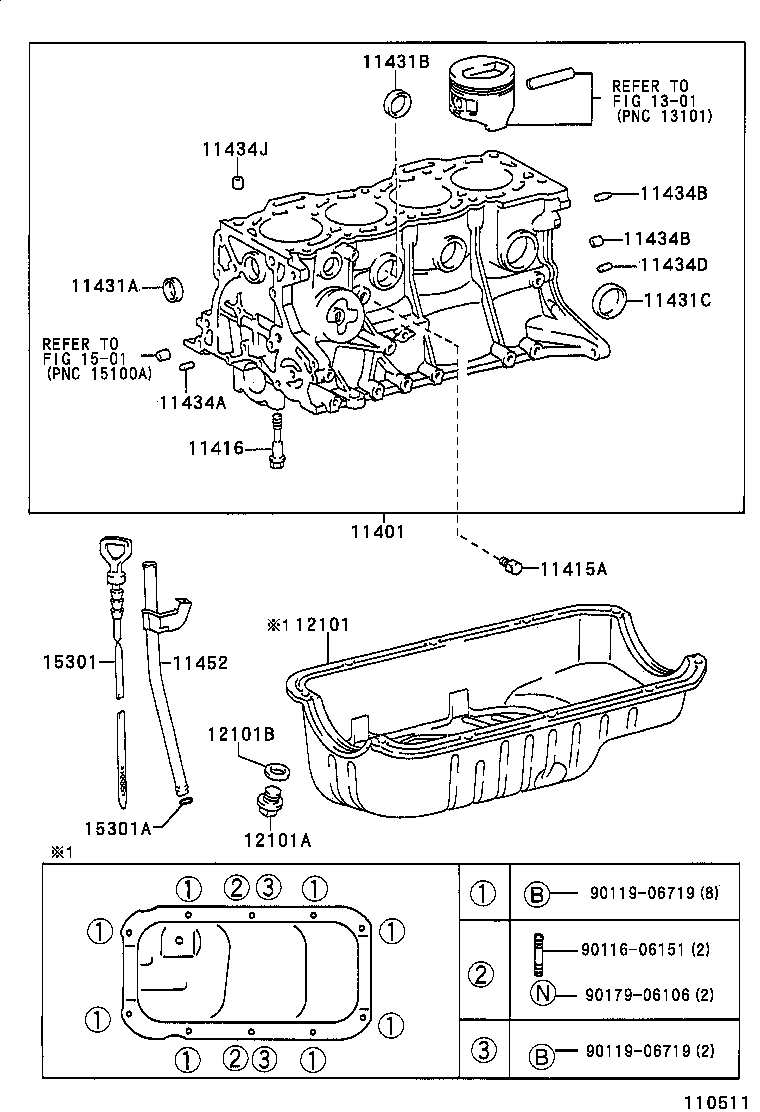

Click highlighted areas on diagram

diagram 11401 11415A 11416 11431A 11431B 11431C 11434A 11434B 11434B 11434D 11434J 11452 12101 12101A 12101B 1301 1501 15301 15301A 9011606151 9011906719 9011906719 9017906106
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-19569

4EFE..EP91

 1
11401-80003

4EFE..EP91

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90345-52001

2E,4EFE..EP9#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02019

2E,4EFE..EP9#

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-42500

2E,4EFE..EP9#

 2
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43000

2E,4EFE..EP9#

 6
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-43500

2E,4EFE..EP9#

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-06068

2E,4EFE..EP9#

L=11,OD=6

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90253-15003

2E,4EFE..EP9#

L=17,OD=15

 1
90250-10017

2E,4EFE..EP9#

L=20,OD=10

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90253-15003

2E,4EFE..EP9#

L=17,OD=15

 1
90250-10017

2E,4EFE..EP9#

L=20,OD=10

 1
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06068

2E,4EFE..EP9#

L=11,OD=6

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-12001

2E,4EFE..EP9#

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-11041

2E,4EFE..EP9#

 1
12101 - PAN SUB-ASSY, OIL
12101-11060

2E,4EFE..EP9#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12026

2E,4EFE..EP9#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

2E,4EFE..EP9#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-11050

2E,4EFE..EP9#

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96721-19010

2E,4EFE..EP9#

 1
Common parts
90116-06151
90119-06719
90179-06106
Linked diagrams
1301
1501
