EP90R-AHHNS (1996)

Toyota Starlet

Production Jan 1996 - Jul 1999
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )2E

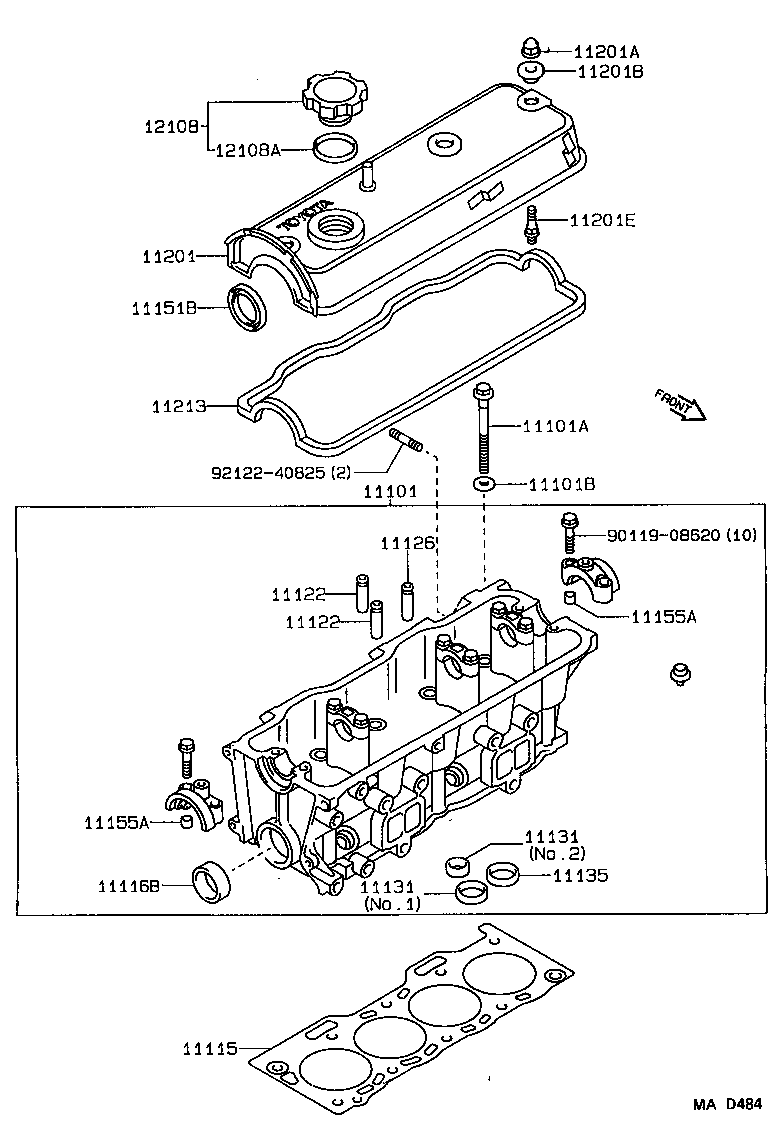

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11115 11116B 11122 11122 11126 11131 11131 11135 11151B 11155A 11155A 11201 11201A 11201B 11201E 11213 12108 12108A 9011908620 9212240825
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-19156

2E..EP90

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90105-09002

2E..EP90

 10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-09015

2E..EP90

 10
11115 - GASKET, CYLINDER HEAD
11115-11010

2E..EP90

T=1.25

 1
11116B - PLUG, TIGHT, NO.2
96411-44000

2E..EP90

 1
11122 - BUSH, INTAKE VALVE GUIDE
11123-10040

2E..EP90

O/S 0.05

 8
11122-10040

2E..EP90

STD

 8
11122 - BUSH, INTAKE VALVE GUIDE
11123-10040

2E..EP90

O/S 0.05

 8
11122-10040

2E..EP90

STD

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11123-10040

2E..EP90

O/S 0.05

 4
11122-10040

2E..EP90

STD

 4
11131 - SEAT, INTAKE VALVE
11132-11010

2E..EP90

O/S 0.03,NO.1

 4
11137-10010

2E..EP90

STD,NO.2

 4
11138-10010

2E..EP90

O/S 0.03,NO.2

 4
11131-11010

2E..EP90

STD,NO.1

 4
11131 - SEAT, INTAKE VALVE
11132-11010

2E..EP90

O/S 0.03,NO.1

 4
11137-10010

2E..EP90

STD,NO.2

 4
11138-10010

2E..EP90

O/S 0.03,NO.2

 4
11131-11010

2E..EP90

STD,NO.1

 4
11135 - SEAT, EXHAUST VALVE
11136-11010

2E..EP90

O/S 0.03

 4
11135-11010

2E..EP90

STD

 4
11151B - SEAL, OIL(FOR CAMSHAFT SETTING)
90311-35035

2E,4EFE..EP9#

 1
11155A - PIN, RING W/HEAD
90253-11021

2E..EP90

 4
11155A - PIN, RING W/HEAD
90253-11021

2E..EP90

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-10010

2E..EP90

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08007

2E..EP90

 2
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-09019

2E..EP90

 2
11201E - BOLT, STUD(FOR CYLINDER HEAD COVER SET)
90116-08190

2E..EP90

 2
11213 - GASKET, CYLINDER HEAD COVER
11213-10011

2E..EP90

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-73011

2E..EP90

 1
12108A - GASKET(FOR OIL FILLER CAP)
12195-71020

2E..EP90

 1
Common parts
90119-08620
92122-40825
