EP90L-AHMNS (1996)
Toyota Starlet
Production
Jan 1996
-
Jul 1999
Engine
2E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9601- )5D

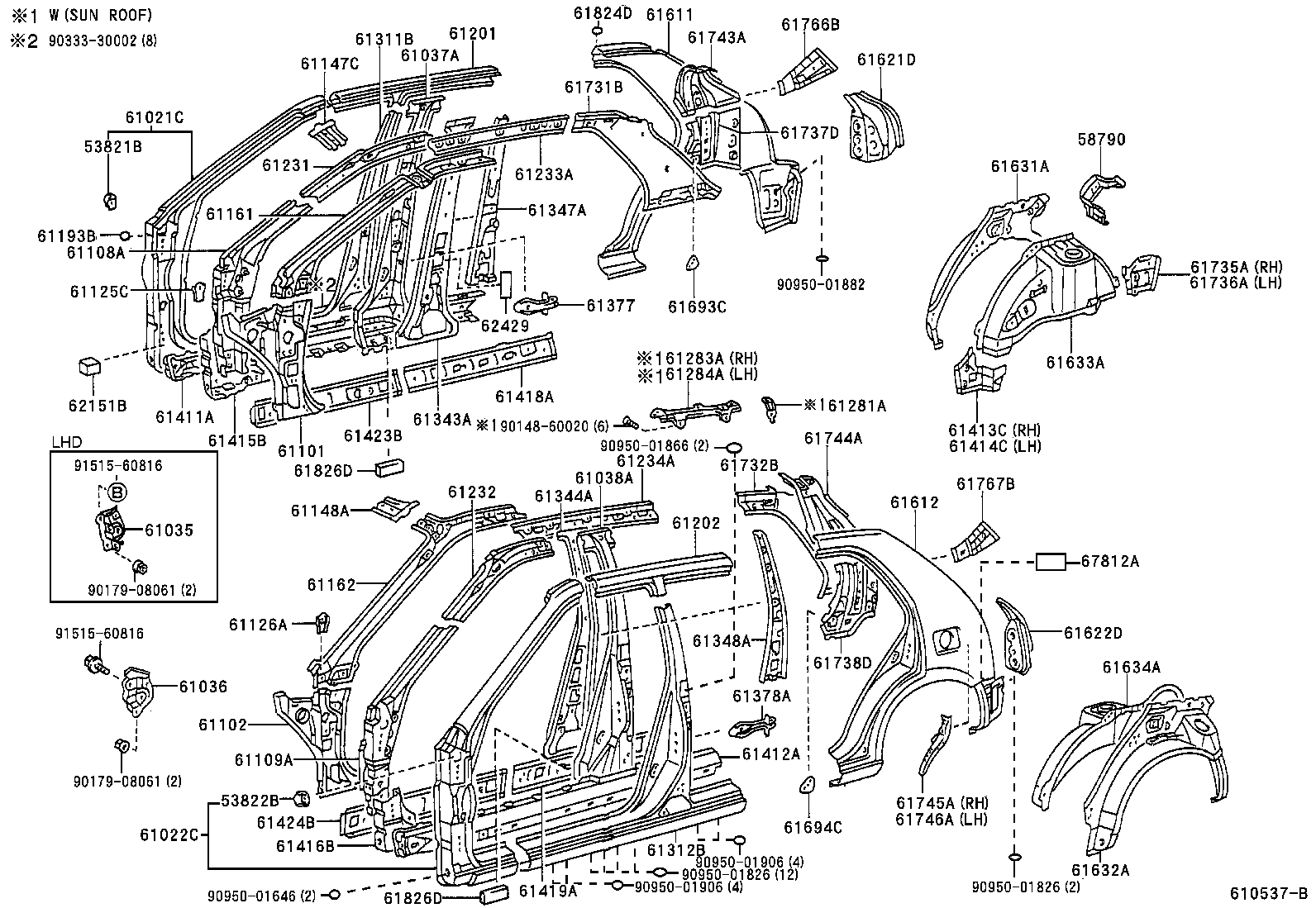

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-16010 |
EP9# |
1 | ||
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53821-16010 |
EP9# |
1 | ||
| 58790 - CARRIER ASSY, JACK | ||||
| 58791-10030 |
EP9# |
1 | ||
| 61021C - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-10210 |
EP90..LHD..(3FC,5F) W/O(ANTENNA) |
1 | ||
| 61021-10200 |
EP90..LHD |
1 | ||
| 61022C - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-10290 |
EP90..LHD |
1 | ||
| 61022-10300 |
EP90..LHD..(3FC,5F) W(ANTENNA) |
1 | ||
| 61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 61035-16030 |
EP90..LHD |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-10010 |
EP9#..5D |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-10010 |
EP9#..5D |
1 | ||
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 61121-10110 |
EP90..LHD |
1 | ||
| 61121-10100 |
EP90..LHD |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 61122-10120 |
EP91;EP90..LHD |
1 | ||
| 61122-10130 |
EP90..LHD W(ABS) |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-10060 |
EP9# |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-10060 |
EP9# |
1 | ||
| 61125C - REINFORCEMENT, COWL SIDE PANEL, RH | ||||
| 61125-16030 |
EP9# |
1 | ||
| 61126A - REINFORCEMENT, COWL SIDE PANEL, LH | ||||
| 61125-16030 |
EP9# |
1 | ||
| 61147C - EXTENSION, FRONT BODY PILLAR, OUTER RH | ||||
| 61147-10010 |
EP9# |
1 | ||
| 61148A - EXTENSION, FRONT BODY PILLAR, UPPER OUTER LH | ||||
| 61148-10010 |
EP9# |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61161-10090 |
EP9# |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61162-10080 |
EP9# |
1 | ||
| 61193B - COVER, FRONT PILLAR SERVICE HOLE | ||||
| 61193-10010 |
EP9# |
2 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61211-10090 |
EP9#..5D |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61212-10090 |
EP9#..5D |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-10160 |
EP9# |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-10160 |
EP9# |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-10030 |
EP9#..5D |
1 | ||
| 61233-10040 |
EP9#..5D..(3FC,5F) W(MOON ROOF) |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-10040 |
EP9#..5D..(3FC,5F) W(MOON ROOF) |
1 | ||
| 61234-10030 |
EP9#..5D |
1 | ||
| 61281A - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1 | ||||
| 61281-10060 |
EP9#..3FC,5F |
2 | ||
| 61283A - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 RH | ||||
| 61283-10060 |
EP9#..3FC,5F |
1 | ||
| 61284A - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.3 LH | ||||
| 61284-10060 |
EP9#..3FC,5F |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-10040 |
EP9#..5D |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-10040 |
EP9#..5D |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-10050 |
EP9#..5D |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-10050 |
EP9#..5D |
1 | ||
| 61347A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH | ||||
| 61347-10100 |
EP9#..5D |
1 | ||
| 61348A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LH | ||||
| 61348-10100 |
EP9#..5D |
1 | ||
| 61377 - BRACKET, REAR DOOR CHECK ARM, RH | ||||
| 61377-10010 |
EP9#..5D |
1 | ||
| 61378A - BRACKET, REAR DOOR CHECK ARM, LH | ||||
| 61377-10010 |
EP9#..5D |
1 | ||
| 61411A - REINFORCEMENT, ROCKER PANEL, NO.1 RH | ||||
| 61403-10020 |
EP9#..5D |
1 | ||
| 61412A - REINFORCEMENT, ROCKER PANEL, NO.1 LH | ||||
| 61404-10020 |
EP9#..5D |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-10030 |
EP9# |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-10030 |
EP9# |
1 | ||
| 61415B - EXTENSION, ROCKER, OUTER RH | ||||
| 61415-10010 |
EP9# |
1 | ||
| 61416B - EXTENSION, ROCKER, OUTER LH | ||||
| 61416-10010 |
EP9# |
1 | ||
| 61418A - REINFORCEMENT, ROCKER PANEL, RH | ||||
| 61418-10030 |
EP9# |
1 | ||
| 61419A - REINFORCEMENT, ROCKER PANEL, LH | ||||
| 61419-10020 |
EP9# |
1 | ||
| 61423B - REINFORCEMENT, ROCKER PANEL, NO.3 RH | ||||
| 61423-10030 |
EP9# |
1 | ||
| 61424B - REINFORCEMENT, ROCKER PANEL, NO.3 LH | ||||
| 61424-10030 |
EP9# |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-1C390 |
EP9#..5D |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-1C420 |
EP9#..5D |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-10040 |
EP9# |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-10040 |
EP9# |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-10080 |
EP9#..5D |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-10080 |
EP9#..5D |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-10070 |
EP9# |
1 | ||
| 61607-10110 |
EP9# |
1 | ||
| 61607-10120 |
EP90..MTM SEVERE USAGE PACKAGE |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-10070 |
EP9# |
1 | ||
| 61608-10110 |
EP9# |
1 | ||
| 61608-10120 |
EP90..MTM SEVERE USAGE PACKAGE |
1 | ||
| 61693C - RETAINER, REAR SEAT BACK SET, RH | ||||
| 61693-10040 |
EP9# |
1 | ||
| 61694C - RETAINER, REAR SEAT BACK SET, LH | ||||
| 61693-10040 |
EP9# |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-1C230 |
EP9#..5D..(3FC,5F) W(ROOF SIDE INNER GARNISH) |
1 | ||
| 61731-1C220 |
EP9#..5D |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-1C230 |
EP9#..5D..(3FC,5F) W(ROOF SIDE INNER GARNISH) |
1 | ||
| 61732-1C220 |
EP9#..5D |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-10040 |
EP9#..3FC,5F W(MOON ROOF) |
1 | ||
| 61735-10030 |
EP9# |
1 | ||
| 61735-10030 |
EP91;EP90..MTM |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-10030 |
EP9# |
1 | ||
| 61736-10030 |
EP91;EP90..MTM |
1 | ||
| 61736-10040 |
EP9#..3FC,5F W(MOON ROOF) |
1 | ||
| 61737D - REINFORCEMENT, ROOF SIDE, INNER RH | ||||
| 61737-10060 |
EP9#..5D |
1 | ||
| 61738D - REINFORCEMENT, ROOF SIDE, INNER LH | ||||
| 61738-10040 |
EP9#..5D |
1 | ||
| 61743A - REINFORCEMENT, BACK DOOR OPENING SIDE, RH | ||||
| 61743-10020 |
EP9#..5D |
1 | ||
| 61744A - REINFORCEMENT, BACK DOOR OPENING SIDE, LH | ||||
| 61744-10020 |
EP9#..5D |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-10030 |
EP9# |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-10030 |
EP9# |
1 | ||
| 61766B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH | ||||
| 61766-10100 |
EP9#..5D |
1 | ||
| 61767B - REINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH | ||||
| 61767-10100 |
EP9#..5D |
1 | ||
| 61824D - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12040 |
EP9# |
4 | ||
| 61824-12040 |
EP9#..3FC,5F W(MOON ROOF) |
2 | ||
| 61826D - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-10010 |
EP9# |
2 | ||
| 61826D - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-10010 |
EP9# |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-20170 |
EP9# |
2 | ||
| 62151-12130 |
EP9# |
2 | ||
| 62429 - COVER, CENTER PILLAR SERVICE HOLE | ||||
| 62429-10010 |
EP9#..5D |
2 | ||
| 67812A - PAD, QUARTER PANEL SILENCER | ||||
| 67812-10020 |
EP9# |
1 | ||
| Common parts | ||||
| 90148-60020 | ||||
| 90179-08061 | ||||
| 90333-30002 | ||||
| 90950-01646 | ||||
| 90950-01826 | ||||
| 90950-01866 | ||||
| 90950-01882 | ||||
| 90950-01906 | ||||
| 91515-60816 | ||||
