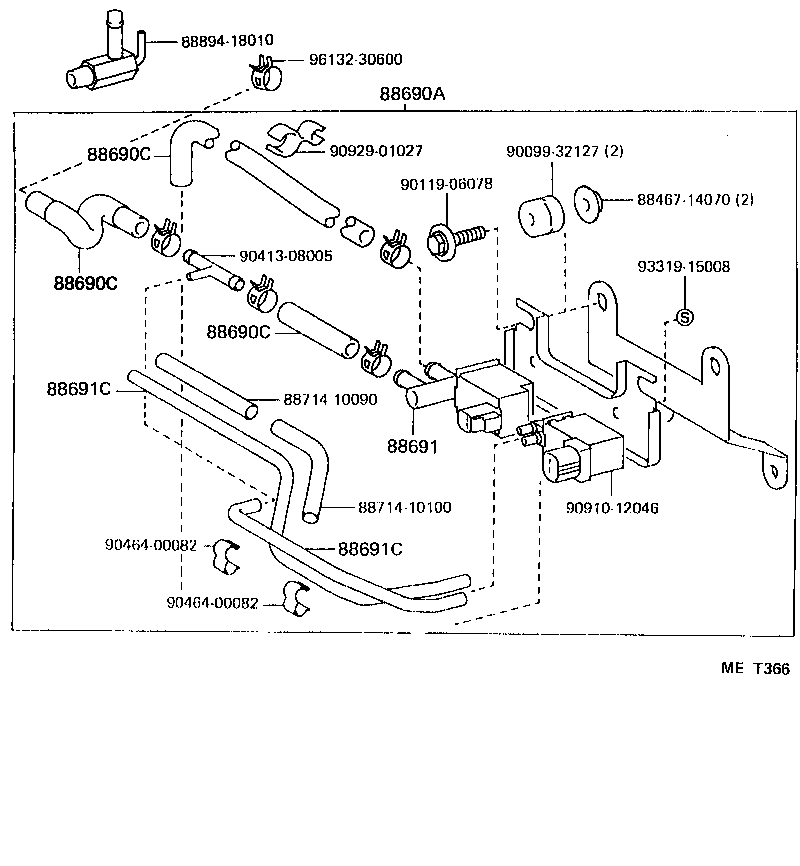

Toyota Starlet EP82 HEATING & AIR CONDITIONING - VACUUM PIPING

Part #	Description	Period	Qty
88690A - VALVE ASSY, COMBINATION
88690-10400	EP82..4F..SOLL DEALER OPT OR W/0(GAS) OR W(AAC---LHC) OR W(*AIC SWITCH=1 BUTTON)	01/1992 - 12/1993	1
88690-10340	EP82..SOLL W(LHC) OR DEALER OPT OR W/O(GAS) OR W(AIC SWITCH=1 BUTTON)	01/1992 - 12/1993	1
88690-10400	EP82..SOL MANUAL AIC---LHC OR W/0(GAS) OR *AIC SWITCH=1 BUTTON	01/1992 - 12/1993	1
88690-10400	EP82..S DEALER OPT	05/1994 - 01/1996	1
88690-10400	EP82..SOL MANUAL AIC OR AIC SWITCH=1 BUTTON	12/1993 - 05/1994	1
88690-10400	EP82..5D DEALER OPT OR W(*AIC SWITCH=1BUTTON)	05/1994 - 01/1996	1
88690-10400	EP82..4F..SOLL W(GAS) OR AAC OR AIC SWITCH=1 BUTTON	12/1993 - 05/1994	1
88690-10340	EP82..S	05/1994 - 01/1996	1
88690-10340	EP82..4F..SOLL W(LHC) OR DEALER OPT OR W/O(GAS) OR W(AIC SWITCH=1 BUTTON)	12/1993 - 01/1996	1
88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER)
88689-20390	EP82..SOL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1995 - 01/1996	2
90999-92002	EP82 H,L=140,MARK=#	01/1992 - 05/1994	1
88689-20390	EP82..SOLL AIC SWITCH=1BUTTON OR AAC---LHC OR HONG KONG SPEC & MANUAL AIC---*LHC	05/1995 - 01/1996	2
88689-20390	EP82	01/1992 - 05/1995	2
88689-20390	EP82..S AAC---LHC OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 01/1996	2
88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER)
88689-20390	EP82..SOL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1995 - 01/1996	2
90999-92002	EP82 H,L=140,MARK=#	01/1992 - 05/1994	1
88689-20390	EP82..SOLL AIC SWITCH=1BUTTON OR AAC---LHC OR HONG KONG SPEC & MANUAL AIC---*LHC	05/1995 - 01/1996	2
88689-20390	EP82	01/1992 - 05/1995	2
88689-20390	EP82..S AAC---LHC OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 01/1996	2
88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER)
88689-20390	EP82..SOL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1995 - 01/1996	2
90999-92002	EP82 H,L=140,MARK=#	01/1992 - 05/1994	1
88689-20390	EP82..SOLL AIC SWITCH=1BUTTON OR AAC---LHC OR HONG KONG SPEC & MANUAL AIC---*LHC	05/1995 - 01/1996	2
88689-20390	EP82	01/1992 - 05/1995	2
88689-20390	EP82..S AAC---LHC OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 01/1996	2
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-10270	EP8#..RHD	12/1989 - 01/1992	1
88691-17030	EP82..SOLL AIC SWITCH=1BUTTON OR AAC---LHC OR HONG KONG SPEC & MANUAL AIC---*LHC	05/1995 - 01/1996	1
88691-17030	EP82..SOL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1995 - 01/1996	1
88691-17030	EP82..S AAC---LHC OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 01/1996	1
88691-17030	EP82	01/1992 - 05/1995	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002	EP82 *H,L=130,MARK=#0	01/1992 - 01/1996	1
90999-92002	EP82..3FC,4F,4FC H,L=140,MARK=#	01/1992 - 05/1994	1
90999-92002	EP82 H,L=140,MARK=#	05/1994 - 01/1996	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002	EP82 *H,L=130,MARK=#0	01/1992 - 01/1996	1
90999-92002	EP82..3FC,4F,4FC H,L=140,MARK=#	01/1992 - 05/1994	1
90999-92002	EP82 H,L=140,MARK=#	05/1994 - 01/1996	1
Common parts
88467-14070
88714-10090
88714-10100
88894-18010
90099-32127
90119-06078
90413-08005
90464-00082
90910-12046
90929-01027
93319-15008
96132-30600

EP82-AHKNK (1992)

(9201-9601)EP82
