Toyota Starlet EP82 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
GR
STARLET
EP82-AHKNK (1992)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

EP82-AHKNK (1992)

Toyota Starlet

Production Jan 1992 - Jan 1996

Engine 4EFE

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9201- )

Click highlighted areas on diagram

MAKER OPT

Part #	Description	Period	Qty
87138C - RESISTOR, BLOWER
87138-10140	EP82..SOLL;EP80,81..RHD	12/1989 - 05/1994	1
87138-10140	EP8#..RHD..(S,SOLL,STD,XL)	05/1994 - 12/2999	1
87138-18020	EP82..S AAC---LHC	05/1994 - 01/1996	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-10100	EP8#..RHD	12/1989 - 12/1993	1
88501-16110	EP8#..RHD	12/1993 - 05/1994	1
88501-16131	EP82..SOLL *AIC SWITCH=1 BUTTON	05/1994 - 01/1995	1
88501-16131	EP82..S AAC---LHC OR DEALER	05/1994 - 01/1995	1
88501-16130	EP82..S	05/1994 - 01/1995	1
88501-16130	EP82..SOLL MANUAL *AIC	05/1994 - 01/1995	1
88501-16110	EP82..S AAC---LHC OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 01/1996	1
88501-16131	EP82..SOLL LHC OR AIC SWITCH=1BUTTON	01/1995 - 05/1995	1
88501-16131	EP82..SOLL LHC OR AIC SWITCH=1BUTTON OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 01/1996	1
88501-10140	EP82..S,SOLL MANUAL AIC---LHC	06/1995 - 01/1996	1
88501-10140	EP82..SOL W(PS & MANUAL AIC---LHC)	06/1995 - 01/1996	1
88501-16131	EP82..S	01/1995 - 01/1996	1
88501-16110	EP82..SOLL AIC SWITCH=1BUTTON OR AAC---LHC OR HONG KONG SPEC & MANUAL AIC---*LHC	05/1995 - 01/1996	1
88501-16131	EP82..SOL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1994 - 01/1996	1
88501-16131	EP82..S HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 01/1996	1
88510 - UNIT ASSY, COOLER
88510-10480	EP82..SOL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1995 - 01/1996	1
88510-16480	EP8#..RHD	12/1993 - 05/1994	1
88510-10240	EP8#..RHD	12/1989 - 12/1993	1
88510-10480	EP82..SOLL LHC OR AIC SWITCH=1BUTTON OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 01/1996	1
88510-10480	EP8#..RHD..(S,STD,XL)	05/1995 - 12/2999	1
88510-10630	EP82..SOL W(PS & MANUAL AIC---LHC)	06/1995 - 01/1996	1
88510-10480	EP8#..RHD	05/1994 - 05/1995	1
88510-10630	EP82..S,SOLL MANUAL AIC---LHC	06/1995 - 01/1996	1
88510-10480	EP82..S HONG KONG SPEC & MANUAL AIC---LHC	06/1995 - 01/1996	1
88515 - VALVE, COOLER EXPANSION
88515-20100	EP82..SOL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1995 - 01/1996	1
88515-20100	EP82..SOLL LHC OR AIC SWITCH=1BUTTON OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 06/1995	1
88515-20100	EP8#	12/1993 - 05/1995	1
88515-20100	EP8#..S,STD,XL	05/1995 - 12/2999	1
88515-14061	EP8#..RHD	12/1989 - 07/1990	1
88515-20100	EP82..SOLL LHC OR AIC SWITCH=1BUTTON	06/1995 - 01/1996	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-10090	EP8#..RHD	12/1989 - 12/2999	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-1C030	EP8# MANUAL *AIC OR W(GAS)	12/1989 - 01/1990	1
88605-1C040	EP8# W(AIR CONDITIONER) OR W(BOOST VENTILATOR)	12/1989 - 01/1990	1
88605-1C310	EP82..SOLL W(AIR CONDITIONER)	01/1992 - 12/1993	1
88605-1C360	EP82..SOL W(AIR CONDITIONER SWITCH=1 BUTTON)	01/1992 - 12/1993	1
88605-1C370	EP82..SOLL W(AIR CONDITIONER SWITCH=1 BUTTON)	01/1992 - 12/1993	1
88605-1C310	EP82..SOL W(PS & *AIC)	01/1992 - 12/1993	1
88605-1C370	EP82..SOL W(PS & *AIC SWITCH=1 BUTTON)	01/1992 - 12/1993	1
88605-1C350	EP82..SOL MANUAL *AIC OR W/O(GAS)	01/1992 - 12/1993	1
88605-1C450	EP82..CAN,S,SOLL W(AUTO AIR CONDITIONER)	01/1992 - 12/1993	1
88605-1C580	EP82..SOLL W(AIR CONDITIONER SWITCH=1 BUTTON)	12/1993 - 05/1994	1
88605-1C600	EP82..SOL MANUAL *AIC	12/1993 - 05/1994	1
88605-1C560	EP82..SOLL MANUAL *AIC OR W(GAS)	12/1993 - 05/1994	1
88605-1C570	EP82..CAN,S,SOLL W(AUTO AIR CONDITIONER)	12/1993 - 05/1994	1
88605-1C560	EP82..SOL W(PS & MANUAL AIC---LHC)	12/1993 - 05/1994	1
88605-1C580	EP82..SOL W(PS & *AIC SWITCH=1 BUTTON)	12/1993 - 05/1994	1
88605-1C890	EP82..SOLL MANUAL AIC---LHC OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 06/1995	1
88605-1C890	EP82..SOLL MANUAL *AIC OR W(GAS)	05/1994 - 05/1995	1
88605-1C880	EP82..S W(AUTO AIR CONDITIONER)	05/1994 - 01/1996	1
88605-1C890	EP82..S MANUALE AIR CONDITIONER	05/1994 - 01/1996	1
88605-1C890	EP82..SOL W(PS & GAS)	05/1994 - 05/1995	1
88605-1C890	EP82..S,SOL HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 06/1995	1
88605-1M040	EP82..SOL W(PS & *AIC SWITCH=1 BUTTON)	05/1994 - 01/1996	1
88605-1M030	EP82..S,SOLL AAC---LHC	05/1994 - 01/1996	1
88605-1C610	EP82..SOL W(AIR CONDITIONER SWITCH=1 BUTTON)	12/1993 - 05/1994	1
88605-1M060	EP82..SOL COOLER BOOST VENTILATOR---DEALER OPT	05/1994 - 01/1996	1
88605-1M040	EP82..SOLL W(AIR CONDITIONER SWITCH=1 BUTTON)	05/1994 - 01/1996	1
88605-1C890	EP82..SOL W(PS & MANUAL AIC---LHC) OR HONG KONG SPEC & MANUAL AIC---LHC	06/1995 - 01/1996	1
88605-1M070	EP82..SOL W(AIR CONDITIONER SWITCH=1 BUTTON)	05/1994 - 01/1996	1
88605-1C890	EP82..SOLL MANUAL *AIC OR W(GAS)	06/1995 - 01/1996	1
88605-1C890	EP82..S HONG KONG SPEC & MANUAL AIC---LHC	06/1995 - 01/1996	1
88605-1M210	EP82..S AUTOMATIC AIR CONDITIONER	05/1994 - 01/1996	1
88625 - THERMISTOR, COOLER, NO.1
88625-24050	EP8#..RHD	12/1989 - 04/1991	1
88630 - RELAY ASSY, COOLER
88630-95702	EP8#	12/1989 - 01/1992	1
88630-95702	EP8#	01/1992 - 01/1996	2
88630 - RELAY ASSY, COOLER
88630-95702	EP8#	12/1989 - 01/1992	1
88630-95702	EP8#	01/1992 - 01/1996	2
88630A - RELAY ASSY, COOLER
88630-10090	EP82..CAN,S,SOLL W(AUTO AIR CONDITIONER)	01/1992 - 05/1994	1
88630-10100	EP82..SOLL MANUAL AIC OR W(GAS) OR AIC SWITCH=1 BUTTON OR W/O(GAS)	01/1992 - 12/1993	1
88630-10110	EP82..SOL;EP80,81..RHD	05/1994 - 05/1995	1
88630-10100	EP82..S	05/1994 - 01/1996	1
88630-10100	EP82..SOLL W(AIR CONDITIONER)	05/1994 - 01/1996	1
88630-10110	EP82..S *LHC	05/1994 - 05/1995	1
88630-10110	EP82..S AAC---LHC OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 01/1996	1
88630-10110	EP82..SOLL LHC OR AIC SWITCH=1BUTTON	05/1994 - 05/1995	1
88630-10110	EP82..SOLL AIC SWITCH=1BUTTON OR AAC---LHC OR HONG KONG SPEC & MANUAL AIC---*LHC	05/1995 - 01/1996	1
88630-10100	EP82..SOLL MANUAL AIC OR W(GAS) OR AIC SWITCH=1 BUTTON	12/1993 - 05/1994	1
88630-10100	EP82..SOL	01/1992 - 05/1994	1
88630-10110	EP82..SOL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1995 - 01/1996	1
88645G - SWITCH, PRESSURE
88645-30320	EP8#..RHD	12/1989 - 01/1990	1
88648 - WIRING, COOLER, NO.1
88648-10290	EP8#	12/1989 - 12/1993	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16500	EP82..SOL W(PS & AIR CONDITIONER)	01/1992 - 05/1995	1
88650-16450	EP82..SOL W(AIR CONDITIONER)	01/1992 - 01/1996	1
88650-16500	EP82..SOLL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1995 - 01/1996	1
88650-16500	EP82..CAN,S,SOLL	01/1992 - 05/1994	1
88650-16500	EP82..SOL (PS & *AIC SWITCH=1BUTTON)	05/1995 - 01/1996	1
88650-10410	EP82 DEALER OPTION	05/1995 - 01/1996	1
88650-16310	EP8# W(AIR CONDITIONER---MOP) OR W(AIR CONDITIONER---DOP)	12/1989 - 01/1992	1
88650-16500	EP82..SOLL MANUAL AIC---LHC	05/1994 - 05/1995	1
88650-16500	EP82..S	05/1994 - 01/1996	1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-10330	EP82..SOLL LHC OR AIC SWITCH=1BUTTON	06/1995 - 01/1996	1
88688-10230	EP8#..RHD	12/1989 - 01/1992	1
88688-10330	EP8#..RHD	01/1992 - 05/1995	1
88688-10330	EP82..SOLL LHC OR AIC SWITCH=1BUTTON OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 06/1995	1
88688-10330	EP82..SOL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1995 - 01/1996	1
88688-10330	EP8#..RHD..(S,STD,XL)	05/1995 - 12/2999	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-16230	EP8#..RHD	12/1993 - 05/1995	1
88710-10060	EP8#..RHD	12/1989 - 12/1993	1
88710-16230	EP82..SOL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1995 - 01/1996	1
88710-16230	EP8#..RHD..(S,STD,XL)	05/1995 - 12/2999	1
88710-16230	EP82..SOLL LHC OR AIC SWITCH=1BUTTON	06/1995 - 01/1996	1
88710-16230	EP82..SOLL MANUAL AIC---LHC OR AIC SWITCH=1 BUTTON OR AAC---LHC;HONG KONG SPEC & MANUALAIC---*LHC	05/1995 - 06/1995	1
Common parts
88569-10020
88578-12350
90099-00149
90099-14056
90179-06239
90480-24008
90480-26022

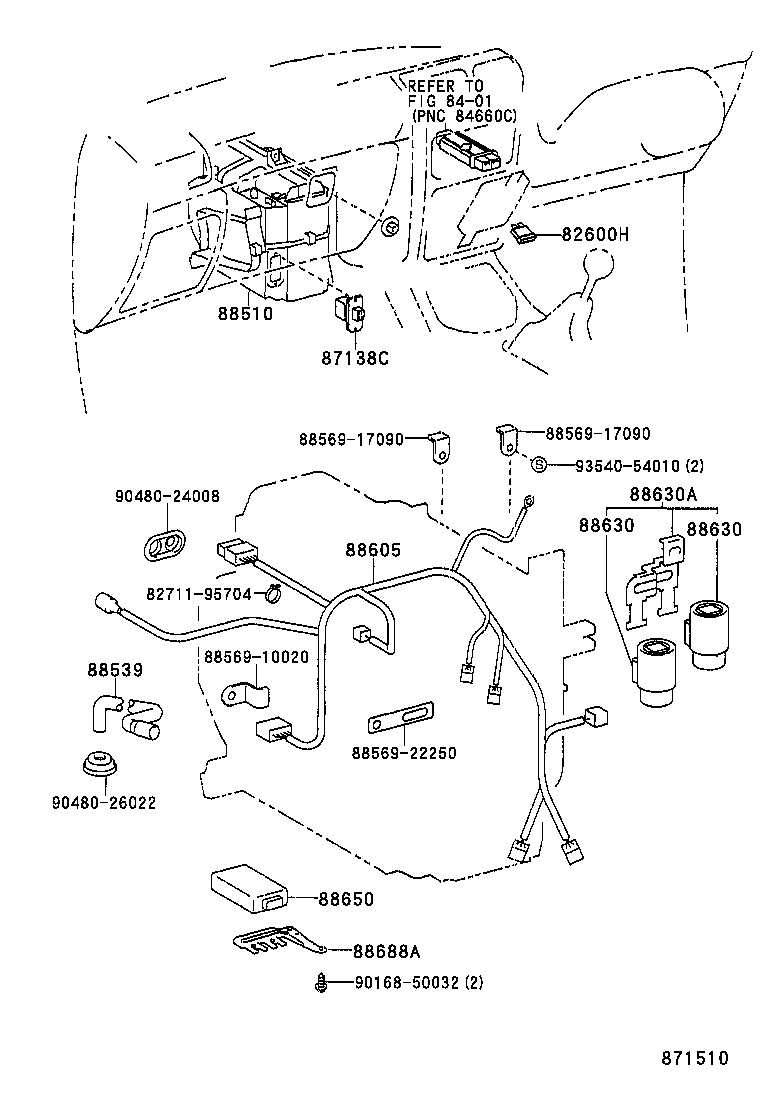

ILLUST NO. 1 OF 2(9201-9601)EP82

Click highlighted areas on diagram

DEALER OPT

Part #	Description	Period	Qty
82600H - FUSE, FUSE BLOCK
90982-09002	EP82 10A	01/1992 - 01/1996	1
87138C - RESISTOR, BLOWER
87138-10140	EP82..SOLL;EP80,81..RHD	12/1989 - 05/1994	1
87138-10140	EP8#..RHD..(S,SOLL,STD,XL)	05/1994 - 12/2999	1
87138-18020	EP82..S AAC---LHC	05/1994 - 01/1996	1
88510 - UNIT ASSY, COOLER
88510-10480	EP82..SOL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1995 - 01/1996	1
88510-16480	EP8#..RHD	12/1993 - 05/1994	1
88510-10240	EP8#..RHD	12/1989 - 12/1993	1
88510-10480	EP82..SOLL LHC OR AIC SWITCH=1BUTTON OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 01/1996	1
88510-10480	EP8#..RHD..(S,STD,XL)	05/1995 - 12/2999	1
88510-10630	EP82..SOL W(PS & MANUAL AIC---LHC)	06/1995 - 01/1996	1
88510-10480	EP8#..RHD	05/1994 - 05/1995	1
88510-10630	EP82..S,SOLL MANUAL AIC---LHC	06/1995 - 01/1996	1
88510-10480	EP82..S HONG KONG SPEC & MANUAL AIC---LHC	06/1995 - 01/1996	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-10090	EP8#..RHD	12/1989 - 12/2999	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-1C030	EP8# MANUAL *AIC OR W(GAS)	12/1989 - 01/1990	1
88605-1C040	EP8# W(AIR CONDITIONER) OR W(BOOST VENTILATOR)	12/1989 - 01/1990	1
88605-1C310	EP82..SOLL W(AIR CONDITIONER)	01/1992 - 12/1993	1
88605-1C360	EP82..SOL W(AIR CONDITIONER SWITCH=1 BUTTON)	01/1992 - 12/1993	1
88605-1C370	EP82..SOLL W(AIR CONDITIONER SWITCH=1 BUTTON)	01/1992 - 12/1993	1
88605-1C310	EP82..SOL W(PS & *AIC)	01/1992 - 12/1993	1
88605-1C370	EP82..SOL W(PS & *AIC SWITCH=1 BUTTON)	01/1992 - 12/1993	1
88605-1C350	EP82..SOL MANUAL *AIC OR W/O(GAS)	01/1992 - 12/1993	1
88605-1C450	EP82..CAN,S,SOLL W(AUTO AIR CONDITIONER)	01/1992 - 12/1993	1
88605-1C580	EP82..SOLL W(AIR CONDITIONER SWITCH=1 BUTTON)	12/1993 - 05/1994	1
88605-1C600	EP82..SOL MANUAL *AIC	12/1993 - 05/1994	1
88605-1C560	EP82..SOLL MANUAL *AIC OR W(GAS)	12/1993 - 05/1994	1
88605-1C570	EP82..CAN,S,SOLL W(AUTO AIR CONDITIONER)	12/1993 - 05/1994	1
88605-1C560	EP82..SOL W(PS & MANUAL AIC---LHC)	12/1993 - 05/1994	1
88605-1C580	EP82..SOL W(PS & *AIC SWITCH=1 BUTTON)	12/1993 - 05/1994	1
88605-1C890	EP82..SOLL MANUAL AIC---LHC OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 06/1995	1
88605-1C890	EP82..SOLL MANUAL *AIC OR W(GAS)	05/1994 - 05/1995	1
88605-1C880	EP82..S W(AUTO AIR CONDITIONER)	05/1994 - 01/1996	1
88605-1C890	EP82..S MANUALE AIR CONDITIONER	05/1994 - 01/1996	1
88605-1C890	EP82..SOL W(PS & GAS)	05/1994 - 05/1995	1
88605-1C890	EP82..S,SOL HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 06/1995	1
88605-1M040	EP82..SOL W(PS & *AIC SWITCH=1 BUTTON)	05/1994 - 01/1996	1
88605-1M030	EP82..S,SOLL AAC---LHC	05/1994 - 01/1996	1
88605-1C610	EP82..SOL W(AIR CONDITIONER SWITCH=1 BUTTON)	12/1993 - 05/1994	1
88605-1M060	EP82..SOL COOLER BOOST VENTILATOR---DEALER OPT	05/1994 - 01/1996	1
88605-1M040	EP82..SOLL W(AIR CONDITIONER SWITCH=1 BUTTON)	05/1994 - 01/1996	1
88605-1C890	EP82..SOL W(PS & MANUAL AIC---LHC) OR HONG KONG SPEC & MANUAL AIC---LHC	06/1995 - 01/1996	1
88605-1M070	EP82..SOL W(AIR CONDITIONER SWITCH=1 BUTTON)	05/1994 - 01/1996	1
88605-1C890	EP82..SOLL MANUAL *AIC OR W(GAS)	06/1995 - 01/1996	1
88605-1C890	EP82..S HONG KONG SPEC & MANUAL AIC---LHC	06/1995 - 01/1996	1
88605-1M210	EP82..S AUTOMATIC AIR CONDITIONER	05/1994 - 01/1996	1
88630 - RELAY ASSY, COOLER
88630-95702	EP8#	12/1989 - 01/1992	1
88630-95702	EP8#	01/1992 - 01/1996	2
88630 - RELAY ASSY, COOLER
88630-95702	EP8#	12/1989 - 01/1992	1
88630-95702	EP8#	01/1992 - 01/1996	2
88630A - RELAY ASSY, COOLER
88630-10090	EP82..CAN,S,SOLL W(AUTO AIR CONDITIONER)	01/1992 - 05/1994	1
88630-10100	EP82..SOLL MANUAL AIC OR W(GAS) OR AIC SWITCH=1 BUTTON OR W/O(GAS)	01/1992 - 12/1993	1
88630-10110	EP82..SOL;EP80,81..RHD	05/1994 - 05/1995	1
88630-10100	EP82..S	05/1994 - 01/1996	1
88630-10100	EP82..SOLL W(AIR CONDITIONER)	05/1994 - 01/1996	1
88630-10110	EP82..S *LHC	05/1994 - 05/1995	1
88630-10110	EP82..S AAC---LHC OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 01/1996	1
88630-10110	EP82..SOLL LHC OR AIC SWITCH=1BUTTON	05/1994 - 05/1995	1
88630-10110	EP82..SOLL AIC SWITCH=1BUTTON OR AAC---LHC OR HONG KONG SPEC & MANUAL AIC---*LHC	05/1995 - 01/1996	1
88630-10100	EP82..SOLL MANUAL AIC OR W(GAS) OR AIC SWITCH=1 BUTTON	12/1993 - 05/1994	1
88630-10100	EP82..SOL	01/1992 - 05/1994	1
88630-10110	EP82..SOL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1995 - 01/1996	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-16500	EP82..SOL W(PS & AIR CONDITIONER)	01/1992 - 05/1995	1
88650-16450	EP82..SOL W(AIR CONDITIONER)	01/1992 - 01/1996	1
88650-16500	EP82..SOLL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1995 - 01/1996	1
88650-16500	EP82..CAN,S,SOLL	01/1992 - 05/1994	1
88650-16500	EP82..SOL (PS & *AIC SWITCH=1BUTTON)	05/1995 - 01/1996	1
88650-10410	EP82 DEALER OPTION	05/1995 - 01/1996	1
88650-16310	EP8# W(AIR CONDITIONER---MOP) OR W(AIR CONDITIONER---DOP)	12/1989 - 01/1992	1
88650-16500	EP82..SOLL MANUAL AIC---LHC	05/1994 - 05/1995	1
88650-16500	EP82..S	05/1994 - 01/1996	1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-10330	EP82..SOLL LHC OR AIC SWITCH=1BUTTON	06/1995 - 01/1996	1
88688-10230	EP8#..RHD	12/1989 - 01/1992	1
88688-10330	EP8#..RHD	01/1992 - 05/1995	1
88688-10330	EP82..SOLL LHC OR AIC SWITCH=1BUTTON OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 06/1995	1
88688-10330	EP82..SOL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1995 - 01/1996	1
88688-10330	EP8#..RHD..(S,STD,XL)	05/1995 - 12/2999	1
Common parts
82711-95704
88569-10020
88569-17090
88569-22250
90168-50032
90480-24008
90480-26022
93540-54010
Linked diagrams
8401

ILLUST NO. 2 OF 2(9201-9601)EP82

Click highlighted areas on diagram

DEALER OPT

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-10100	EP8#..RHD	12/1989 - 12/1993	1
88501-16110	EP8#..RHD	12/1993 - 05/1994	1
88501-16131	EP82..SOLL *AIC SWITCH=1 BUTTON	05/1994 - 01/1995	1
88501-16131	EP82..S AAC---LHC OR DEALER	05/1994 - 01/1995	1
88501-16130	EP82..S	05/1994 - 01/1995	1
88501-16130	EP82..SOLL MANUAL *AIC	05/1994 - 01/1995	1
88501-16110	EP82..S AAC---LHC OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 01/1996	1
88501-16131	EP82..SOLL LHC OR AIC SWITCH=1BUTTON	01/1995 - 05/1995	1
88501-16131	EP82..SOLL LHC OR AIC SWITCH=1BUTTON OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 01/1996	1
88501-10140	EP82..S,SOLL MANUAL AIC---LHC	06/1995 - 01/1996	1
88501-10140	EP82..SOL W(PS & MANUAL AIC---LHC)	06/1995 - 01/1996	1
88501-16131	EP82..S	01/1995 - 01/1996	1
88501-16110	EP82..SOLL AIC SWITCH=1BUTTON OR AAC---LHC OR HONG KONG SPEC & MANUAL AIC---*LHC	05/1995 - 01/1996	1
88501-16131	EP82..SOL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1994 - 01/1996	1
88501-16131	EP82..S HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 01/1996	1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-16150	EP82	05/1994 - 01/1996	1
88515 - VALVE, COOLER EXPANSION
88515-20100	EP82..SOL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1995 - 01/1996	1
88515-20100	EP82..SOLL LHC OR AIC SWITCH=1BUTTON OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 06/1995	1
88515-20100	EP8#	12/1993 - 05/1995	1
88515-20100	EP8#..S,STD,XL	05/1995 - 12/2999	1
88515-14061	EP8#..RHD	12/1989 - 07/1990	1
88515-20100	EP82..SOLL LHC OR AIC SWITCH=1BUTTON	06/1995 - 01/1996	1
88521E - CASE SUB-ASSY, COOLING UNIT
88502-10020	EP82	05/1994 - 01/1996	1
88625 - THERMISTOR, COOLER, NO.1
88625-24050	EP8#..RHD	12/1989 - 04/1991	1
88645G - SWITCH, PRESSURE
88645-30320	EP8#..RHD	12/1989 - 01/1990	1
88648 - WIRING, COOLER, NO.1
88648-10290	EP8#	12/1989 - 12/1993	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-16230	EP8#..RHD	12/1993 - 05/1995	1
88710-10060	EP8#..RHD	12/1989 - 12/1993	1
88710-16230	EP82..SOL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1995 - 01/1996	1
88710-16230	EP8#..RHD..(S,STD,XL)	05/1995 - 12/2999	1
88710-16230	EP82..SOLL LHC OR AIC SWITCH=1BUTTON	06/1995 - 01/1996	1
88710-16230	EP82..SOLL MANUAL AIC---LHC OR AIC SWITCH=1 BUTTON OR AAC---LHC;HONG KONG SPEC & MANUALAIC---*LHC	05/1995 - 06/1995	1
88723A - LABEL, COOLER SERVICE CAUTION
88723-20020	EP8#	12/1989 - 01/1992	1
88723-16070	EP82	06/1995 - 01/1996	2
Common parts
87116-14010
90099-00968

EP82-AHKNK (1992)

(9201- )

ILLUST NO. 1 OF 2(9201-9601)EP82

ILLUST NO. 2 OF 2(9201-9601)EP82

Part Price Details
