EP82-AHKNK (1992)

Toyota Starlet

Production Jan 1992 - Jan 1996
Engine 4EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9201- )

Click highlighted areas on diagram

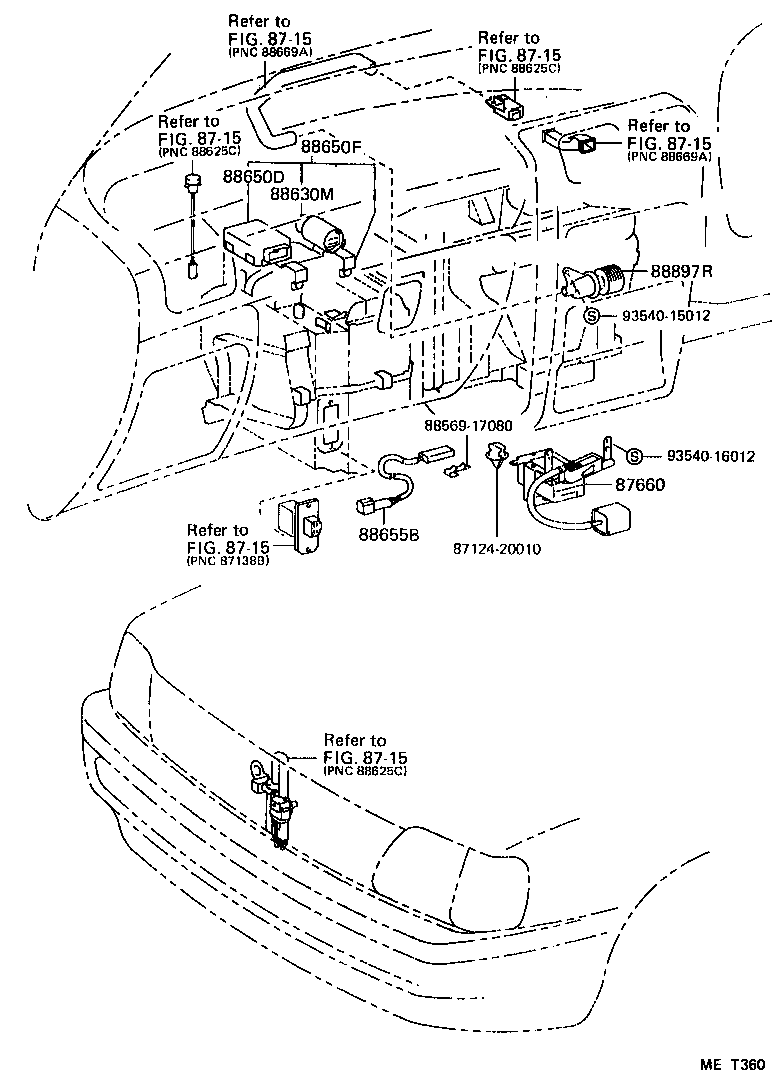

AUTO AIR CONDITIONER PARTS

diagram 8712420010 8715 8715 8715 8715 8715 8715 87660 8856917080 88630M 88650D 88650F 88655B 88897R 9354015012 9354016012
Part # Description Qty Price
87660 - SERVO ASSY, AIR CONDITIONER
88660-10030

EP82..CAN,S,SOLL

 1
88630M - RELAY ASSY, COOLER
88630-95702

EP80,82..RHD..(CAN,S,SOLL,STD,XL)

 1
88650D - AMPLIFIER ASSY
88650-10390

EP82..S,SOLL

 1
88650-10340

EP82..CAN,S,SOLL

 1
88650F - AMPLIFIRE & ACCESSORY ASSY, AIR CONDITIONER
88650-10380

EP82..CAN,S,SOLL

 1
88650-10400

EP82..S,SOLL

 1
88655B - SWITCH, WATER TEMPERATURE
88625-10070

EP82..CAN,S,SOLL

 1
88897R - ASPIRATOR
88897-20110

EP82..CAN,S,SOLL

 1
Common parts
87124-20010
88569-17080
93540-15012
93540-16012
Linked diagrams
8715
