EP82-AHKNK (1992)

Toyota Starlet

Production Jan 1992 - Jan 1996
Engine 4EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

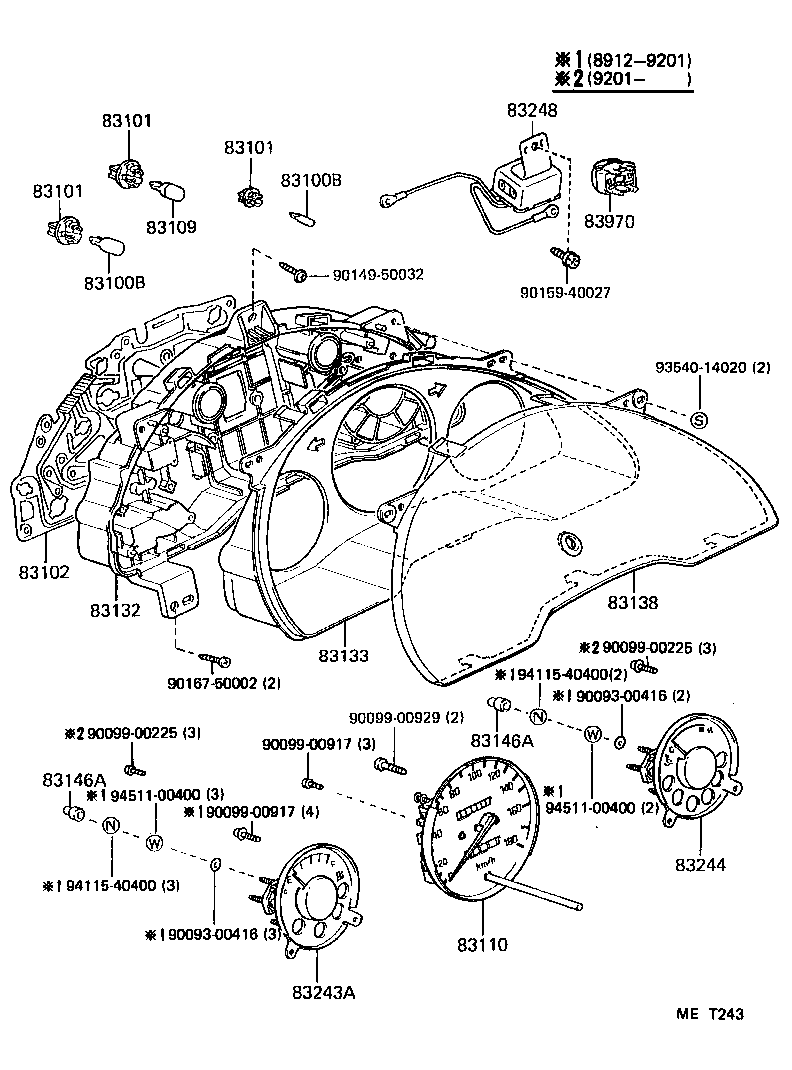

ILLUST NO. 1 OF 3(8912-9601)

Click highlighted areas on diagram

W/O(TACHOMETER)

diagram 83100B 83100B 83101 83101 83101 83102 83109 83110 83132 83133 83138 83146A 83146A 83243A 83244 83248 83970 9009300416 9009300416 9009900225 9009900225 9009900917 9009900917 9009900929 9014950032 9015940027 9016750002 9354014020 9411540400 9411540400 9451100400 9451100400
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
90981-11018

EP8#..RHD..5D..S

12V 1.2W W/O SOCKET,INDONESIA(CKD) OR W(SPEED METER)

 8
99132-12034

EP8#..S,XL

12V 3.4W

 5
99132-12034

EP8#..RHD..5D..S

12V 3.4W,INDONESIA(CKD) OR W(SPEED METER)

 5
83119-32010

EP80,81..3D..XL;EP80,81..LHD..XL;EP81,82..CAN,S,SOLL

14V 3.0W

 1
83109-30070

EP82

14V 2.0W,W/O SOCKET

 1
83109-10020

EP8#..SOL,SOLL,STD,XL

14V 3.4W,GREEN CAP

 2
90981-11018

EP8#

12V 1.2W W/O SOCKET

 17
83119-32010

EP8#..CAN,S,SOLL,XL

14V 3.0W

 1
83100B - BULB, COMBINATION METER, NO.1
90981-11018

EP8#..RHD..5D..S

12V 1.2W W/O SOCKET,INDONESIA(CKD) OR W(SPEED METER)

 8
99132-12034

EP8#..S,XL

12V 3.4W

 5
99132-12034

EP8#..RHD..5D..S

12V 3.4W,INDONESIA(CKD) OR W(SPEED METER)

 5
83119-32010

EP80,81..3D..XL;EP80,81..LHD..XL;EP81,82..CAN,S,SOLL

14V 3.0W

 1
83109-30070

EP82

14V 2.0W,W/O SOCKET

 1
83109-10020

EP8#..SOL,SOLL,STD,XL

14V 3.4W,GREEN CAP

 2
90981-11018

EP8#

12V 1.2W W/O SOCKET

 17
83119-32010

EP8#..CAN,S,SOLL,XL

14V 3.0W

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

EP8#

BULB:12V 3.4W

 5
83101-14030

EP8#..CAN,S,XL

BULB:12V 3.4W

 3
83101-14030

EP8#..SOL,SOLL,STD,XL

BULB:14V 3.4W

 2
83101-24010

EP8#..CAN,S,SOLL,XL

BULB:14V 3.0W

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

EP8#

BULB:12V 3.4W

 5
83101-14030

EP8#..CAN,S,XL

BULB:12V 3.4W

 3
83101-14030

EP8#..SOL,SOLL,STD,XL

BULB:14V 3.4W

 2
83101-24010

EP8#..CAN,S,SOLL,XL

BULB:14V 3.0W

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14030

EP8#

BULB:12V 3.4W

 5
83101-14030

EP8#..CAN,S,XL

BULB:12V 3.4W

 3
83101-14030

EP8#..SOL,SOLL,STD,XL

BULB:14V 3.4W

 2
83101-24010

EP8#..CAN,S,SOLL,XL

BULB:14V 3.0W

 1
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83149-10130

EP8#..S

 1
83149-10210

EP8#..RHD..5D..S

INDONESIA SPEC OR W(SPEEDOMETER---MILE/KM)

 1
83247-1M010

EP82..4F

 1
83247-1M011

EP82..4F

 1
83109 - BULB, COMBINATION METER, NO.2
83109-24020

EP8#..S,XL

12V3.4W W(GREEN CAP)

 4
83109-14030

EP8#..S,XL

12V 3.4W,AMBER CAP

 4
83109-24010

EP8#..CAN,S,XL

12V 1.4W,GREEN CAP

 1
83109-24020

EP8#..CAN,S,XL

12V3.4W W(GREEN CAP)

 3
83110 - SPEEDOMETER ASSY
83110-1C060

EP8#..RHD..5D..S

INDONESIA SPEC

 1
83110-1C030

EP8#..S

 1
83110-1C050

EP8#..S

W(SPEEDOMETER---MILE/KM)

 1
83110-1C130

EP82..SOLL

 1
83110-1C120

EP82..SOL

 1
83110-1C131

EP82..SOLL

 1
83110-1C121

EP82..SOL

 1
83132 - CASE, COMBINATION METER
83132-1C090

EP8#..RHD..5D..S

INDONESIA SPEC OR W(SPEEDOMETER---MILE/KM)

 1
83132-1C070

EP8#..S

 1
83132-1C510

EP82..4F

 1
83132-1C710

EP82..4F

 1
83133 - PLATE, COMBINATION METER, NO.1
83133-10790

EP8#..S

 1
83133-10850

EP82..4F;EP80,81..STD,XL

 1
83138 - GLASS, SPEEDOMETER
83138-10450

EP82..SOL

 1
83138-10490

EP81,82..CAN,S

 1
83138-10470

EP8#..SOLL,STD,XL

 1
83138-10430

EP8#..S

 1
83243A - GAUGE SUB-ASSY, FUEL RECEIVER
83243-10430

EP8#..S

 1
83243-10690

EP8#..SOL,STD,XL

 1
83243-10710

EP82..SOLL

 1
83243-10850

EP82..SOLL

 1
83243-10770

EP81,82..CAN,S

 1
83243-10830

EP8#..SOL,STD,XL

 1
83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83244-10250

EP8#..S

 1
83244-10370

EP81,82..CAN,S

 1
83244-10330

EP8#..SOL,SOLL,STD,XL

 1
83248 - CHIME, SPEED WARNING
86640-10060

EP82..5D

 1
Common parts
90093-00416
90099-00225
90099-00917
90099-00929
90149-50032
90159-40027
90167-50002
93540-14020
94115-40400
94511-00400
