EP82-AHKNK (1992)
Toyota Starlet
Production
Jan 1992
-
Jan 1996
Engine
4EFE
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9201- )EP82

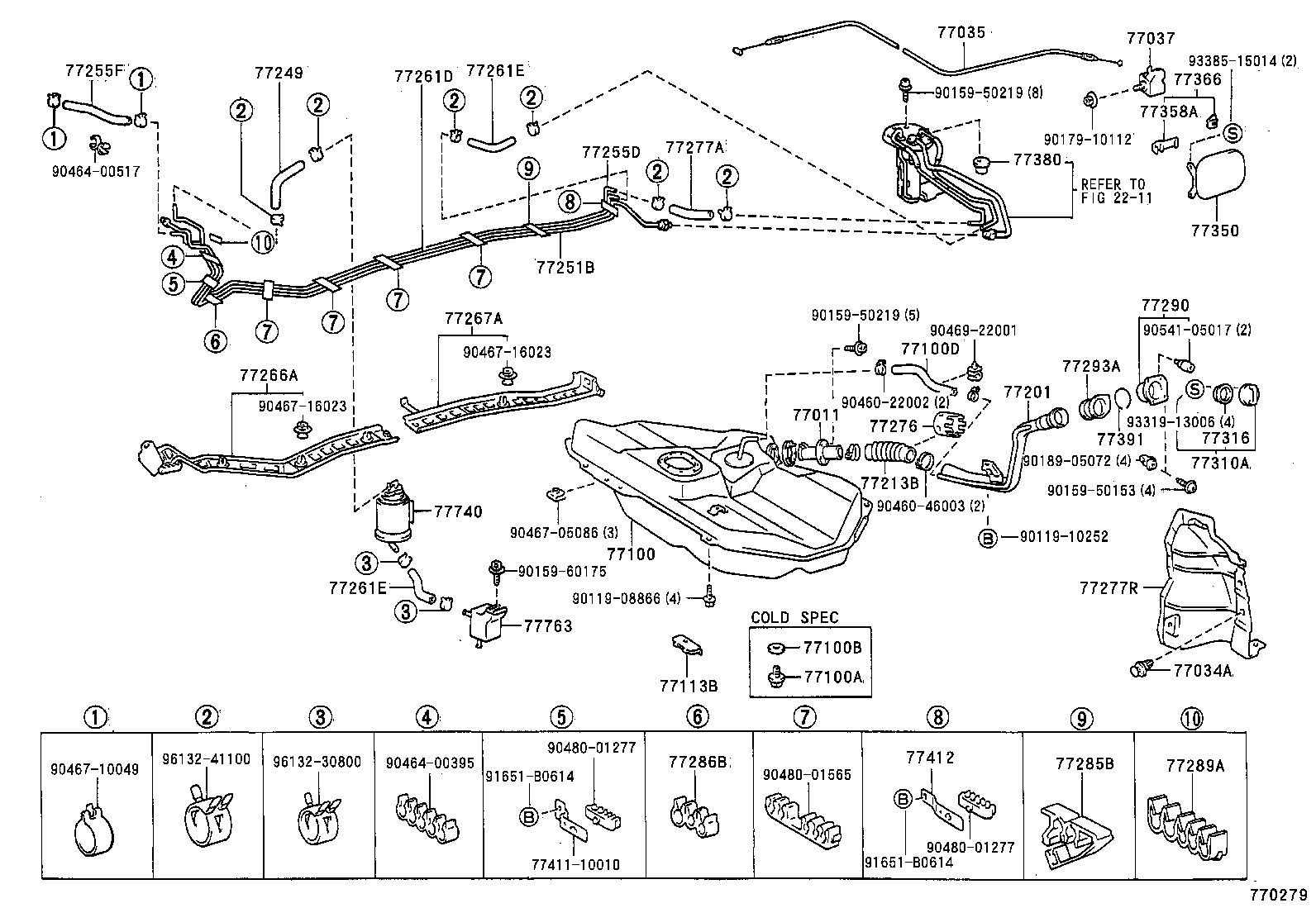

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-10050 |
EP8# |
1 | ||
| 77034A - CRIP (FOR FUEL TANK FILLER PIPE) | ||||
| 90467-07109 |
EP80,82;EP81..5D;EP81..3D..XL |
5 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-10050 |
EP8#..RHD |
1 | ||
| 77035-10050 |
EP8#..RHD CYUHATSU |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-10010 |
EP8# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-10320 |
EP82 |
1 | ||
| 77001-10920 |
EP82 COLD SPEC OR HONG KONG SPEC |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
EP82 COLD SPEC OR HONG KONG SPEC |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
EP82 COLD SPEC OR HONG KONG SPEC |
1 | ||
| 77113B - PLATE, FUEL TANK SIDE | ||||
| 77113-10020 |
EP8# |
4 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-10150 |
EP82 HONG KONG SPEC |
1 | ||
| 77201-10190 |
EP82 COLD SPEC |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-10050 |
EP82 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-10220 |
EP82 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-10190 |
EP82 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 90445-12247 |
EP82 L=400 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-10150 |
EP82 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77419-10010 |
EP82 L=140 |
1 | ||
| 77419-10040 |
EP82 L=135 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77419-10010 |
EP82 L=140 |
1 | ||
| 77419-10040 |
EP82 L=135 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-10030 |
EP8# |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-10050 |
EP8# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 77279-10060 |
EP82 L=125 |
1 | ||
| 77279-10020 |
EP82 L=200 |
1 | ||
| 77279-10050 |
EP82 L=130 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-10030 |
EP8# |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-10010 |
EP8# |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-10020 |
EP82 |
1 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-10030 |
EP82 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-10010 |
EP82;EP81..3D..S |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-10020 |
EP82;EP81..3D..S |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-12100 |
EP8# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-12050 |
EP8# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-10050 |
EP82;EP81..3D..S |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-10020 |
EP8# |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
EP8# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-32010 |
EP8# |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-10010 |
EP8# |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77704-16160 |
EP82 |
1 | ||
| 77763 - CASE, CHARCOAL CANISTER DRAIN | ||||
| 77763-10020 |
EP82..MTM |
1 | ||
| Common parts | ||||
| 77411-10010 | ||||
| 90119-08866 | ||||
| 90119-10252 | ||||
| 90159-50153 | ||||
| 90159-50219 | ||||
| 90159-60175 | ||||
| 90179-10112 | ||||
| 90189-05072 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90464-00395 | ||||
| 90464-00517 | ||||
| 90467-05086 | ||||
| 90467-10049 | ||||
| 90467-16023 | ||||
| 90469-22001 | ||||
| 90480-01277 | ||||
| 90480-01565 | ||||
| 90541-05017 | ||||
| 91651-B0614 | ||||
| 93319-13006 | ||||
| 93385-15014 | ||||
| 96132-30800 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 2211 | ||||
