EP82-AHKNK (1992)

Toyota Starlet

Production Jan 1992 - Jan 1996
Engine 4EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9201-9405)

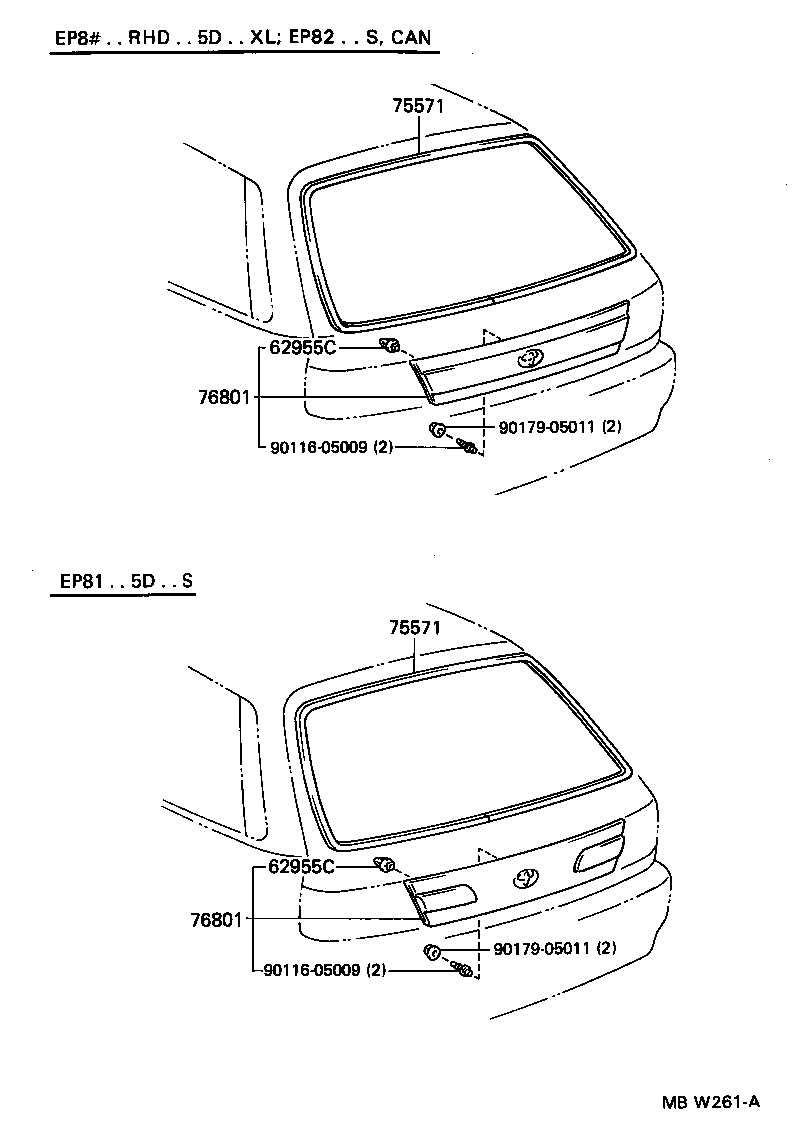

Click highlighted areas on diagram

diagram 62955C 62955C 75571 75571 76801 76801 9011605009 9011605009 9017905011 9017905011
Part # Description Qty Price
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75573-10060

EP8#

 1
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75573-10060

EP8#

 1
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-1004013

EP8#..RHD..5D..(S,XL)

INDONESIA SPEC,DARK GRAY,3E5 ,3H4 ,4L5 ,541

 1
76801-1004003

EP8#..RHD..5D..(S,XL)

INDONESIA SPEC,LIGHT GRAY,040 ,185 ,186 ,6L2 ,8G9 ,8H1

 1
76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76801-1004013

EP8#..RHD..5D..(S,XL)

INDONESIA SPEC,DARK GRAY,3E5 ,3H4 ,4L5 ,541

 1
76801-1004003

EP8#..RHD..5D..(S,XL)

INDONESIA SPEC,LIGHT GRAY,040 ,185 ,186 ,6L2 ,8G9 ,8H1

 1
Common parts
90116-05009
90179-05011

(9405- )

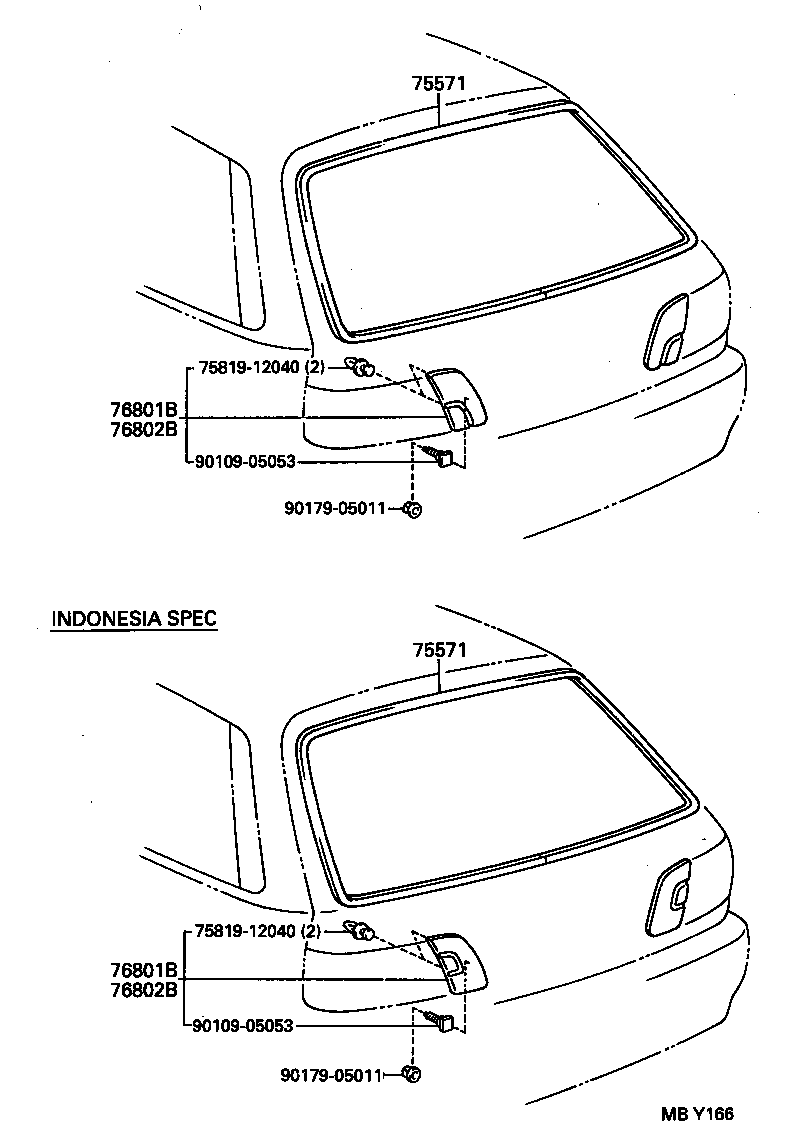

Click highlighted areas on diagram

diagram 75571 75571 7581912040 7581912040 76801B 76801B 76802B 76802B 9010905053 9010905053 9017905011 9017905011
Part # Description Qty Price
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75573-10060

EP8#

 1
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75573-10060

EP8#

 1
76801B - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE RH
76801-10090

EP8#..RHD

 1
76801B - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE RH
76801-10090

EP8#..RHD

 1
76802B - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LH
76802-10010

EP8#..RHD

 1
76802B - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LH
76802-10010

EP8#..RHD

 1
Common parts
75819-12040
90109-05053
90179-05011
