EP82-AHKNK (1992)

Toyota Starlet

Production Jan 1992 - Jan 1996
Engine 4EFE
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )EP82

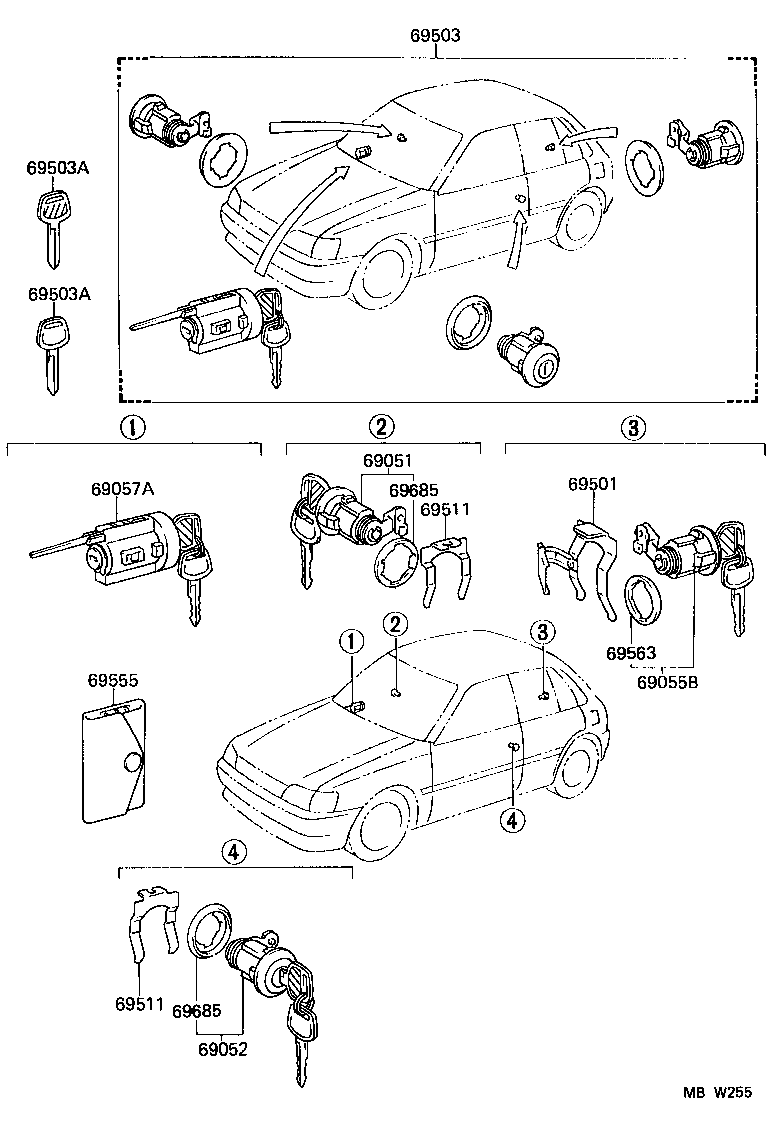

Click highlighted areas on diagram

diagram 69051 69052 69055B 69057A 69501 69503 69503A 69503A 69511 69511 69555 69563 69685 69685
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-10180

EP8#

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-10180

EP8#

 1
69055B - CYLINDER & KEY SET, BACK DOOR LOCK
69055-10170

EP8#

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-10190

EP82

 1
69057-10191

EP82

 1
69501 - RETAINER SUB-ASSY, BACK DOOR CYLINDER
69501-10030

EP8#

 1
69501-10040

EP8#

 1
69503 - CYLINDER SET, LOCK
69005-10290

EP82

 1
69005-10291

EP82

 1
69503A - KEY, BLANK
90999-00163

EP8#

MASTER KEY

 2
90999-00164

EP8#

MASTER KEY,W(*68)

 1
90999-00163

EP8#

MASTER KEY

 1
69503A - KEY, BLANK
90999-00163

EP8#

MASTER KEY

 2
90999-00164

EP8#

MASTER KEY,W(*68)

 1
90999-00163

EP8#

MASTER KEY

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32020

EP8#

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32020

EP8#

 2
69555 - COVER, KEY
69555-17020

EP82

 1
