EP82-AHKNK (1992)
Toyota Starlet
Production
Jan 1992
-
Jan 1996
Engine
4EFE
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

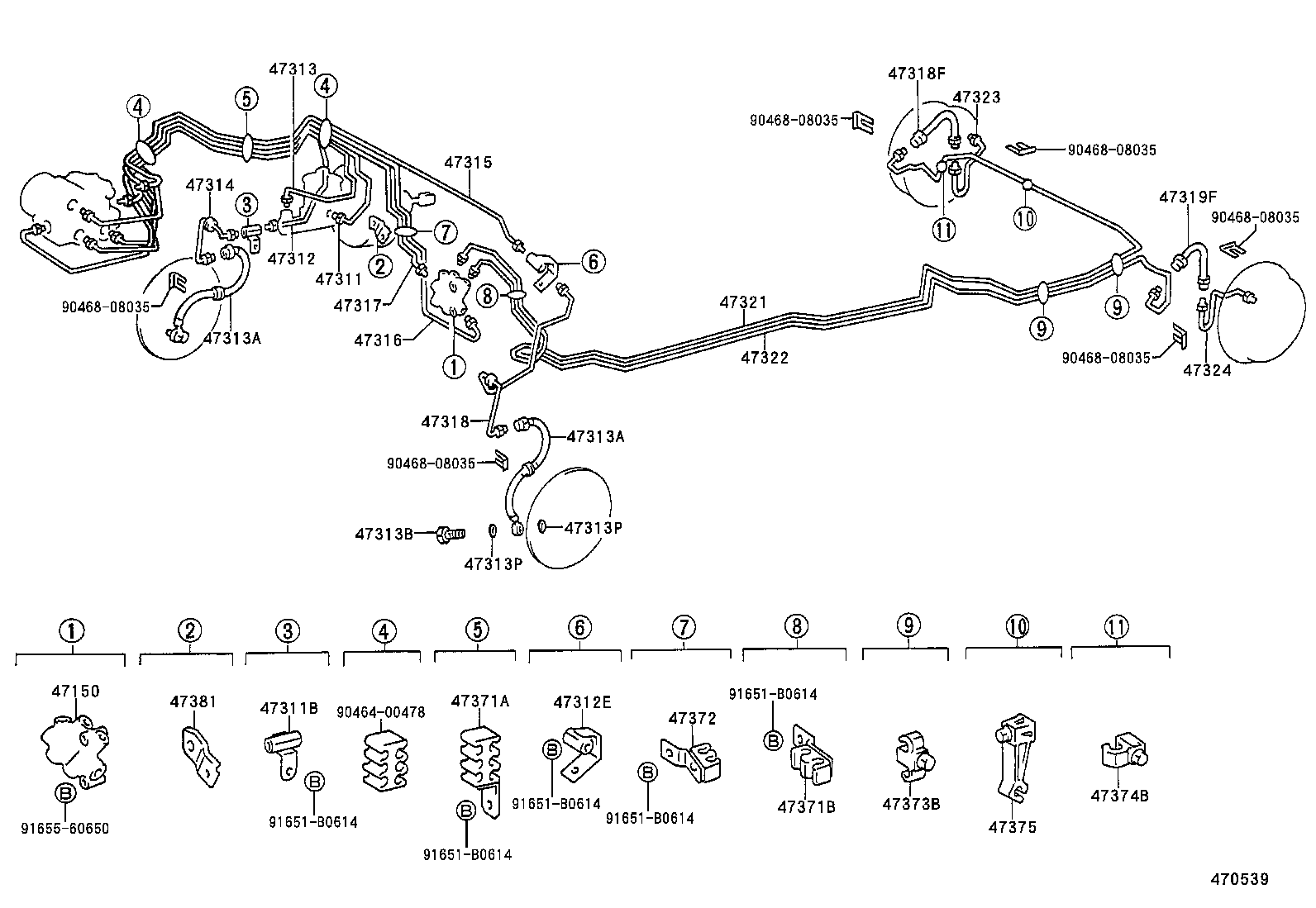

ILLUST NO. 1 OF 2(9201-9601)EP82
Click highlighted areas on diagram
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12060 |
EP8# |
1 | ||
| 47150-10060 |
EP82 W(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-10190 |
EP82 W(ABS) |
1 | ||
| 47311-10180 |
EP8#..RHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10249 |
EP8#..RHD |
1 | ||
| 90412-10169 |
EP82 W(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-10260 |
EP82 W(ABS) |
1 | ||
| 47312-10240 |
EP8#..RHD |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10168 |
EP82 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-10340 |
EP82 W(ABS) |
1 | ||
| 47313-10300 |
EP8#..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02644 |
EP8# RH |
1 | ||
| 90947-02813 |
EP8# RH |
1 | ||
| 90947-02632 |
EP8# RH |
1 | ||
| 90947-02633 |
EP8# LH |
1 | ||
| 90947-02814 |
EP8# LH |
1 | ||
| 90947-02645 |
EP8# LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02644 |
EP8# RH |
1 | ||
| 90947-02813 |
EP8# RH |
1 | ||
| 90947-02632 |
EP8# RH |
1 | ||
| 90947-02633 |
EP8# LH |
1 | ||
| 90947-02814 |
EP8# LH |
1 | ||
| 90947-02645 |
EP8# LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
EP8# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
EP8# |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
EP8# |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-10230 |
EP82 W(ABS) |
1 | ||
| 47314-10250 |
EP8#..RHD |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-10190 |
EP82 W(ABS) |
1 | ||
| 47315-10170 |
EP8#..RHD |
1 | ||
| 47315-10171 |
EP8#..RHD |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-10180 |
EP82 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-10030 |
EP82 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-10091 |
EP82 |
1 | ||
| 47318-10090 |
EP82 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02603 |
EP8# |
1 | ||
| 90947-02637 |
EP8# |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02637 |
EP8# |
1 | ||
| 90947-02603 |
EP8# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-10170 |
EP8#..RHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-10120 |
EP8#..RHD |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-10050 |
EP8# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-10050 |
EP8# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-10020 |
EP82 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-30010 |
EP8#..RHD |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-10150 |
EP82 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-10080 |
EP8# |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-10100 |
EP8# |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-10110 |
EP8# |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-10070 |
EP82 |
1 | ||
| 47381-10040 |
EP82 |
1 | ||
| Common parts | ||||
| 90464-00478 | ||||
| 90468-08035 | ||||
| 91651-B0614 | ||||
| 91655-60650 | ||||
ILLUST NO. 2 OF 2(9201-9601)EP82
Click highlighted areas on diagram
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-10020 |
EP82 |
1 | ||
| 44543 - CAP, RUBBER | ||||
| 44543-10010 |
EP82 |
2 | ||
| 44543 - CAP, RUBBER | ||||
| 44543-10010 |
EP82 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-10010 |
EP82 |
3 | ||
| 44545-12090 |
EP82 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-10010 |
EP82 |
3 | ||
| 44545-12090 |
EP82 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-10010 |
EP82 |
3 | ||
| 44545-12090 |
EP82 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-10010 |
EP82 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-10010 |
EP82 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-10010 |
EP82 |
3 | ||
| 44548A - BOLT, BRAKE ACTUATOR PROTECTOR | ||||
| 44548-10010 |
EP82 |
2 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-10011 |
EP82 |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-10010 |
EP82 |
1 | ||
| 44593 - BRACKET, BRAKE ACTUATOR, NO.3 | ||||
| 44593-10010 |
EP82 |
1 | ||
| Common parts | ||||
| 90119-08934 | ||||
| 90179-06074 | ||||
| 90179-08189 | ||||
| 91651-40610 | ||||
| 94614-10600 | ||||
