EP82-AHKNK (1992)
Toyota Starlet

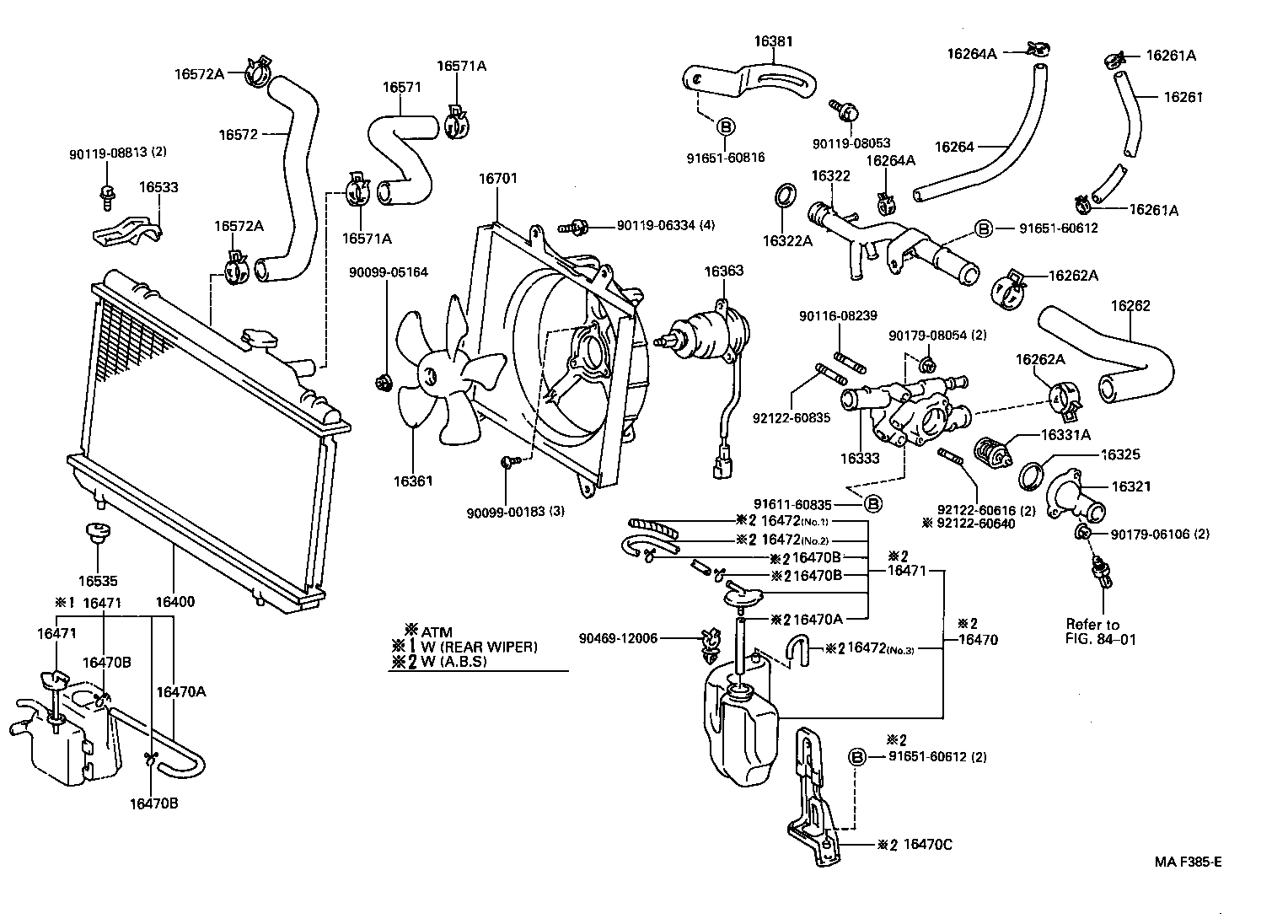

ILLUST NO. 1 OF 2(9201- )4EFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-11030 |
4EFE..EP82 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-11009 |
4EFE..EP82 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-11009 |
4EFE..EP82 |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-10011 |
1E,2E,4EFE..EP8#..MTM |
1 | ||
| 16262-10010 |
1E,2E,4EFE..EP8#..MTM |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-34003 |
1E,2E,4EFE..EP8# |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-34003 |
1E,2E,4EFE..EP8# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-11051 |
4EFE..EP82 |
1 | ||
| 16264-11050 |
4EFE..EP82 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
4EFE..EP82 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-11009 |
4EFE..EP82 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-10011 |
1E,2E,4EFE..EP8#..MTM |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-11161 |
4EFE..EP82 |
1 | ||
| 16322-11162 |
4EFE..EP82 |
1 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96761-35028 |
1E,2E,4EFE..EP8# |
1 | ||
| 96711-35028 |
1E,2E,4EFE..EP8# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63011 |
1E,2E,4EFE..EP8# |
1 | ||
| 16325-63010 |
1E,2E,4EFE..EP8# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
1E,2E,4EFE..EP8# *WAX 82-95 |
1 | ||
| 90916-03046 |
4EFE..EP82..MTM *WAX 82-95 |
2 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-11120 |
4EFE..EP82..3FC,4F,5F |
1 | ||
| 16333-11120 |
4EFE..EP82 |
1 | ||
| 16361 - FAN | ||||
| 16361-11010 |
1E,2E..EP80,81;4EFE..EP82..MTM |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-11010 |
1E,2E..EP80,81;4EFE..EP82..MTM |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-11030 |
4EFE..EP82 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-11660 |
4EFE..EP82..4F |
1 | ||
| 16400-11350 |
4EFE..EP82..MTM |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-11070 |
4EFE..EP82 |
1 | ||
| 16470-11071 |
4EFE..EP82 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
4EFE..EP82 *H,L=120,W(*66) |
1 | ||
| 85319-10160 |
1E,2E,4EFE..EP8# *H,L=640 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
4EFE..EP82 *H,L=120,W(*66) |
1 | ||
| 85319-10160 |
1E,2E,4EFE..EP8# *H,L=640 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1E,2E,4EFE..EP8# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1E,2E,4EFE..EP8# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1E,2E,4EFE..EP8# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1E,2E,4EFE..EP8# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-11030 |
4EFE..EP82 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-11070 |
4EFE..EP82 W(*66) |
1 | ||
| 85399-10160 |
1E,2E,4EFE..EP8# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-11070 |
4EFE..EP82 W(*66) |
1 | ||
| 85399-10160 |
1E,2E,4EFE..EP8# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-11070 |
4EFE..EP82 W(*66) |
1 | ||
| 85399-10160 |
1E,2E,4EFE..EP8# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 16477-11070 |
4EFE..EP82 NO.2 |
1 | ||
| 16478-11070 |
4EFE..EP82 NO.3 |
1 | ||
| 16479-11070 |
4EFE..EP82 NO.1 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 16477-11070 |
4EFE..EP82 NO.2 |
1 | ||
| 16478-11070 |
4EFE..EP82 NO.3 |
1 | ||
| 16479-11070 |
4EFE..EP82 NO.1 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 16477-11070 |
4EFE..EP82 NO.2 |
1 | ||
| 16478-11070 |
4EFE..EP82 NO.3 |
1 | ||
| 16479-11070 |
4EFE..EP82 NO.1 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-11180 |
4EFE..EP82 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-23008 |
1E,2E,4EFE..EP8# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-31003 |
1E,2E,4EFE..EP8# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-31003 |
1E,2E,4EFE..EP8# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-11130 |
1E,2E,4EFE..EP8#..MTM |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-31003 |
1E,2E,4EFE..EP8# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-31003 |
1E,2E,4EFE..EP8# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-11150 |
4EFE..EP82..MTM |
1 | ||
| Common parts | ||||
| 90099-00183 | ||||
| 90099-05164 | ||||
| 90116-08239 | ||||
| 90119-06334 | ||||
| 90119-08053 | ||||
| 90119-08813 | ||||
| 90179-06106 | ||||
| 90179-08054 | ||||
| 90469-12006 | ||||
| 91611-60835 | ||||
| 91651-60612 | ||||
| 91651-60816 | ||||
| 92122-60616 | ||||
| 92122-60640 | ||||
| 92122-60835 | ||||
| Linked diagrams | ||||
| 8401 | ||||
