8718 - HEATING & AIR CONDITIONING - COOLER PIPING

EP82-AHKDK (1992)

Toyota Starlet

Production Jan 1992 - Jan 1996

Engine 4EFE

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9201-9601)EP82

Click highlighted areas on diagram

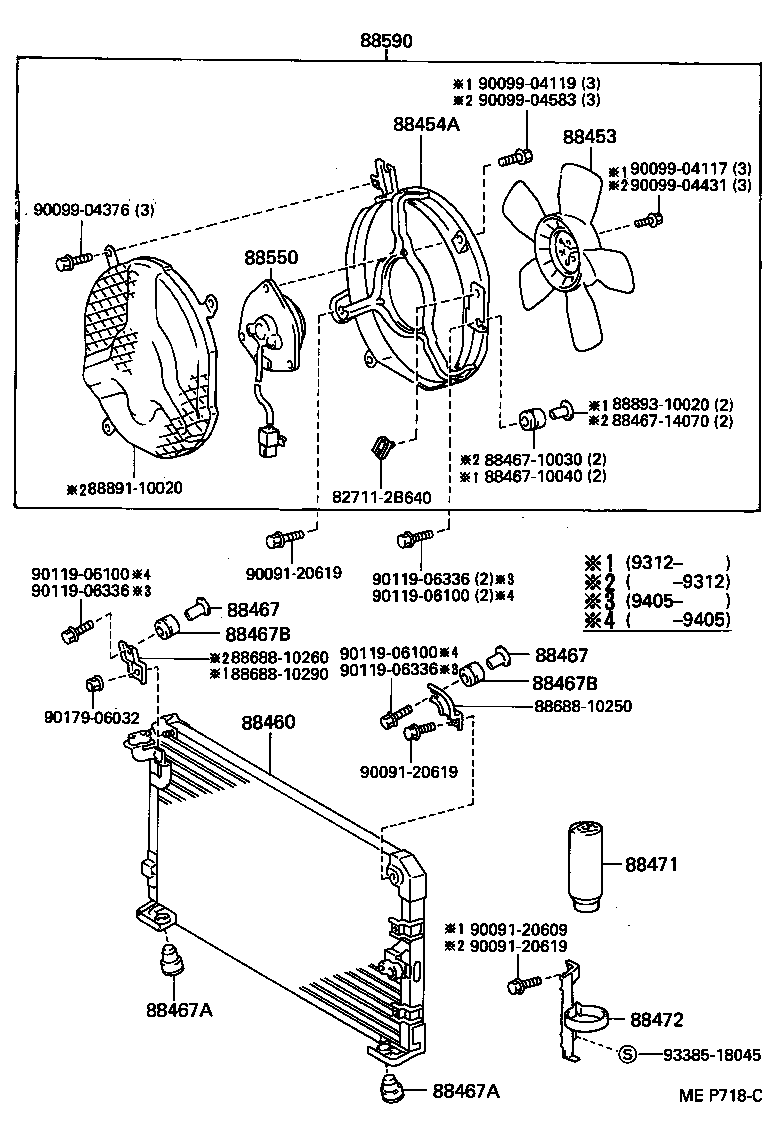

PIPING(1)

Part #	Description	Period	Qty
88453 - FAN, COOLING (FOR CONDENSER)
88453-10020	EP8#	12/1989 - 12/1993	1
88454A - SHROUD, FAN
88454-10070	EP8#	12/1989 - 01/1992	1
88454-10080	EP8#	01/1992 - 12/1993	1
88454-10081	EP8#	12/1993 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-10190	EP8#..RHD	01/1992 - 12/1993	1
88460-10160	EP8#	12/1989 - 11/1990	1
88460-10220	EP8#..RHD	12/1993 - 05/1995	1
88460-10270	EP82..S,SOLL MANUAL *AIC ---DEALER KIT	06/1995 - 01/1996	1
88460-10220	EP82..SOL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1995 - 01/1996	1
88460-10220	EP8#..RHD..(S,STD,XL)	05/1995 - 12/2999	1
88460-10220	EP82..S INDONESIA(CKD) & MANUAL *AIC---DEALER KIT	06/1995 - 01/1996	1
88460-10270	EP82..SOL W(PS & MANUAL AIC---LHC)	06/1995 - 01/1996	1
88467 - CUSHION, COOLER CONDENSER, NO.1
88893-10020	EP8#	12/1989 - 01/1992	2
88893-10020	EP82..SOL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1995 - 01/1996	2
88893-10020	EP82..S AAC---LHC OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 06/1995	2
88893-10020	EP82..S *LHC	06/1995 - 01/1996	2
88893-10020	EP80,81..LHD;EP82..CAN,S,SOL	01/1992 - 11/1993	2
88893-10020	EP8#	11/1993 - 05/1995	2
88467 - CUSHION, COOLER CONDENSER, NO.1
88893-10020	EP8#	12/1989 - 01/1992	2
88893-10020	EP82..SOL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1995 - 01/1996	2
88893-10020	EP82..S AAC---LHC OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 06/1995	2
88893-10020	EP82..S *LHC	06/1995 - 01/1996	2
88893-10020	EP80,81..LHD;EP82..CAN,S,SOL	01/1992 - 11/1993	2
88893-10020	EP8#	11/1993 - 05/1995	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-10020	EP8#	12/1989 - 12/2999	2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-10020	EP8#	12/1989 - 12/2999	2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-10030	EP8#	12/1989 - 05/1995	2
88467-10030	EP82..S AAC---LHC OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 06/1995	2
88467-10030	EP82..SOL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1995 - 01/1996	2
88467-10030	EP82..S *LHC	06/1995 - 01/1996	2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-10030	EP8#	12/1989 - 05/1995	2
88467-10030	EP82..S AAC---LHC OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 06/1995	2
88467-10030	EP82..SOL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1995 - 01/1996	2
88467-10030	EP82..S *LHC	06/1995 - 01/1996	2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-16040	EP8#	12/1989 - 12/1993	1
88471-34010	EP8#	12/1993 - 12/2999	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-10170	EP8#..RHD MAKER OPTION	12/1989 - 01/1992	1
88472-10181	EP8#..RHD	01/1992 - 05/1995	1
88472-10181	EP8#..RHD..(S,STD,XL)	05/1995 - 12/2999	1
88472-10181	EP82..SOL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1995 - 01/1996	1
88472-10180	EP8#..RHD DEALER OPTION	12/1989 - 12/1990	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12130	EP8#	01/1992 - 12/1993	1
88550-10050	EP8#	12/1989 - 01/1992	1
88550-12150	EP8#	12/1993 - 05/1995	1
88550-12150	EP82..SOL DEALER OPT OR *AIC SWITCH=1 BUTTON	05/1995 - 01/1996	1
88550-12150	EP8#..S,STD,XL	05/1995 - 12/2999	1
88590 - BLOWER ASSY, W/SHROUD
88590-10020	EP8#	01/1993 - 12/1993	1
88590-10020	EP80,82;EP81..RHD	01/1992 - 01/1993	1
88590-10010	EP8#	12/1989 - 01/1992	1
88590-10021	EP8#	12/1993 - 12/2999	1
Common parts
82711-2B640
88467-10030
88467-10040
88467-14070
88688-10250
88688-10260
88688-10290
88891-10020
88893-10020
90091-20609
90091-20619
90099-04117
90099-04119
90099-04376
90099-04431
90099-04583
90119-06100
90119-06336
90179-06032
93385-18045

ILLUST NO. 2 OF 3(9201-9601)EP82

Click highlighted areas on diagram

PIPING(2)

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	EP8#	06/1995 - 12/2999	1
88374-30010	EP80,81;EP82..SOL	10/1994 - 06/1995	1
88374C - VALVE, SERVICE, NO.2
88374-30010	EP8#	06/1995 - 12/2999	1
88374-30010	EP80,81;EP82..SOL	10/1994 - 06/1995	1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-20010	EP8#	12/1989 - 12/1993	1
88375-30280	EP8#..S,SOLL,STD,XL	05/1994 - 06/1995	1
88375-30280	EP8#	06/1995 - 12/2999	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02008	EP82 200G	06/1995 - 01/1996	3
90986-02004	EP8# 250G	12/1989 - 01/1993	3
90986-02004	EP80..LHD;EP81,82..RHD 250G	01/1993 - 12/1993	3
90986-02007	EP8# 250G	12/1993 - 12/2999	3
88645H - SWITCH, PRESSURE NO.1
88645-10030	EP8#	12/1989 - 12/1993	1
88645-20050	EP8#	12/1993 - 12/2999	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-10040	EP8#..S,SOLL,STD,XL	05/1994 - 12/2999	1
88704 - HOSE SUB-ASSY, SUCTION
88704-10100	EP82..MTM..(CAN,S,SOL)	01/1992 - 12/1993	1
88704-10140	EP82..SOL	05/1994 - 05/1995	1
88704-10020	EP8#..RHD..MTM	12/1989 - 01/1992	1
88704-10140	EP82..MTM..(CAN,S,SOL)	12/1993 - 05/1994	1
88704-10140	EP82..SOL DEALER OPT OR *AIC SWITCH=1 BUTTON	05/1995 - 01/1996	1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-10010	EP8#..RHD MANUAL AIR CON---*LHC OR COOLER BOOST VENTILATOR	12/1989 - 01/1992	1
88706-10030	EP8#..RHD MANUAL AIR CON DEALER KIT OR BOOST VENTILATOR	12/1989 - 01/1990	1
88706-10120	EP82..CAN,S,SOL	01/1992 - 06/1992	1
88706-10170	EP82..SOL	05/1994 - 05/1995	1
88706-10130	EP82..CAN,S,SOL	06/1992 - 12/1993	1
88706-10170	EP82..S AAC---LHC OR DEALER OPT	05/1994 - 05/1995	1
88706-10170	EP82..S MANUAL AIC---LHC(DEALER OPT)	06/1995 - 01/1996	1
88706-10170	EP82..S AAC---LHC OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 06/1995	1
88706-10150	EP82..S	05/1994 - 01/1996	1
88706-10170	EP82..CAN,S,SOL	12/1993 - 05/1994	1
88706-10170	EP82..SOL DEALER OPT OR *AIC SWITCH=1 BUTTON	05/1995 - 01/1996	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-10190	EP82..SOL MANUAL AIC OR W/O(GAS) OR AIC SWITCH=1 BUTTON	01/1992 - 12/1993	1
88711-10140	EP8#	12/1989 - 01/1992	1
88711-10231	EP82..S AAC---LHC OR DEALER OPT	05/1994 - 05/1995	1
88711-10231	EP82..S AAC---LHC OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 01/1996	1
88711-10250	EP82..SOL W(PS & MANUAL AIC---LHC)	06/1995 - 01/1996	1
88711-10230	EP82..SOL MANUAL AIC OR AIC SWITCH=1 BUTTON	12/1993 - 05/1994	1
88711-10200	EP82..S;EP80,81..LHD	05/1994 - 01/1996	1
88711-10231	EP82..SOL DEALER OPT OR *AIC SWITCH=1 BUTTON	05/1994 - 01/1996	1
88711-10250	EP82..S,SOLL MANUAL AIC---LHC	06/1995 - 01/1996	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-10190	EP82..SOL MANUAL AIC OR W/O(GAS) OR AIC SWITCH=1 BUTTON	01/1992 - 12/1993	1
88711-10140	EP8#	12/1989 - 01/1992	1
88711-10231	EP82..S AAC---LHC OR DEALER OPT	05/1994 - 05/1995	1
88711-10231	EP82..S AAC---LHC OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 01/1996	1
88711-10250	EP82..SOL W(PS & MANUAL AIC---LHC)	06/1995 - 01/1996	1
88711-10230	EP82..SOL MANUAL AIC OR AIC SWITCH=1 BUTTON	12/1993 - 05/1994	1
88711-10200	EP82..S;EP80,81..LHD	05/1994 - 01/1996	1
88711-10231	EP82..SOL DEALER OPT OR *AIC SWITCH=1 BUTTON	05/1994 - 01/1996	1
88711-10250	EP82..S,SOLL MANUAL AIC---LHC	06/1995 - 01/1996	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-10220	EP8#..RHD..MTM MAKER OPTION	12/1989 - 01/1992	1
88704-10050	EP8#..RHD DEALER OPTION	12/1989 - 01/1992	1
88712-10270	EP82..SOL MANUAL AIC---LHC OR W/O(GAS) OR *AIC SWITCH=1BUTTON	01/1992 - 12/1993	1
88712-10380	EP82..SOL MANUAL AIC---LHC OR *AIC SWITCH=1 BUTTON	12/1993 - 05/1994	1
88712-10380	EP82..SOL DEALER OPT OR *AIC SWITCH=1 BUTTON	05/1994 - 01/1996	1
88712-10420	EP82..SOL W(PS & MANUAL AIC---*LHC)	06/1995 - 01/1996	1
88712-10420	EP82..MTM..(S,SOLL) W(GAS)	06/1995 - 01/1996	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-10061	EP82..S;EP80,81..LHD	05/1994 - 01/1996	1
88715-10050	EP82..SOL	05/1994 - 01/1996	1
88715-10050	EP82..S *LHC OR W/O(GAS)	05/1994 - 01/1996	1
88715-10050	EP82..CAN,S,SOL	12/1993 - 05/1994	1
88715-10050	EP8#	01/1992 - 12/1993	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-10530	EP8#..RHD MANUAL AIR CON DEALER KIT OR BOOST VENTILATOR	12/1989 - 01/1990	1
88716-10510	EP8#..RHD MANUAL AIR CON---*LHC OR COOLER BOOST VENTILATOR	12/1989 - 01/1992	1
88716-10580	EP8#..RHD	01/1992 - 12/1993	1
88716-10571	EP8#..RHD	05/1994 - 05/1995	1
88716-10571	EP82..SOL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1995 - 01/1996	1
88716-10571	EP8#..RHD..(S,STD,XL)	05/1995 - 12/2999	1
88716-10570	EP80,82..RHD	12/1993 - 05/1994	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-10540	EP8#..RHD	12/1989 - 12/1990	1
88716-10730	EP8#..RHD	12/1993 - 12/2999	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-10590	EP82..CAN,S,SOL	07/1993 - 05/1994	1
88716-10520	EP8#..RHD	12/1989 - 01/1992	1
88716-10590	EP82..SOL	05/1994 - 01/1996	1
88716-10590	EP82..S *LHC OR W/O(GAS)	05/1994 - 01/1996	1
88716-10590	EP8#..RHD	01/1992 - 07/1993	1
88716-10610	EP82..S	05/1994 - 01/1996	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-10670	EP82..CAN,S,SOL	01/1992 - 06/1992	1
88716-10750	EP82..S AAC---LHC OR DEALER OPT	05/1994 - 05/1995	1
88716-10750	EP82..CAN,S,SOL	12/1993 - 05/1994	1
88716-10680	EP82..CAN,S,SOL	06/1992 - 12/1993	1
88716-10750	EP82..SOL	05/1994 - 05/1995	1
88716-10750	EP82..S AAC---LHC OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 06/1995	1
88716-10490	EP8#..RHD	12/1989 - 01/1992	1
88716-10750	EP82..SOL DEALER OPT OR *AIC SWITCH=1 BUTTON	05/1995 - 01/1996	1
88716-10750	EP82..S *LHC	06/1995 - 01/1996	1
88716-10850	EP82..S	05/1994 - 01/1996	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-10200	EP8#..RHD	12/1989 - 01/1992	1
88717-10300	EP82..SOL MANUAL AIC OR W/O(GAS) OR AIC SWITCH=1 BUTTON	01/1992 - 06/1992	1
88717-10320	EP82..SOL MANUAL AIC OR W/O(GAS) OR AIC SWITCH=1 BUTTON	06/1992 - 12/1993	1
88717-10330	EP82..SOL MANUAL AIC OR AIC SWITCH=1 BUTTON	12/1993 - 05/1994	1
88717-10100	EP82..S	05/1994 - 01/1996	1
88717-10330	EP82..S *LHC	06/1995 - 01/1996	1
88717-10330	EP82..S AAC---LHC OR DEALER OPT	05/1994 - 05/1995	1
88717-10330	EP82..S AAC---LHC OR HONG KONG SPEC & MANUAL AIC---LHC	05/1995 - 06/1995	1
88717-10330	EP82..SOL DEALER OPT OR *AIC SWITCH=1 BUTTON	05/1994 - 01/1996	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-16030	EP82..S	05/1995 - 01/1996	1
88723-20030	EP82..SOL W(PS & MANUAL AIC---LHC)	06/1995 - 01/1996	1
88723-16030	EP82..SOL MANUAL AIC---LHC OR *AIC SWITCH=1BUTTON	05/1995 - 01/1996	1
88723-16030	EP82..CAN,S,SOL	12/1993 - 05/1994	1
88723-16030	EP82	05/1994 - 05/1995	1
88723-20010	EP82	01/1992 - 12/1993	1
88723-20030	EP82..MTM..(S,SOLL) MANUAL AIC---LHC	06/1995 - 01/1996	1
Common parts
82711-12200
88569-12210
88688-10360
88688-33070
88718-10480
88718-10490
88718-10530
88718-10540
88718-10560
88718-10570
88718-14450
90091-20619
90119-06730
90159-60128
90179-06220
91651-40614
91651-60835
93381-15010
93385-18016
93385-18045
93385-56025
