EP82-AHHNK (1992)

Toyota Starlet

Production Jan 1992 - Jan 1996
Engine 4EFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )4EFE

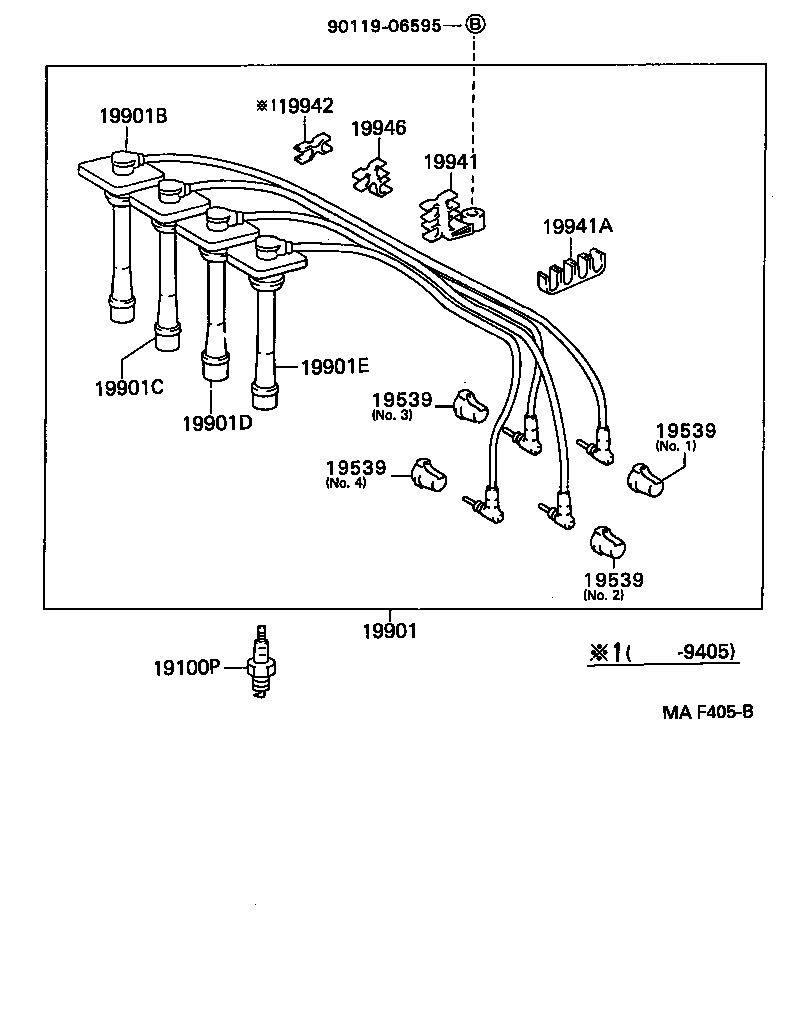

Click highlighted areas on diagram

diagram 19100P 19539 19539 19539 19539 19901 19901B 19901C 19901D 19901E 19941 19941A 19942 19946 9011906595
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01164

4EFE..EP82

K16R-U11

 4
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-70010

4EFE..EP82

NO.3,4

 2
19539-50010

4EFE..EP82

NO.1,2

 2
19539-11030

4EFE..EP82

NO.3,4

 2
19539-11020

4EFE..EP82

NO.1,2

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-70010

4EFE..EP82

NO.3,4

 2
19539-50010

4EFE..EP82

NO.1,2

 2
19539-11030

4EFE..EP82

NO.3,4

 2
19539-11020

4EFE..EP82

NO.1,2

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-70010

4EFE..EP82

NO.3,4

 2
19539-50010

4EFE..EP82

NO.1,2

 2
19539-11030

4EFE..EP82

NO.3,4

 2
19539-11020

4EFE..EP82

NO.1,2

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-70010

4EFE..EP82

NO.3,4

 2
19539-50010

4EFE..EP82

NO.1,2

 2
19539-11030

4EFE..EP82

NO.3,4

 2
19539-11020

4EFE..EP82

NO.1,2

 2
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-22399

4EFE..EP82

 1
90919-22373

4EFE..EP82

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15543

4EFE..EP82

 1
90919-15423

4EFE..EP82

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15544

4EFE..EP82

 1
90919-15424

4EFE..EP82

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15425

4EFE..EP82

 1
90919-15545

4EFE..EP82

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15550

4EFE..EP82

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
90929-01258

4EFE..EP82

 1
19941A - CLAMP(FOR RESISTIVE CORD)
90464-00559

4EFE..EP82

 1
19942 - CLAMP, RESISTIVE CORD, NO.2
90464-00560

4EFE..EP82

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
90464-00561

4EFE..EP82

 1
Common parts
90119-06595
