EP82-AGPSK (1992)
Toyota Starlet
(9204-9601)4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35111C - HOUSING, TRANSAXLE | ||||
| 35105-10015 |
EP82..4FC |
1 | ||
| 35105-10013 |
EP82..4FC |
1 | ||
| 35105-10014 |
EP82..4FC |
1 | ||
| 35111D - SEAL, OIL (FOR TRANSAXLE HOUSING) | ||||
| 90311-34012 |
EP82..4FC |
1 | ||
| 35111E - WASHER, SEAL (FOR FRONT TRANSAXLE HOUSING) | ||||
| 90210-13002 |
EP82..4FC |
1 | ||
| 35111Q - PLUG, NO.2 (FOR TRANSAXLE HOUSING) | ||||
| 90341-08001 |
EP82..4FC |
1 | ||
| 35111R - RING, O (FOR TRANSAXLE HOUSING PLUG NO.2) | ||||
| 90301-06196 |
EP82..4FC |
1 | ||
| 41181E - PLUG (FOR FRONT DIFFERENTIAL DRAIN) | ||||
| 90341-18057 |
EP82..4FC |
1 | ||
| 41211 - PINION, DIFFERENTIAL DRIVE | ||||
| 41206-20030 |
EP82..4FC |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90366-30020 |
EP82..4FC |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-30019 |
EP82..4FC |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-20230 |
EP82..4FC |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
EP81,82..ATM |
8 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-12050 |
EP81,82..ATM |
4 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-12030 |
EP82..4FC |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-17021 |
EP82..4FC |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90368-38002 |
EP82..4FC |
2 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90368-38010 |
EP8#..4F,4FC,5F |
1 | ||
| 41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90201-41010 |
EP81,82..ATM T=2.00 |
1 | ||
| 41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90201-41024 |
EP82..4FC T=2.00,MARK V |
1 | ||
| 90201-41027 |
EP82..4FC T=2.45,MARK C |
1 | ||
| 90201-41026 |
EP82..4FC T=2.40,MARK B |
1 | ||
| 90201-41030 |
EP82..4FC T=2.60,MARK F |
1 | ||
| 90201-41025 |
EP82..4FC T=2.35,MARK A |
1 | ||
| 90201-41032 |
EP82..4FC T=2.70,MARK H |
1 | ||
| 90201-41031 |
EP82..4FC T=2.65,MARK G |
1 | ||
| 90201-41028 |
EP82..4FC T=2.50,MARK D |
1 | ||
| 90201-41041 |
EP82..4FC T=2.20,MARK S |
1 | ||
| 90201-41029 |
EP82..4FC T=2.55,MARK E |
1 | ||
| 90201-41036 |
EP82..4FC T=2.90,MARK M |
1 | ||
| 90201-41035 |
EP82..4FC T=2.85,MARK L |
1 | ||
| 90201-41042 |
EP82..4FC T=2.25,MARK T |
1 | ||
| 90201-41040 |
EP82..4FC T=2.15,MARK R |
1 | ||
| 90201-41044 |
EP82..4FC T=2.05,MARK W |
1 | ||
| 90201-41033 |
EP82..4FC T=2.75,MARK J |
1 | ||
| 90201-41039 |
EP82..4FC T=2.10,MARK Q |
1 | ||
| 90201-41034 |
EP82..4FC T=2.80,MARK K |
1 | ||
| 90201-41043 |
EP82..4FC T=2.30,MARK U |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-12011 |
EP81,82..ATM |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-12030 |
EP81,82..ATM |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
EP81,82..ATM |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12020 |
EP81,82..ATM |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-17010 |
EP82..4FC T=0.95 |
2 | ||
| 41361-17020 |
EP82..4FC T=1.00 |
2 | ||
| 41361-17040 |
EP82..4FC T=1.10 |
2 | ||
| 41361-17060 |
EP82..4FC T=1.20 |
2 | ||
| 41361-17030 |
EP82..4FC T=1.05 |
2 | ||
| 41361-17050 |
EP82..4FC T=1.15 |
2 | ||

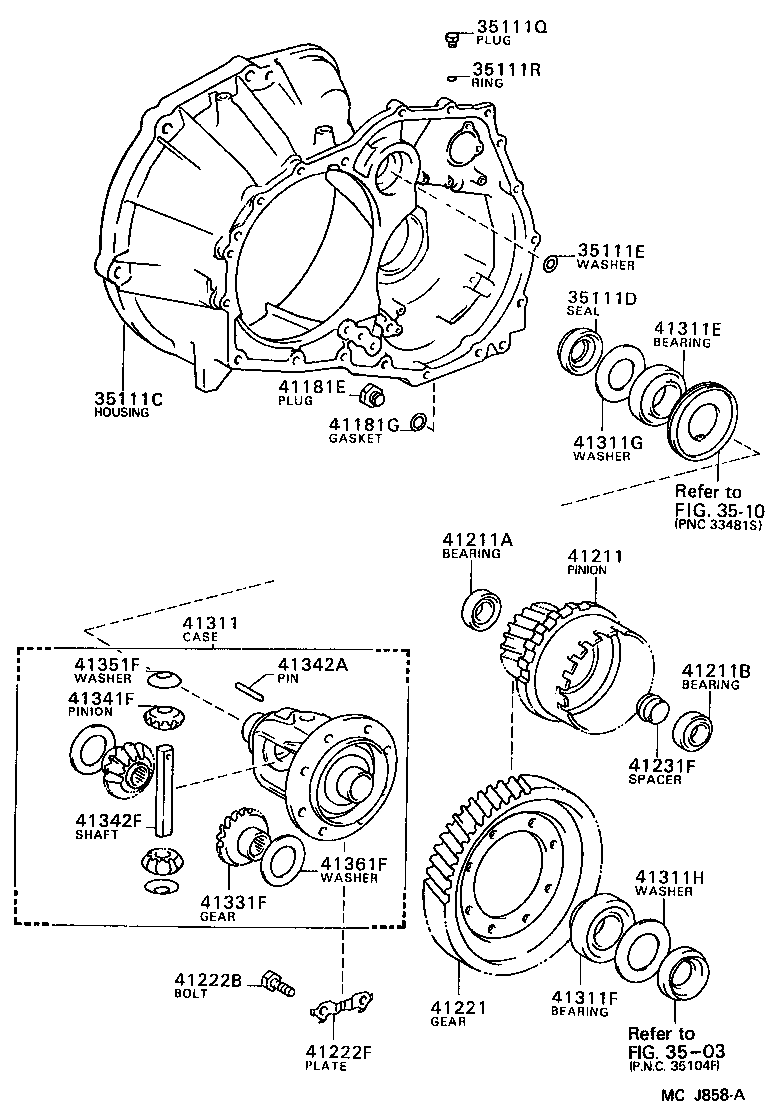

| Linked diagrams | ||||
| 3503 | ||||
| 3510 | ||||
