EP82-AGMSK (1992)

Toyota Starlet

Production Apr 1992 - Jan 1996
Engine 4EFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9405- )

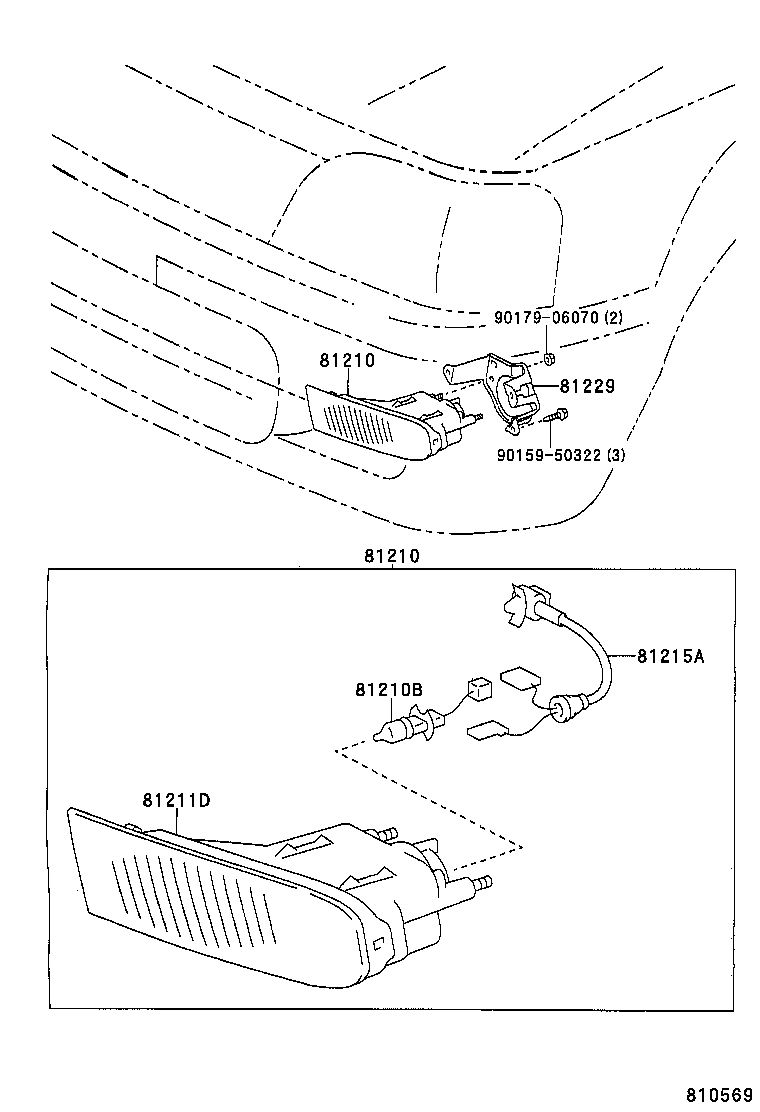

Click highlighted areas on diagram

TYPE B

diagram 81210 81210 81210B 81211D 81215A 81229 9015950322 9017906070
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-19245

EP82;EP80,81..RHD..5D

TYPE A:REFER TO ILLUSTRATION,RH

 1
81220-19155

EP82;EP80,81..RHD..5D

TYPE A:REFER TO ILLUSTRATION,LH

 1
81210 - LAMP ASSY, FOG
81210-19245

EP82;EP80,81..RHD..5D

TYPE A:REFER TO ILLUSTRATION,RH

 1
81220-19155

EP82;EP80,81..RHD..5D

TYPE A:REFER TO ILLUSTRATION,LH

 1
81210B - BULB, FOG LAMP
90981-13040

EP82;EP80,81..RHD..5D

12V 35W,HALOGEN

 2
81211D - LAMP UNIT, FOG LAMP
81221-10050

EP82;EP80,81..RHD..5D

LH

 1
81211-10130

EP82;EP80,81..RHD..5D

RH

 1
81215A - SOCKET & WIRE, FOG LAMP
81215-10130

EP82;EP80,81..RHD..5D

 2
81229 - BRACKET, FOG LAMP
81482-10010

EP82;EP80,81..RHD..5D

LH

 1
81481-10010

EP82;EP80,81..RHD..5D

RH

 1
Common parts
90159-50322
90179-06070
