EP81R-AHMSS (1989)
Toyota Starlet
ILLUST NO. 2 OF 5(8912-9201)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02006 |
1E,2E..EP8# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
EP8# 15A |
4 | ||
| 90982-09005 |
EP8# 7.5A |
2 | ||
| 90982-09002 |
EP82..5D;EP80,81..RHD 10A |
1 | ||
| 90982-07011 |
EP8# 30A,GREEN |
2 | ||
| 90982-09002 |
EP8#..RHD 10A |
1 | ||
| 90982-09002 |
EP8# 10A |
3 | ||
| 90982-09004 |
EP8# 20A,YELLOW |
3 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-10110 |
EP8# |
1 | ||
| 82660-10130 |
EP80,81 |
1 | ||
| 82660-10131 |
EP80,81 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-10110 |
EP8# |
1 | ||
| 82660-10130 |
EP80,81 |
1 | ||
| 82660-10131 |
EP80,81 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-10010 |
EP8# W(AIR CONDITIONER),NO.1,UPPER |
1 | ||
| 82663-10010 |
EP8# NO.1,LOWER |
1 | ||
| 82662-10080 |
EP8# NO.1,UPPER |
1 | ||
| 82662-10211 |
EP80,81 NO.1 UPPER |
1 | ||
| 82662-10211 |
EP80,81..RHD..5D INDONESIA(CKD),NO.1,UPPER |
1 | ||
| 82662-10210 |
EP80,81..RHD..5D INDONESIA(CKD),NO.1,UPPER |
1 | ||
| 82662-10210 |
EP80,81 NO.1 UPPER |
1 | ||
| 82662-10212 |
EP80,81 NO.1 UPPER |
1 | ||
| 82663-10030 |
EP8#..RHD NO.1 LOWER |
1 | ||
| 82663-10030 |
EP80,81..RHD..5D INDONESIA(CKD),NO.1,LOWER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-10010 |
EP8# W(AIR CONDITIONER),NO.1,UPPER |
1 | ||
| 82663-10010 |
EP8# NO.1,LOWER |
1 | ||
| 82662-10080 |
EP8# NO.1,UPPER |
1 | ||
| 82662-10211 |
EP80,81 NO.1 UPPER |
1 | ||
| 82662-10211 |
EP80,81..RHD..5D INDONESIA(CKD),NO.1,UPPER |
1 | ||
| 82662-10210 |
EP80,81..RHD..5D INDONESIA(CKD),NO.1,UPPER |
1 | ||
| 82662-10210 |
EP80,81 NO.1 UPPER |
1 | ||
| 82662-10212 |
EP80,81 NO.1 UPPER |
1 | ||
| 82663-10030 |
EP8#..RHD NO.1 LOWER |
1 | ||
| 82663-10030 |
EP80,81..RHD..5D INDONESIA(CKD),NO.1,LOWER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-10010 |
EP8# W(AIR CONDITIONER),NO.1,UPPER |
1 | ||
| 82663-10010 |
EP8# NO.1,LOWER |
1 | ||
| 82662-10080 |
EP8# NO.1,UPPER |
1 | ||
| 82662-10211 |
EP80,81 NO.1 UPPER |
1 | ||
| 82662-10211 |
EP80,81..RHD..5D INDONESIA(CKD),NO.1,UPPER |
1 | ||
| 82662-10210 |
EP80,81..RHD..5D INDONESIA(CKD),NO.1,UPPER |
1 | ||
| 82662-10210 |
EP80,81 NO.1 UPPER |
1 | ||
| 82662-10212 |
EP80,81 NO.1 UPPER |
1 | ||
| 82663-10030 |
EP8#..RHD NO.1 LOWER |
1 | ||
| 82663-10030 |
EP80,81..RHD..5D INDONESIA(CKD),NO.1,LOWER |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
EP8# |
1 | ||
| 85999R - BRACKET, RELAY, NO.6 | ||||
| 85999-10130 |
EP8# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
EP8# |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-04002 |
EP8# |
1 | ||
| 90987-04002 |
EP80,81 |
1 | ||
| 88630N - RELAY ASSY, COOLER | ||||
| 90987-02004 |
EP8# |
2 | ||
| Common parts | ||||
| 90119-06120 | ||||
| 91651-F0612 | ||||
| 91655-40616 | ||||
ILLUST NO. 2 OF 5(9201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
1E,2E,4EFE..EP8# |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02006 |
1E,2E..EP8# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
EP8# 15A |
4 | ||
| 90982-09005 |
EP8# 7.5A |
2 | ||
| 90982-09002 |
EP82..5D;EP80,81..RHD 10A |
1 | ||
| 90982-07011 |
EP8# 30A,GREEN |
2 | ||
| 90982-09002 |
EP8#..RHD 10A |
1 | ||
| 90982-09002 |
EP8# 10A |
3 | ||
| 90982-09004 |
EP8# 20A,YELLOW |
3 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-10110 |
EP8# |
1 | ||
| 82660-10130 |
EP80,81 |
1 | ||
| 82660-10131 |
EP80,81 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-10110 |
EP8# |
1 | ||
| 82660-10130 |
EP80,81 |
1 | ||
| 82660-10131 |
EP80,81 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-10010 |
EP8# W(AIR CONDITIONER),NO.1,UPPER |
1 | ||
| 82663-10010 |
EP8# NO.1,LOWER |
1 | ||
| 82662-10080 |
EP8# NO.1,UPPER |
1 | ||
| 82662-10211 |
EP80,81 NO.1 UPPER |
1 | ||
| 82662-10211 |
EP80,81..RHD..5D INDONESIA(CKD),NO.1,UPPER |
1 | ||
| 82662-10210 |
EP80,81..RHD..5D INDONESIA(CKD),NO.1,UPPER |
1 | ||
| 82662-10210 |
EP80,81 NO.1 UPPER |
1 | ||
| 82662-10212 |
EP80,81 NO.1 UPPER |
1 | ||
| 82663-10030 |
EP8#..RHD NO.1 LOWER |
1 | ||
| 82663-10030 |
EP80,81..RHD..5D INDONESIA(CKD),NO.1,LOWER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-10010 |
EP8# W(AIR CONDITIONER),NO.1,UPPER |
1 | ||
| 82663-10010 |
EP8# NO.1,LOWER |
1 | ||
| 82662-10080 |
EP8# NO.1,UPPER |
1 | ||
| 82662-10211 |
EP80,81 NO.1 UPPER |
1 | ||
| 82662-10211 |
EP80,81..RHD..5D INDONESIA(CKD),NO.1,UPPER |
1 | ||
| 82662-10210 |
EP80,81..RHD..5D INDONESIA(CKD),NO.1,UPPER |
1 | ||
| 82662-10210 |
EP80,81 NO.1 UPPER |
1 | ||
| 82662-10212 |
EP80,81 NO.1 UPPER |
1 | ||
| 82663-10030 |
EP8#..RHD NO.1 LOWER |
1 | ||
| 82663-10030 |
EP80,81..RHD..5D INDONESIA(CKD),NO.1,LOWER |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-10010 |
EP8# W(AIR CONDITIONER),NO.1,UPPER |
1 | ||
| 82663-10010 |
EP8# NO.1,LOWER |
1 | ||
| 82662-10080 |
EP8# NO.1,UPPER |
1 | ||
| 82662-10211 |
EP80,81 NO.1 UPPER |
1 | ||
| 82662-10211 |
EP80,81..RHD..5D INDONESIA(CKD),NO.1,UPPER |
1 | ||
| 82662-10210 |
EP80,81..RHD..5D INDONESIA(CKD),NO.1,UPPER |
1 | ||
| 82662-10210 |
EP80,81 NO.1 UPPER |
1 | ||
| 82662-10212 |
EP80,81 NO.1 UPPER |
1 | ||
| 82663-10030 |
EP8#..RHD NO.1 LOWER |
1 | ||
| 82663-10030 |
EP80,81..RHD..5D INDONESIA(CKD),NO.1,LOWER |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
EP8# |
1 | ||
| 85999R - BRACKET, RELAY, NO.6 | ||||
| 85999-10130 |
EP8# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
EP8# |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-04002 |
EP8# |
1 | ||
| 90987-04002 |
EP80,81 |
1 | ||
| 88630N - RELAY ASSY, COOLER | ||||
| 90987-02004 |
EP8# |
2 | ||
| 88630R - RELAY ASSY, COOLER, NO.3 | ||||
| 90987-04002 |
EP80,81 |
1 | ||
| Common parts | ||||
| 90119-06120 | ||||
| 90464-00166 | ||||
| 91651-B0614 | ||||
| 91651-F0612 | ||||
ILLUST NO. 1 OF 5(8912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82821B - COVER, CONNECTOR | ||||
| 82821-12250 |
EP8#..MTM |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
EP8# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30080 |
EP8# |
1 | ||
| 83530-30090 |
EP8# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
EP8#..MTM |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-20060 |
EP8# |
1 | ||
| 89428-12160 |
EP8# |
1 | ||
| Common parts | ||||
| 82711-2A730 | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||

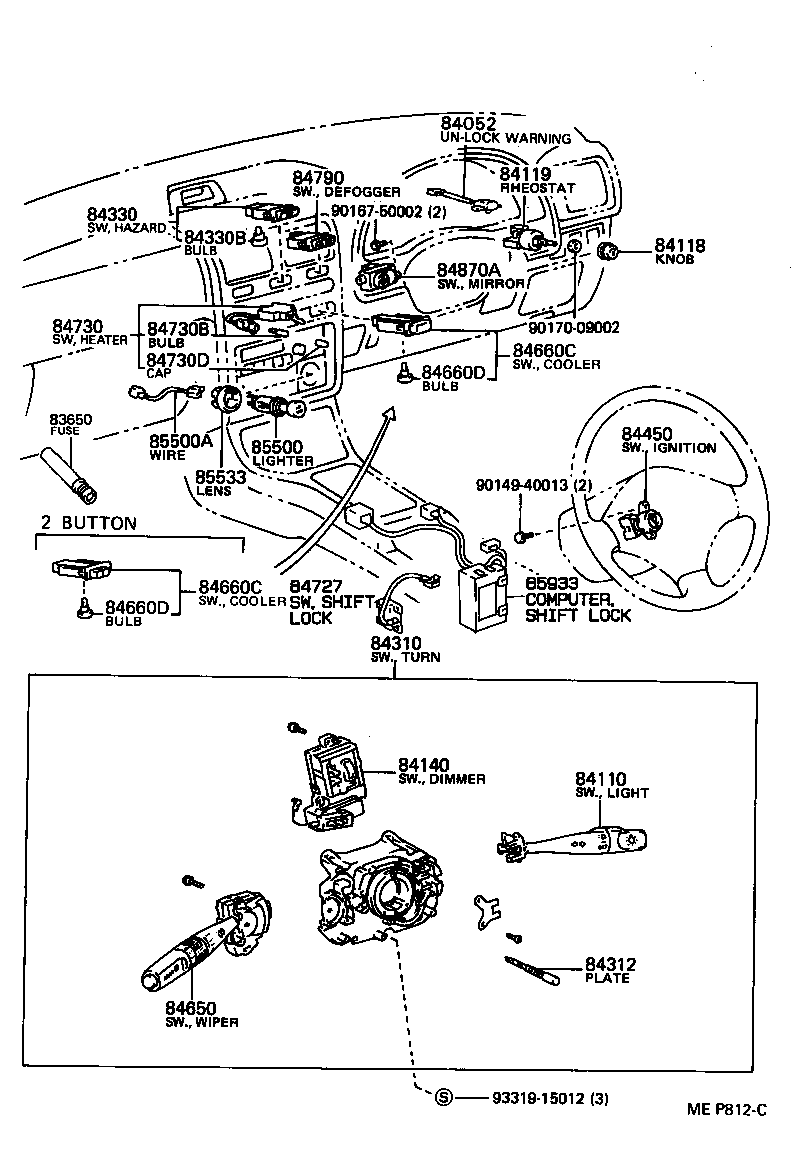

ILLUST NO. 3 OF 5(8912- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-16020 |
EP81,82..RHD |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80053 |
EP8#..RHD |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-2001122 |
EP81..S BLACK,TRIM1# |
1 | ||
| 84118-2001101 |
EP81..S BLACK,TRIM1# |
1 | ||
| 84118-2001122 |
EP80,81..S,XL BLACK,TRIM1# |
1 | ||
| 84118-2001101 |
EP8#..S,XL BLACK,TRIM1#,8# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20082 |
EP80,81..S,XL |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-10160 |
EP8#..RHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-10720 |
EP80..RHD;EP81..3D..XL;EP81,82..RHD..5D..(S,SOL,XL) |
1 | ||
| 84310-10760 |
EP80..RHD;EP81..3D..XL;EP81..RHD..5D W(REAR WIPER---INTERMITTENT) |
1 | ||
| 84310-10730 |
EP81..3D..XL;EP81..RHD..5D;EP80..RHD..(S,XL) W(INTERMITTENT WIPER) |
1 | ||
| 84310-10770 |
EP81..3D..XL;EP81..RHD..5D;EP80..RHD..(S,XL) W(INTERMITTENT WIPER & REAR WIPER---INTERMITTENT) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-10040 |
EP8#..RHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-10180 |
EP8# |
1 | ||
| 84332-10181 |
EP8# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
EP8# 14V 0.84W |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-10110 |
EP8# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-10550 |
EP80..RHD;EP81..3D..XL;EP81..RHD..5D W(REAR WIPER)---INTERMITTENT |
1 | ||
| 84652-10560 |
EP81..3D..XL;EP81..RHD..5D;EP80..RHD..(S,XL) W(INTERMITTENT WIPER & REAR WIPER---INTERMITTENT) |
1 | ||
| 84652-10520 |
EP81..3D..XL;EP81..RHD..5D;EP80..RHD..(S,XL) W(INTERMITTENT WIPER) |
1 | ||
| 84652-10510 |
EP80..RHD;EP81..3D..XL;EP81,82..RHD..5D..(S,SOL,XL) |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-10090 |
EP82..SOL;EP80,81..RHD |
1 | ||
| 84660-10090 |
EP80,81..RHD |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-10090 |
EP82..SOL;EP80,81..RHD |
1 | ||
| 84660-10090 |
EP80,81..RHD |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-10020 |
EP80,81 14V 0.08A |
1 | ||
| 88607-20060 |
EP8# 14V 0.08A,MANUAL AIR CON---*LHC |
1 | ||
| 88607-10020 |
EP80,81;EP82..5D 14V 0.08A |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-10020 |
EP80,81 14V 0.08A |
1 | ||
| 88607-20060 |
EP8# 14V 0.08A,MANUAL AIR CON---*LHC |
1 | ||
| 88607-10020 |
EP80,81;EP82..5D 14V 0.08A |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-10140 |
EP8#..RHD |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
EP8# 14V 1.4W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10390 |
EP8#..RHD |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-10160 |
EP8# |
1 | ||
| 84790-10190 |
EP80,81 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-10040 |
EP81..3D..S;EP80..RHD..S;EP81..RHD..5D |
1 | ||
| 84870-10040 |
EP8#..RHD..(CAN,S,STD,XL) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-10120 |
EP8# |
1 | ||
| 85500-12250 |
EP8# |
1 | ||
| 85500A - WIRE, CIGARETTE LIGHTER | ||||
| 82390-10010 |
EP8# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-10010 |
EP8# |
1 | ||
| Common parts | ||||
| 90149-40013 | ||||
| 90167-50002 | ||||
| 90170-09002 | ||||
| 93319-15012 | ||||

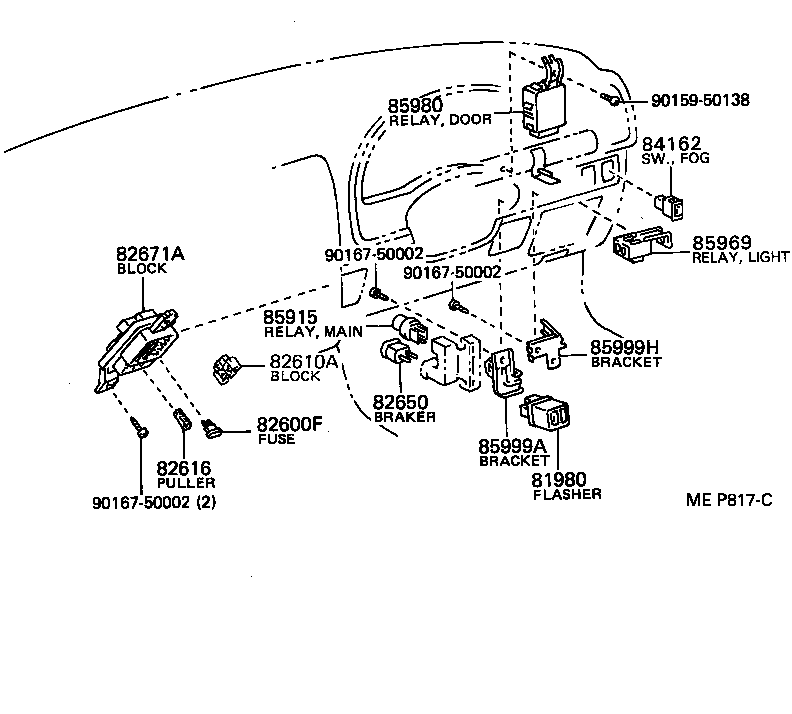

ILLUST NO. 4 OF 5(8912- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
EP8# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
EP8# 15A |
4 | ||
| 90982-09005 |
EP8# 7.5A |
2 | ||
| 90982-09002 |
EP82..5D;EP80,81..RHD 10A |
1 | ||
| 90982-07011 |
EP8# 30A,GREEN |
2 | ||
| 90982-09002 |
EP8#..RHD 10A |
1 | ||
| 90982-09002 |
EP8# 10A |
3 | ||
| 90982-09004 |
EP8# 20A,YELLOW |
3 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-10060 |
EP8# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
EP8# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
EP8#..CAN,S,SOLL,XL 30A |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-10010 |
EP8#..RHD |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-95J05 |
EP81..RHD..5D INDONESIA(CKD) & W(TYPE C PAINTING) OR INDONESIA(CKD) & W(TYPE C TAPE STRIPE) |
1 | ||
| 84160-95J05 |
EP82;EP80,81..RHD..5D |
1 | ||
| 84160-95J05 |
EP82;EP81..RHD..5D |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02006 |
EP8# |
1 | ||
| 90987-02004 |
EP8#..CAN,S,SOLL,XL DENSO |
1 | ||
| 90987-02002 |
EP8#..CAN,S,SOLL,XL MARUKO |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-10010 |
EP80,81..S,XL |
1 | ||
| 85980-10010 |
EP8#..S,SOLL,XL |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-10080 |
EP8#..RHD..5D..MTM..(S,XL) INDONESIA(CKD) OR W(*EL) |
1 | ||
| 85999-10080 |
EP80..RHD..5D..XL;EP81..RHD..5D..5F W(*SNR) OR W(*AIC) |
1 | ||
| 85999-10080 |
EP81..5D..S W(*EL) OR W(*SNR) OR W(*DRC) OR W(*AIC) OR INDONESIA(CKD) & W(*DRC) |
1 | ||
| 85999-10080 |
EP80,81..RHD..5D..(S,XL) W(*EL) OR W(*SNR) OR W(*DRC) OR W(*AIC) |
1 | ||
| 85999-10080 |
EP81..5D..S W(*EL) OR W(*DRC) OR W(*AIC) OR INDONESIA(CKD) & W(*DRC) |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-10060 |
EP8#..RHD |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 90167-50002 | ||||
ILLUST NO. 5 OF 5(8912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80157 |
EP81..RHD..5D..S W/O(TACHOMETER) |
1 | ||
| 83320-80164 |
EP80,81..S |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32040 |
EP8# |
2 | ||
| 84231-32040 |
EP8#..5D |
2 | ||
| 84231-22060 |
EP8# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-32040 |
EP8# |
2 | ||
| 84231-32040 |
EP8#..5D |
2 | ||
| 84231-22060 |
EP8# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-30110 |
EP8#..5D |
2 | ||
| 84231-10010 |
EP8#..5D |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-30110 |
EP8#..5D |
2 | ||
| 84231-10010 |
EP8#..5D |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
EP8# |
1 | ||
| 84340-10020 |
EP8# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
EP8# |
1 | ||
| 84550-12060 |
EP8# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-1002003 |
EP81..RHD..5D..S INDONESIA(CKD),GRAY,TRIM1#,REAR |
2 | ||
| 84810-32070 |
EP81..RHD..5D..S INDONESIA(CKD),FRONT |
1 | ||
| 84810-1002003 |
EP80,81..RHD..5D..(S,XL) INDONESIA(CKD) & W(*PW),GRAY,TRIM1#,REAR |
2 | ||
| 84810-32070 |
EP80,81..RHD..5D..(S,XL) INDONESIA(CKD) & W(*PW),FRONT |
1 | ||
| 84810-10020P0 |
EP80,81..RHD..5D..(S,XL) INDONESIA(CKD) & W(*PW),GRAY,TRIM1#,REAR |
2 | ||
| 84810-1002004 |
EP81..RHD..5D..S INDONESIA(CKD),BLUE,TRIM8#,REAR |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-1002003 |
EP81..RHD..5D..S INDONESIA(CKD),GRAY,TRIM1#,REAR |
2 | ||
| 84810-32070 |
EP81..RHD..5D..S INDONESIA(CKD),FRONT |
1 | ||
| 84810-1002003 |
EP80,81..RHD..5D..(S,XL) INDONESIA(CKD) & W(*PW),GRAY,TRIM1#,REAR |
2 | ||
| 84810-32070 |
EP80,81..RHD..5D..(S,XL) INDONESIA(CKD) & W(*PW),FRONT |
1 | ||
| 84810-10020P0 |
EP80,81..RHD..5D..(S,XL) INDONESIA(CKD) & W(*PW),GRAY,TRIM1#,REAR |
2 | ||
| 84810-1002004 |
EP81..RHD..5D..S INDONESIA(CKD),BLUE,TRIM8#,REAR |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-1002003 |
EP81..RHD..5D..S INDONESIA(CKD),GRAY,TRIM1#,REAR |
2 | ||
| 84810-32070 |
EP81..RHD..5D..S INDONESIA(CKD),FRONT |
1 | ||
| 84810-1002003 |
EP80,81..RHD..5D..(S,XL) INDONESIA(CKD) & W(*PW),GRAY,TRIM1#,REAR |
2 | ||
| 84810-32070 |
EP80,81..RHD..5D..(S,XL) INDONESIA(CKD) & W(*PW),FRONT |
1 | ||
| 84810-10020P0 |
EP80,81..RHD..5D..(S,XL) INDONESIA(CKD) & W(*PW),GRAY,TRIM1#,REAR |
2 | ||
| 84810-1002004 |
EP81..RHD..5D..S INDONESIA(CKD),BLUE,TRIM8#,REAR |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-10030 |
EP81..RHD..5D..S W(POWER WINDOW) |
1 | ||
| 84820-22330 |
EP81..RHD..5D..S INDONESIA(CKD) |
1 | ||
| 84820-87010 |
EP80,81..RHD..5D..(S,XL) W(POWER WINDOW) |
1 | ||
| 84820-22310 |
EP80,81..RHD..5D..(S,XL) INDONESIA(CKD) & W(*PW) |
1 | ||
| 84820-22310 |
EP81..RHD..5D..S INDONESIA(CKD) |
1 | ||
| 84820-10040 |
EP80,81..RHD..5D..(S,XL) INDONESIA(CKD) & W(*PW) |
1 | ||
| 84820-87010 |
EP81..RHD..5D..S W(POWER WINDOW) |
1 | ||
| 84820-10050 |
EP80,81..RHD..5D..(S,XL) W(POWER WINDOW) |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1002004 |
EP8#..RHD..(S,XL) BLUE,TRIM8# |
1 | ||
| 84930-1002003 |
EP80,81..RHD..(S,XL) GRAY,TRIM1# |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-10080 |
EP80,81..5D..(S,XL) RH |
1 | ||
| 84931-10100 |
EP80,81..5D..(S,XL) LH |
1 | ||
| 84931-10081 |
EP80,81..5D..(S,XL) RH |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-20130 |
EP80,81 |
1 | ||
| Common parts | ||||
| 90119-06601 | ||||
| 93315-14012 | ||||
| 93319-13006 | ||||
| 93319-14008 | ||||
| 93540-44012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
