EP81R-AHMSS (1989)
Toyota Starlet
Production
Dec 1989
-
Mar 1998
Engine
2E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8912- )EP80,81

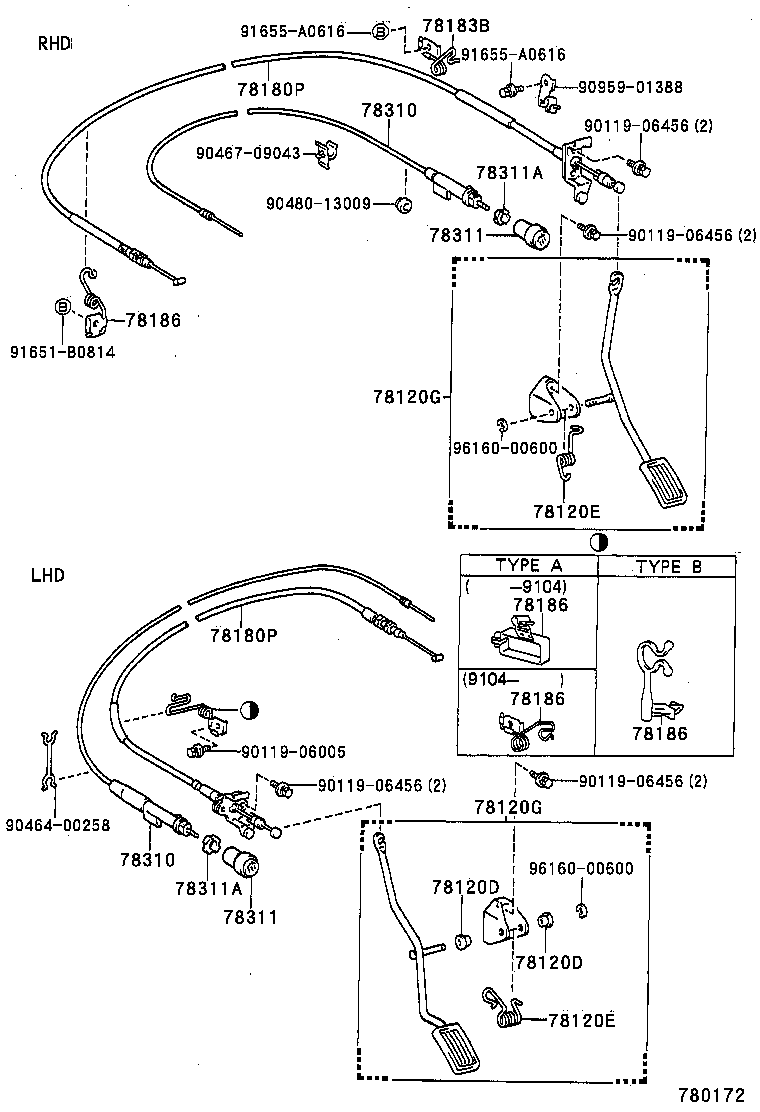

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78120E - SPRING, TENSION (FOR ACCELERATOR LINK ROD) | ||||
| 90508-21005 |
EP81;EP80..RHD |
1 | ||
| 90508-21005 |
EP8#..RHD |
1 | ||
| 78120E - SPRING, TENSION (FOR ACCELERATOR LINK ROD) | ||||
| 90508-21005 |
EP81;EP80..RHD |
1 | ||
| 90508-21005 |
EP8#..RHD |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-10050 |
EP8#..RHD |
1 | ||
| 78120-10050 |
EP81;EP80..RHD |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-10050 |
EP8#..RHD |
1 | ||
| 78120-10050 |
EP81;EP80..RHD |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-10410 |
EP8#..RHD |
1 | ||
| 78180-10560 |
EP8#..RHD W(PRE AIR CLEANER) |
1 | ||
| 78180-10460 |
EP80,81..RHD |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-10410 |
EP8#..RHD |
1 | ||
| 78180-10560 |
EP8#..RHD W(PRE AIR CLEANER) |
1 | ||
| 78180-10460 |
EP80,81..RHD |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-10080 |
EP80,81..RHD |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-10050 |
EP8#..RHD |
1 | ||
| 78186-16160 |
EP80,81..RHD |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-10050 |
EP8#..RHD |
1 | ||
| 78186-16160 |
EP80,81..RHD |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-10050 |
EP8#..RHD |
1 | ||
| 78186-16160 |
EP80,81..RHD |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-10050 |
EP8#..RHD |
1 | ||
| 78186-16160 |
EP80,81..RHD |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 84506-10030 |
EP8#..RHD |
1 | ||
| 78310 - CABLE ASSY, CHOKE | ||||
| 84506-10030 |
EP8#..RHD |
1 | ||
| 78311 - KNOB, CHOKE CONTROL CABLE | ||||
| 78311-10041 |
EP8# |
1 | ||
| 78311 - KNOB, CHOKE CONTROL CABLE | ||||
| 78311-10041 |
EP8# |
1 | ||
| 78311A - NUT, CHOKE SHAFT SET | ||||
| 78314-95A00 |
EP8# |
1 | ||
| 78311A - NUT, CHOKE SHAFT SET | ||||
| 78314-95A00 |
EP8# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06456 | ||||
| 90464-00258 | ||||
| 90467-09043 | ||||
| 90480-13009 | ||||
| 90959-01388 | ||||
| 91651-B0814 | ||||
| 91655-A0616 | ||||
| 96160-00600 | ||||
