EP81R-AHMSS (1989)

Toyota Starlet

Production Dec 1989 - Mar 1998
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

Click highlighted areas on diagram

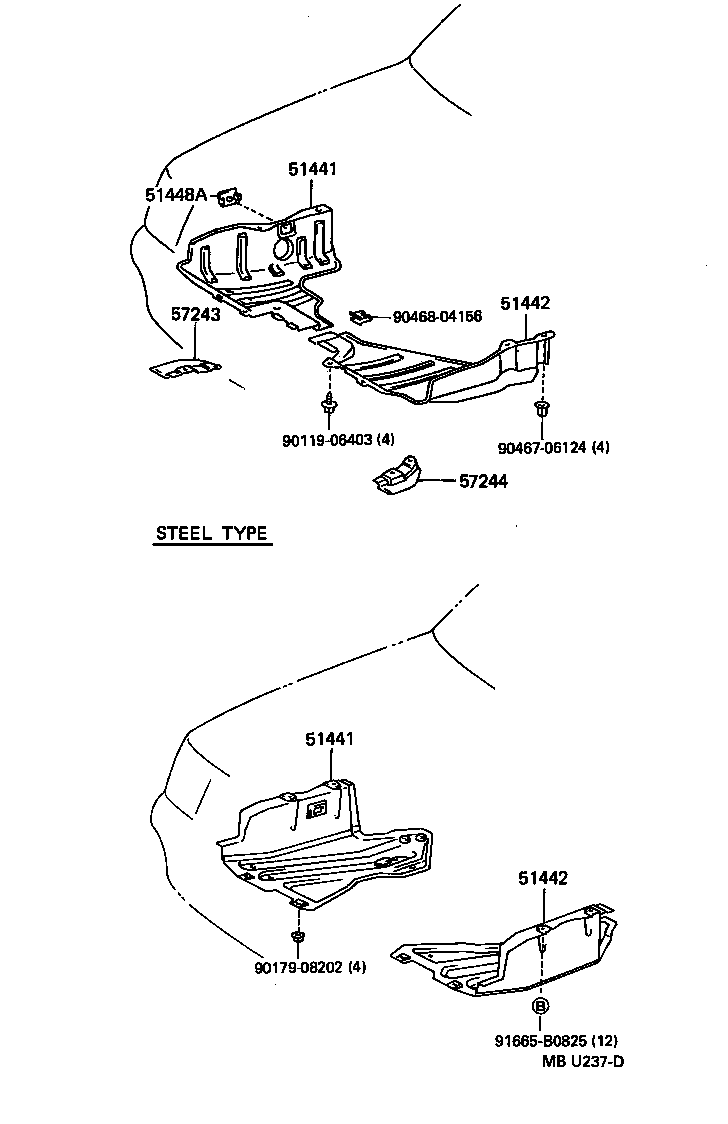

diagram 51441 51441 51442 51442 51448A 57243 57244 9011906403 9017908202 9046706124 9046804156 91665B0825
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51441-10100

EP8#

 1
51441-10130

EP8#

 1
51441-10131

EP8#

 1
51405-10030

EP80;EP81..5D..5F;EP81..3D..XL

SEVERE USAGE PACKAGE

 1
51441-10140

EP81

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-10100

EP8#

 1
51441-10130

EP8#

 1
51441-10131

EP8#

 1
51405-10030

EP80;EP81..5D..5F;EP81..3D..XL

SEVERE USAGE PACKAGE

 1
51441-10140

EP81

 1
51442 - COVER, ENGINE UNDER, NO.2
51406-10020

EP80;EP81..5D..5F;EP81..3D..XL

SEVERE USAGE PACKAGE

 1
51442-10050

EP8#..MTM

 1
51442-10051

EP8#..MTM

 1
51442 - COVER, ENGINE UNDER, NO.2
51406-10020

EP80;EP81..5D..5F;EP81..3D..XL

SEVERE USAGE PACKAGE

 1
51442-10050

EP8#..MTM

 1
51442-10051

EP8#..MTM

 1
51448A - COVER, ENGINE SIDE UNDER, RH
51448-20010

EP8#

 1
57243 - PROTECTOR, LOWER ARM, RH
57243-10030

EP80;EP81..5D;EP81..3D..XL

SEVERE USAGE PACKAGE

 1
57244 - PROTECTOR, LOWER ARM, LH
57244-10030

EP80;EP81..5D;EP81..3D..XL

SEVERE USAGE PACKAGE

 1
Common parts
90119-06403
90179-08202
90467-06124
90468-04156
91665-B0825

(8912- )

Click highlighted areas on diagram

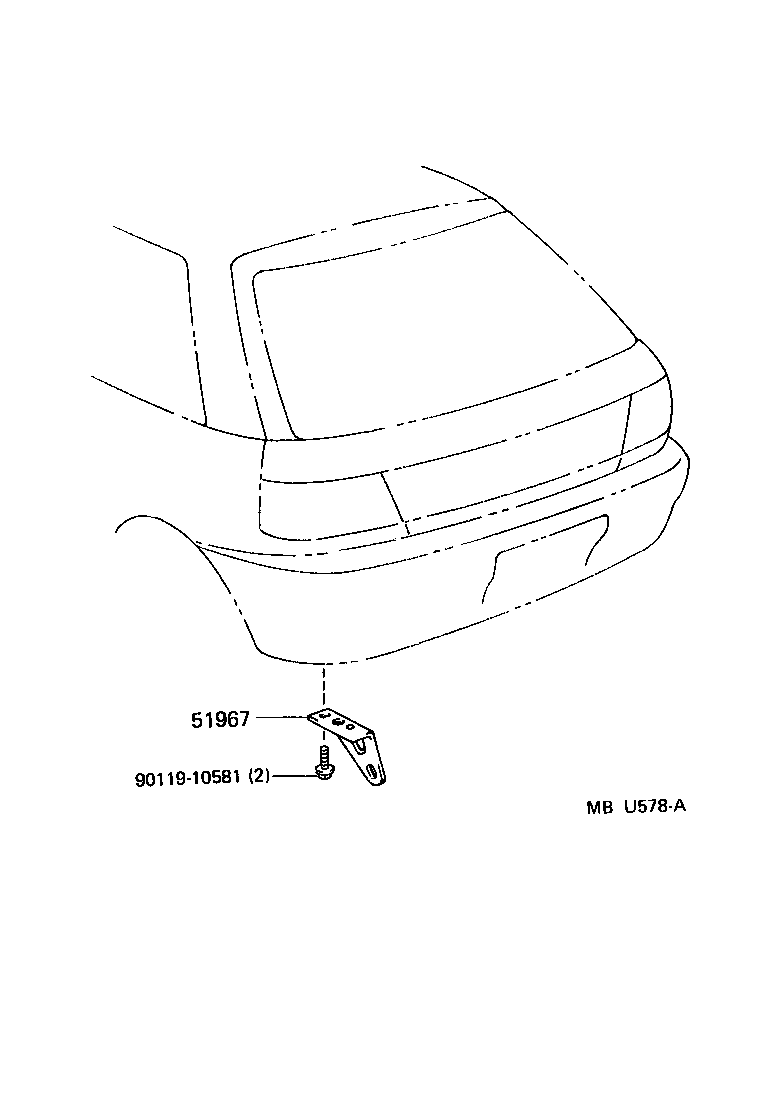

diagram 51967 9011910581
Part # Description Qty Price
51967 - HOOK, TRANSPORT, REAR
51968-10060

EP80,81

LH

 1
51967-10080

EP80,81

RH

 1
Common parts
90119-10581
