EP81R-AHMNS (1989)
Toyota Starlet
Production
Dec 1989
-
Mar 1998
Engine
2E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8912-9601)

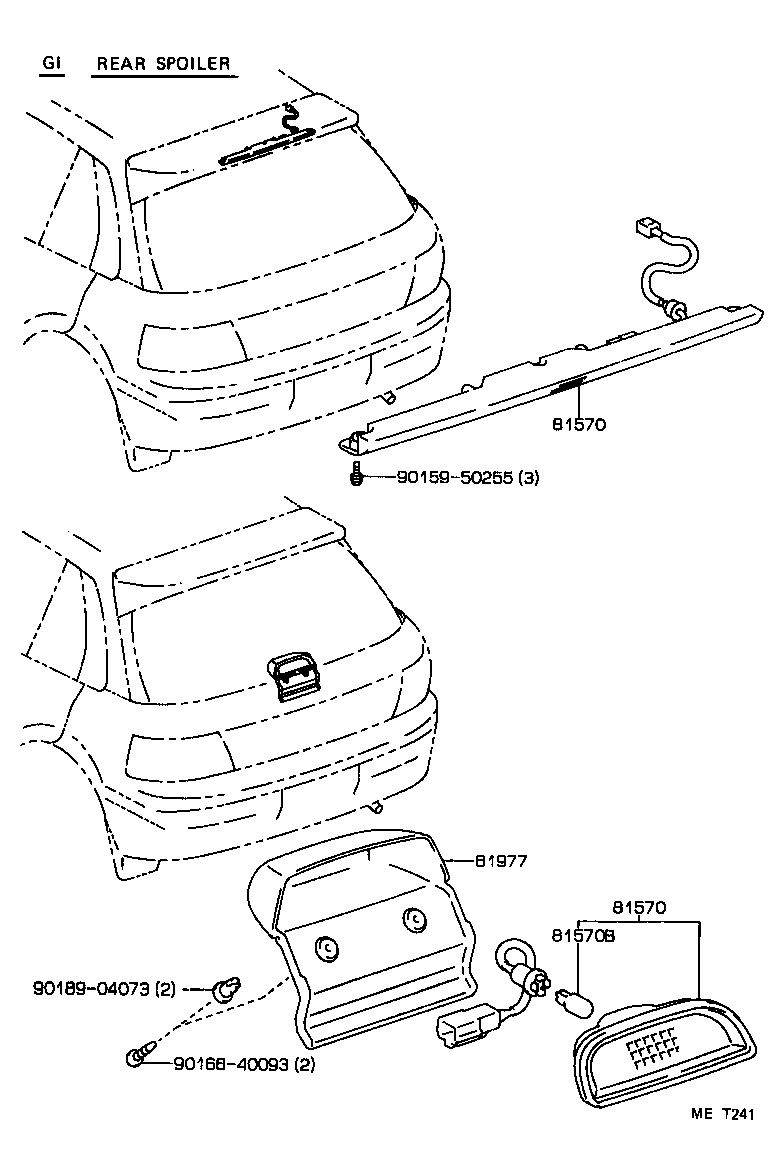

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81570 - LAMP ASSY, CENTER STOP | ||||
| 81570-10050 |
EP82..S;EP81..LHD..3FC;EP80,81..5D..5F |
1 | ||
| 81570-10050 |
EP82..S;EP80,81..5D..(S,XL) |
1 | ||
| 81570-10020 |
EP81 W(TYPE A REAR SPOILER) |
1 | ||
| 81570-10050 |
EP81 W(TYPE B REAR SPOILER) |
1 | ||
| Common parts | ||||
| 90179-06070 | ||||
(9201- )

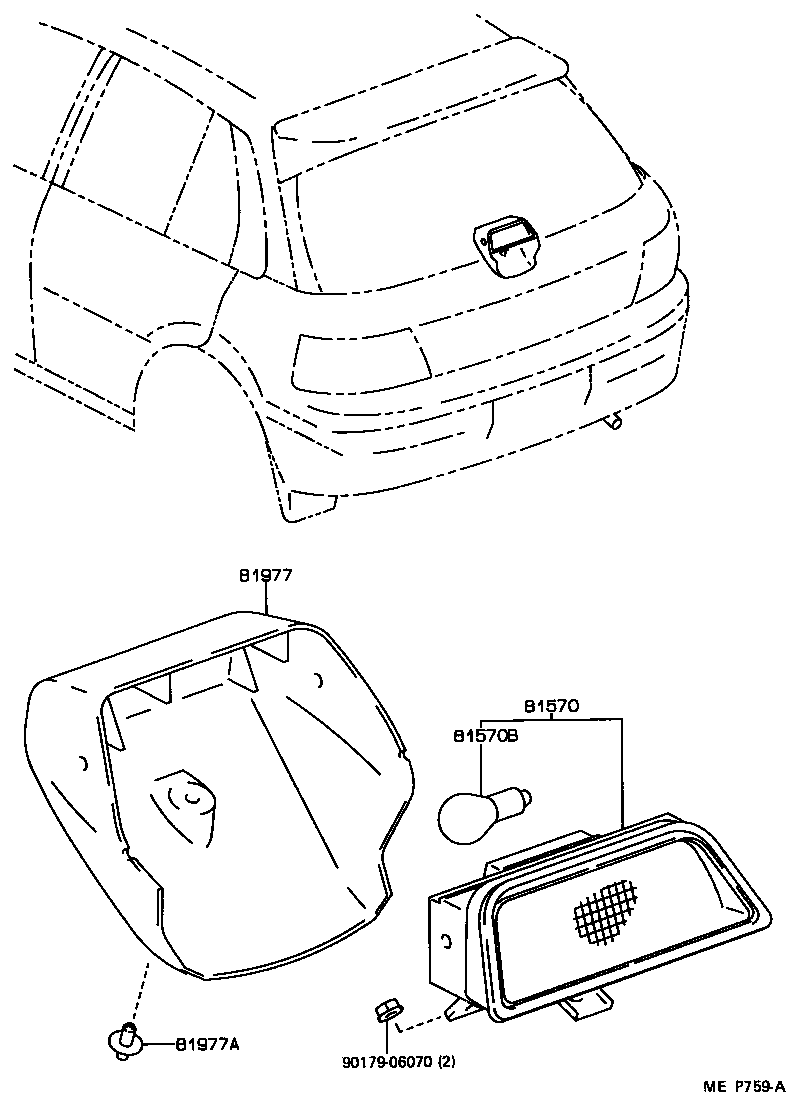

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81570 - LAMP ASSY, CENTER STOP | ||||
| 81570-10050 |
EP82..S;EP81..LHD..3FC;EP80,81..5D..5F |
1 | ||
| 81570-10050 |
EP82..S;EP80,81..5D..(S,XL) |
1 | ||
| 81570-10020 |
EP81 W(TYPE A REAR SPOILER) |
1 | ||
| 81570-10050 |
EP81 W(TYPE B REAR SPOILER) |
1 | ||
| 81570 - LAMP ASSY, CENTER STOP | ||||
| 81570-10050 |
EP82..S;EP81..LHD..3FC;EP80,81..5D..5F |
1 | ||
| 81570-10050 |
EP82..S;EP80,81..5D..(S,XL) |
1 | ||
| 81570-10020 |
EP81 W(TYPE A REAR SPOILER) |
1 | ||
| 81570-10050 |
EP81 W(TYPE B REAR SPOILER) |
1 | ||
| Common parts | ||||
| 90159-50255 | ||||
| 90168-40093 | ||||
| 90189-04073 | ||||
