EP81R-AHMNS (1989)

Toyota Starlet

Production Dec 1989 - Mar 1998
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

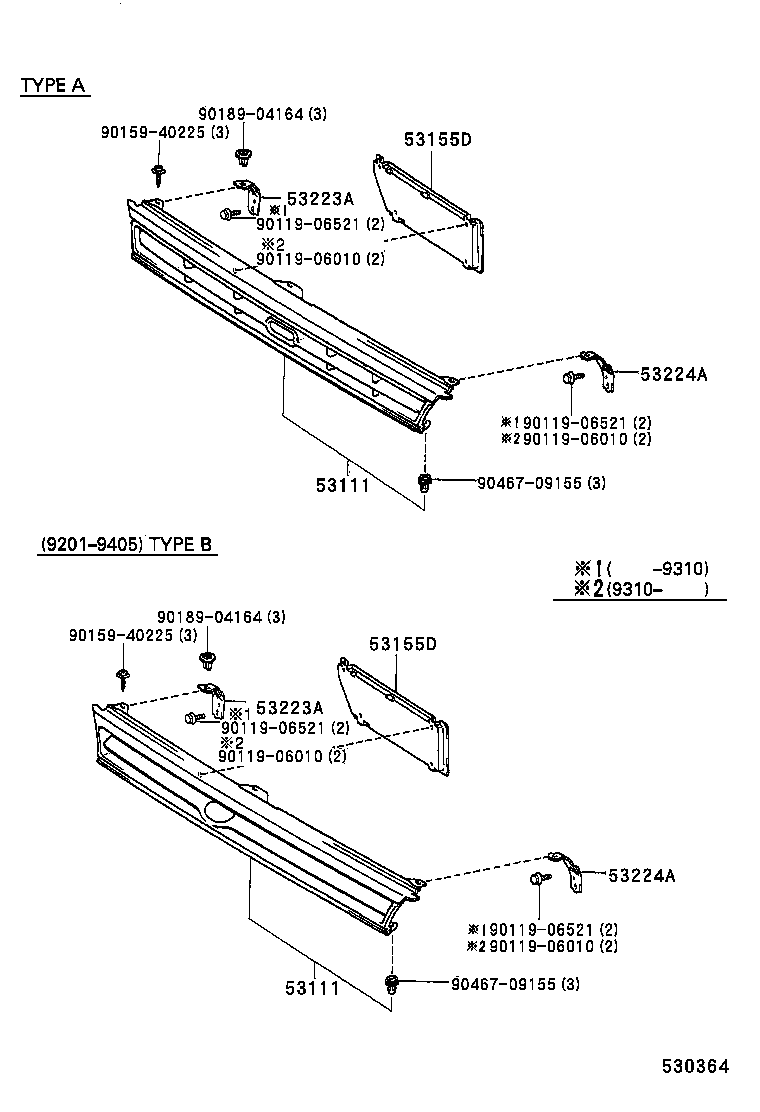

(8912- )

Click highlighted areas on diagram

diagram 53111 53111 53155D 53155D 53223A 53223A 53224A 53224A 9011906010 9011906010 9011906010 9011906010 9011906521 9011906521 9011906521 9011906521 9015940225 9015940225 9018904164 9018904164 9046709155 9046709155
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-10370

EP80,81..RHD

TYPE B

 1
53111-10380D0

EP8#..RHD..(CAN,S,SOLL,STD,XL)

TYPE B,SUPER RED 2,3E5

 1
53111-10380J0

EP8#..RHD..(S,SOLL,STD,XL)

TYPE B,DARK BLUE M M,8G5

 1
53111-10380B0

EP8#..RHD

TYPE B,BLUISH GRAY M,182

 1
53111-10380A0

EP8#..RHD

TYPE B,SUPER WHITE 2,040

 1
53101-10280B0

EP80,81..RHD

W(FRONT BUMPER TYPE B),SILVER M,199

 1
53101-10280J0

EP80,81..RHD

W(FRONT BUMPER TYPE B),DARK BLUE M.M,8K0

 1
53101-10280C0

EP80,81..RHD

W(FRONT BUMPER TYPE B),BLACK M,205

 1
53111-10380G0

EP8#..RHD..(S,SOLL,STD,XL)

TYPE B,GREEN M,6M6

 1
53101-10280D0

EP80,81..RHD

W(FRONT BUMPER TYPE B),RED MICA,3K4

 1
53101-10280A0

EP80,81..RHD

W(FRONT BUMPER TYPE B),SUPER WHITE 2,040

 1
53101-10280D1

EP80,81..RHD

W(FRONT BUMPER TYPE B),SUPER RED 2,3E5

 1
53111-10430

EP81

W(FRONT BUMPER TYPE C)

 1
53101-10270

EP80,81..RHD

W(FRONT BUMPER TYPE B)

 1
53111-10340

EP80,81

TYPE A

 1
53101-10300

EP81

TYPE A

 2
53101-10280H0

EP80,81..RHD

W(FRONT BUMPER TYPE B),TURQUOISE M.M,746

 1
53111 - GRILLE, RADIATOR
53111-10370

EP80,81..RHD

TYPE B

 1
53111-10380D0

EP8#..RHD..(CAN,S,SOLL,STD,XL)

TYPE B,SUPER RED 2,3E5

 1
53111-10380J0

EP8#..RHD..(S,SOLL,STD,XL)

TYPE B,DARK BLUE M M,8G5

 1
53111-10380B0

EP8#..RHD

TYPE B,BLUISH GRAY M,182

 1
53111-10380A0

EP8#..RHD

TYPE B,SUPER WHITE 2,040

 1
53101-10280B0

EP80,81..RHD

W(FRONT BUMPER TYPE B),SILVER M,199

 1
53101-10280J0

EP80,81..RHD

W(FRONT BUMPER TYPE B),DARK BLUE M.M,8K0

 1
53101-10280C0

EP80,81..RHD

W(FRONT BUMPER TYPE B),BLACK M,205

 1
53111-10380G0

EP8#..RHD..(S,SOLL,STD,XL)

TYPE B,GREEN M,6M6

 1
53101-10280D0

EP80,81..RHD

W(FRONT BUMPER TYPE B),RED MICA,3K4

 1
53101-10280A0

EP80,81..RHD

W(FRONT BUMPER TYPE B),SUPER WHITE 2,040

 1
53101-10280D1

EP80,81..RHD

W(FRONT BUMPER TYPE B),SUPER RED 2,3E5

 1
53111-10430

EP81

W(FRONT BUMPER TYPE C)

 1
53101-10270

EP80,81..RHD

W(FRONT BUMPER TYPE B)

 1
53111-10340

EP80,81

TYPE A

 1
53101-10300

EP81

TYPE A

 2
53101-10280H0

EP80,81..RHD

W(FRONT BUMPER TYPE B),TURQUOISE M.M,746

 1
53155D - SEAL, RADIATOR GRILLE, NO.1
53155-10070

EP80,81

 1
53155D - SEAL, RADIATOR GRILLE, NO.1
53155-10070

EP80,81

 1
53223A - BRACKET, RADIATOR GRILLE MOUNTING
53223-10110

EP81

W(FRONT BUMPER TYPE C)

 1
53223-10100

EP8#

 1
53223A - BRACKET, RADIATOR GRILLE MOUNTING
53223-10110

EP81

W(FRONT BUMPER TYPE C)

 1
53223-10100

EP8#

 1
53224A - BRACKET, RADIATOR GRILLE MOUNTING, NO.2
53224-10070

EP8#

 1
53224-10080

EP81

W(FRONT BUMPER TYPE C)

 1
53224A - BRACKET, RADIATOR GRILLE MOUNTING, NO.2
53224-10070

EP8#

 1
53224-10080

EP81

W(FRONT BUMPER TYPE C)

 1
Common parts
90119-06010
90119-06521
90159-40225
90189-04164
90467-09155

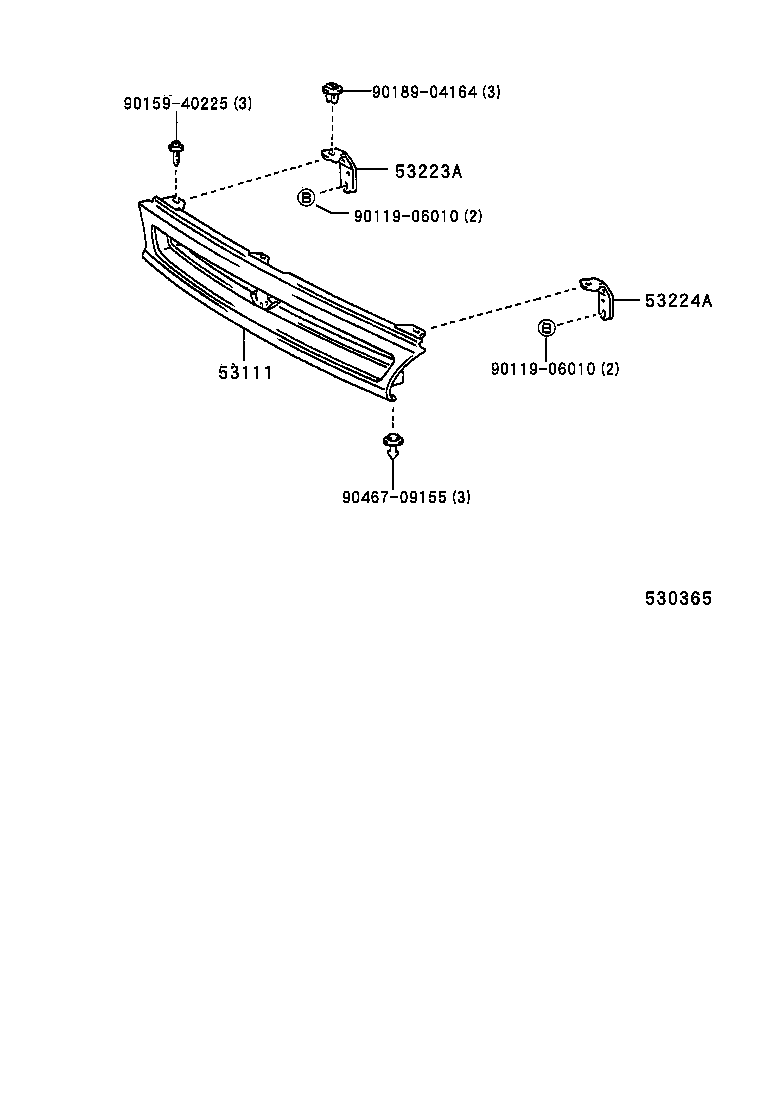

(9405- )

Click highlighted areas on diagram

diagram 53111 53223A 53224A 9011906010 9011906010 9015940225 9018904164 9046709155
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-10370

EP80,81..RHD

TYPE B

 1
53111-10380D0

EP8#..RHD..(CAN,S,SOLL,STD,XL)

TYPE B,SUPER RED 2,3E5

 1
53111-10380J0

EP8#..RHD..(S,SOLL,STD,XL)

TYPE B,DARK BLUE M M,8G5

 1
53111-10380B0

EP8#..RHD

TYPE B,BLUISH GRAY M,182

 1
53111-10380A0

EP8#..RHD

TYPE B,SUPER WHITE 2,040

 1
53101-10280B0

EP80,81..RHD

W(FRONT BUMPER TYPE B),SILVER M,199

 1
53101-10280J0

EP80,81..RHD

W(FRONT BUMPER TYPE B),DARK BLUE M.M,8K0

 1
53101-10280C0

EP80,81..RHD

W(FRONT BUMPER TYPE B),BLACK M,205

 1
53111-10380G0

EP8#..RHD..(S,SOLL,STD,XL)

TYPE B,GREEN M,6M6

 1
53101-10280D0

EP80,81..RHD

W(FRONT BUMPER TYPE B),RED MICA,3K4

 1
53101-10280A0

EP80,81..RHD

W(FRONT BUMPER TYPE B),SUPER WHITE 2,040

 1
53101-10280D1

EP80,81..RHD

W(FRONT BUMPER TYPE B),SUPER RED 2,3E5

 1
53111-10430

EP81

W(FRONT BUMPER TYPE C)

 1
53101-10270

EP80,81..RHD

W(FRONT BUMPER TYPE B)

 1
53111-10340

EP80,81

TYPE A

 1
53101-10300

EP81

TYPE A

 2
53101-10280H0

EP80,81..RHD

W(FRONT BUMPER TYPE B),TURQUOISE M.M,746

 1
53223A - BRACKET, RADIATOR GRILLE MOUNTING
53223-10110

EP81

W(FRONT BUMPER TYPE C)

 1
53223-10100

EP8#

 1
53224A - BRACKET, RADIATOR GRILLE MOUNTING, NO.2
53224-10070

EP8#

 1
53224-10080

EP81

W(FRONT BUMPER TYPE C)

 1
Common parts
90119-06010
90159-40225
90189-04164
90467-09155
