EP81R-AHMNS (1989)

Toyota Starlet

Production Dec 1989 - Mar 1998
Engine 2E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9601- )

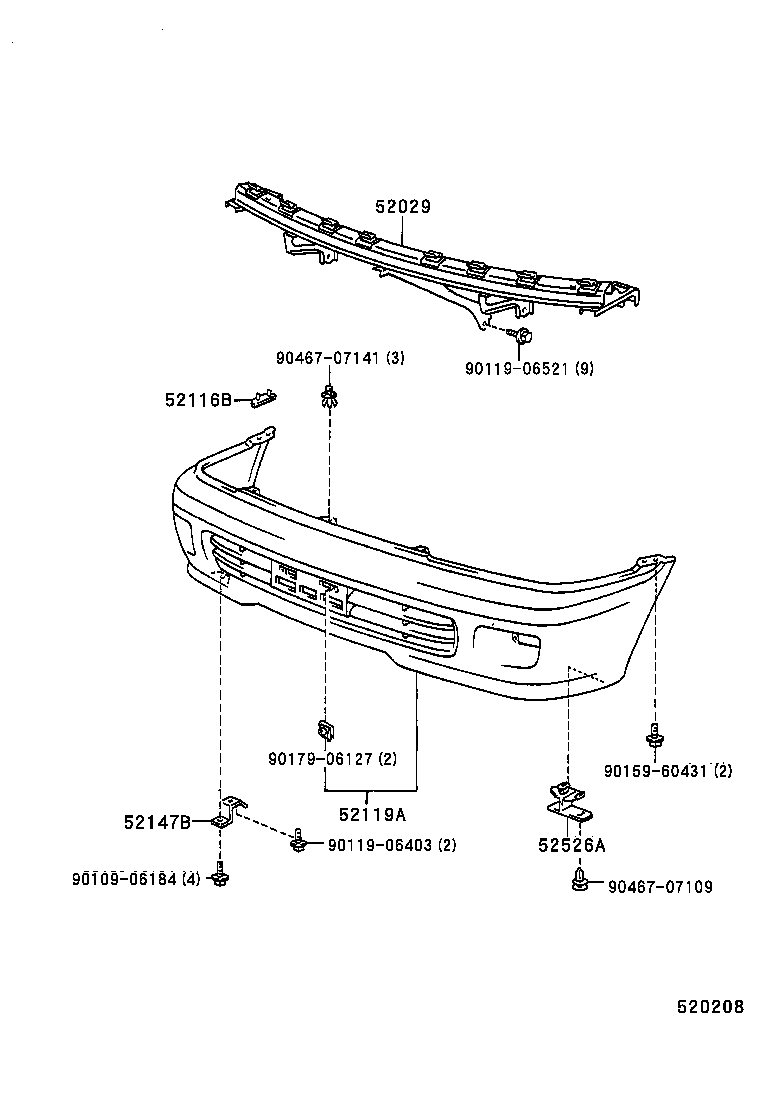

Click highlighted areas on diagram

TYPE C

diagram 52029 52116B 52119A 52147B 52526A 9010906184 9011906403 9011906521 9015960431 9017906127 9046707109 9046707141
Part # Description Qty Price
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-10010

EP80,81

 1
52029-10040

EP81

TYPE C BUMPER

 1
52029-10030

EP80,81..RHD

TYPE B BUMPER

 1
52029-10031

EP80,81..RHD

TYPE B BUMPER

 1
52116B - RETAINER, FRONT BUMPER
52116-10080

EP8#

 2
52116-10090

EP8#

 2
52119A - COVER, FRONT BUMPER
52119-10900

EP81;EP80..RHD;EP80..LHD..XL

FOR COLORED BUMPER, TYPE A

 1
52119-10230

EP80,81..RHD

FOR COLORED BUMPER, TYPE B

 1
52119-10900

EP81;EP80..RHD..5D

FOR COLORED BUMPER, TYPE A

 1
52119-10900

EP8#..S,XL

FOR COLORED BUMPER, TYPE A

 1
52119-10320

EP81

FOR COLORED BUMPER, TYPE C

 1
52119-10270

EP80,81..RHD

FOR COLORED BUMPER, TYPE B

 1
52119-10130

EP80,81

TYPE A

 1
52147B - BRACKET, FRONT BUMPER MOUNTING
52147-16060

EP8#..RHD

 2
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52526-10030

EP8#..RHD

 2
52526-10020

EP81

W(FRONT BUMPER TYPE B)

 2
Common parts
90109-06184
90119-06403
90119-06521
90159-60431
90179-06127
90467-07109
90467-07141

(8912- )

Click highlighted areas on diagram

TYPE A

diagram 52029 52116B 52116B 52119A 52543 7507 7507 9010906184 9011906521 9011906521 9015960431 9017906127 9046707141 9356815012
Part # Description Qty Price
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-10010

EP80,81

 1
52029-10040

EP81

TYPE C BUMPER

 1
52029-10030

EP80,81..RHD

TYPE B BUMPER

 1
52029-10031

EP80,81..RHD

TYPE B BUMPER

 1
52116B - RETAINER, FRONT BUMPER
52116-10080

EP8#

 2
52116-10090

EP8#

 2
52116B - RETAINER, FRONT BUMPER
52116-10080

EP8#

 2
52116-10090

EP8#

 2
52119A - COVER, FRONT BUMPER
52119-10900

EP81;EP80..RHD;EP80..LHD..XL

FOR COLORED BUMPER, TYPE A

 1
52119-10230

EP80,81..RHD

FOR COLORED BUMPER, TYPE B

 1
52119-10900

EP81;EP80..RHD..5D

FOR COLORED BUMPER, TYPE A

 1
52119-10900

EP8#..S,XL

FOR COLORED BUMPER, TYPE A

 1
52119-10320

EP81

FOR COLORED BUMPER, TYPE C

 1
52119-10270

EP80,81..RHD

FOR COLORED BUMPER, TYPE B

 1
52119-10130

EP80,81

TYPE A

 1
52543 - SEAL, FRONT BUMPER SIDE, RH
52543-10020

EP80,81

 1
Common parts
90109-06184
90119-06521
90159-60431
90179-06127
90467-07141
93568-15012
Linked diagrams
7507

(9201- )

Click highlighted areas on diagram

TYPE B

diagram 52029 52116B 52119A 52127D 52128B 52147B 52526A 7507 7507 9010906184 9011906403 9011906521 9015960431 9017906127 9046707109 9046707141
Part # Description Qty Price
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-10010

EP80,81

 1
52029-10040

EP81

TYPE C BUMPER

 1
52029-10030

EP80,81..RHD

TYPE B BUMPER

 1
52029-10031

EP80,81..RHD

TYPE B BUMPER

 1
52116B - RETAINER, FRONT BUMPER
52116-10080

EP8#

 2
52116-10090

EP8#

 2
52119A - COVER, FRONT BUMPER
52119-10900

EP81;EP80..RHD;EP80..LHD..XL

FOR COLORED BUMPER, TYPE A

 1
52119-10230

EP80,81..RHD

FOR COLORED BUMPER, TYPE B

 1
52119-10900

EP81;EP80..RHD..5D

FOR COLORED BUMPER, TYPE A

 1
52119-10900

EP8#..S,XL

FOR COLORED BUMPER, TYPE A

 1
52119-10320

EP81

FOR COLORED BUMPER, TYPE C

 1
52119-10270

EP80,81..RHD

FOR COLORED BUMPER, TYPE B

 1
52119-10130

EP80,81

TYPE A

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-10010

EP82..5D;EP80,81..RHD

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-10010

EP82..5D;EP80,81..RHD

 1
52147B - BRACKET, FRONT BUMPER MOUNTING
52147-16060

EP8#..RHD

 2
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52526-10030

EP8#..RHD

 2
52526-10020

EP81

W(FRONT BUMPER TYPE B)

 2
Common parts
90109-06184
90119-06403
90119-06521
90159-60431
90179-06127
90467-07109
90467-07141
Linked diagrams
7507
