Toyota Starlet EP81 WIRING & CLAMP

EP81R-AHHNS (1989)

Toyota Starlet

Production Dec 1989 - Jan 1996

Engine 2E

Transmission 3FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 6 OF 6(8912- )

Click highlighted areas on diagram

REPAIR WIRE

Part #	Description	Period	Qty
82981 - WIRE, HEADLAMP REPAIR
82981-10010	EP8#	09/1990 - 12/2999	1
82982 - WIRE, CLEARANCE LAMP REPAIR
82985-18010	EP8#	09/1990 - 12/2999	1
82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR
82983-10020	EP8#	09/1990 - 12/2999	1
82984 - WIRE, HORN REPAIR
82984-20010	EP8#	09/1990 - 12/2999	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-18010	EP8#	09/1990 - 12/2999	1

ILLUST NO. 5 OF 6(8912- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07318	EP8# FENDER,LH	12/1989 - 12/2999	1
90980-07241	EP8# FENDER,RH	12/1989 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07318	EP8# FENDER,LH	12/1989 - 12/2999	1
90980-07241	EP8# FENDER,RH	12/1989 - 12/2999	1
Common parts
90119-06390

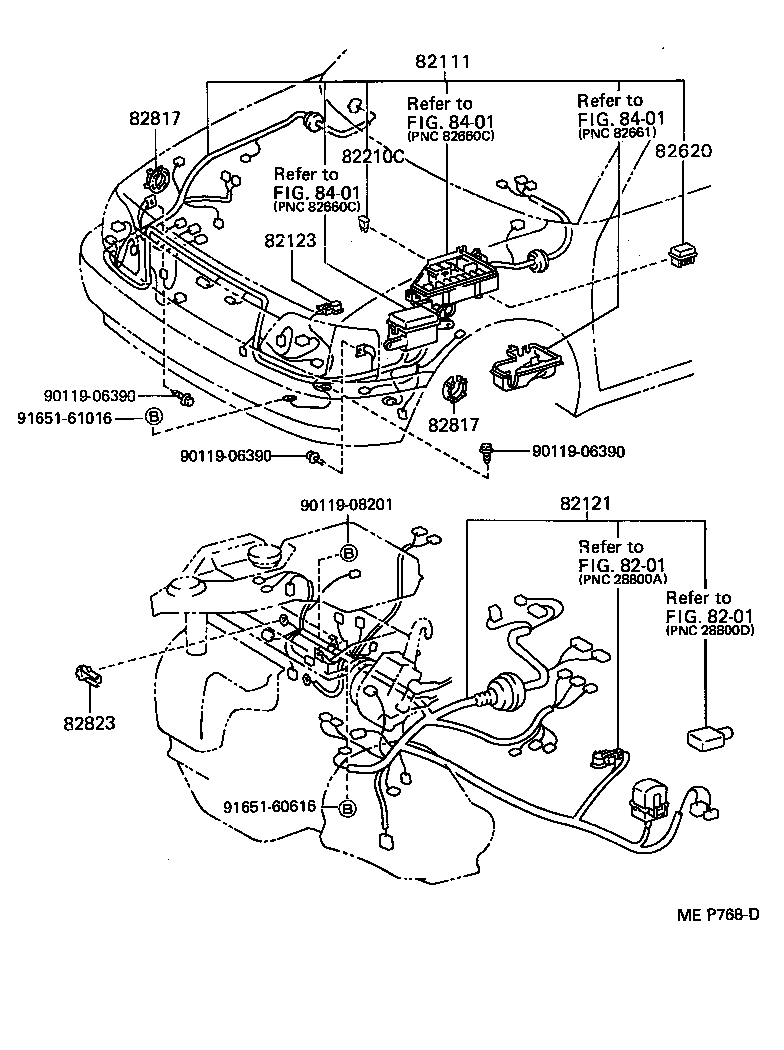

ILLUST NO. 1 OF 6(8912- )EP80,81..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-10380	EP8#..RHD	12/1989 - 01/1992	1
82111-10610	EP80,81..RHD	01/1992 - 12/1992	1
82111-10400	EP8#..RHD W(AIR CONDITIONER)	12/1989 - 01/1992	1
82111-10760	EP80,81..RHD W(AIR CONDITIONER)	01/1992 - 12/1992	1
82111-10761	EP80,81..RHD W(AIR CONDITIONER)	12/1992 - 12/1993	1
82111-10611	EP80,81..RHD	12/1992 - 05/1994	1
82111-10762	EP80,81..RHD W(AIR CONDITIONER)	12/1993 - 05/1994	1
82111-10763	EP80,81..RHD W(AIR CONDITIONER)	05/1994 - 12/2999	1
82111-10612	EP80,81..RHD	05/1994 - 12/2999	1
82121 - WIRE, ENGINE
82121-10720	EP81..3FC	12/1989 - 01/1992	1
82121-1C041	EP81..3FC	12/1992 - 05/1994	1
82121-1C040	EP81..3FC	01/1992 - 12/1992	1
82121-1C042	EP81..3FC	05/1994 - 01/1996	1
82123 - WIRE, ENGINE, NO.3
82123-10060	EP80,81	12/1989 - 12/2999	1
82123-10050	EP8#..RHD..5D..(S,XL) INDONESIA SPEC	12/1989 - 01/1992	1
82123-10100	EP81..RHD..3FC INDONESIA SPEC	01/1992 - 01/1996	1
82210C - FUSIBLE LINK
90982-08190	EP8# 60A,TERM.:FEMALE,YEL,PACIFIC	04/1990 - 01/1992	1
90982-08190	EP80,81;EP82..MTM 60A,TERM.:FEMALE,YEL	01/1992 - 12/2999	1
90982-08218	EP8# 60A,TERM.:FEMALE,YEL,YAZAKI	04/1990 - 01/1992	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-32010	EP8#	12/1989 - 08/1994	2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-32010	EP8#	12/1989 - 08/1994	2
82823 - CAP, TERMINAL, NO.1
82823-22050	EP8#	12/1989 - 12/2999	1
Common parts
90119-06390
90119-08201
91651-60616
91651-61016
Linked diagrams
8201
8401

ILLUST NO. 4 OF 6(8912- )5D

Click highlighted areas on diagram

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-10080	EP81..RHD..5D..XL INDONESIA(CKD)	12/1989 - 01/1992	1
82151-10110	EP80..RHD..S;EP81..RHD..5D W(*EL)	12/1989 - 01/1992	1
82151-10190	EP80,81..RHD W(*DRC)	01/1992 - 12/1992	1
82151-10220	EP81..5D..S W(*EL)	01/1992 - 12/1992	1
82151-10240	EP81..5D..S W(PW & EL)	01/1992 - 12/1992	1
82151-10120	EP81..RHD..5D..S INDONESIA(CKD)	12/1989 - 01/1992	1
82151-10220	EP80,81..RHD..5D..XL W(EL) OR W(EL & *DRC)	01/1992 - 12/1992	1
82151-10240	EP80,81..RHD..5D..XL W(POWER WINDOW & *EL)	01/1992 - 12/1992	1
82151-10130	EP8#..RHD..5D..S W(POWER WINDOW & *EL)	12/1989 - 01/1992	1
82151-10230	EP80,81..RHD..5D..(S,XL) INDONESIA(CKD) & W(PW & EL & *DRC)	01/1992 - 05/1994	1
82151-10220	EP80,81..RHD..5D..(S,XL) W(EL) OR W(EL & *DRC)	12/1992 - 05/1994	1
82151-10190	EP81..3D..S;EP80,81..RHD..(STD,XL) W(*DRC)	12/1992 - 12/2999	1
82151-10240	EP80,81..RHD..5D..(S,XL) W(POWER WINDOW & *EL)	12/1992 - 12/2999	1
82151-10231	EP80,81..RHD..5D..(S,XL) INDONESIA(CKD) & W(PW & EL & *DRC)	05/1994 - 12/2999	1
82151-10190	EP81..5D..S W(DRC) OR INDONESIA(CKD) & W(DRC)	12/1992 - 12/2999	1
82151-10220	EP80,81..RHD..5D..XL W(EL) OR W(EL & *DRC)	05/1994 - 12/2999	1
82151-10220	EP81..5D..S W(EL & DRC)	05/1994 - 12/2999	1
82152 - WIRE, FRONT DOOR, LH
82152-10050	EP81..RHD..5D..XL INDONESIA(CKD)	12/1989 - 01/1992	1
82152-10170	EP81..RHD..5D..S INDONESIA(CKD) OR(PW & EL)	12/1989 - 01/1992	1
82152-10160	EP80..RHD..S;EP81..RHD..5D W(*EL)	12/1989 - 01/1992	1
82152-10240	EP80,81..RHD..5D..(S,XL) W(PW & EL) OR W(PW & EL & DRC) OR INDONESIA(CKD) & W(PW & EL & DRC)	01/1992 - 12/1992	1
82152-10220	EP80,81..RHD..5D..(S,XL) W(EL) OR W(EL & *DRC)	01/1992 - 12/2999	1
82152-10190	EP81..3D..S;EP80,81..RHD..(STD,XL) W(*DRC)	12/1992 - 12/2999	1
82152-10190	EP80,81..RHD W(*DRC)	01/1992 - 12/1992	1
82152-10240	EP81..5D..S W(PW & EL)	12/1992 - 12/2999	1
82152-10240	EP80,81..RHD..5D..XL W(PW & EL) OR W(PW & EL & DRC) OR INDONESIA(CKD) & W(PW & EL & DRC)	12/1992 - 12/2999	1
82152-10190	EP81..5D..S W(DRC) OR INDONESIA(CKD) & W(DRC)	12/1992 - 12/2999	1
82153 - WIRE, REAR DOOR, NO.1
82153-10030	EP80,81..RHD..5D..(S,XL) INDONESIA(CKD) & W(PW & EL)	01/1992 - 12/2999	1
82153-10010	EP81..RHD..5D..S INDONESIA(CKD)	12/1989 - 01/1992	1
82153-10040	EP80,81..RHD..5D..(S,XL) W(*EL)	01/1992 - 12/2999	1
82153-10020	EP81..RHD..5D..S W(*EL)	12/1989 - 01/1992	1
82153-10020	EP81..5D..XL;EP81..LHD..S;EP80..5D..(S,XL)	12/1989 - 01/1992	1
82154 - WIRE, REAR DOOR, NO.2
82154-10020	EP81..RHD..5D..S W(*EL)	12/1989 - 01/1992	1
82154-10020	EP81..5D..XL;EP81..LHD..S;EP80..5D..(S,XL)	12/1989 - 01/1992	1
82154-10030	EP81..RHD..5D INDONESIA(CKD) & W(PW & EL)	01/1992 - 12/2999	1
82154-10010	EP81..RHD..5D..S INDONESIA(CKD)	12/1989 - 01/1992	1
82154-10040	EP81..RHD..5D W(*EL)	01/1992 - 12/2999	1
82161 - WIRE, FLOOR
82161-10530	EP81..S;EP80..5D;EP81..5D..5F..XL	12/1989 - 02/1991	1
82161-10510	EP81..RHD..5D;EP80..5D..(S,XL) W(*EL)	12/1989 - 02/1991	1
82161-10531	EP81..S;EP80..5D;EP81..5D..5F..XL	02/1991 - 04/1991	1
82161-10540	EP81..3FC	12/1989 - 02/1991	1
82161-10541	EP81..3FC	02/1991 - 04/1991	1
82161-10511	EP81..RHD..5D;EP80..5D..(S,XL) W(*EL)	02/1991 - 04/1991	1
82161-10532	EP81..S;EP80..5D;EP81..5D..5F..XL	04/1991 - 01/1992	1
82161-10512	EP81..RHD..5D;EP80..5D..(S,XL) W(*EL)	04/1991 - 01/1992	1
82161-10542	EP81..3FC	04/1991 - 01/1992	1
82161-10750	EP81..3FC	01/1992 - 01/1996	1
82161-10760	EP80,81..5D..(S,XL) W(*EL)	01/1992 - 12/2999	1
82162 - WIRE, FLOOR, NO.2
82162-10161	EP81..RHD..5D..S INDONESIA(CKD)	02/1991 - 01/1992	1
82162-10171	EP8#..5D..(S,XL) W(*EL)	02/1991 - 01/1992	1
82162-10180	EP8#..5D	12/1989 - 02/1991	1
82162-10170	EP8#..5D..(S,XL) W(*EL)	12/1989 - 02/1991	1
82162-10160	EP81..RHD..5D..S INDONESIA(CKD)	12/1989 - 02/1991	1
82162-10210	EP8#..RHD..5D	01/1992 - 05/1994	1
82162-10181	EP8#..5D	02/1991 - 01/1992	1
82162-10211	EP8#..RHD..5D	05/1994 - 12/2999	1
82162-10200	EP80,81..5D..(S,XL) W(*EL)	01/1992 - 12/2999	1
82162-10240	EP80,81..RHD..5D..(S,XL) INDONESIA(CKD) & W(PW & EL)	01/1992 - 12/2999	1
82171 - WIRE, ROOF, NO.1
82171-10110	EP8#..RHD..(S,XL) W(MOON ROOF)	01/1992 - 05/1994	1
82171-10061	EP8#..RHD..(S,XL) W(MOON ROOF)	02/1990 - 01/1992	1
82171-10051	EP8#..RHD..(S,SOL,SOLL,STD,XL)	02/1990 - 05/1994	1
82171-10050	EP8#..RHD	12/1989 - 02/1990	1
82171-10060	EP8#..RHD..(S,XL) W(MOON ROOF)	12/1989 - 02/1990	1
82171-10052	EP8#..RHD	05/1994 - 12/2999	1
82184 - WIRE, BACK DOOR, NO.1
82184-10100	EP80;EP81..5D;EP81..3D..XL W(REAR WINDOW DEFOGGER & REAR WIPER)	12/1989 - 01/1992	1
82184-10110	EP81..RHD..3FC W(REAR SPOILER)	12/1989 - 01/1992	1
82184-10090	EP80,81;EP82..SOL W(REAR WINDOW DEFOGGER)	12/1989 - 12/2999	1
82184-10140	EP80,81..3D..5F;EP81,82..RHD..(3FC,4F)..(SOL,XL) W(RWD & RW) OR W(CENTER STOP LAMP)	12/1992 - 05/1994	1
82184-10140	EP80,81..5D;EP80..3D..STD W(REAR WINDOW DEFOGGER & REAR WIPER)	01/1992 - 12/1992	1
82184-10140	EP81..RHD..3FC;EP80,81..3D..5F W(RWD & RW) OR W(CENTER STOP LAMP)	05/1994 - 01/1996	1
82184-10110	EP80,81..S,XL W(RWD & CENTER STOP LAMP(SPOILER) & RW)	01/1992 - 12/2999	1
82185 - WIRE, BACK DOOR, NO.2
82185-10020	EP8#..5D;EP80..LHD..3D	12/1989 - 01/1992	1
82185-10110	EP80,81..3D..5F;EP81,82..RHD..(3FC,4F) W(CENTER STOP LAMP)	12/1992 - 01/1996	1
82185-10030	EP80,81..S,XL W(CENTER STOP LAMP(SPOILER) & *RW)	01/1992 - 12/2999	1
82185-10120	EP80,81..3D..5F;EP81,82..RHD..(3FC,4F) W(CENTER STOP LAMP & *RW)	12/1992 - 01/1996	1
82185-10020	EP82..5D;EP80,81..S,XL W(REAR WIPER)	01/1992 - 12/2999	1
82187 - WIRE, REAR WINDOW, NO.2
82187-10020	EP8#	12/1989 - 12/2999	1
82344 - WIRE, MIRROR, RH
82344-10020	EP80,81..RHD	01/1992 - 12/2999	1
82344A - WIRE, MIRROR, LH
82344-10020	EP80,81..RHD	01/1992 - 12/2999	1
82412 - WIRE, FUEL GAGE
82412-10070	EP80,81..S	12/1989 - 12/2999	1
82412-10030	EP81..RHD..5D..S W(COMBINATION METER)	12/1989 - 12/2999	1
82412-10070	EP80,81..XL W(TACHOMETER)	01/1992 - 12/2999	1
82412-10020	EP8#..RHD..XL W(TACHOMETER)	12/1989 - 01/1992	1
82412-10030	EP80,81..STD,XL	12/1989 - 12/2999	1
82561 - WIRE, REAR SPEAKER
82561-10020	EP80,81..RHD..5D INDONESIA SPEC	01/1992 - 12/2999	1
82561-10020	EP8#..RHD..5D..(S,XL) INDONESIA SPEC	12/1989 - 01/1992	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-10180	EP82;EP80,81..5D	01/1992 - 05/1994	1
82817-10180	EP80,81..5D..(S,XL) W(RWD & RW) OR W(RWD & HSL & *RW)	01/1992 - 05/1994	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-10180	EP82;EP80,81..5D	01/1992 - 05/1994	1
82817-10180	EP80,81..5D..(S,XL) W(RWD & RW) OR W(RWD & HSL & *RW)	01/1992 - 05/1994	1
Common parts
90119-06067
90186-40086
90467-09049

ILLUST NO. 2 OF 6(8912- )

Click highlighted areas on diagram

CLAMP

Part #	Description	Period	Qty	Price
Common parts
82711-10070
82711-10080
82711-10370
82711-12200
82711-16430
82711-24420
82711-2A590
82711-2A730
82711-30550
82711-50510
82715-10010
82715-10020
82715-10030
82715-10040
82715-10050
82715-10060
82715-10090
82715-10100
82715-10130
82715-18040
82715-89113
82715-89119
90119-08443
90464-00166
91651-40814
91651-60612

ILLUST NO. 3 OF 6(8912- )RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-1M010	EP8#..RHD..S	12/1989 - 01/1991	1
82131-1C640	EP81..RHD..5D..S W(EL) & W/O(TACHOMETER) OR W(SNR) & W/O(TACHOMETER) OR W/O(TACHOMETER) & DEALEROPT	12/1989 - 01/1992	1
82131-1C620	EP81..RHD..5D..S W/O(TACHOMETER)	12/1989 - 01/1992	1
82131-1M010	EP81..RHD..XL;EP80..RHD..5D..XL W(TACHOMETER)	12/1989 - 01/1991	1
82131-1M020	EP81..RHD..S W(EL) OR W(SNR) OR W(AIR CONDITIONER)	12/1989 - 01/1991	1
82131-1M020	EP81..RHD..3FC W(*DRC) OR W(TACHOMETER)	12/1989 - 01/1991	1
82131-1C640	EP81..RHD..3FC	12/1989 - 01/1992	1
82131-1M350	EP80,81..RHD	01/1992 - 12/1992	1
82131-1M011	EP81..RHD..XL;EP80..RHD..5D..XL W(TACHOMETER)	01/1991 - 01/1992	1
82131-1M021	EP81..RHD..S W(EL) OR W(SNR) OR W(AIR CONDITIONER)	01/1991 - 01/1992	1
82131-1M021	EP81..RHD..3FC W(*DRC) OR W(TACHOMETER)	01/1991 - 01/1992	1
82131-1M360	EP80,81..RHD..(S,XL) W(EL) OR W(SNR) OR W(DRC) OR W(AIC)	01/1992 - 12/1992	1
82131-1M011	EP8#..RHD..S	01/1991 - 01/1992	1
82131-1M361	EP80,81..RHD..(S,XL) W(EL) OR W(SNR) OR W(DRC) OR W(AIC)	12/1992 - 05/1994	1
82131-1M351	EP80,81..RHD	12/1992 - 05/1994	1
82131-1M352	EP80,81..RHD	05/1994 - 12/2999	1
82131-1M362	EP80,81..RHD..5D..(S,XL) W(EL) OR W(DRC) OR W(*AIC)	05/1994 - 12/2999	1
Common parts
90167-50002
Linked diagrams
8401

EP81R-AHHNS (1989)

ILLUST NO. 6 OF 6(8912- )

ILLUST NO. 5 OF 6(8912- )

ILLUST NO. 1 OF 6(8912- )EP80,81..RHD

ILLUST NO. 4 OF 6(8912- )5D

ILLUST NO. 2 OF 6(8912- )

ILLUST NO. 3 OF 6(8912- )RHD
