EP81R-AHHNS (1989)

Toyota Starlet

Production Dec 1989 - Jan 1996
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

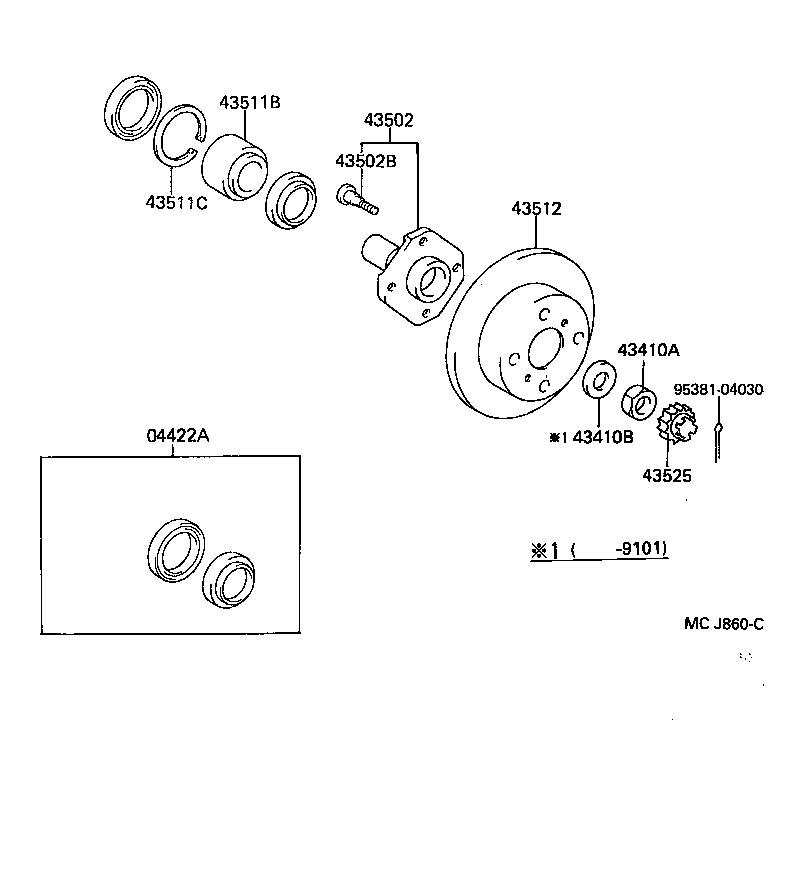

Click highlighted areas on diagram

diagram 04422A 43410A 43410B 43502 43502B 43511B 43511C 43512 43525 9538104030
Part # Description Qty Price
04422A - SEAL KIT, FRONT AXLE OIL
04422-10030

EP8#

 2
43410A - NUT (FOR AXLE HUB & DRIVE SHAFT SETTING)
90170-19001

EP8#

 2
90179-22020

EP8#

 2
43410B - WASHER (FOR AXLE HUB & DRIVE SHAFT SETTING)
90201-20012

EP8#

 2
43502 - HUB SUB-ASSY, FRONT AXLE
43502-10040

EP8#

 2
43502-10030

EP8#

 2
43502B - BOLT, HUB (FOR FRONT AXLE)
90942-02047

EP8#

 8
90942-02049

EP8#

 8
43511B - BEARING (FOR FRONT AXLE HUB)
90369-35029

EP8#

 2
43511C - RING, HOLE SNAP (FOR FRONT AXLE HUB)
90521-75003

EP8#

T=2.50

 2
43512 - DISC, FRONT
43512-10080

EP80;EP81..5D;EP81..3D..XL

 2
43512-10090

EP8#..5D..S

ALUMINUM WHEEL

 2
43512-10150

EP8#..SOL,SOLL,STD,XL

 2
43512-10160

EP81,82..CAN,S

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-20030

EP8#

 2
43525-16010

EP8#

 2
Common parts
95381-04030
