Toyota Starlet EP81 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
GR
STARLET
EP81L-AHMNS (1989)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

EP81L-AHMNS (1989)

Toyota Starlet

Production Dec 1989 - Jan 1996

Engine 2E

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8912-9201)

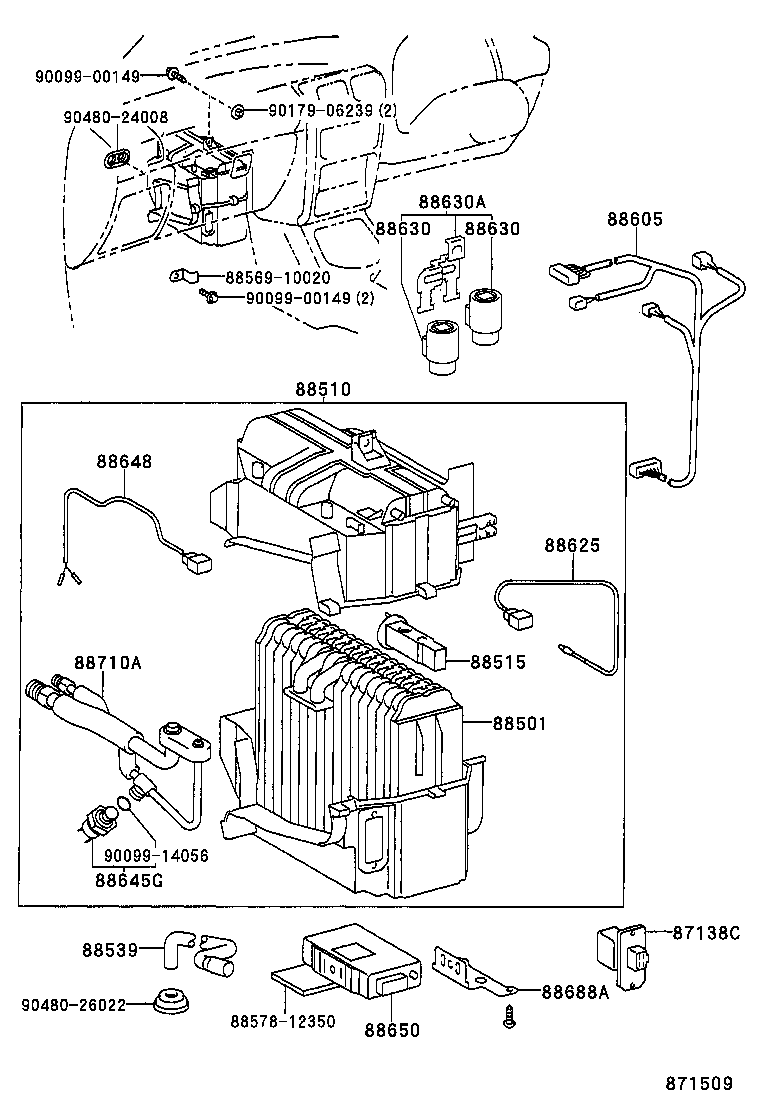

Click highlighted areas on diagram

MAKER OPT

Part #	Description	Period	Qty
87138C - RESISTOR, BLOWER
87138-10130	EP80,81..LHD	12/1989 - 01/1996	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-10110	EP80,81..LHD	12/1989 - 12/1993	1
88501-10130	EP80,81..LHD MANUAL AIC OR BV	05/1994 - 01/1995	1
88501-10131	EP80,81..LHD W(GAS) OR *BV---DEALER OPT	05/1994 - 01/1995	1
88501-16120	EP80,81..LHD	12/1993 - 05/1994	1
88501-10131	EP80,81..LHD W(AIR CONDITIONER---DOP OR BOOST VENTILATOR)	01/1995 - 01/1996	1
88510 - UNIT ASSY, COOLER
88510-10250	EP80,81..LHD	12/1989 - 12/1993	1
88510-10490	EP80,81..LHD	05/1994 - 01/1996	1
88510-16490	EP80,81..LHD	12/1993 - 05/1994	1
88515 - VALVE, COOLER EXPANSION
88515-14060	EP8#..LHD MANUAL AIC OR COOLER BV	12/1989 - 07/1990	1
88515-14061	EP8#	07/1990 - 08/1990	1
88515-14062	EP8#	08/1991 - 12/1993	1
88515-14062	EP80..S,XL;EP81..5D..S;EP81..LHD..XL;EP80..LHD..STD MANUAL AIR CON DEALER KIT OR BOOST VENTILATOR	08/1990 - 02/1991	1
88515-14061	EP8#	02/1991 - 08/1991	1
88515-14061	EP8#..LHD MANUAL AIR CON DEALER KIT OR BOOST VENTILATOR	12/1989 - 07/1990	1
88515-14061	EP8# MANUAL AIC OR COOLER BV	08/1990 - 02/1991	1
88515-20100	EP8#	12/1993 - 05/1995	1
88515-20100	EP8#..S,STD,XL	05/1995 - 12/2999	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-10100	EP80,81..LHD	12/1989 - 01/1996	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-1C030	EP8# MANUAL *AIC OR W(GAS)	12/1989 - 01/1990	1
88605-1C040	EP8# W(AIR CONDITIONER) OR W(BOOST VENTILATOR)	12/1989 - 01/1990	1
88605-1C040	EP80..5D;EP81..5D..S;EP80..3D..XL;EP80..LHD..3D;EP81..LHD..XL W(AIR CONDITIONER) OR W(BOOST VENTILATOR)	01/1990 - 02/1990	1
88605-1C330	EP80,81 MANUAL *AIC OR W(GAS)	01/1992 - 12/1992	1
88605-1C030	EP80..S,XL;EP81..5D..S;EP81..LHD..XL;EP80..LHD..STD MANUAL *AIC OR W(GAS)	02/1990 - 01/1992	1
88605-1C320	EP80,81 W(AIR CONDITIONER) OR W(BOOST VENTILATOR)	01/1992 - 12/1992	1
88605-1C040	EP80..S,XL;EP81..5D..S;EP81..LHD..XL;EP80..LHD..STD W(AIR CONDITIONER) OR W(BOOST VENTILATOR)	02/1990 - 01/1992	1
88605-1C030	EP80..5D;EP81..5D..S;EP80..3D..XL;EP80..LHD..3D;EP81..LHD..XL MANUAL *AIC OR W(GAS)	01/1990 - 02/1990	1
88605-1C320	EP80,81..LHD W(AIR CONDITIONER) OR W(BOOST VENTILATOR)	12/1992 - 12/1993	1
88605-1C330	EP80,81..LHD MANUAL *AIC OR W(GAS)	12/1992 - 12/1993	1
88605-1C750	EP80,81..LHD BOOST VENTILATOR	12/1993 - 01/1996	1
88605-1C740	EP80,81 MANUAL *AIC OR W(GAS)	12/1993 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88625-24050	EP8#	04/1991 - 12/2999	1
88630 - RELAY ASSY, COOLER
88630-95702	EP8#	12/1989 - 01/1992	1
88630-95702	EP8#	01/1992 - 01/1996	2
88645G - SWITCH, PRESSURE
88645-30320	EP8#..LHD MANUAL AIR CON---*LHC OR COOLER BOOST VENTILATOR	12/1989 - 04/1991	1
88645-30320	EP8#	04/1991 - 12/1993	1
88648 - WIRING, COOLER, NO.1
88648-10290	EP8#	12/1989 - 12/1993	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-10060	EP80..S,XL;EP81..5D..S;EP81..LHD..XL;EP80..LHD..STD W(AIR CONDITIONER & BOOST VENTILATIOR)	12/1989 - 01/1992	1
88650-10370	EP80,81	01/1992 - 12/2999	1
88650-16310	EP8# W(AIR CONDITIONER---MOP) OR W(AIR CONDITIONER---DOP)	12/1989 - 01/1992	1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-10240	EP8#..LHD	12/1989 - 01/1992	1
88688-10340	EP80,81..LHD	01/1992 - 01/1996	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-10070	EP80,81..LHD	12/1989 - 12/1993	1
88710-16240	EP80,81..LHD	12/1993 - 01/1996	1
Common parts
88569-10020
88569-17090
88578-12350
88688-10280
90099-00149
90099-14056
90179-06239
90480-24008
90480-26022

(9201- )

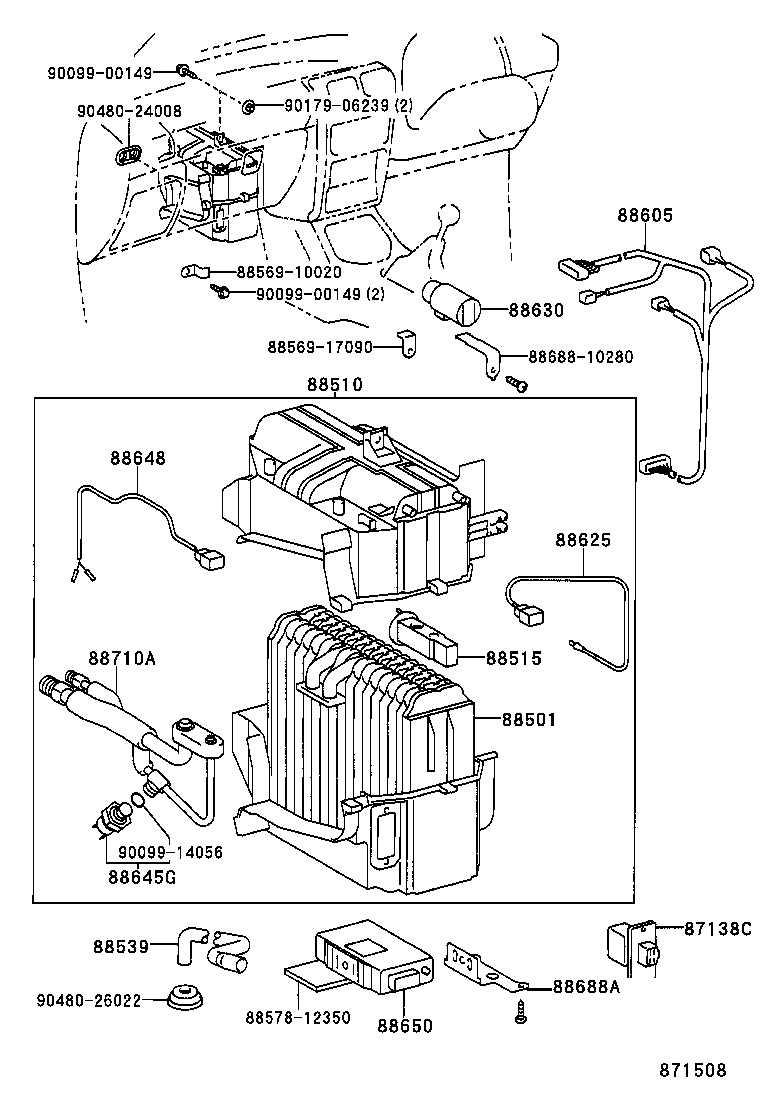

Click highlighted areas on diagram

MAKER OPT

Part #	Description	Period	Qty
87138C - RESISTOR, BLOWER
87138-10130	EP80,81..LHD	12/1989 - 01/1996	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-10110	EP80,81..LHD	12/1989 - 12/1993	1
88501-10130	EP80,81..LHD MANUAL AIC OR BV	05/1994 - 01/1995	1
88501-10131	EP80,81..LHD W(GAS) OR *BV---DEALER OPT	05/1994 - 01/1995	1
88501-16120	EP80,81..LHD	12/1993 - 05/1994	1
88501-10131	EP80,81..LHD W(AIR CONDITIONER---DOP OR BOOST VENTILATOR)	01/1995 - 01/1996	1
88510 - UNIT ASSY, COOLER
88510-10250	EP80,81..LHD	12/1989 - 12/1993	1
88510-10490	EP80,81..LHD	05/1994 - 01/1996	1
88510-16490	EP80,81..LHD	12/1993 - 05/1994	1
88515 - VALVE, COOLER EXPANSION
88515-14060	EP8#..LHD MANUAL AIC OR COOLER BV	12/1989 - 07/1990	1
88515-14061	EP8#	07/1990 - 08/1990	1
88515-14062	EP8#	08/1991 - 12/1993	1
88515-14062	EP80..S,XL;EP81..5D..S;EP81..LHD..XL;EP80..LHD..STD MANUAL AIR CON DEALER KIT OR BOOST VENTILATOR	08/1990 - 02/1991	1
88515-14061	EP8#	02/1991 - 08/1991	1
88515-14061	EP8#..LHD MANUAL AIR CON DEALER KIT OR BOOST VENTILATOR	12/1989 - 07/1990	1
88515-14061	EP8# MANUAL AIC OR COOLER BV	08/1990 - 02/1991	1
88515-20100	EP8#	12/1993 - 05/1995	1
88515-20100	EP8#..S,STD,XL	05/1995 - 12/2999	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-10100	EP80,81..LHD	12/1989 - 01/1996	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-1C030	EP8# MANUAL *AIC OR W(GAS)	12/1989 - 01/1990	1
88605-1C040	EP8# W(AIR CONDITIONER) OR W(BOOST VENTILATOR)	12/1989 - 01/1990	1
88605-1C040	EP80..5D;EP81..5D..S;EP80..3D..XL;EP80..LHD..3D;EP81..LHD..XL W(AIR CONDITIONER) OR W(BOOST VENTILATOR)	01/1990 - 02/1990	1
88605-1C330	EP80,81 MANUAL *AIC OR W(GAS)	01/1992 - 12/1992	1
88605-1C030	EP80..S,XL;EP81..5D..S;EP81..LHD..XL;EP80..LHD..STD MANUAL *AIC OR W(GAS)	02/1990 - 01/1992	1
88605-1C320	EP80,81 W(AIR CONDITIONER) OR W(BOOST VENTILATOR)	01/1992 - 12/1992	1
88605-1C040	EP80..S,XL;EP81..5D..S;EP81..LHD..XL;EP80..LHD..STD W(AIR CONDITIONER) OR W(BOOST VENTILATOR)	02/1990 - 01/1992	1
88605-1C030	EP80..5D;EP81..5D..S;EP80..3D..XL;EP80..LHD..3D;EP81..LHD..XL MANUAL *AIC OR W(GAS)	01/1990 - 02/1990	1
88605-1C320	EP80,81..LHD W(AIR CONDITIONER) OR W(BOOST VENTILATOR)	12/1992 - 12/1993	1
88605-1C330	EP80,81..LHD MANUAL *AIC OR W(GAS)	12/1992 - 12/1993	1
88605-1C750	EP80,81..LHD BOOST VENTILATOR	12/1993 - 01/1996	1
88605-1C740	EP80,81 MANUAL *AIC OR W(GAS)	12/1993 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88625-24050	EP8#	04/1991 - 12/2999	1
88630 - RELAY ASSY, COOLER
88630-95702	EP8#	12/1989 - 01/1992	1
88630-95702	EP8#	01/1992 - 01/1996	2
88630 - RELAY ASSY, COOLER
88630-95702	EP8#	12/1989 - 01/1992	1
88630-95702	EP8#	01/1992 - 01/1996	2
88630A - RELAY ASSY, COOLER
88630-10120	EP80,81..LHD	01/1992 - 01/1996	1
88645G - SWITCH, PRESSURE
88645-30320	EP8#..LHD MANUAL AIR CON---*LHC OR COOLER BOOST VENTILATOR	12/1989 - 04/1991	1
88645-30320	EP8#	04/1991 - 12/1993	1
88648 - WIRING, COOLER, NO.1
88648-10290	EP8#	12/1989 - 12/1993	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-10060	EP80..S,XL;EP81..5D..S;EP81..LHD..XL;EP80..LHD..STD W(AIR CONDITIONER & BOOST VENTILATIOR)	12/1989 - 01/1992	1
88650-10370	EP80,81	01/1992 - 12/2999	1
88650-16310	EP8# W(AIR CONDITIONER---MOP) OR W(AIR CONDITIONER---DOP)	12/1989 - 01/1992	1
88688A - BRACKET, COOLER STABILIZER AMPLIFIER
88688-10240	EP8#..LHD	12/1989 - 01/1992	1
88688-10340	EP80,81..LHD	01/1992 - 01/1996	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-10070	EP80,81..LHD	12/1989 - 12/1993	1
88710-16240	EP80,81..LHD	12/1993 - 01/1996	1
Common parts
88569-10020
88578-12350
90099-00149
90099-14056
90179-06239
90480-24008
90480-26022

EP81L-AHMNS (1989)
