EP81L-AHMNS (1989)
Toyota Starlet
Production
Dec 1989
-
Jan 1996
Engine
2E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8912- )

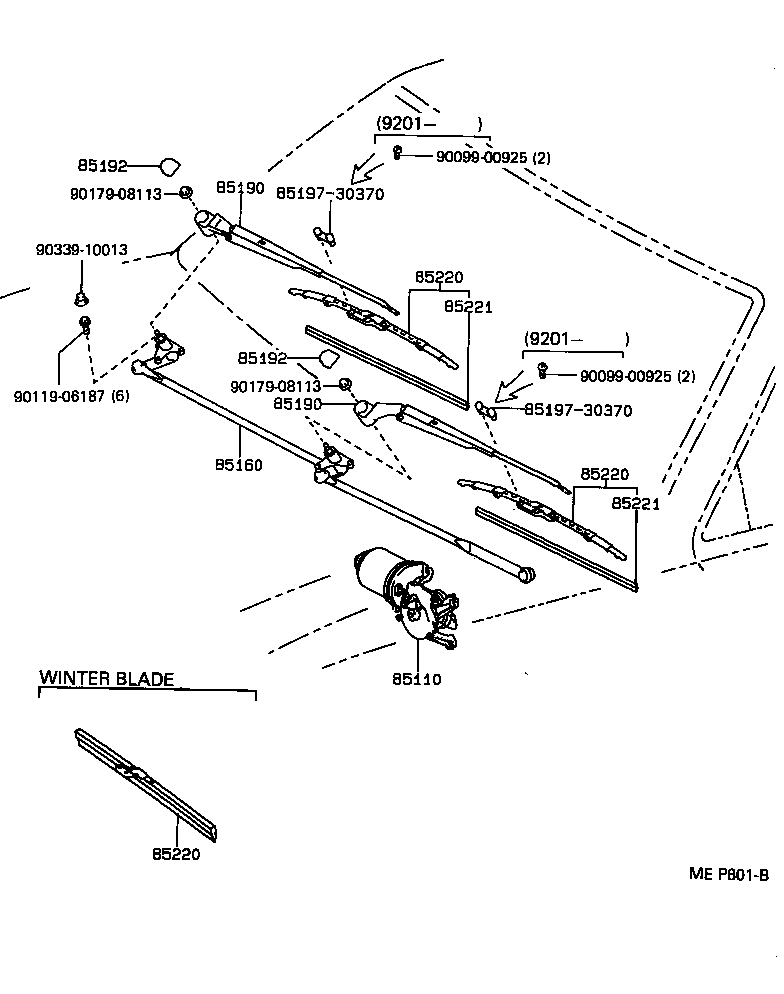

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-10350 |
EP8#..LHD |
1 | ||
| 85110-10370 |
EP80,81..LHD |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85150-10340 |
EP80,81..LHD |
1 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85211-10090 |
EP8#..LHD RH |
1 | ||
| 85211-10091 |
EP80,81..LHD RH |
1 | ||
| 85221-10090 |
EP8#..LHD LH |
1 | ||
| 85221-10091 |
EP80,81..LHD LH |
1 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85211-10090 |
EP8#..LHD RH |
1 | ||
| 85211-10091 |
EP80,81..LHD RH |
1 | ||
| 85221-10090 |
EP8#..LHD LH |
1 | ||
| 85221-10091 |
EP80,81..LHD LH |
1 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85192-12800 |
EP8# |
2 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85192-12800 |
EP8# |
2 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85212-10120 |
EP80,81..LHD RH |
1 | ||
| 85220-12671 |
EP8#..LHD RH |
1 | ||
| 85220-32860 |
EP80,81..LHD LH |
1 | ||
| 85220-12671 |
EP80,81..LHD RH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85212-10120 |
EP80,81..LHD RH |
1 | ||
| 85220-12671 |
EP8#..LHD RH |
1 | ||
| 85220-32860 |
EP80,81..LHD LH |
1 | ||
| 85220-12671 |
EP80,81..LHD RH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85212-10120 |
EP80,81..LHD RH |
1 | ||
| 85220-12671 |
EP8#..LHD RH |
1 | ||
| 85220-32860 |
EP80,81..LHD LH |
1 | ||
| 85220-12671 |
EP80,81..LHD RH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-32050 |
EP80,81..LHD LH |
1 | ||
| 85221-89106 |
EP80,81..LHD RH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-32050 |
EP80,81..LHD LH |
1 | ||
| 85221-89106 |
EP80,81..LHD RH |
1 | ||
| Common parts | ||||
| 85197-30370 | ||||
| 90099-00925 | ||||
| 90119-06187 | ||||
| 90179-08113 | ||||
| 90339-10013 | ||||
