Toyota Starlet EP81 MUDGUARD & SPOILER

Manufacturers Home
Toyota
GR
STARLET
EP81L-AHMNS (1989)
7601 - MUDGUARD & SPOILER

EP81L-AHMNS (1989)

Toyota Starlet

Production Dec 1989 - Jan 1996

Engine 2E

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8912- )

Click highlighted areas on diagram

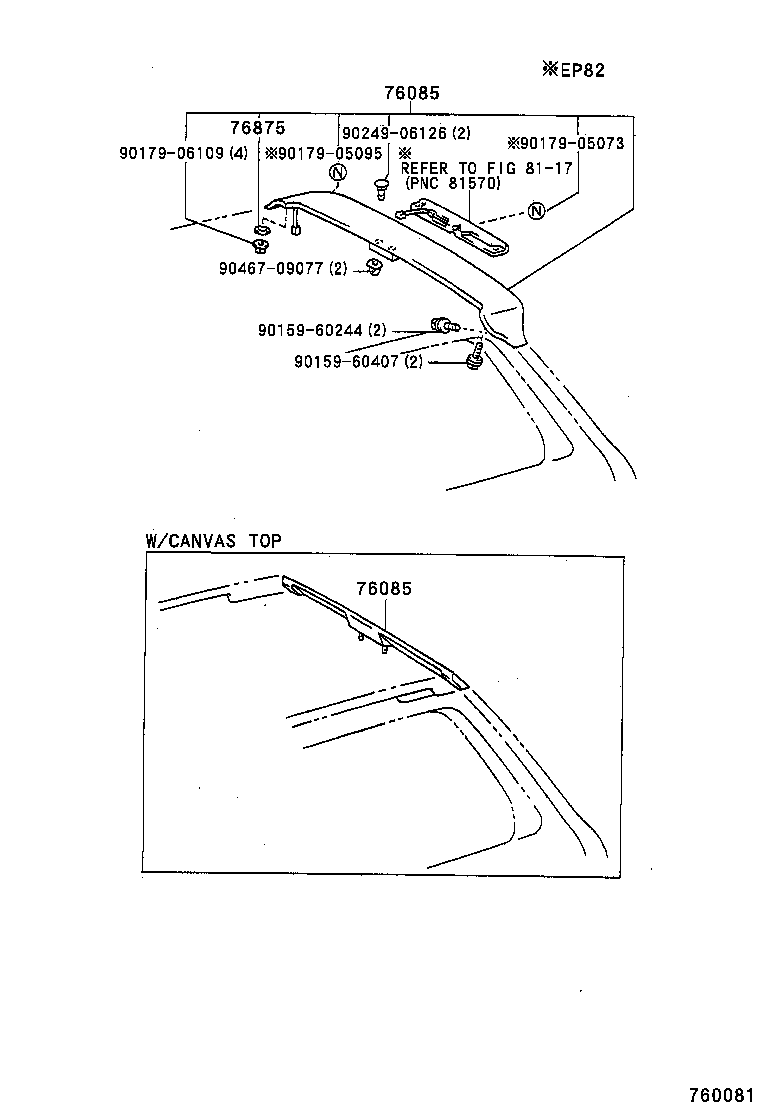

TYPE A

Part #	Description	Period	Qty
76085 - SPOILER SUB-ASSY, REAR
76085-10140A0	EP81..5D;EP81..3D..XL;EP80,82..S,XL SUPER WHITE 2,040	01/1992 - 05/1994	1
76085-10140B0	EP81..5D;EP81..3D..XL;EP80,82..S,XL BLUISH GRAY M,182	01/1992 - 05/1994	1
76085-10140D0	EP81..5D;EP81..3D..XL;EP80,82..S,XL SUPER RED 2,3E5	01/1992 - 05/1994	1
76085-10140C0	EP81..5D;EP81..3D..XL;EP80,82..S,XL BLACK M,205	01/1992 - 05/1994	1
76085-10140J0	EP81..5D;EP81..3D..XL;EP80,82..S,XL DARK BLUE M M,8G5	01/1992 - 05/1994	1
76085-10140D2	EP80,81..S,XL RED MICA,3K4	05/1994 - 01/1996	1
76085-10140C0	EP8#..S,XL BLACK M,205	05/1994 - 01/1996	1
76085-10140G0	EP81..5D;EP81..3D..XL;EP80,82..S,XL GREEN M,6M6	01/1992 - 05/1994	1
76085-10140J1	EP8#..S,XL DARK BLUE M.M,8K0	05/1994 - 01/1996	1
76085-10140H0	EP8#..S,XL TURQUOISE M.M,746	05/1994 - 01/1996	1
76085-10140A0	EP8#..S,XL SUPER WHITE 2,040	05/1994 - 01/1996	1
76085-10140D0	EP80,81..S,XL SUPER RED 2,3E5	05/1994 - 01/1996	1
76085-10140B1	EP8#..S,XL SILVER M,199	05/1994 - 01/1996	1
76085 - SPOILER SUB-ASSY, REAR
76085-10140A0	EP81..5D;EP81..3D..XL;EP80,82..S,XL SUPER WHITE 2,040	01/1992 - 05/1994	1
76085-10140B0	EP81..5D;EP81..3D..XL;EP80,82..S,XL BLUISH GRAY M,182	01/1992 - 05/1994	1
76085-10140D0	EP81..5D;EP81..3D..XL;EP80,82..S,XL SUPER RED 2,3E5	01/1992 - 05/1994	1
76085-10140C0	EP81..5D;EP81..3D..XL;EP80,82..S,XL BLACK M,205	01/1992 - 05/1994	1
76085-10140J0	EP81..5D;EP81..3D..XL;EP80,82..S,XL DARK BLUE M M,8G5	01/1992 - 05/1994	1
76085-10140D2	EP80,81..S,XL RED MICA,3K4	05/1994 - 01/1996	1
76085-10140C0	EP8#..S,XL BLACK M,205	05/1994 - 01/1996	1
76085-10140G0	EP81..5D;EP81..3D..XL;EP80,82..S,XL GREEN M,6M6	01/1992 - 05/1994	1
76085-10140J1	EP8#..S,XL DARK BLUE M.M,8K0	05/1994 - 01/1996	1
76085-10140H0	EP8#..S,XL TURQUOISE M.M,746	05/1994 - 01/1996	1
76085-10140A0	EP8#..S,XL SUPER WHITE 2,040	05/1994 - 01/1996	1
76085-10140D0	EP80,81..S,XL SUPER RED 2,3E5	05/1994 - 01/1996	1
76085-10140B1	EP8#..S,XL SILVER M,199	05/1994 - 01/1996	1
Common parts
90159-60244
90159-60407
90179-05073
90179-05095
90179-06109
90249-06126
90467-09077
Linked diagrams
8117

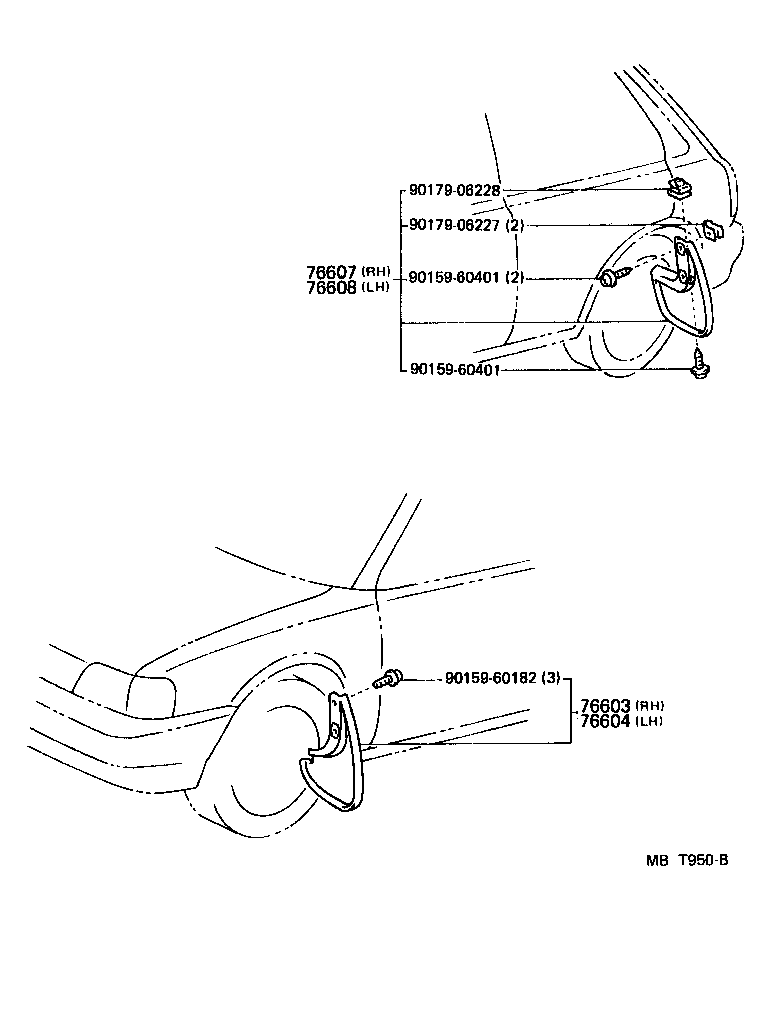

(8912- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-19165	EP8#	12/1989 - 12/2999	1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-19165	EP8#	12/1989 - 12/2999	1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76625-19355	EP8#	12/1989 - 05/1994	1
76625-19356	EP8#	05/1994 - 12/2999	1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76626-19365	EP8#	12/1989 - 05/1994	1
76626-19366	EP8#	05/1994 - 12/2999	1
Common parts
90159-60182
90159-60401
90179-06227
90179-06228

(9201- )S,XL

Click highlighted areas on diagram

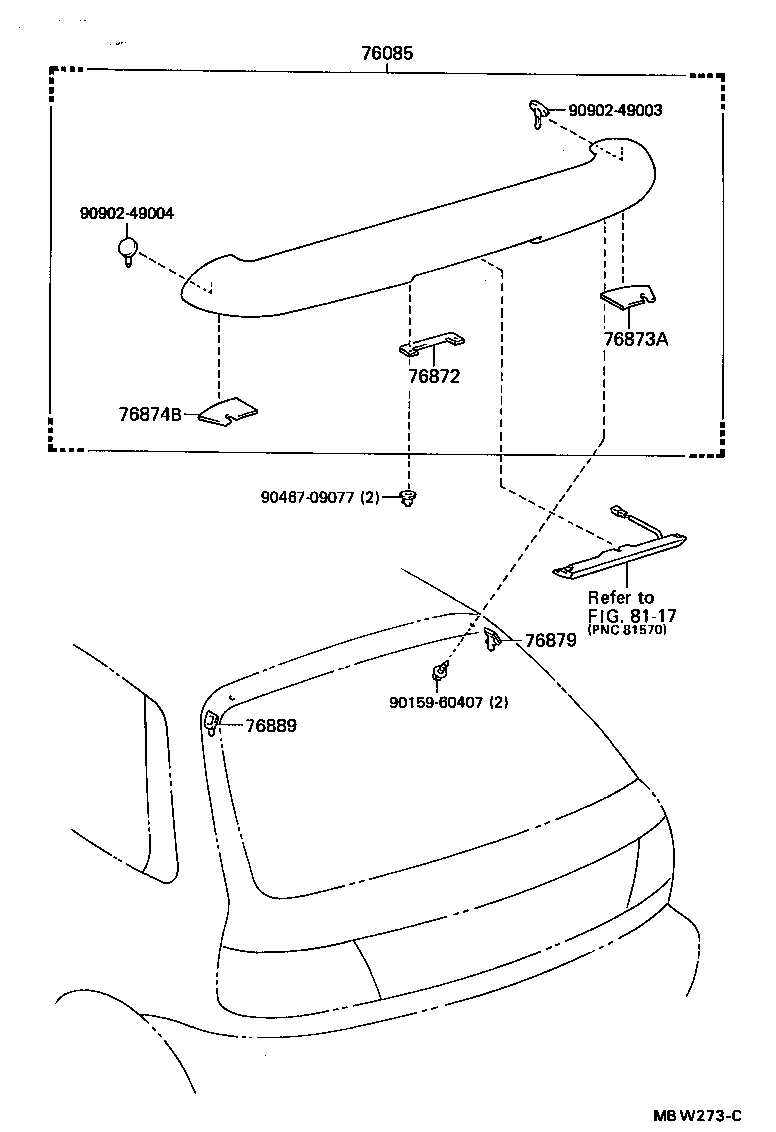

TYPE B

Part #	Description	Period	Qty
76085 - SPOILER SUB-ASSY, REAR
76085-10140A0	EP81..5D;EP81..3D..XL;EP80,82..S,XL SUPER WHITE 2,040	01/1992 - 05/1994	1
76085-10140B0	EP81..5D;EP81..3D..XL;EP80,82..S,XL BLUISH GRAY M,182	01/1992 - 05/1994	1
76085-10140D0	EP81..5D;EP81..3D..XL;EP80,82..S,XL SUPER RED 2,3E5	01/1992 - 05/1994	1
76085-10140C0	EP81..5D;EP81..3D..XL;EP80,82..S,XL BLACK M,205	01/1992 - 05/1994	1
76085-10140J0	EP81..5D;EP81..3D..XL;EP80,82..S,XL DARK BLUE M M,8G5	01/1992 - 05/1994	1
76085-10140D2	EP80,81..S,XL RED MICA,3K4	05/1994 - 01/1996	1
76085-10140C0	EP8#..S,XL BLACK M,205	05/1994 - 01/1996	1
76085-10140G0	EP81..5D;EP81..3D..XL;EP80,82..S,XL GREEN M,6M6	01/1992 - 05/1994	1
76085-10140J1	EP8#..S,XL DARK BLUE M.M,8K0	05/1994 - 01/1996	1
76085-10140H0	EP8#..S,XL TURQUOISE M.M,746	05/1994 - 01/1996	1
76085-10140A0	EP8#..S,XL SUPER WHITE 2,040	05/1994 - 01/1996	1
76085-10140D0	EP80,81..S,XL SUPER RED 2,3E5	05/1994 - 01/1996	1
76085-10140B1	EP8#..S,XL SILVER M,199	05/1994 - 01/1996	1
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-10040	EP8#..S,XL	01/1992 - 12/2999	1
76873A - PROTECTOR, REAR SPOILER, RH
76873-10060	EP8#..S,XL	01/1992 - 01/1996	1
76874B - PROTECTOR, REAR SPOILER, LH
76874-10050	EP8#..S,XL	01/1992 - 01/1996	1
76879 - CLIP, REAR SPOILER, NO.1
76879-10020	EP8#..S,XL	01/1992 - 12/2999	1
76889 - CLIP, REAR SPOILER, NO.2
76889-10020	EP8#..S,XL	01/1992 - 12/2999	1
Common parts
90159-60407
90467-09077
90902-49003
90902-49004
Linked diagrams
8117

EP81L-AHMNS (1989)

(8912- )

(8912- )

(9201- )S,XL
