EP81L-AHMNS (1989)
Toyota Starlet
ILLUST NO. 1 OF 2(8912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 67751-1003003 |
EP8# GRAY,TRIM1# |
1 | ||
| 67751-10030E0 |
EP8#..SOLL,XL OAK,TRIM4# |
1 | ||
| 67751-1003004 |
EP8#..S,XL BLUE,TRIM8# |
1 | ||
| 67751-1003003 |
EP8#..CAN,S,SOL,SOLL,XL GRAY,TRIM1# |
1 | ||
| 67751-1003003 |
EP8# GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90468-05060 | ||||

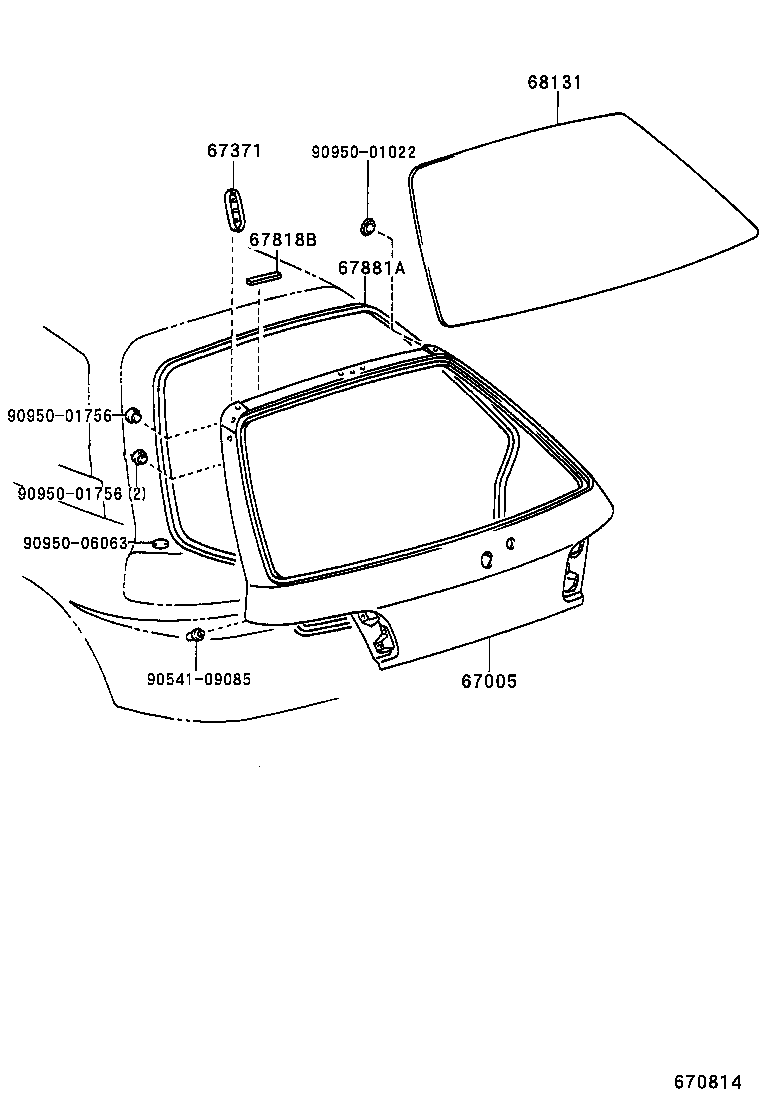

ILLUST NO. 2 OF 2(8912-9405) ; (9405- )EP80,81
TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-1C110 |
EP80;EP81..5D;EP81..3D..XL W(PACKAGE TRAY TRIM) |
1 | ||
| 67005-1C120 |
EP80;EP81..5D;EP81..3D..XL W(PACKAGE TRAY TRIM & *RW) |
1 | ||
| 67005-10870 |
EP80;EP81..5D;EP81..3D..XL |
1 | ||
| 67005-10850 |
EP80;EP81..5D;EP81..3D..XL W(*RW) |
1 | ||
| 67005-1C111 |
EP80,81..STD,XL W(PACKAGE TRAY TRIM) |
1 | ||
| 67005-1C121 |
EP80,81..STD,XL W(PACKAGE TRAY TRIM & *RW) |
1 | ||
| 67005-10851 |
EP80,81..STD,XL W(*RW) |
1 | ||
| 67005-10871 |
EP80,81..STD,XL |
1 | ||
| 67005-1C111 |
EP81..S |
1 | ||
| 67005-1C121 |
EP81..S W(*RW) |
1 | ||
| 67005-1C370 |
EP80,81..XL W(PACKAGE TRAY TRIM & REAR SPOILER) |
1 | ||
| 67005-1C360 |
EP80,81..XL W(LED TYPE STOP LAMP REAR SPOILER) |
1 | ||
| 67005-1C101 |
EP81..5D..S INDONESIA SPEC & W(*RW) |
1 | ||
| 67005-1C270 |
EP81..5D..S INDONESIA SPEC |
1 | ||
| 67005-1C370 |
EP81..S W(LED TYPE STOP LAMP REAR SPOILER) |
1 | ||
| 67005-1C370 |
EP80,81..XL W(LED STOP LAMP REAR SPOILER) |
1 | ||
| 67005-1C121 |
EP80,81 W(*RW) |
1 | ||
| 67005-1C490 |
EP81..S TYPE B & W(*PW) |
1 | ||
| 67005-1C121 |
EP80,81..STD,XL W(*RW) |
1 | ||
| 67005-1C011 |
EP80..3D..STD;EP81..LHD..3FC;EP80,81..5D..MTM..(STD,XL) W(PACKAGE TRAY TRIM & *RW) |
1 | ||
| 67005-1C211 |
EP80..3D..STD;EP81..LHD..3FC;EP80,81..5D..MTM..(STD,XL) W(PACKAGE TRAY TRIM) |
1 | ||
| 67005-1C211 |
EP81..S |
1 | ||
| 67005-1C111 |
EP80,81 |
1 | ||
| 67005-1C370 |
EP81..S;EP81..LHD..3FC;EP80,81..5D..5F..XL W(LED TYPE STOP LAMP REAR SPOILER) |
1 | ||
| 67005-1C011 |
EP80,81..STD,XL W(*RW) |
1 | ||
| 67005-1C111 |
EP80,81..STD,XL W(PACKAGE TRAY) |
1 | ||
| 67005-1C011 |
EP81..S;EP81..RHD..3FC;EP80,81..3D..XL W(HIGH MOUNT STOP LAMP & REAR WIPER) |
1 | ||
| 67005-1C510 |
EP81..S TYPE B & W(*PW) |
1 | ||
| 67005-1C540 |
EP81..S;EP80,81..RHD..5D..MTM..(STD,XL) TYPE B |
1 | ||
| 67371 - DUCT, BACK DOOR VENTILATOR | ||||
| 67371-10010 |
EP8# |
4 | ||
| 67371-10020 |
EP8# W(DUST PROTECTION) |
4 | ||
| 67818B - SPACER, BACK WINDOW GLASS | ||||
| 64818-10030 |
EP8# |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-10070 |
EP8# |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68131-10360 |
EP80,81 *TT,T=3.1,BLUE |
1 | ||
| 68131-10350 |
EP80,81;EP82..SOL *TEM,T=3.1,CLEAR |
1 | ||
| 68131-10370 |
EP80,81;EP82..SOL *EHT,T=3.1,CLEAR,W(REAR WINDOW DEFOGGER) |
1 | ||
| 68131-10380 |
EP80,81 *EHTT,T=3.1,BLUE,W(REAR WINDOW DEFOGGER) |
1 | ||
| 68131-10380 |
EP80,81 *EHTT,T=3.1,BLUE |
1 | ||
| 76835A - PROTECTOR, BACK DOOR FINISH PANEL, NO.1 | ||||
| 76835-10011 |
EP8# |
1 | ||
| 76835-10010 |
EP8# |
1 | ||
| Common parts | ||||
| 90333-20001 | ||||
| 90541-09085 | ||||
| 90950-01022 | ||||
| 90950-01756 | ||||
| 90950-06063 | ||||
ILLUST NO. 2 OF 2(9405- )
TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-1C110 |
EP80;EP81..5D;EP81..3D..XL W(PACKAGE TRAY TRIM) |
1 | ||
| 67005-1C120 |
EP80;EP81..5D;EP81..3D..XL W(PACKAGE TRAY TRIM & *RW) |
1 | ||
| 67005-10870 |
EP80;EP81..5D;EP81..3D..XL |
1 | ||
| 67005-10850 |
EP80;EP81..5D;EP81..3D..XL W(*RW) |
1 | ||
| 67005-1C111 |
EP80,81..STD,XL W(PACKAGE TRAY TRIM) |
1 | ||
| 67005-1C121 |
EP80,81..STD,XL W(PACKAGE TRAY TRIM & *RW) |
1 | ||
| 67005-10851 |
EP80,81..STD,XL W(*RW) |
1 | ||
| 67005-10871 |
EP80,81..STD,XL |
1 | ||
| 67005-1C111 |
EP81..S |
1 | ||
| 67005-1C121 |
EP81..S W(*RW) |
1 | ||
| 67005-1C370 |
EP80,81..XL W(PACKAGE TRAY TRIM & REAR SPOILER) |
1 | ||
| 67005-1C360 |
EP80,81..XL W(LED TYPE STOP LAMP REAR SPOILER) |
1 | ||
| 67005-1C101 |
EP81..5D..S INDONESIA SPEC & W(*RW) |
1 | ||
| 67005-1C270 |
EP81..5D..S INDONESIA SPEC |
1 | ||
| 67005-1C370 |
EP81..S W(LED TYPE STOP LAMP REAR SPOILER) |
1 | ||
| 67005-1C370 |
EP80,81..XL W(LED STOP LAMP REAR SPOILER) |
1 | ||
| 67005-1C121 |
EP80,81 W(*RW) |
1 | ||
| 67005-1C490 |
EP81..S TYPE B & W(*PW) |
1 | ||
| 67005-1C121 |
EP80,81..STD,XL W(*RW) |
1 | ||
| 67005-1C011 |
EP80..3D..STD;EP81..LHD..3FC;EP80,81..5D..MTM..(STD,XL) W(PACKAGE TRAY TRIM & *RW) |
1 | ||
| 67005-1C211 |
EP80..3D..STD;EP81..LHD..3FC;EP80,81..5D..MTM..(STD,XL) W(PACKAGE TRAY TRIM) |
1 | ||
| 67005-1C211 |
EP81..S |
1 | ||
| 67005-1C111 |
EP80,81 |
1 | ||
| 67005-1C370 |
EP81..S;EP81..LHD..3FC;EP80,81..5D..5F..XL W(LED TYPE STOP LAMP REAR SPOILER) |
1 | ||
| 67005-1C011 |
EP80,81..STD,XL W(*RW) |
1 | ||
| 67005-1C111 |
EP80,81..STD,XL W(PACKAGE TRAY) |
1 | ||
| 67005-1C011 |
EP81..S;EP81..RHD..3FC;EP80,81..3D..XL W(HIGH MOUNT STOP LAMP & REAR WIPER) |
1 | ||
| 67005-1C510 |
EP81..S TYPE B & W(*PW) |
1 | ||
| 67005-1C540 |
EP81..S;EP80,81..RHD..5D..MTM..(STD,XL) TYPE B |
1 | ||
| 67371 - DUCT, BACK DOOR VENTILATOR | ||||
| 67371-10010 |
EP8# |
4 | ||
| 67371-10020 |
EP8# W(DUST PROTECTION) |
4 | ||
| 67818B - SPACER, BACK WINDOW GLASS | ||||
| 64818-10030 |
EP8# |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-10070 |
EP8# |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68131-10360 |
EP80,81 *TT,T=3.1,BLUE |
1 | ||
| 68131-10350 |
EP80,81;EP82..SOL *TEM,T=3.1,CLEAR |
1 | ||
| 68131-10370 |
EP80,81;EP82..SOL *EHT,T=3.1,CLEAR,W(REAR WINDOW DEFOGGER) |
1 | ||
| 68131-10380 |
EP80,81 *EHTT,T=3.1,BLUE,W(REAR WINDOW DEFOGGER) |
1 | ||
| 68131-10380 |
EP80,81 *EHTT,T=3.1,BLUE |
1 | ||
| Common parts | ||||
| 90541-09085 | ||||
| 90950-01022 | ||||
| 90950-01756 | ||||
| 90950-06063 | ||||
