EP81L-AHHNS (1989)
Toyota Starlet
Production
Dec 1989
-
Jan 1996
Engine
2E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8912- )

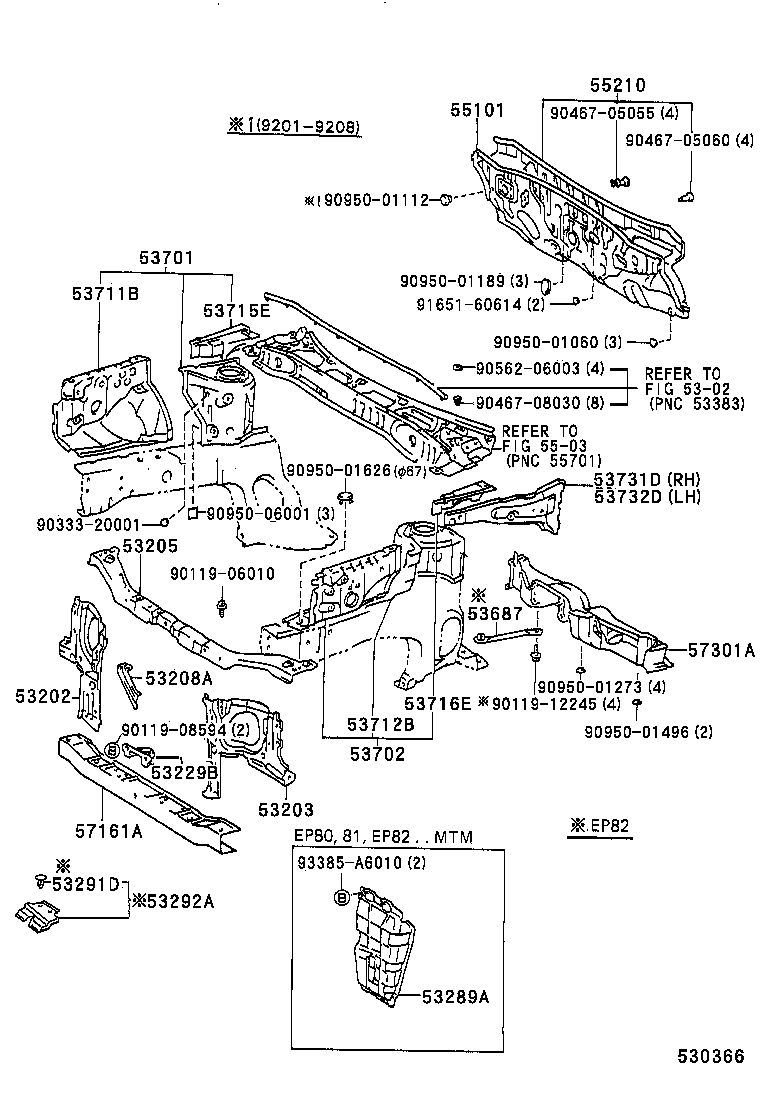

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-10140 |
EP8# |
1 | ||
| 53202-10140 |
EP8# *GIS |
1 | ||
| 53202-10130 |
EP8# |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-10210 |
EP8# *GIS |
1 | ||
| 53203-10210 |
EP8# |
1 | ||
| 53203-10200 |
EP8# |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-10900 |
EP8# W(AIR CONDITIONER) |
1 | ||
| 53205-10901 |
EP80,81 |
1 | ||
| 53216-10905 |
EP80,81 |
1 | ||
| 53216-10904 |
EP8# W(AIR CONDITIONER) |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53208-10090 |
EP8# |
1 | ||
| 53229B - BRACKET, RADIATOR MOUNTING, LOWER NO.2 | ||||
| 53229-10050 |
EP8#..RHD;EP81..LHD..3FC |
1 | ||
| 53229-10050 |
EP8#..LHD HEAT COUNTRY SPEC |
1 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-10050 |
EP80,81 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-10361 |
EP8# |
1 | ||
| 53701-10360 |
EP8# |
1 | ||
| 53701-10340 |
EP8# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-10390 |
EP8# |
1 | ||
| 53702-10361 |
EP8# |
1 | ||
| 53702-10360 |
EP8# |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-10150 |
EP8# |
1 | ||
| 53711-10151 |
EP8# |
1 | ||
| 53711-10140 |
EP8# |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-16060 |
EP8# |
1 | ||
| 53712-16071 |
EP8# |
1 | ||
| 53712-16070 |
EP8# |
1 | ||
| 53715E - EXTENSION, FRONT FENDER APRON, REAR RH | ||||
| 53715-10050 |
EP8# |
1 | ||
| 53716E - EXTENSION, FRONT FENDER APRON, REAR LH | ||||
| 53716-10050 |
EP8# |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-10050 |
EP8# |
1 | ||
| 53731-10060 |
EP8# |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-10050 |
EP8# |
1 | ||
| 53732-10060 |
EP8# |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-10959 |
EP81..3FC |
1 | ||
| 55101-10951 |
EP81..LHD..3FC |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-10210 |
EP81..LHD..3FC |
1 | ||
| 55210-10200 |
EP80,81..LHD |
1 | ||
| 57161A - MEMBER, FRONT CROSS, FRONT W/REAR | ||||
| 57161-10909 |
EP8#..RHD;EP81..LHD..3FC W(A/C) OR A/C DELETION PART KIT |
1 | ||
| 57161-10909 |
EP8#..LHD HEAT COUNTORY OR W(A/C) OR A/C DELETION PART KIT |
1 | ||
| 57161-10909 |
EP80..STD;EP8#..3D..(S,XL);EP8#..LHD..(S,XL) W(AIR CONDITIONER) |
1 | ||
| 57161-10909 |
EP80,81 W(AIR CONDITIONER) |
1 | ||
| 57301A - MEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT | ||||
| 57301-10060 |
EP8# |
1 | ||
| 57301-10061 |
EP8# |
1 | ||
| Common parts | ||||
| 90119-06010 | ||||
| 90119-08594 | ||||
| 90119-12245 | ||||
| 90333-20001 | ||||
| 90467-05055 | ||||
| 90467-05060 | ||||
| 90467-08030 | ||||
| 90562-06003 | ||||
| 90950-01060 | ||||
| 90950-01112 | ||||
| 90950-01189 | ||||
| 90950-01273 | ||||
| 90950-01496 | ||||
| 90950-01626 | ||||
| 90950-06001 | ||||
| 91651-60614 | ||||
| 93385-A6010 | ||||
| Linked diagrams | ||||
| 5302 | ||||
| 5503 | ||||
