EP80R-AHMSS (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 1E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )S,XL

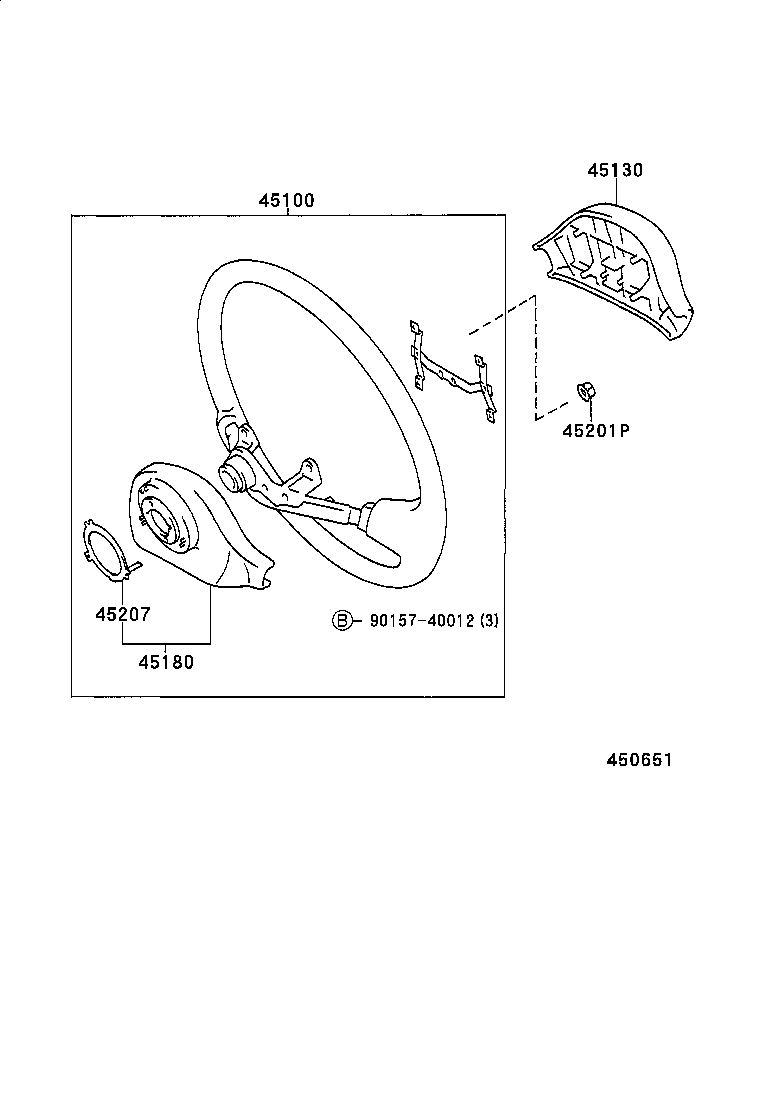

Click highlighted areas on diagram

2-SPOKE,URETHANE

diagram 45100 45130 45180 45201P 45207 9015740012
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-1033004

EP8#..S

3-SPOKE,BLUE,TRIM8#

 1
45100-1033003

EP8#..S

3-SPOKE,GRAY,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-1018003

EP8#..S

GRAY,TRIM1#

 1
45130-1018004

EP8#..S

BLUE,TRIM8#

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-1003004

EP8#..S

BLUE,TRIM8#

 1
45180-1003003

EP8#..S

GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

EP8#

 1
Common parts
90157-40012

(8912-9201)S

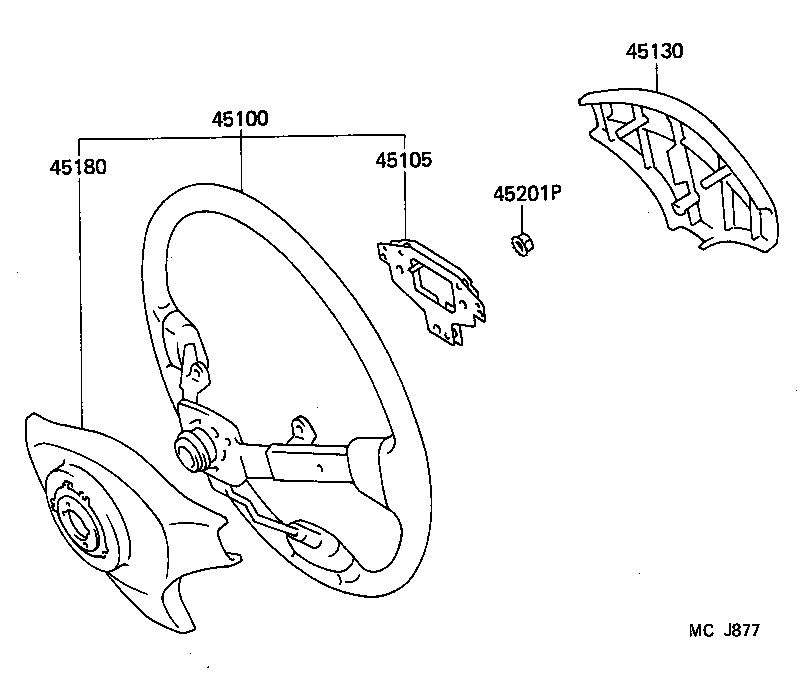

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45105 45130 45180 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-1033004

EP8#..S

3-SPOKE,BLUE,TRIM8#

 1
45100-1033003

EP8#..S

3-SPOKE,GRAY,TRIM1#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-10040

EP8#..S

 1
45130 - BUTTON ASSY, HORN
45130-1018003

EP8#..S

GRAY,TRIM1#

 1
45130-1018004

EP8#..S

BLUE,TRIM8#

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-1003004

EP8#..S

BLUE,TRIM8#

 1
45180-1003003

EP8#..S

GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

EP8#

 1
