EP80R-AHMNS (1989)
Toyota Starlet
Production
Dec 1989
-
Jan 1996
Engine
1E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8912- )

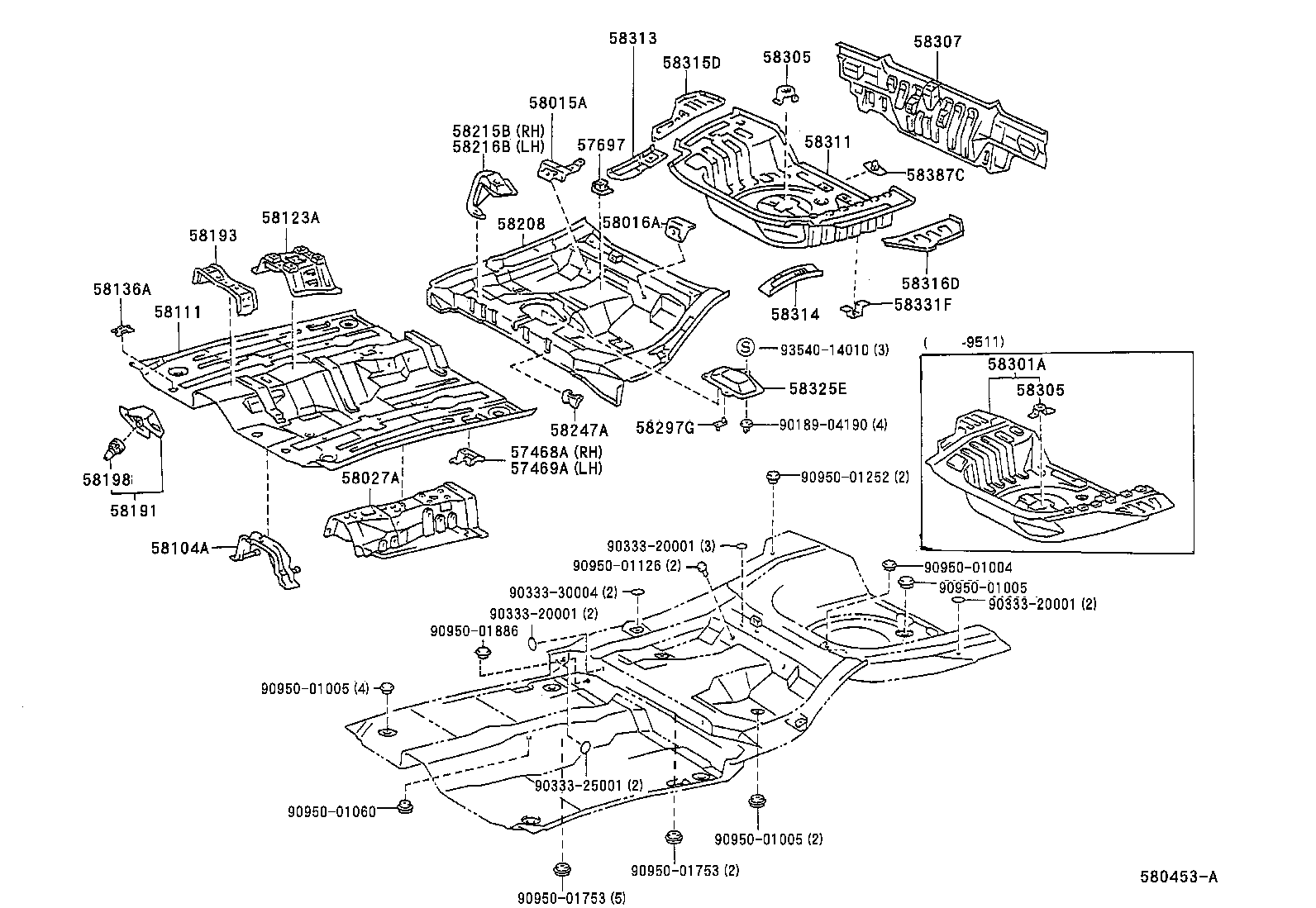

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH | ||||
| 57468-10030 |
EP8# |
1 | ||
| 57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH | ||||
| 57469-10030 |
EP8# |
1 | ||
| 58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH | ||||
| 58015-10020 |
EP8# |
1 | ||
| 58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH | ||||
| 58016-10020 |
EP8# |
1 | ||
| 58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR | ||||
| 58027-10060 |
EP8# |
1 | ||
| 58027-10080 |
EP8# |
1 | ||
| 58027-10081 |
EP8# |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-10120 |
EP8# |
1 | ||
| 58111-10121 |
EP8# |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-10050 |
EP8# |
1 | ||
| 58123-10040 |
EP8# |
1 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-12020 |
EP8# |
2 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-10030 |
EP8# |
1 | ||
| 58193-10030 |
EP82;EP80,81..5D;EP80,81..3D..(S,STD) |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-10141 |
EP8# |
1 | ||
| 58211-10142 |
EP8# |
1 | ||
| 58211-10140 |
EP8# |
1 | ||
| 58215B - BRACKET, REAR SEAT MOUNTING, RH | ||||
| 58215-10040 |
EP8# |
1 | ||
| 58216B - BRACKET, REAR SEAT MOUNTING, LH | ||||
| 58216-10040 |
EP8# |
1 | ||
| 58297G - RETAINER, FLOOR CLAMP | ||||
| 58297-10010 |
EP8# |
2 | ||
| 58301A - PANEL SUB-ASSY, REAR FLOOR | ||||
| 58301-10220 |
EP8# |
1 | ||
| 58301-10221 |
EP8# |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
EP8# |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
EP8# |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-10270 |
EP80,81..RHD..5D INDONESIA SPEC |
1 | ||
| 58307-10280 |
EP80,81 |
1 | ||
| 58307-10270 |
EP80,81..RHD..5D INDONESIA SPEC OR W(FRONT BUMPER TYPE B) |
1 | ||
| 58307-10270 |
EP8#..RHD..5D..(S,XL) INDONESIA SPEC |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-10192 |
EP8# |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-16030 |
EP8# |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-16090 |
EP8# |
1 | ||
| 58315D - EXTENSION, REAR FLOOR PAN, RH | ||||
| 58315-10010 |
EP8# |
1 | ||
| 58315-10010 |
EP8# |
1 | ||
| 58316D - EXTENSION, REAR FLOOR PAN, LH | ||||
| 58316-10010 |
EP8# |
1 | ||
| 58316-10010 |
EP8# |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-10020 |
EP8# |
1 | ||
| 58331F - BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 | ||||
| 58331-10010 |
EP8# |
1 | ||
| 58331-10011 |
EP8# |
1 | ||
| 58387C - PLATE, REAR FLOOR FINISH | ||||
| 58387-10010 |
EP8# |
1 | ||
| 58387-10010 |
EP8# |
1 | ||
| Common parts | ||||
| 90189-04190 | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90333-30004 | ||||
| 90950-01004 | ||||
| 90950-01005 | ||||
| 90950-01060 | ||||
| 90950-01126 | ||||
| 90950-01252 | ||||
| 90950-01753 | ||||
| 90950-01886 | ||||
| 93540-14010 | ||||
