EP80R-AHMNS (1989)

Toyota Starlet

Production Dec 1989 - Jan 1996
Engine 1E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

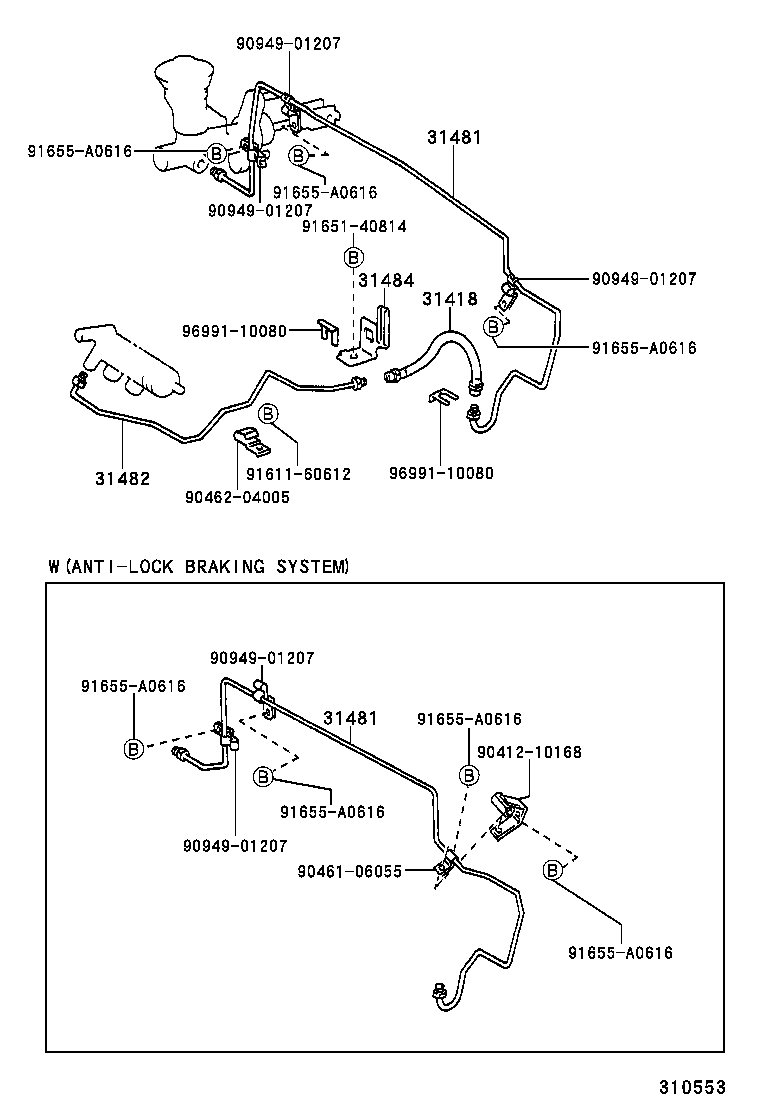

ILLUST NO. 2 OF 2(8912- )RHD..MTM

Click highlighted areas on diagram

diagram 31418 31481 31481 31482 31484 9041210168 9046106055 9046204005 9094901207 9094901207 9094901207 9094901207 9094901207 9161160612 9165140814 91655A0616 91655A0616 91655A0616 91655A0616 91655A0616 91655A0616 91655A0616 9699110080 9699110080
Part # Description Qty Price
31418 - HOSE, CLUTCH
90931-01073

EP8#..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-10060

EP8#..RHD..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-10060

EP8#..RHD..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-10020

EP8#..MTM

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-10030

EP8#..MTM

 1
Common parts
90412-10168
90461-06055
90462-04005
90949-01207
91611-60612
91651-40814
91655-A0616
96991-10080

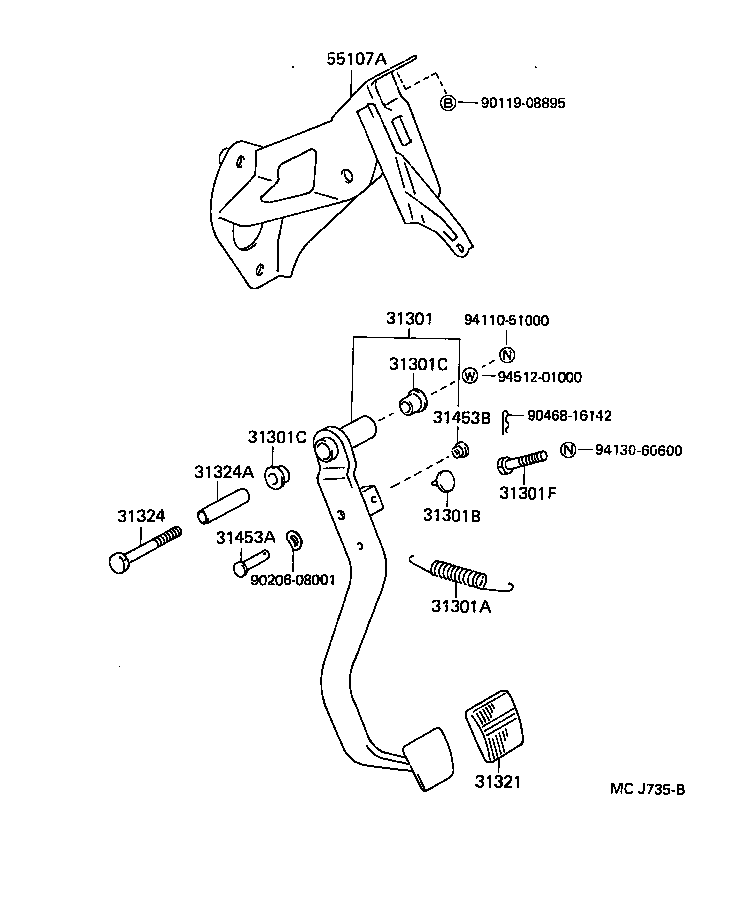

ILLUST NO. 1 OF 2(8912- )MTM

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 55107A 9011908895 9020608001 9046816142 9411051000 9413060600 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-10180

EP8#..RHD..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14003

EP8#..MTM

 1
90507-14035

EP8#..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

EP8#..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

EP8#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

EP8#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-06400

EP8#..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

EP8#..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10015

EP8#..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

EP8#..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

EP8#..MTM

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

EP8#..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-10020

EP8#..RHD..MTM

 1
Common parts
90119-08895
90206-08001
90468-16142
94110-51000
94130-60600
94512-01000
