EP80R-AHMNS (1989)

Toyota Starlet

Production Dec 1989 - Jan 1996
Engine 1E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

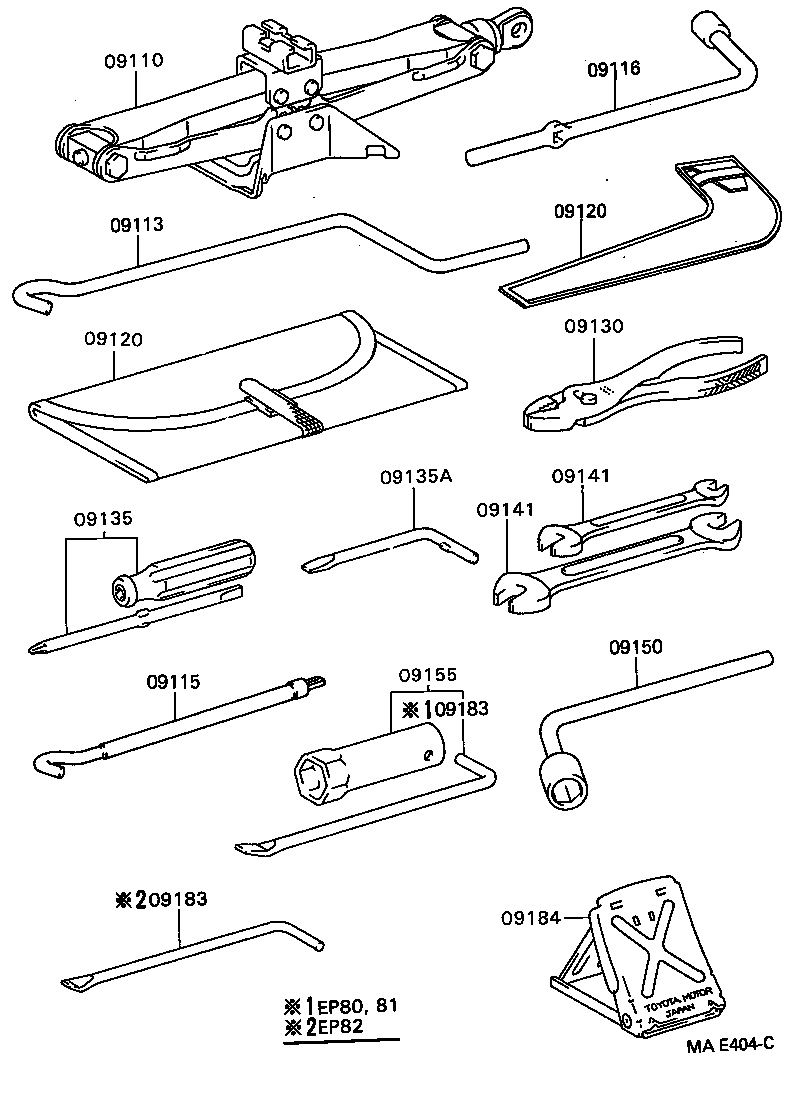

Click highlighted areas on diagram

diagram 09110 09113 09115 09116 09120 09120 09130 09135 09135A 09141 09141 09150 09155 09183 09183 09184
Part # Description Qty Price
09110 - JACK ASSY
09111-10050

EP8#

 1
09115 - ROD SUB-ASSY, JACK HANDLE
09115-16030

EP8#

 1
09116 - LEVER, JACK HANDLE
09116-16010

EP8#

 1
09120 - BAG, TOOL
09120-12011

EP8#

 1
09120-16030

EP8#

 1
09120-16030

EP80,81

 1
09120 - BAG, TOOL
09120-12011

EP8#

 1
09120-16030

EP8#

 1
09120-16030

EP80,81

 1
09130 - PLIERS
99913-11500

EP8#

 1
09135 - DRIVER, SCREW
99915-10700

EP8#

 1
09135A - BIT, SCREW DRIVER
09135-00012

EP8#..CAN,S,XL

 1
09141 - SPANNER
99914-11214

EP8#

12 X 14

 1
99914-10810

EP8#

8 X 10

 1
09141 - SPANNER
99914-11214

EP8#

12 X 14

 1
99914-10810

EP8#

8 X 10

 1
09155 - WRENCH, SPARK PLUG
09155-41010

EP8#

 1
09155-41020

EP80,81

 1
09183 - WRENCH, WHEEL CAP
09183-00010

EP8#

 1
09183 - WRENCH, WHEEL CAP
09183-00010

EP8#

 1
09184 - STOPPER, WHEEL
09184-00010

EP8#

 1
