EP80R-AHKRS (1989)
Toyota Starlet

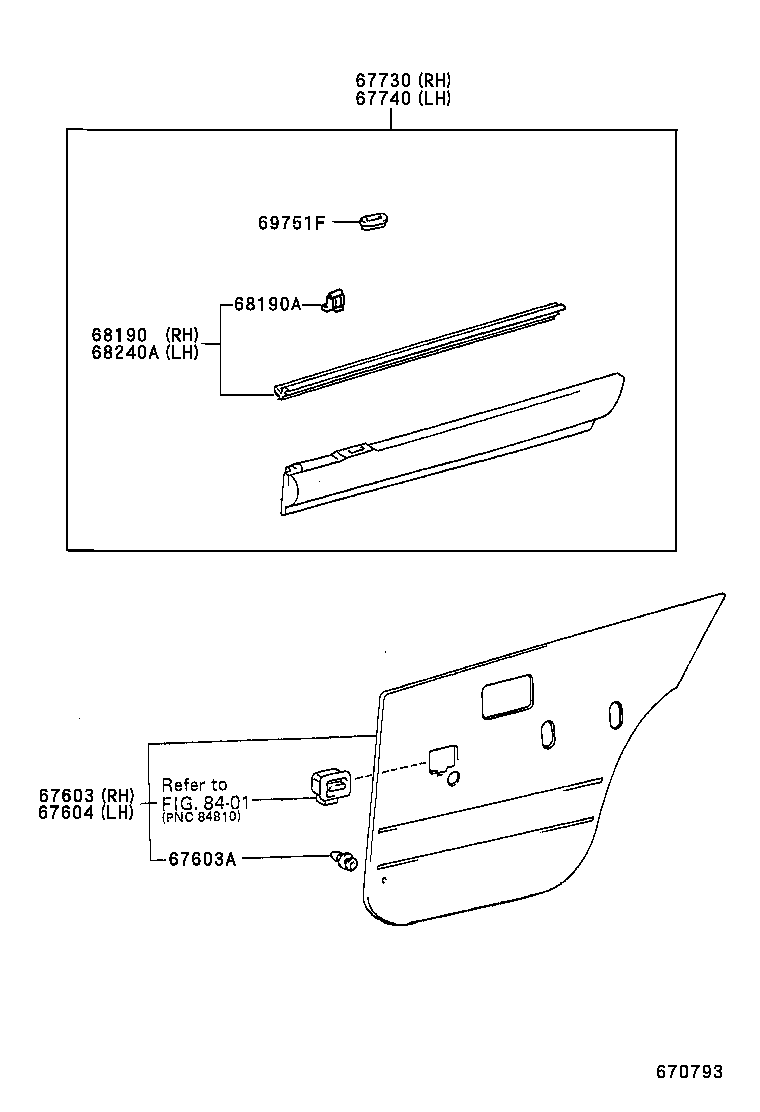

ILLUST NO. 1 OF 3(8912- )5D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-1062003 |
EP80..5D..STD;EP8#..LHD..XL GRAY,TRIM1# |
1 | ||
| 67630-1083003 |
EP8#..5D..S GRAY,TRIM1# |
1 | ||
| 67630-1C11003 |
EP8#..RHD..5D..S W(FABRIC DOOR TRIM),GRAY,TRIM1# |
1 | ||
| 67630-1083004 |
EP8#..5D..S BLUE,TRIM8# |
1 | ||
| 67630-1083004 |
EP8#..RHD..5D..S W(POWER DOOR LOCK & POWER WINDOW),BLUE,TRIM8# |
1 | ||
| 67630-1062003 |
EP8#..5D..(SOL,STD,XL) GRAY,TRIM1# |
1 | ||
| 67630-1083003 |
EP8#..RHD..5D..S W(POWER DOOR LOCK & POWER WINDOW),GRAY,TRIM1# |
1 | ||
| 67630-1C010B0 |
EP80,81..RHD..5D..(S,XL) W(FULL TRIM BOARD & FABRIC SEAT, TYPE B & POWER WINDOW),GRAY,TRIM1# |
1 | ||
| 67630-1C11004 |
EP8#..RHD..5D..S W(FABRIC DOOR TRIM),BLUE,TRIM8# |
1 | ||
| 67630-1C080B0 |
EP80,81..5D..(S,XL) W(FULL TRIM BOARD & FABRIC SEAT, TYPE B),GRAY,TRIM1# |
1 | ||
| 67630-1062003 |
EP80,82..5D..(SOL,STD) GRAY,TRIM1# |
1 | ||
| 67630-1C310B0 |
EP80,81..5D..(S,XL) W(FULL TRIM BOARD & FABRIC SEAT, TYPE B),GRAY,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-89111 |
EP8#..5D |
18 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-1062003 |
EP80..5D..STD;EP8#..LHD..XL GRAY,TRIM1# |
1 | ||
| 67640-1083003 |
EP8#..5D..S GRAY,TRIM1# |
1 | ||
| 67640-1083004 |
EP8#..5D..S BLUE,TRIM8# |
1 | ||
| 67640-1083004 |
EP8#..RHD..5D..S W(POWER DOOR LOCK & POWER WINDOW),BLUE,TRIM8# |
1 | ||
| 67640-1062003 |
EP8#..5D..(SOL,STD,XL) GRAY,TRIM1# |
1 | ||
| 67640-1C11004 |
EP8#..RHD..5D..S W(FABRIC DOOR TRIM),BLUE,TRIM8# |
1 | ||
| 67640-1C11003 |
EP8#..RHD..5D..S W(FABRIC DOOR TRIM),GRAY,TRIM1# |
1 | ||
| 67640-1C010B0 |
EP80,81..RHD..5D..(S,XL) W(FULL TRIM BOARD & FABRIC SEAT, TYPE B & POWER WINDOW),GRAY,TRIM1# |
1 | ||
| 67640-1C080B0 |
EP80,81..5D..(S,XL) W(FULL TRIM BOARD & FABRIC SEAT, TYPE B),GRAY,TRIM1# |
1 | ||
| 67640-1083003 |
EP8#..RHD..5D..S W(POWER DOOR LOCK & POWER WINDOW),GRAY,TRIM1# |
1 | ||
| 67640-1062003 |
EP80,82..5D..(SOL,STD) GRAY,TRIM1# |
1 | ||
| 67640-1C310B0 |
EP80,81..5D..(S,XL) W(FULL TRIM BOARD & FABRIC SEAT, TYPE B),GRAY,TRIM1# |
1 | ||
| 67730 - PANEL ASSY, REAR DOOR TRIM, UPPER RH | ||||
| 67730-1001003 |
EP8#..RHD..5D..S GRAY,TRIM1# |
1 | ||
| 67730-1001003 |
EP8#..5D..(S,SOLL,XL) GRAY,TRIM1# |
1 | ||
| 67730-1001004 |
EP8#..RHD..5D..S BLUE,TRIM8# |
1 | ||
| 67740 - PANEL ASSY, REAR DOOR TRIM, UPPER LH | ||||
| 67740-1001003 |
EP8#..RHD..5D..S GRAY,TRIM1# |
1 | ||
| 67740-1001004 |
EP8#..RHD..5D..S BLUE,TRIM8# |
1 | ||
| 67740-1001003 |
EP8#..5D..(S,SOLL,XL) GRAY,TRIM1# |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-10060 |
EP8#..5D..(SOL,STD,XL) |
1 | ||
| 68190-10060 |
EP8#..5D |
1 | ||
| 68190A - CLIP(FOR REAR DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68212-10020 |
EP8#..5D LH |
4 | ||
| 68211-10100 |
EP8#..5D RH |
4 | ||
| 68212-10020 |
EP8#..5D..(SOL,STD,XL) LH |
4 | ||
| 68211-10100 |
EP8#..5D..(SOL,STD,XL) LH |
4 | ||
| 68211-10100 |
EP8#..5D..(SOL,STD,XL) RH |
4 | ||
| 68240A - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH | ||||
| 68240-10040 |
EP8#..5D |
1 | ||
| 68240-10040 |
EP8#..5D..(SOL,STD,XL) |
1 | ||
| 69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB | ||||
| 69751-1001004 |
EP80..RHD..S BLUE,TRIM8# |
2 | ||
| 69751-1001003 |
EP80..RHD..S GRAY,TRIM1# |
2 | ||
| 69751-1001003 |
EP8#..5D..(S,SOLL,XL) GRAY,TRIM1# |
2 | ||
ILLUST NO. 3 OF 3(9201- )S,XL
| Part # | Description | Qty | Price |
|---|

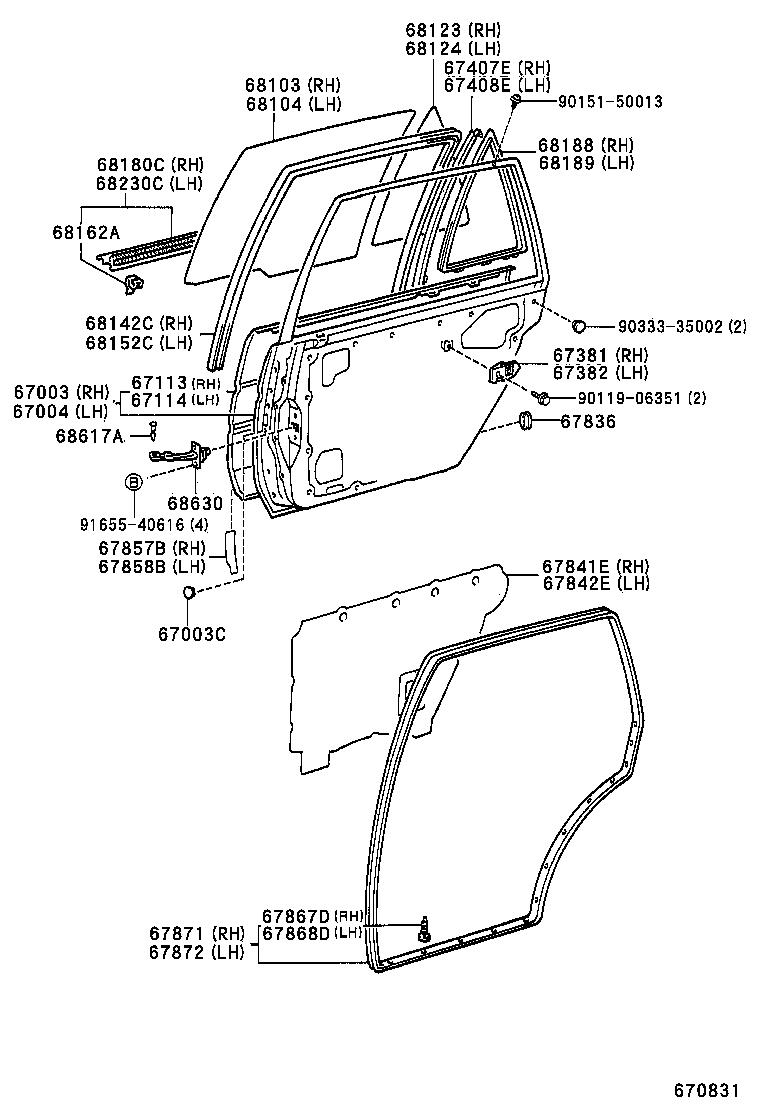

ILLUST NO. 2 OF 3(8912- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-10110 |
EP80..S;EP81..LHD..S W(*PW) OR W(POWER DOOR LOCK) |
1 | ||
| 67003-10100 |
EP8#..5D |
1 | ||
| 67003-10101 |
EP8#..5D |
1 | ||
| 67003-10112 |
EP80,81..5D..(S,XL) W(*PW) OR W(POWER DOOR LOCK) |
1 | ||
| 67003-10111 |
EP80..S;EP81..LHD..S W(*PW) OR W(POWER DOOR LOCK) |
1 | ||
| 67003-10102 |
EP8#..5D |
1 | ||
| 67003-10112 |
EP8#..5D..(SOL,SOLL,STD,XL) |
1 | ||
| 67003-10102 |
EP80,81..5D..(STD,XL) W(SIDE PROTECTION MOULDING) |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09064 |
EP8#..5D |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-10110 |
EP8#..5D..(STD,XL) |
1 | ||
| 67004-10111 |
EP8#..5D..S |
1 | ||
| 67004-10111 |
EP8#..5D |
1 | ||
| 67004-10112 |
EP8#..5D |
1 | ||
| 67004-10111 |
EP80..RHD..5D..STD W(SIDE PROTECTION MOULDING) OR INDONESIA SPEC |
1 | ||
| 67004-10122 |
EP80,81..5D..(S,XL) W(*PW) OR W(POWER DOOR LOCK) |
1 | ||
| 67004-10121 |
EP80..S;EP81..LHD..S W(*PW) OR W(POWER DOOR LOCK) |
1 | ||
| 67004-10112 |
EP80,81..5D..(STD,XL) W(SIDE PROTECTION MOULDING) |
1 | ||
| 67004-10122 |
EP8#..5D..(SOL,SOLL,STD,XL) |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-10090 |
EP8#..5D |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-10080 |
EP8#..5D |
1 | ||
| 67381 - BRACKET, REAR DOOR INSIDE PANEL, NO.1 RH | ||||
| 67381-10010 |
EP8#..5D |
1 | ||
| 67382 - BRACKET, REAR DOOR INSIDE PANEL, NO.1 LH | ||||
| 67382-10010 |
EP8#..5D |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-10050 |
EP8#..5D |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-10050 |
EP8#..5D |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-12030 |
EP80,81..5D W(DUST PROTECTION) |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-10040 |
EP8#..5D |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67841-10040 |
EP8#..5D |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-10020 |
EP80,81..RHD..5D |
1 | ||
| 67857-10020 |
EP8#..RHD..5D..(S,XL) |
1 | ||
| 67857-10020 |
EP8#..RHD..5D |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-10020 |
EP8#..RHD..5D..(S,XL) |
1 | ||
| 67858-10020 |
EP80,81..RHD..5D |
1 | ||
| 67858-10020 |
EP8#..RHD..5D |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-10010 |
EP8#..5D |
17 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-10010 |
EP8#..5D |
17 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-10080 |
EP8#..5D |
1 | ||
| 67871-10070 |
EP8#..5D |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-10070 |
EP8#..5D |
1 | ||
| 67872-10080 |
EP8#..5D |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-10120 |
EP80,81..5D *TT,T=3.1,BLUE |
1 | ||
| 68113-10110 |
EP8#..5D *TEM,T=3.1,CLEAR |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-10110 |
EP8#..5D *TEM,T=3.1,CLEAR |
1 | ||
| 68114-10120 |
EP80,81..5D *TT,T=3.1,BLUE |
1 | ||
| 68123 - GLASS, REAR DOOR WINDOW, RH | ||||
| 68123-10140 |
EP80,81..5D *TT,T=3.1,BLUE |
1 | ||
| 68123-10130 |
EP8#..5D *TEM,T=3.1,CLEAR |
1 | ||
| 68124 - GLASS, REAR DOOR WINDOW, LH | ||||
| 68124-10140 |
EP80,81..5D *TT,T=3.1,BLUE |
1 | ||
| 68124-10130 |
EP8#..5D *TEM,T=3.1,CLEAR |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-10050 |
EP8#..5D |
1 | ||
| 68142-10060 |
EP8#..5D |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-10020 |
EP8#..5D |
1 | ||
| 68152-10010 |
EP8#..5D |
1 | ||
| 68162A - CLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68212-10010 |
EP8#..5D RH |
6 | ||
| 68211-10090 |
EP8#..5D RH |
6 | ||
| 68212-10010 |
EP8#..5D LH |
6 | ||
| 68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH | ||||
| 68180-10080 |
EP8#..5D |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-10040 |
EP8#..5D |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-10040 |
EP8#..5D |
1 | ||
| 68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH | ||||
| 68230-10040 |
EP8#..5D |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-12030 |
EP8#..5D |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-10040 |
EP8#..5D RH |
1 | ||
| 68630-10040 |
EP8#..5D |
2 | ||
| 68630-10030 |
EP8#..5D |
2 | ||
| 68640-10010 |
EP8#..5D LH |
1 | ||
| Common parts | ||||
| 90119-06351 | ||||
| 90151-50013 | ||||
| 90333-35002 | ||||
| 91655-40616 | ||||
