EP80R-AHKRS (1989)

Toyota Starlet

Production Dec 1989 - Jan 1996
Engine 1E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )EP80,81..RHD

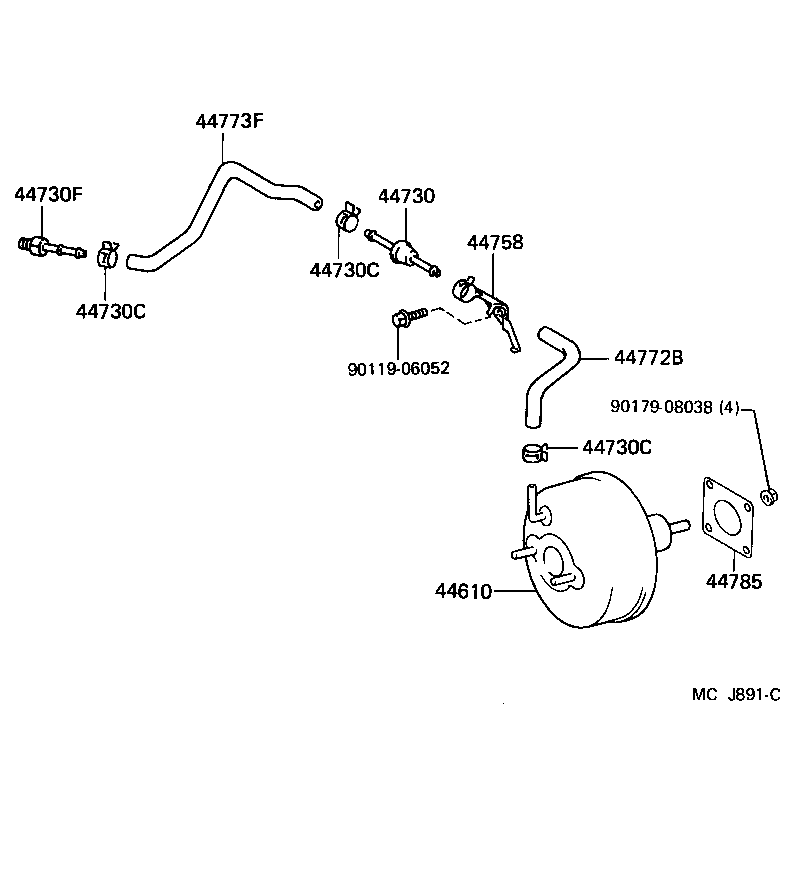

Click highlighted areas on diagram

diagram 44610 44730 44730C 44730C 44730C 44730F 44758 44772B 44773F 44785 9011906052 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-10150

EP80,81..RHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

EP8#

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

EP80..RHD

SINGAPORE SPEC

 3
90467-16002

EP8#

 3
90467-16002

EP80,81..RHD

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

EP80..RHD

SINGAPORE SPEC

 3
90467-16002

EP8#

 3
90467-16002

EP80,81..RHD

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

EP80..RHD

SINGAPORE SPEC

 3
90467-16002

EP8#

 3
90467-16002

EP80,81..RHD

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51034

EP80,81

 1
90404-51319

EP8#

 1
90404-51319

EP80..RHD

SINGAPORE SPEC

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-10100

EP80,81..RHD

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-10150

EP80,81..RHD

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-10220

EP8#..RHD

 1
44773-10270

EP80,81..RHD

 1
44773-10220

EP80..RHD

SINGAPORE SPEC

 1
44785 - GASKET, BRAKE BOOSTER
44785-10020

EP8#

 1
Common parts
90119-06052
90179-08038
