EP80R-AHKNS (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 1E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

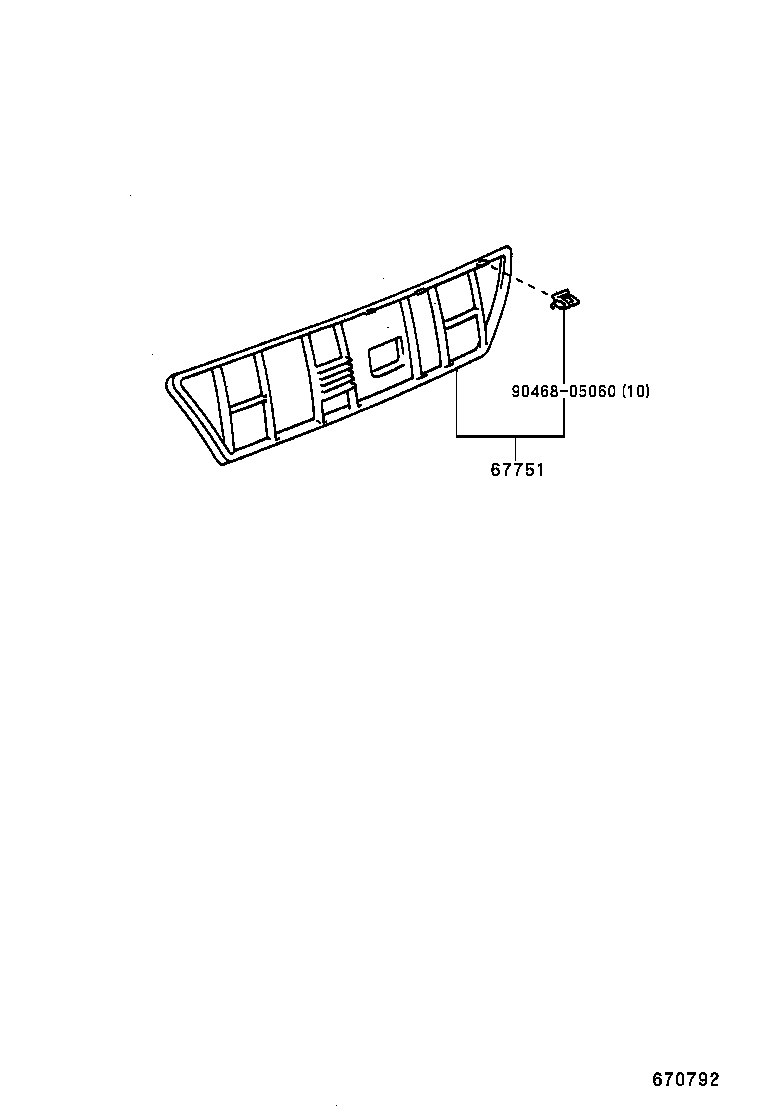

ILLUST NO. 1 OF 2(8912- )

Click highlighted areas on diagram

diagram 67751 9046805060
Part # Description Qty Price
67751 - BOARD, BACK DOOR TRIM
67751-1003003

EP8#

GRAY,TRIM1#

 1
67751-1003004

EP8#..S,XL

BLUE,TRIM8#

 1
Common parts
90468-05060

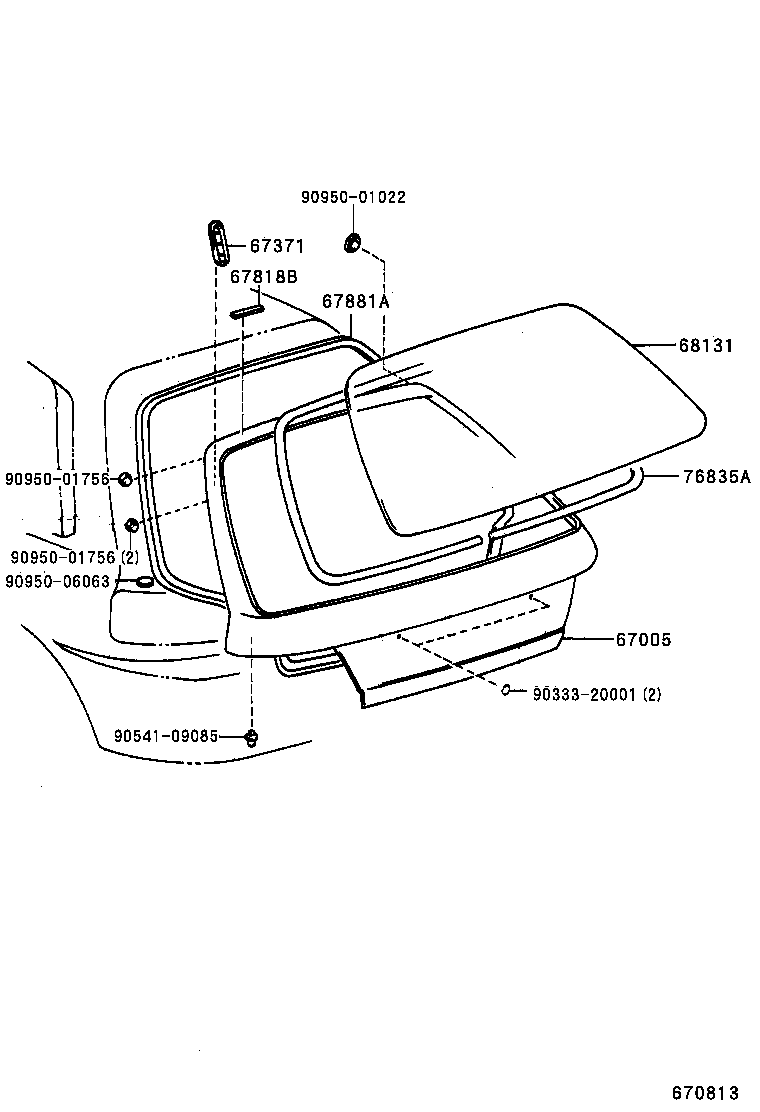

ILLUST NO. 2 OF 2(8912-9405) ; (9405- )EP80,81

Click highlighted areas on diagram

TYPE A

diagram 67005 67371 67818B 67881A 68131 76835A 9033320001 9054109085 9095001022 9095001756 9095001756 9095006063
Part # Description Qty Price
67005 - PANEL SUB-ASSY, BACK DOOR
67005-1C110

EP80;EP81..5D;EP81..3D..XL

W(PACKAGE TRAY TRIM)

 1
67005-1C280

EP8#..RHD..5D..(S,XL)

INDONESIA SPEC & W(*RW)

 1
67005-1C100

EP8#..RHD..5D..(S,XL)

INDONESIA SPEC & W(PACKAGE TRAY TRIM & *RW)

 1
67005-1C120

EP80;EP81..5D;EP81..3D..XL

W(PACKAGE TRAY TRIM & *RW)

 1
67005-10870

EP80;EP81..5D;EP81..3D..XL

 1
67005-10850

EP80;EP81..5D;EP81..3D..XL

W(*RW)

 1
67005-1C270

EP8#..RHD..5D..(S,XL)

INDONESIA SPEC & W(PACKAGE TRAY TRIM)

 1
67005-1C260

EP8#..RHD..5D..(S,XL)

INDONESIA SPEC

 1
67371 - DUCT, BACK DOOR VENTILATOR
67371-10010

EP8#

 4
67371-10020

EP8#

W(DUST PROTECTION)

 4
67818B - SPACER, BACK WINDOW GLASS
64818-10030

EP8#

 2
67881A - WEATHERSTRIP, BACK DOOR
67881-10070

EP8#

 1
68131 - GLASS, BACK DOOR
68131-10360

EP80,81

*TT,T=3.1,BLUE

 1
68131-10350

EP80,81;EP82..SOL

*TEM,T=3.1,CLEAR

 1
68131-10370

EP80,81;EP82..SOL

*EHT,T=3.1,CLEAR,W(REAR WINDOW DEFOGGER)

 1
68131-10380

EP80,81

*EHTT,T=3.1,BLUE,W(REAR WINDOW DEFOGGER)

 1
76835A - PROTECTOR, BACK DOOR FINISH PANEL, NO.1
76835-10010

EP8#

 1
Common parts
90333-20001
90541-09085
90950-01022
90950-01756
90950-06063
