EP80R-AGKNS (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 1E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )1E,2E

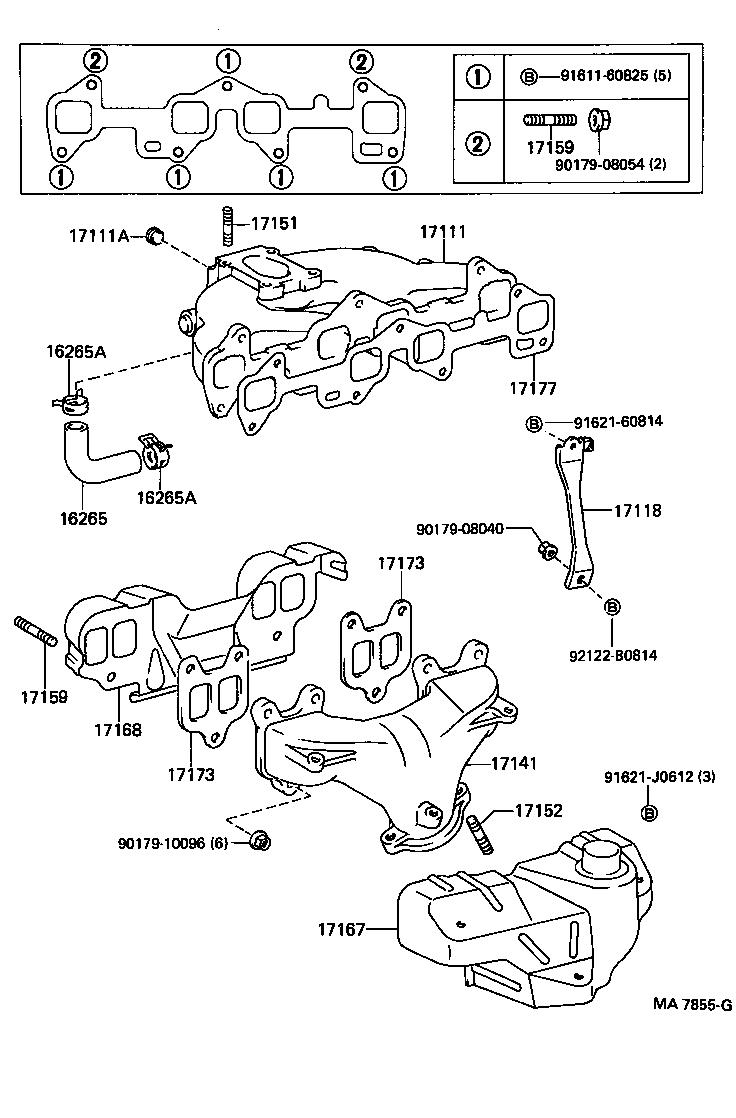

Click highlighted areas on diagram

diagram 16265 16265A 16265A 17111 17111A 17118 17141 17151 17152 17159 17159 17167 17168 17173 17173 17177 9017908040 9017908054 9017910096 9161160825 9162160814 91621J0612 92122B0814
Part # Description Qty Price
16265 - HOSE, INTAKE MANIFOLD WATER
16265-11010

1E,2E..EP80,81

 1
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-21001

1E,2E..EP80,81

 2
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-21001

1E,2E..EP80,81

 2
17111 - MANIFOLD, INTAKE
17101-10060

1E,2E..EP8#

 1
17111A - PLUG, NO.1
90344-53015

1E,2E..EP80,81

 1
17141 - MANIFOLD, EXHAUST
17141-10010

1E..EP80

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
92122-40828

1E,2E..EP80,81

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017

1E,4EFE..EP80,82

NO.2

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92132-60825

1E,2E..EP80,81

INTAKE MANIFOLD

 2
92122-61028

1E,2E..EP80,81

EXHAUST MANIFOLD

 6
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92132-60825

1E,2E..EP80,81

INTAKE MANIFOLD

 2
92122-61028

1E,2E..EP80,81

EXHAUST MANIFOLD

 6
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-10020

1E..EP80

 1
17107-10010

1E..EP80

W(HOT AIR INTAKE)

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-10011

1E,2E..EP80,81

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-10021

1E,2E..EP80,81

 2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-10021

1E,2E..EP80,81

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-10020

1E,2E..EP80,81

 1
17177-10011

1E,2E..EP8#

 1
Common parts
90179-08040
90179-08054
90179-10096
91611-60825
91621-60814
91621-J0612
92122-B0814
