EP80L-AHMSS (1989)

Toyota Starlet

Production Dec 1989 - Jan 1992
Engine 1E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

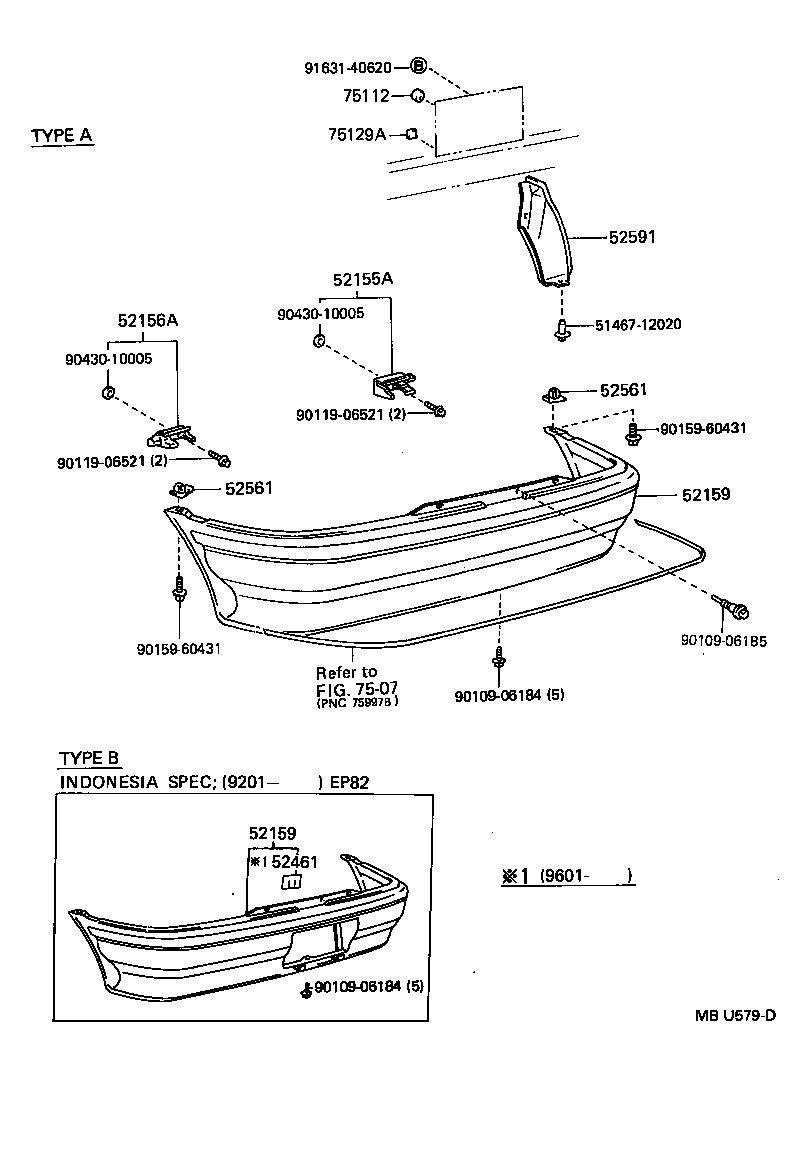

Click highlighted areas on diagram

diagram 5146712020 52155A 52156A 52159 52159 52461 52561 52561 52591 7507 75112 75129A 9010906184 9010906184 9010906185 9011906521 9011906521 9015960431 9015960431 9043010005 9043010005 9163140620
Part # Description Qty Price
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-10040

EP8#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-10030

EP8#

 1
52159 - COVER, REAR BUMPER
52159-10901

EP81..5D;EP80..S,XL;EP81..3D..XL

FOR COLORED BUMPER & W(MUD GUD GUARD),TYPE A

 1
52159-10900

EP81..5D;EP80..S,XL;EP81..3D..XL

FOR COLORED BUMPER,TYPE A

 1
52159-10180

EP80;EP81..5D;EP81..3D..XL

W(MUD GUARD),TYPE A

 1
52159-10160

EP80;EP81..5D;EP81..3D..XL

TYPE A

 1
52159 - COVER, REAR BUMPER
52159-10901

EP81..5D;EP80..S,XL;EP81..3D..XL

FOR COLORED BUMPER & W(MUD GUD GUARD),TYPE A

 1
52159-10900

EP81..5D;EP80..S,XL;EP81..3D..XL

FOR COLORED BUMPER,TYPE A

 1
52159-10180

EP80;EP81..5D;EP81..3D..XL

W(MUD GUARD),TYPE A

 1
52159-10160

EP80;EP81..5D;EP81..3D..XL

TYPE A

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-10030

EP8#

 2
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52561-10030

EP8#

 2
52591 - SEAL, REAR BUMPER SIDE, RH
52591-10030

EP80,82;EP81..5D;EP81..3D..XL

W(MUD GUARD)

 1
52591-10020

EP80,82;EP81..5D;EP81..3D..XL

 1
75112 - BASE, LICENSE PLATE BRACKET
75112-10020

EP8#

 1
75129A - CUSHION, REAR LICENCE PLATE
75129-10010

EP80,81

 1
Common parts
51467-12020
90109-06184
90109-06185
90119-06521
90159-60431
90430-10005
91631-40620
Linked diagrams
7507
