EP80L-AHMNS (1989)

Toyota Starlet

Production Dec 1989 - Jan 1996
Engine 1E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )

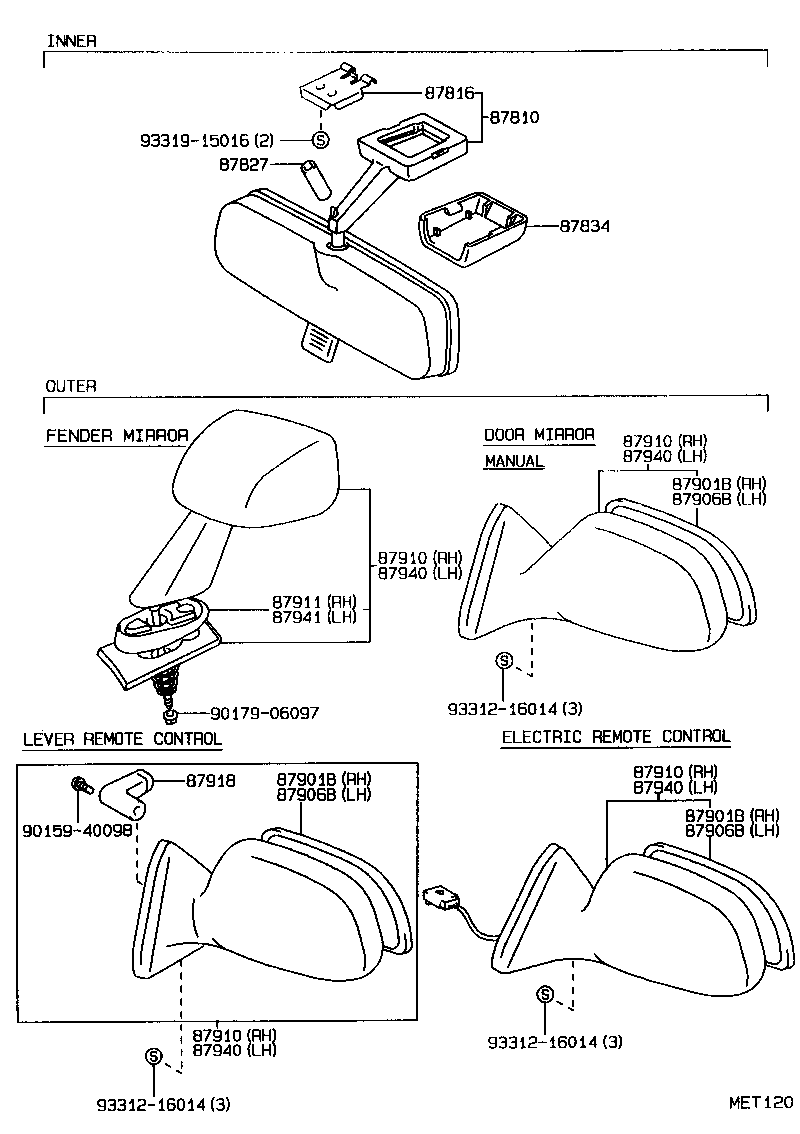

Click highlighted areas on diagram

diagram 87810 87816 87827 87834 87901B 87901B 87901B 87906B 87906B 87906B 87910 87910 87910 87910 87911 87918 87940 87940 87940 87940 87941 9015940098 9017906097 9331216014 9331216014 9331216014 9331915016
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-1023004

EP8#..S,XL

BLUE,TRIM8#,IKI

 1
87810-10210E0

EP80,81..XL

OAK,TRIM4#,MURAKAMI

 1
87810-1021003

EP8#..CAN,S,XL

GRAY,TRIM1#,MURAKAMI

 1
87810-1021004

EP8#..S,XL

BLUE,TRIM8#,MURAKAMI

 1
87810-1023003

EP8#..CAN,S,XL

GRAY,TRIM1#,IKI

 1
87810-10230E0

EP80,81..XL

OAK,TRIM4#,IKI

 1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-32010

EP8#

MIRROR---IKI

 1
74372-30030

EP8#

MIRROR---MURAKAMI

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-90A00

EP8#

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-1001003

EP8#

GRAY,TRIM1#

 1
87834-10010A0

EP8#..SOLL,XL

IVORY,TRIM4#

 1
87834-1001003

EP8#..S,XL

GRAY,TRIM1#,8#

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-10560

EP80..STD;EP8#..LHD..(S,XL)

 1
87931-1A290

EP80,81..LHD..XL

 1
87931-1A290

EP8#..LHD..(S,XL)

LEVER REMOTE CONTROL TYPE

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-10560

EP80..STD;EP8#..LHD..(S,XL)

 1
87931-1A290

EP80,81..LHD..XL

 1
87931-1A290

EP8#..LHD..(S,XL)

LEVER REMOTE CONTROL TYPE

 1
87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH
87931-10560

EP80..STD;EP8#..LHD..(S,XL)

 1
87931-1A290

EP80,81..LHD..XL

 1
87931-1A290

EP8#..LHD..(S,XL)

LEVER REMOTE CONTROL TYPE

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-1A370

EP8#..LHD..(S,XL)

LEVER REMOTE CONTROL TYPE

 1
87961-1A370

EP80,81..LHD..XL

 1
87961-10600

EP80..STD;EP8#..LHD..(S,XL)

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-1A370

EP8#..LHD..(S,XL)

LEVER REMOTE CONTROL TYPE

 1
87961-1A370

EP80,81..LHD..XL

 1
87961-10600

EP80..STD;EP8#..LHD..(S,XL)

 1
87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH
87961-1A370

EP8#..LHD..(S,XL)

LEVER REMOTE CONTROL TYPE

 1
87961-1A370

EP80,81..LHD..XL

 1
87961-10600

EP80..STD;EP8#..LHD..(S,XL)

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-10580

EP8#..LHD..(S,XL)

DOOR MIRROR

 1
87910-10520

EP80,81..LHD..(S,XL)

LEVER REMOTE CONTROL TYPE

 1
87910-10650

EP80,81..LHD..XL

DOOR MIRROR

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-10580

EP8#..LHD..(S,XL)

DOOR MIRROR

 1
87910-10520

EP80,81..LHD..(S,XL)

LEVER REMOTE CONTROL TYPE

 1
87910-10650

EP80,81..LHD..XL

DOOR MIRROR

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-10580

EP8#..LHD..(S,XL)

DOOR MIRROR

 1
87910-10520

EP80,81..LHD..(S,XL)

LEVER REMOTE CONTROL TYPE

 1
87910-10650

EP80,81..LHD..XL

DOOR MIRROR

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-10580

EP8#..LHD..(S,XL)

DOOR MIRROR

 1
87910-10520

EP80,81..LHD..(S,XL)

LEVER REMOTE CONTROL TYPE

 1
87910-10650

EP80,81..LHD..XL

DOOR MIRROR

 1
87918 - KNOB, CONTROL OUTER MIRROR
87918-10010

EP80,81..S,XL

 2
87918-10010

EP81..5D;EP80..S,XL;EP81..3D..XL

 2
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-10580

EP8#..LHD..(S,XL)

DOOR MIRROR

 1
87940-10520

EP80,81..LHD..(S,XL)

LEVER REMOTE CONTROL TYPE

 1
87940-10650

EP80,81..LHD..5D

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-10580

EP8#..LHD..(S,XL)

DOOR MIRROR

 1
87940-10520

EP80,81..LHD..(S,XL)

LEVER REMOTE CONTROL TYPE

 1
87940-10650

EP80,81..LHD..5D

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-10580

EP8#..LHD..(S,XL)

DOOR MIRROR

 1
87940-10520

EP80,81..LHD..(S,XL)

LEVER REMOTE CONTROL TYPE

 1
87940-10650

EP80,81..LHD..5D

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-10580

EP8#..LHD..(S,XL)

DOOR MIRROR

 1
87940-10520

EP80,81..LHD..(S,XL)

LEVER REMOTE CONTROL TYPE

 1
87940-10650

EP80,81..LHD..5D

 1
Common parts
90159-40098
90179-06097
93312-16014
93319-15016
