Toyota Starlet EP80 WIRING & CLAMP

EP80L-AHMNS (1989)

Toyota Starlet

Production Dec 1989 - Jan 1996

Engine 1E

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 6 OF 6(8912- )

Click highlighted areas on diagram

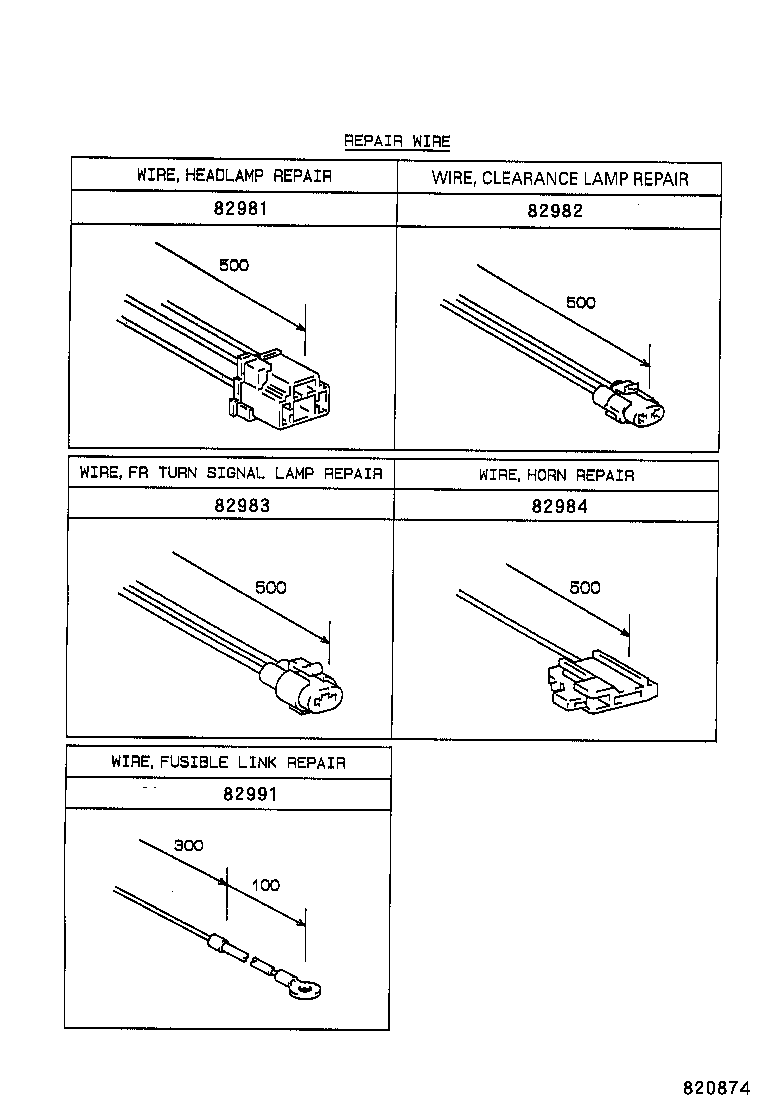

REPAIR WIRE

Part #	Description	Period	Qty
82981 - WIRE, HEADLAMP REPAIR
82981-10010	EP8#	09/1990 - 12/2999	1
82982 - WIRE, CLEARANCE LAMP REPAIR
82985-18010	EP8#	09/1990 - 12/2999	1
82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR
82983-10020	EP8#	09/1990 - 12/2999	1
82984 - WIRE, HORN REPAIR
82984-20010	EP8#	09/1990 - 12/2999	1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-18010	EP8#	09/1990 - 12/2999	1

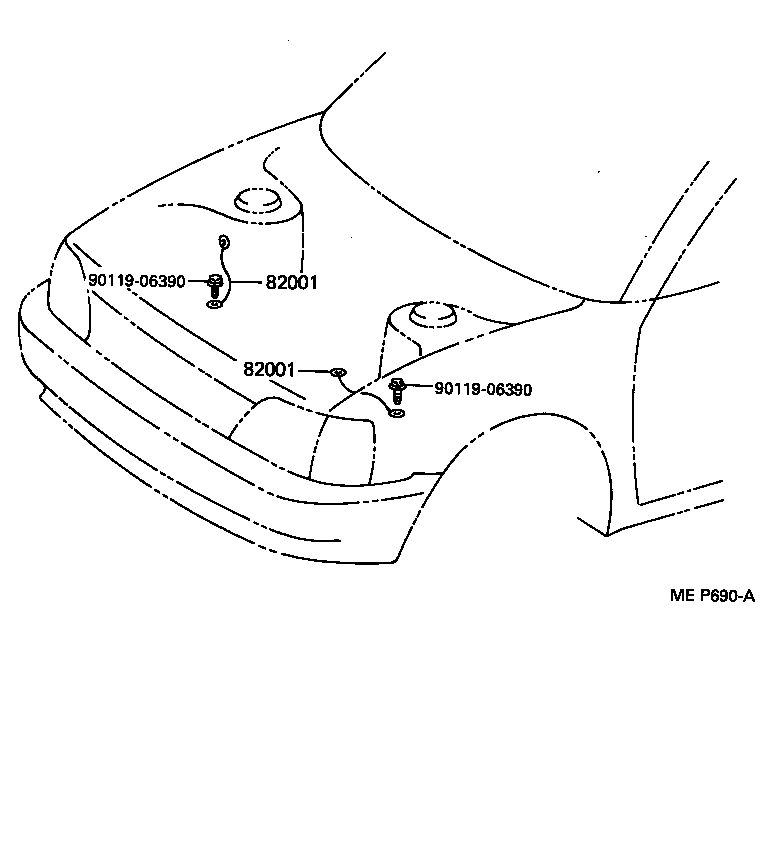

ILLUST NO. 5 OF 6(8912- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07318	EP8# FENDER,LH	12/1989 - 12/2999	1
90980-07241	EP8# FENDER,RH	12/1989 - 12/2999	1
82001 - CABLE, BOND, NO.1
90980-07318	EP8# FENDER,LH	12/1989 - 12/2999	1
90980-07241	EP8# FENDER,RH	12/1989 - 12/2999	1
Common parts
90119-06390

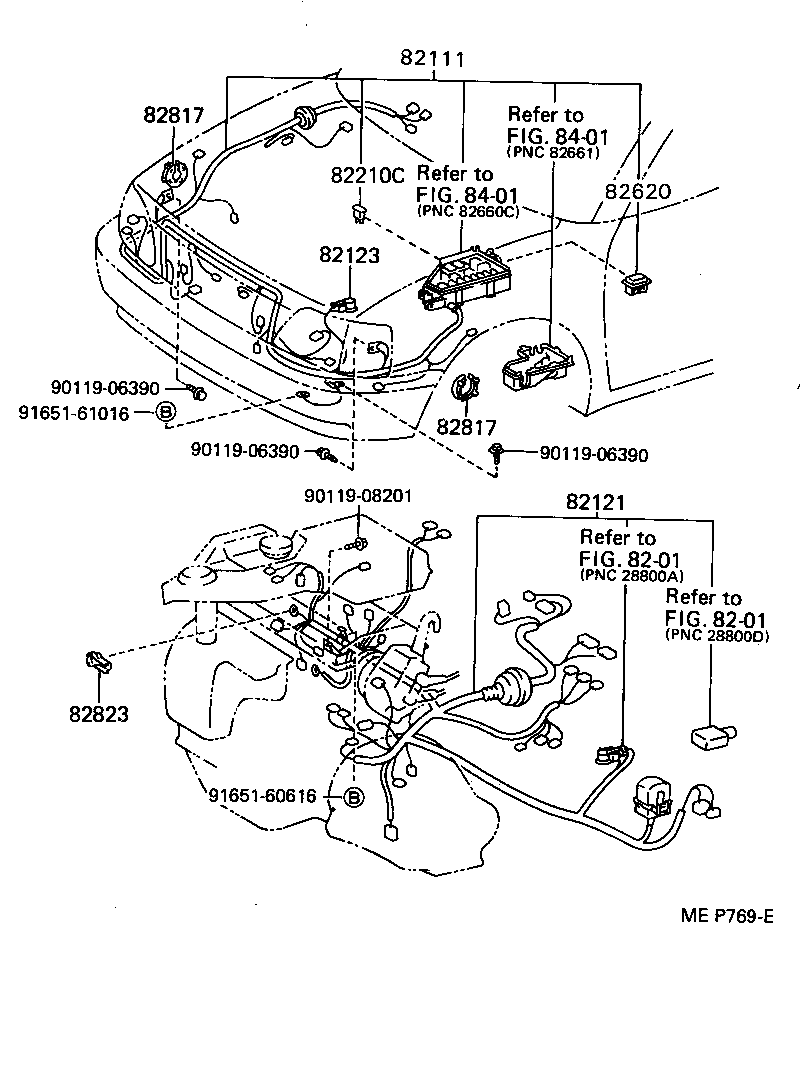

ILLUST NO. 1 OF 6(8912-9601)LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-10390	EP8#..LHD	12/1989 - 01/1992	1
82111-10770	EP80,81..LHD W(AIR CONDITIONER)	01/1992 - 12/1992	1
82111-10410	EP8#..LHD W(AIR CONDITIONER)	12/1989 - 01/1992	1
82111-10631	EP80,81..LHD	12/1992 - 05/1994	1
82111-10630	EP80,81..LHD	01/1992 - 12/1992	1
82111-10773	EP80,81..LHD W(AIR CONDITIONER)	05/1994 - 01/1996	1
82111-10771	EP80,81..LHD W(AIR CONDITIONER)	12/1992 - 12/1993	1
82111-10772	EP80,81..LHD W(AIR CONDITIONER)	12/1993 - 05/1994	1
82111-10632	EP80,81..LHD	05/1994 - 01/1996	1
82121 - WIRE, ENGINE
82121-10770	EP80..LHD..S HEAT COUNTRY SPEC	12/1989 - 01/1992	1
82121-10710	EP81..5F;EP80..RHD;EP80..LHD..S	12/1989 - 01/1992	1
82121-10710	EP80..LHD..XL W/O(TACHOMETER) OR W(AIR CONDITIONER)	12/1989 - 01/1992	1
82121-1C030	EP80,81..MTM	01/1992 - 12/1992	1
82121-10710	EP80..LHD..S HEAT COUNTRY SPEC & W(AIR CONDITIONER)	12/1989 - 01/1992	1
82121-1C032	EP80,81..MTM	05/1994 - 12/2999	1
82121-1C031	EP80,81..MTM	12/1992 - 05/1994	1
82121-10770	EP80..LHD..(STD,XL)	12/1989 - 01/1992	1
82123 - WIRE, ENGINE, NO.3
82123-10060	EP80,81	12/1989 - 12/2999	1
82210C - FUSIBLE LINK
90982-08190	EP8# 60A,TERM.:FEMALE,YEL,PACIFIC	04/1990 - 01/1992	1
90982-08190	EP80,81;EP82..MTM 60A,TERM.:FEMALE,YEL	01/1992 - 12/2999	1
90982-08218	EP8# 60A,TERM.:FEMALE,YEL,YAZAKI	04/1990 - 01/1992	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-32010	EP8#	12/1989 - 08/1994	2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-32010	EP8#	12/1989 - 08/1994	2
82823 - CAP, TERMINAL, NO.1
82823-22050	EP8#	12/1989 - 12/2999	1
Common parts
90119-06390
90119-08201
91651-60616
91651-61016
Linked diagrams
8201
8401

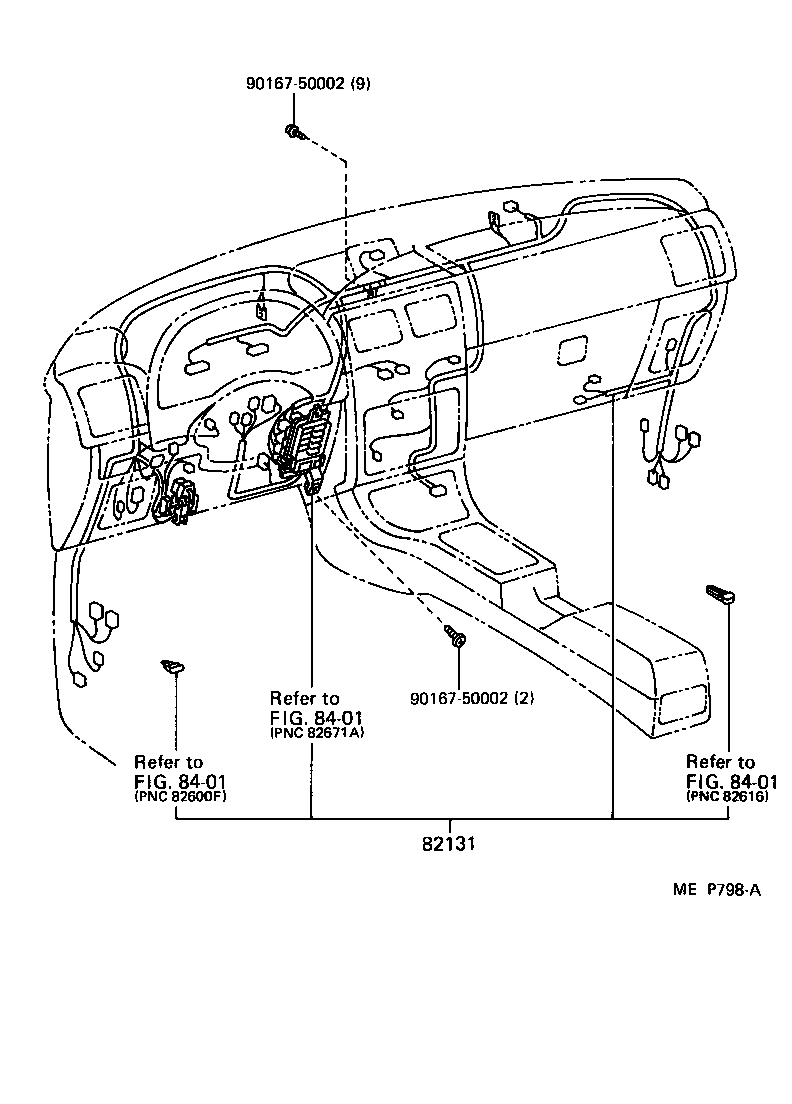

ILLUST NO. 3 OF 6(8912-9601)LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-1C660	EP8#..LHD	12/1989 - 09/1990	1
82131-1M060	EP8#..LHD..S HEAT COUNTRY SPEC	12/1989 - 01/1992	1
82131-1M060	EP8#..LHD..XL W(EL) OR W(SNR) OR W(AIR CONDITIONER)	12/1989 - 01/1992	1
82131-1M080	EP8#..LHD..S W(EL) OR W(SNR) OR W(AIR CONDITIONER)	12/1989 - 01/1992	1
82131-1C661	EP8#..LHD	09/1990 - 01/1992	1
82131-1M080	EP8#..LHD..XL W(TACHOMETER) & W(*SNR OR AIR CONDITIONER)	12/1989 - 01/1992	1
82131-1C680	EP8#..LHD..XL W(TACHOMETER)	12/1989 - 01/1992	1
82131-1M430	EP80,81..LHD..XL W(EL) OR W(SNR) OR W(AIR CONDITIONER)	01/1992 - 12/1992	1
82131-1M420	EP80,81..LHD	01/1992 - 12/1992	1
82131-1M431	EP80,81..LHD..XL W(EL) OR W(SNR) OR W(AIR CONDITIONER)	12/1992 - 05/1994	1
82131-1M421	EP80,81..LHD	12/1992 - 01/1996	1
82131-1M431	EP80,81..LHD..XL W(*EL) OR W(AIR CONDITIONER)	05/1994 - 01/1996	1
Common parts
90167-50002
Linked diagrams
8401

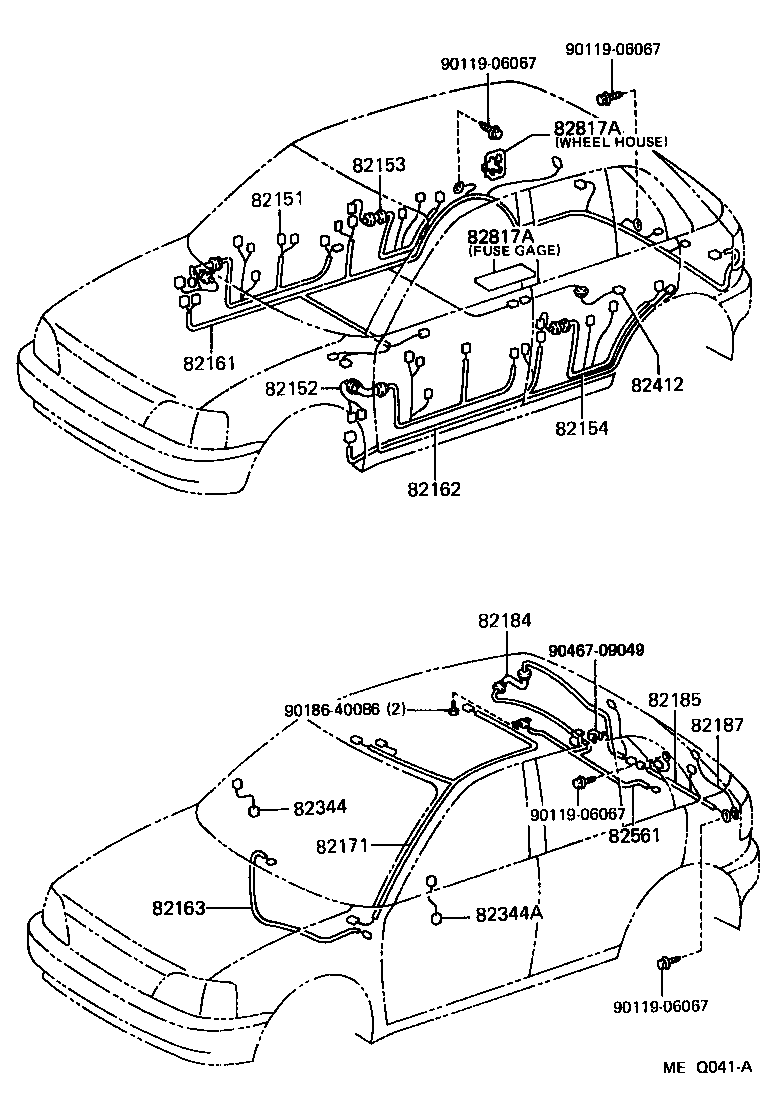

ILLUST NO. 4 OF 6(8912- )5D

Click highlighted areas on diagram

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-10160	EP8#..LHD..XL	12/1989 - 01/1992	1
82151-10170	EP8#..LHD..S W(POWER WINDOW & *EL)	12/1989 - 01/1992	1
82151-10270	EP80,81..LHD..XL W(*EL)	01/1992 - 01/1996	1
82151-10280	EP80,81..LHD..XL W(POWER WINDOW & *EL)	01/1992 - 01/1996	1
82151-10160	EP8#..LHD..S W(*EL)	12/1989 - 01/1992	1
82152 - WIRE, FRONT DOOR, LH
82152-10110	EP8#..LHD..S W(PW & EL)	12/1989 - 01/1992	1
82152-10100	EP8#..LHD..S W(*EL)	12/1989 - 01/1992	1
82152-10270	EP80,81..LHD..XL W(*EL)	01/1992 - 01/1996	1
82152-10100	EP8#..LHD..XL	12/1989 - 01/1992	1
82152-10290	EP80,81..LHD..XL W(PW & EL)	01/1992 - 01/1996	1
82153 - WIRE, REAR DOOR, NO.1
82153-10020	EP81..5D..XL;EP81..LHD..S;EP80..5D..(S,XL)	12/1989 - 01/1992	1
82153-10040	EP80,81..LHD..XL	01/1992 - 01/1996	1
82154 - WIRE, REAR DOOR, NO.2
82154-10020	EP81..5D..XL;EP81..LHD..S;EP80..5D..(S,XL)	12/1989 - 01/1992	1
82154-10040	EP81..LHD;EP80..5D..XL	01/1992 - 01/1996	1
82161 - WIRE, FLOOR
82161-10530	EP81..S;EP80..5D;EP81..5D..5F..XL	12/1989 - 02/1991	1
82161-10510	EP81..RHD..5D;EP80..5D..(S,XL) W(*EL)	12/1989 - 02/1991	1
82161-10531	EP81..S;EP80..5D;EP81..5D..5F..XL	02/1991 - 04/1991	1
82161-10511	EP81..RHD..5D;EP80..5D..(S,XL) W(*EL)	02/1991 - 04/1991	1
82161-10532	EP81..S;EP80..5D;EP81..5D..5F..XL	04/1991 - 01/1992	1
82161-10512	EP81..RHD..5D;EP80..5D..(S,XL) W(*EL)	04/1991 - 01/1992	1
82161-10740	EP80,81..MTM	01/1992 - 12/2999	1
82161-10760	EP80,81..5D..(S,XL) W(*EL)	01/1992 - 12/2999	1
82162 - WIRE, FLOOR, NO.2
82162-10171	EP8#..5D..(S,XL) W(*EL)	02/1991 - 01/1992	1
82162-10180	EP8#..5D	12/1989 - 02/1991	1
82162-10170	EP8#..5D..(S,XL) W(*EL)	12/1989 - 02/1991	1
82162-10230	EP80,81..LHD..5D	01/1992 - 05/1994	1
82162-10181	EP8#..5D	02/1991 - 01/1992	1
82162-10231	EP80,81..LHD..5D	05/1994 - 01/1996	1
82162-10200	EP80,81..5D..(S,XL) W(*EL)	01/1992 - 12/2999	1
82171 - WIRE, ROOF, NO.1
82171-10090	EP8#..LHD..(S,XL) W(MOON ROOF)	12/1989 - 02/1990	1
82171-10091	EP8#..LHD..(S,XL) W(MOON ROOF)	02/1990 - 01/1992	1
82171-10081	EP80,81..LHD	02/1990 - 05/1994	1
82171-10080	EP8#..LHD	12/1989 - 02/1990	1
82171-10082	EP80,81..LHD	05/1994 - 01/1996	1
82171-10120	EP80,81..LHD..XL W(MOON ROOF)	01/1992 - 05/1994	1
82184 - WIRE, BACK DOOR, NO.1
82184-10100	EP80;EP81..5D;EP81..3D..XL W(REAR WINDOW DEFOGGER & REAR WIPER)	12/1989 - 01/1992	1
82184-10090	EP80,81;EP82..SOL W(REAR WINDOW DEFOGGER)	12/1989 - 12/2999	1
82184-10140	EP80,81..5D;EP80..3D..STD W(REAR WINDOW DEFOGGER & REAR WIPER)	01/1992 - 12/1992	1
82184-10140	EP80..3D..STD;EP81..LHD..3FC;EP80,81..5D..MTM W(REAR WINDOW DEFOGGER & REAR WIPER)	12/1992 - 12/2999	1
82184-10110	EP80,81..S,XL W(RWD & CENTER STOP LAMP(SPOILER) & RW)	01/1992 - 12/2999	1
82185 - WIRE, BACK DOOR, NO.2
82185-10020	EP8#..5D;EP80..LHD..3D	12/1989 - 01/1992	1
82185-10030	EP80,81..S,XL W(CENTER STOP LAMP(SPOILER) & *RW)	01/1992 - 12/2999	1
82185-10020	EP82..5D;EP80,81..S,XL W(REAR WIPER)	01/1992 - 12/2999	1
82187 - WIRE, REAR WINDOW, NO.2
82187-10020	EP8#	12/1989 - 12/2999	1
82412 - WIRE, FUEL GAGE
82412-10070	EP80,81..S	12/1989 - 12/2999	1
82412-10030	EP8#..LHD..S HEAT COUNTRY SPEC	12/1989 - 01/1992	1
82412-10070	EP8#..LHD..XL W(TACHOMETER)	12/1989 - 01/1992	1
82412-10070	EP80,81..XL W(TACHOMETER)	01/1992 - 12/2999	1
82412-10030	EP80,81..STD,XL	12/1989 - 12/2999	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-10180	EP82;EP80,81..5D	01/1992 - 05/1994	1
82817-10180	EP80,81..5D..(S,XL) W(RWD & RW) OR W(RWD & HSL & *RW)	01/1992 - 05/1994	1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-10180	EP82;EP80,81..5D	01/1992 - 05/1994	1
82817-10180	EP80,81..5D..(S,XL) W(RWD & RW) OR W(RWD & HSL & *RW)	01/1992 - 05/1994	1
Common parts
90119-06067
90186-40086
90467-09049

ILLUST NO. 2 OF 6(8912- )

Click highlighted areas on diagram

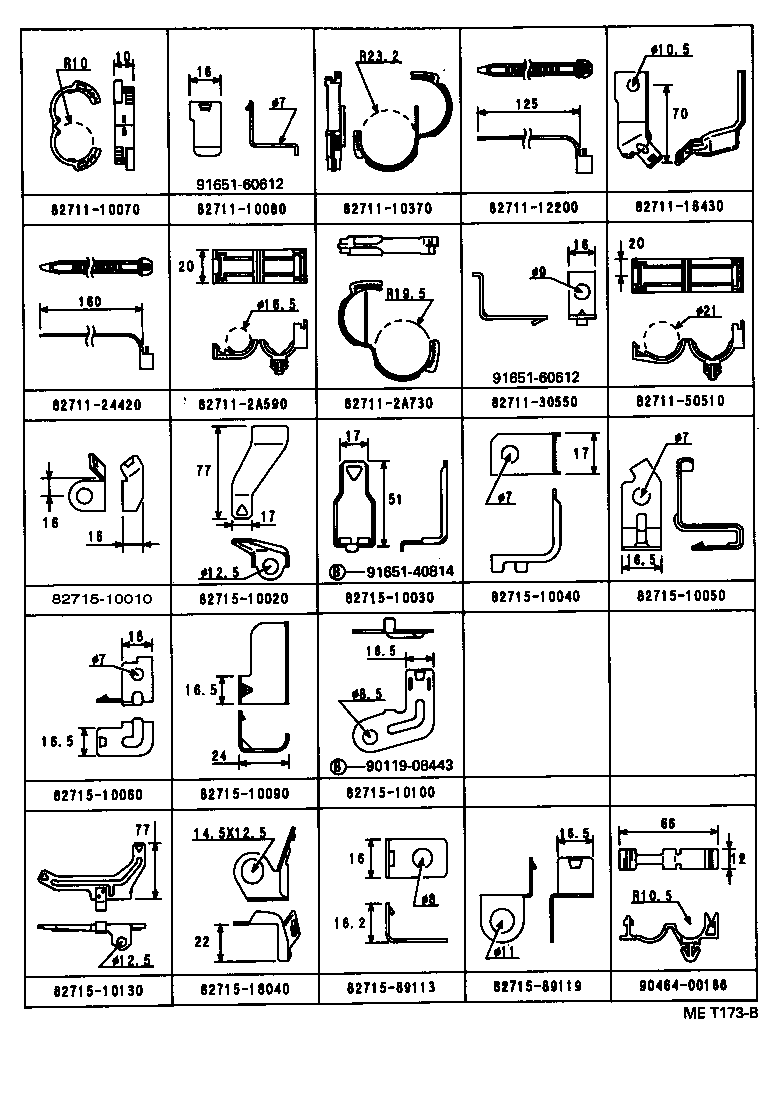

CLAMP

Part #	Description	Period	Qty	Price
Common parts
82711-10070
82711-10080
82711-10370
82711-12200
82711-16430
82711-24420
82711-2A590
82711-2A730
82711-30550
82711-50510
82715-10010
82715-10020
82715-10030
82715-10040
82715-10050
82715-10060
82715-10090
82715-10100
82715-10130
82715-18040
82715-89113
82715-89119
90119-08443
90464-00166
91651-40814
91651-60612
