EP80L-AHMNS (1989)

Toyota Starlet

Production Dec 1989 - Jan 1996
Engine 1E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8912- )LHD

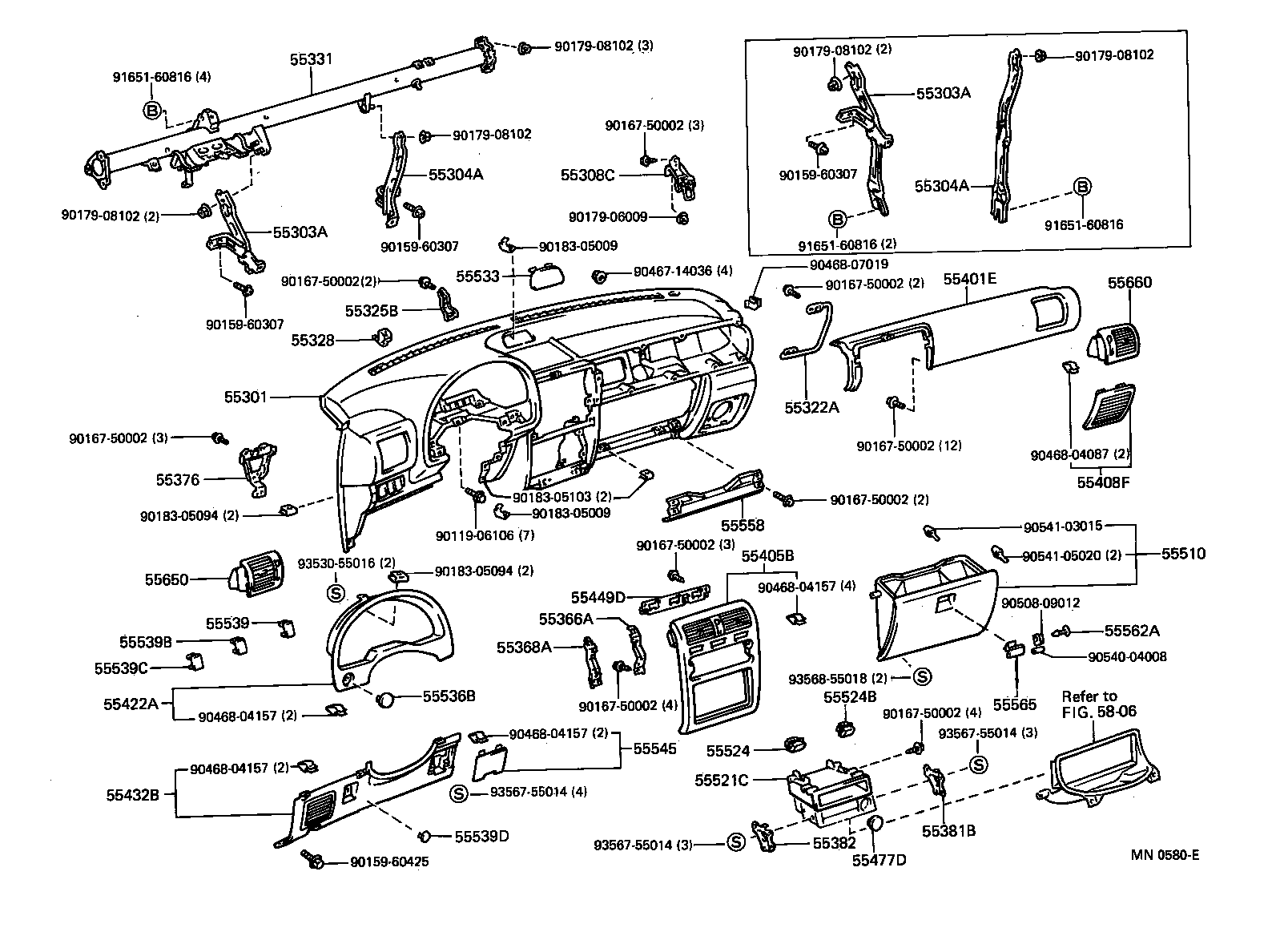

Click highlighted areas on diagram

diagram 55301 55303A 55303A 55304A 55304A 55308C 55322A 55325B 55328 55331 55366A 55368A 55376 55381B 55382 55401E 55405B 55408F 55422A 55432B 55449D 55477D 55510 55521C 55524 55524B 55533 55536B 55539 55539B 55539C 55539D 55545 55558 55562A 55565 55650 55660 5806 9011906106 9015960307 9015960307 9015960307 9015960425 9016750002 9016750002 9016750002 9016750002 9016750002 9016750002 9016750002 9016750002 9016750002 9017906009 9017908102 9017908102 9017908102 9017908102 9017908102 9018305009 9018305009 9018305094 9018305094 9018305103 9046714036 9046804087 9046804157 9046804157 9046804157 9046804157 9046807019 9050809012 9054004008 9054103015 9054105020 9165160816 9165160816 9165160816 9353055016 9356755014 9356755014 9356755014 9356855018
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55311-1019004

EP8#..LHD..(S,XL)

BLUE,TRIM8#

 1
55311-1019003

EP80,81..LHD

GRAY,TRIM1#

 1
55311-10190E0

EP80,81..LHD..XL

OAK,TRIM4#

 1
55303A - STAY SUB-ASSY, INSTRUMENT PANEL
55303-10120

EP80,81..LHD

W(FULL CONSOLE BOX OR SEMI CONSOLE BOX)

 1
55303-10110

EP80,81..LHD

 1
55303A - STAY SUB-ASSY, INSTRUMENT PANEL
55303-10120

EP80,81..LHD

W(FULL CONSOLE BOX OR SEMI CONSOLE BOX)

 1
55303-10110

EP80,81..LHD

 1
55304A - STAY SUB-ASSY, INSTRUMENT PANEL, CENTER
55304-10070

EP80,81..LHD

 1
55304-10080

EP80,81..LHD

W(FULL CONSOLE BOX OR SEMI CONSOLE BOX)

 1
55304A - STAY SUB-ASSY, INSTRUMENT PANEL, CENTER
55304-10070

EP80,81..LHD

 1
55304-10080

EP80,81..LHD

W(FULL CONSOLE BOX OR SEMI CONSOLE BOX)

 1
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-10070

EP8#

 1
55322A - BRACKET, INSTRUMENT PANEL, NO.2
55322-10080

EP80,81..LHD

 1
55325B - BRACKET, INSTRUMENT PANEL, NO.5
55325-10090

EP8#

 1
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-10030

EP8#

 1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-10120

EP80,81..LHD

 1
55330-10090

EP8#..LHD

 1
55366A - BRACKET, RADIO MOUNTING, NO.1
55366-10030

EP8#

 1
55368A - BRACKET, RADIO MOUNTING, NO.2
55368-10030

EP8#

 1
55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55376-10030

EP80,81..LHD

 1
55381B - BRACKET, FINISH PANEL MOUNTING, NO.1
55381-10050

EP8#

 1
55382 - BRACKET, FINISH PANEL MOUNTING, NO.2
55382-10040

EP8#

 1
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-1024004

EP8#..LHD..(S,XL)

BLUE,TRIM8#

 1
55401-10240E0

EP80,81..LHD..XL

OAK,TRIM4#

 1
55401-1024003

EP80,81..LHD

GRAY,TRIM1#

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-10300

EP8#

 1
55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55472-1003004

EP8#..LHD..(S,XL)

BLUE,TRIM8#

 1
55472-1003003

EP80,81..LHD

GRAY,TRIM1#

 1
55472-10030E0

EP80,81..LHD..XL

OAK,TRIM4#

 1
55422A - PANEL, INSTRUMENT CLUSTER FINISH, LOWER
55422-10110

EP80,81..LHD

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55432-1006004

EP8#..LHD..(S,XL)

BLUE,TRIM8#

 1
55432-10060E0

EP80,81..LHD..XL

OAK,TRIM4#

 1
55432-1006003

EP80,81..LHD

GRAY,TRIM1#

 1
55449D - BASE, SWITCH
55449-10070

EP8#

 1
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-1007003

EP8#

GRAY,TRIM1#

 1
55550-10070E0

EP8#..SOLL,XL

OAK,TRIM4#

 1
55550-1007004

EP8#..S,XL

BLUE,TRIM8#

 1
55521C - COVER, STEREO OPENING
55521-16030

EP8#

 1
55524 - COVER, SWITCH BACE HOLE
55524-10010

EP8#

 1
55524B - COVER, SWITCH BASE HOLE
55524-10010

EP80,81;EP82..SOL

 1
55533 - COVER, AUTO CLOCK HOLE
55533-1005004

EP8#..LHD..(S,XL)

BLUE,TRIM8#

 1
55533-10050E0

EP80,81..LHD..XL

OAK,TRIM4#

 1
55533-1005003

EP80,81..LHD

GRAY,TRIM1#

 1
55536B - COVER, LIGHT CONTROL SWITCH HOLE
55536-10010

EP82;EP81..5D;EP80..LHD..S;EP80..STD,XL;EP81..3D..XL

 1
55539 - COVER, SPARE SWITCH HOLE
55539-1004004

EP8#..S,XL

BLUE,TRIM8#

 1
55539-1004003

EP80,81;EP82..5D

GRAY,TRIM1#

 1
55539-1004003

EP8#

GRAY,TRIM1#

 1
55539-10040E0

EP8#..SOLL,XL

OAK,TRIM4#

 1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-10040E0

EP8#..SOLL,XL

OAK,TRIM4#

 1
55539-1004004

EP8#..S,XL

BLUE,TRIM8#

 1
55539-1004003

EP8#

GRAY,TRIM1#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-1004004

EP8#..S,XL

BLUE,TRIM8#

 1
55539-10040E0

EP8#..SOLL,XL

OAK,TRIM4#

 1
55539-1004003

EP8#

GRAY,TRIM1#

 1
55539D - COVER, SPARE SWITCH HOLE
55617-1001023

EP8#..SOLL,XL

GRAY,TRIM1#,4#

 1
55617-1001023

EP8#..CAN,S,SOL,STD

GRAY,TRIM1#

 1
55617-1001023

EP8#

GRAY,TRIM1#

 1
55617-1001023

EP8#..CAN,S,SOL,STD,XL

GRAY,TRIM1#

 1
55545 - COVER, FUSE BOX OPENING
55545-10140B0

EP80,81..LHD

GRAY,TRIM1#

 1
55545-1008003

EP8#

GRAY,TRIM1#

 1
55545-1008004

EP8#..S,XL

BLUE,TRIM8#

 1
55545-10140E0

EP80,81..LHD..XL

OAK,TRIM4#

 1
55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR
55558-10020

EP80,81..LHD

 1
55562A - LINK, GLOVE COMPARTMENT DOOR LOCK
55562-10010

EP8#

 2
55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK
55565-10010E0

EP8#..SOLL,XL

OAK,TRIM4#

 1
55565-1001004

EP8#..S,XL

BLUE,TRIM8#

 1
55565-1001003

EP8#

SHADOW GRAY,TRIM1#

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-1010004

EP8#..LHD..(S,XL)

BLUE,TRIM8#

 1
55650-10101P0

EP80,81..LHD

GRAY,TRIM1#

 1
55650-1010003

EP80,81..LHD

GRAY,TRIM1#

 1
55650-10101E0

EP80,81..LHD..XL

OAK,TRIM4#

 1
55650-10100E0

EP80,81..LHD..XL

OAK,TRIM4#

 1
55650-10102P0

EP80,81..LHD

GRAY,TRIM1#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-1003004

EP8#..LHD..(S,XL)

BLUE,TRIM8#

 1
55660-1003003

EP80,81..LHD

GRAY,TRIM1#

 1
55660-10031P0

EP80,81..LHD

GRAY,TRIM1#

 1
55660-10030E0

EP80,81..LHD..XL

OAK,TRIM4#

 1
55660-10032P0

EP80,81..LHD

GRAY,TRIM1#

 1
55660-10031E0

EP80,81..LHD..XL

OAK,TRIM1#

 1
Common parts
90119-06106
90159-60307
90159-60425
90167-50002
90179-06009
90179-08102
90183-05009
90183-05094
90183-05103
90467-14036
90468-04087
90468-04157
90468-07019
90508-09012
90540-04008
90541-03015
90541-05020
91651-60816
93530-55016
93567-55014
93568-55018
Linked diagrams
5806
