EP80L-AHMNS (1989)
Toyota Starlet
Production
Dec 1989
-
Jan 1996
Engine
1E
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8912- )

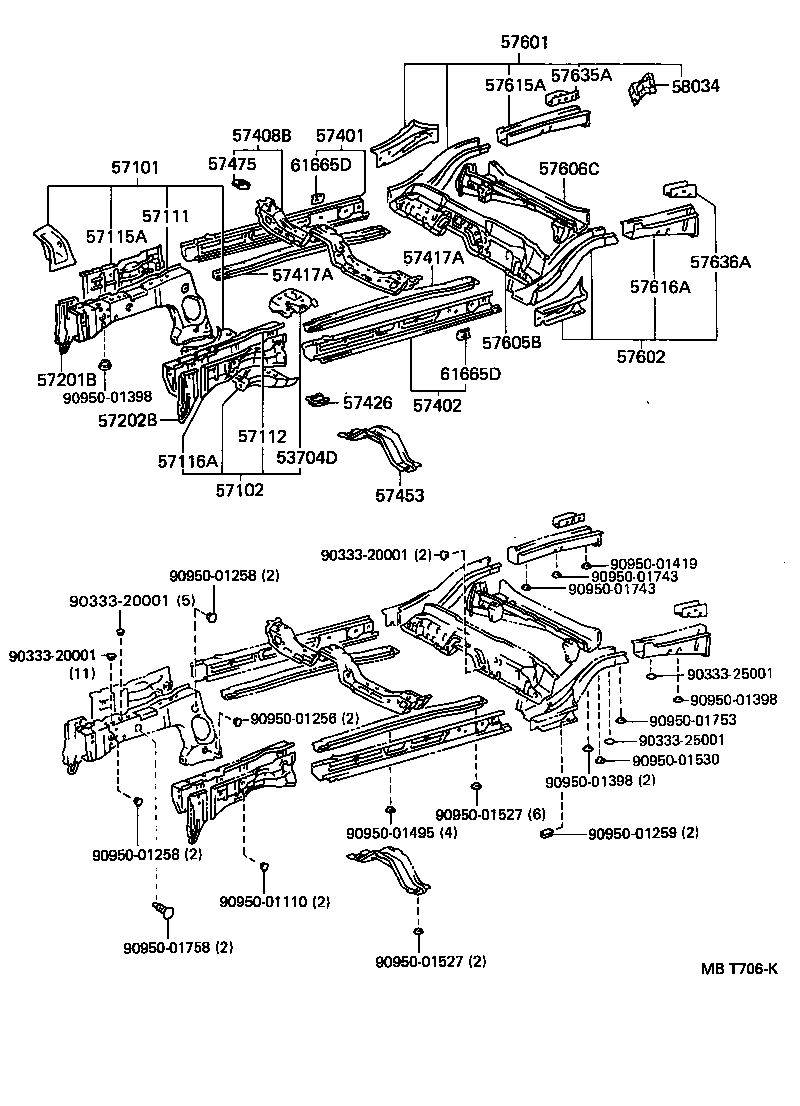

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53704D - SUPPORT SUB-ASSY, BATTERY, LH | ||||
| 53704-10030 |
EP80,81 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-10300 |
EP80;EP81..5D..5F;EP81..3D..XL SEVERE USAGE PACKAGE |
1 | ||
| 57101-10260 |
EP8# |
1 | ||
| 57101-10270 |
EP8# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-10300 |
EP8#..MTM |
1 | ||
| 57102-10320 |
EP80,81..MTM |
1 | ||
| 57102-10360 |
EP80;EP81..5D..5F;EP81..3D..XL SEVERE USAGE PACKAGE |
1 | ||
| 57102-10320 |
EP80,81 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-10200 |
EP80;EP81..5D..5F;EP81..3D..XL SEVERE USAGE PACKAGE |
1 | ||
| 57111-10190 |
EP8# |
1 | ||
| 57111-10200 |
EP8# |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-10170 |
EP8# |
1 | ||
| 57112-10180 |
EP8# |
1 | ||
| 57112-10180 |
EP80;EP81..5D..5F;EP81..3D..XL SEVERE USAGE PACKAGE |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-10050 |
EP8# |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-10050 |
EP8# |
1 | ||
| 57201B - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57201-10050 |
EP8# |
1 | ||
| 57202B - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57202-10050 |
EP8# |
1 | ||
| 57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57401-10130 |
EP8#..5D |
1 | ||
| 57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57402-10130 |
EP8#..5D |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-10070 |
EP8# |
1 | ||
| 57408-10070 |
EP80,82 |
1 | ||
| 57417A - REINFORCEMENT, FRONT FLOOR UNDER | ||||
| 57417-10070 |
EP8# |
2 | ||
| 57417A - REINFORCEMENT, FRONT FLOOR UNDER | ||||
| 57417-10070 |
EP8# |
2 | ||
| 57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH | ||||
| 57426-10010 |
EP8# |
1 | ||
| 57453 - MEMBER, FRONT FLOOR CROSS, NO.3 | ||||
| 57453-10020 |
EP8# |
1 | ||
| 57453-10021 |
EP8# |
1 | ||
| 57475 - PLATE, FRONT FLOOR CROSSMEMBER | ||||
| 57475-32010 |
EP8# |
2 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-10090 |
EP8# |
1 | ||
| 57601-10091 |
EP80,81 |
1 | ||
| 57601-10081 |
EP8# |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-10080 |
EP8# |
1 | ||
| 57602-10081 |
EP8# |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-16050 |
EP8# |
1 | ||
| 57605-10080 |
EP8# |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-10090 |
EP8# |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-10050 |
EP8# |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-10030 |
EP8# |
1 | ||
| 57635A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH | ||||
| 57635-10020 |
EP80,81 |
1 | ||
| 57636A - REINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH | ||||
| 57636-10010 |
EP8# |
1 | ||
| 58034 - BRACKET SUB-ASSY, EXHAUST PIPE SUPPORT, REAR | ||||
| 58034-10010 |
EP8# |
1 | ||
| 61665D - PLATE, SAFETY BELT ANCHORAGE | ||||
| 61665-22010 |
EP8# |
2 | ||
| 61665D - PLATE, SAFETY BELT ANCHORAGE | ||||
| 61665-22010 |
EP8# |
2 | ||
| Common parts | ||||
| 90333-20001 | ||||
| 90333-25001 | ||||
| 90950-01110 | ||||
| 90950-01256 | ||||
| 90950-01258 | ||||
| 90950-01259 | ||||
| 90950-01398 | ||||
| 90950-01419 | ||||
| 90950-01495 | ||||
| 90950-01527 | ||||
| 90950-01530 | ||||
| 90950-01743 | ||||
| 90950-01753 | ||||
| 90950-01758 | ||||
